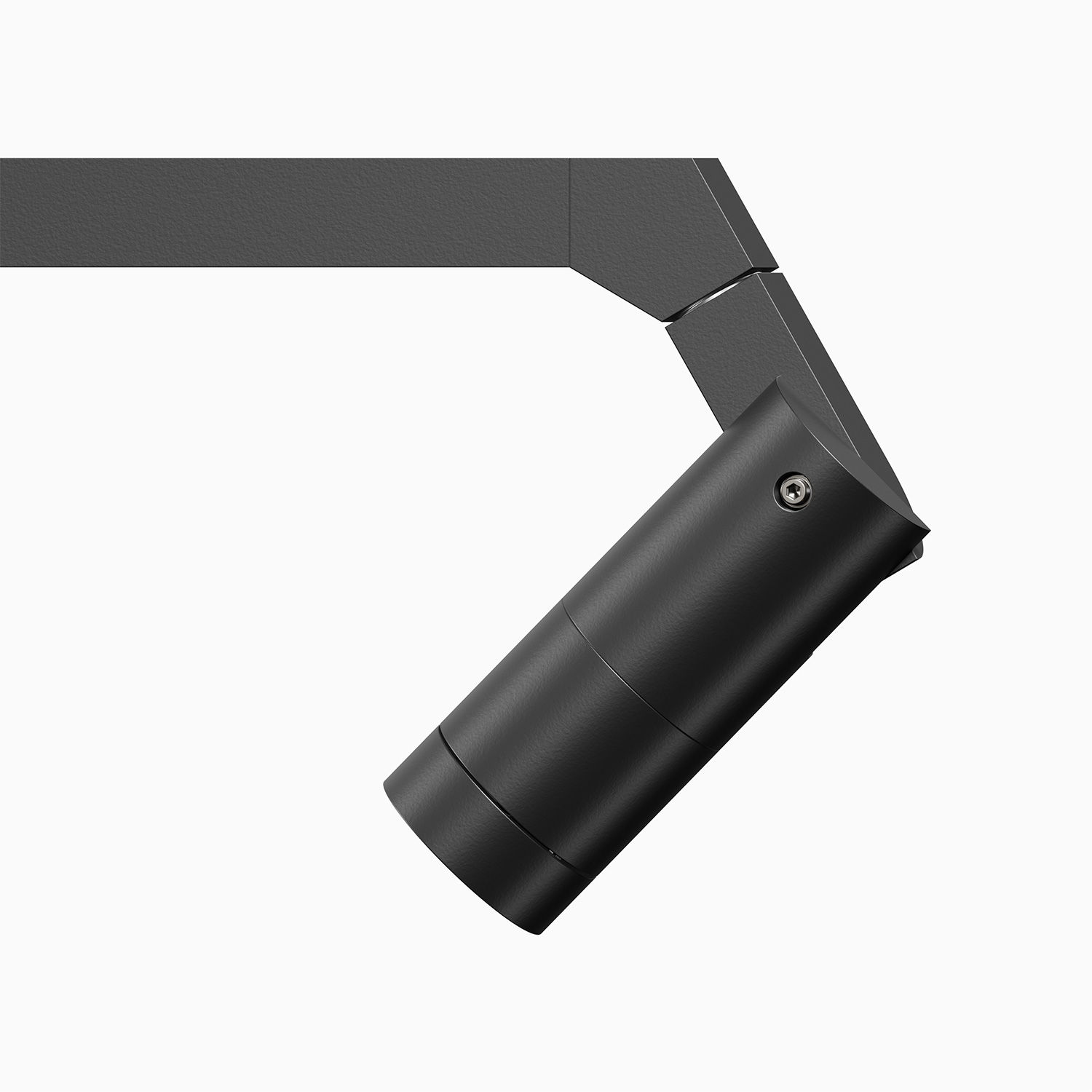

SIGN-1-GU10-SOi
Sign & Pole Mount • SIGN16 Series

SIGN-1-GU10-SOi

Sign & Pole Mount • SIGN16 Series

FEATURES:

  • 7.5 W or 9W SORAA® LED modular sign light.
  • 120V with GU10 lamp base.
  • Utilizes adjustable accent fixture head with directional light.
  • US patented integral SORAA heat sink.
  • Field changeable SORAA lamps and accessories.
  • ETL outdoor wet location listed. IP67 standard.
  • Machined from solid billet 6061-T6 corrosion resistant aluminum.
Specifications

Materials

Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.

Voltage

12V, 120V or 230V AC

Lamp Base/Socket

12V with GU5.3 socket, or 120V/230V with porcelain GU10 twist-lock socket.

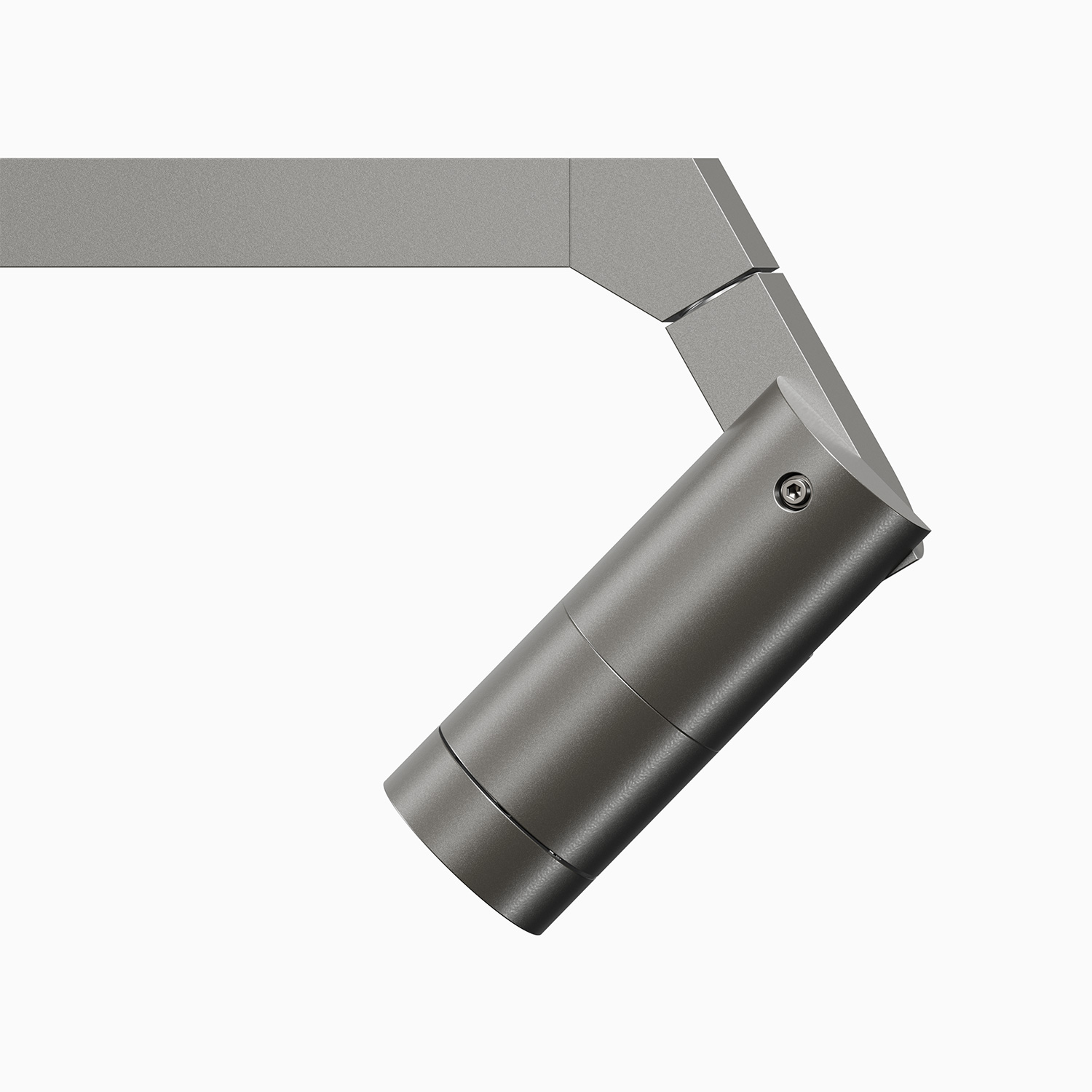

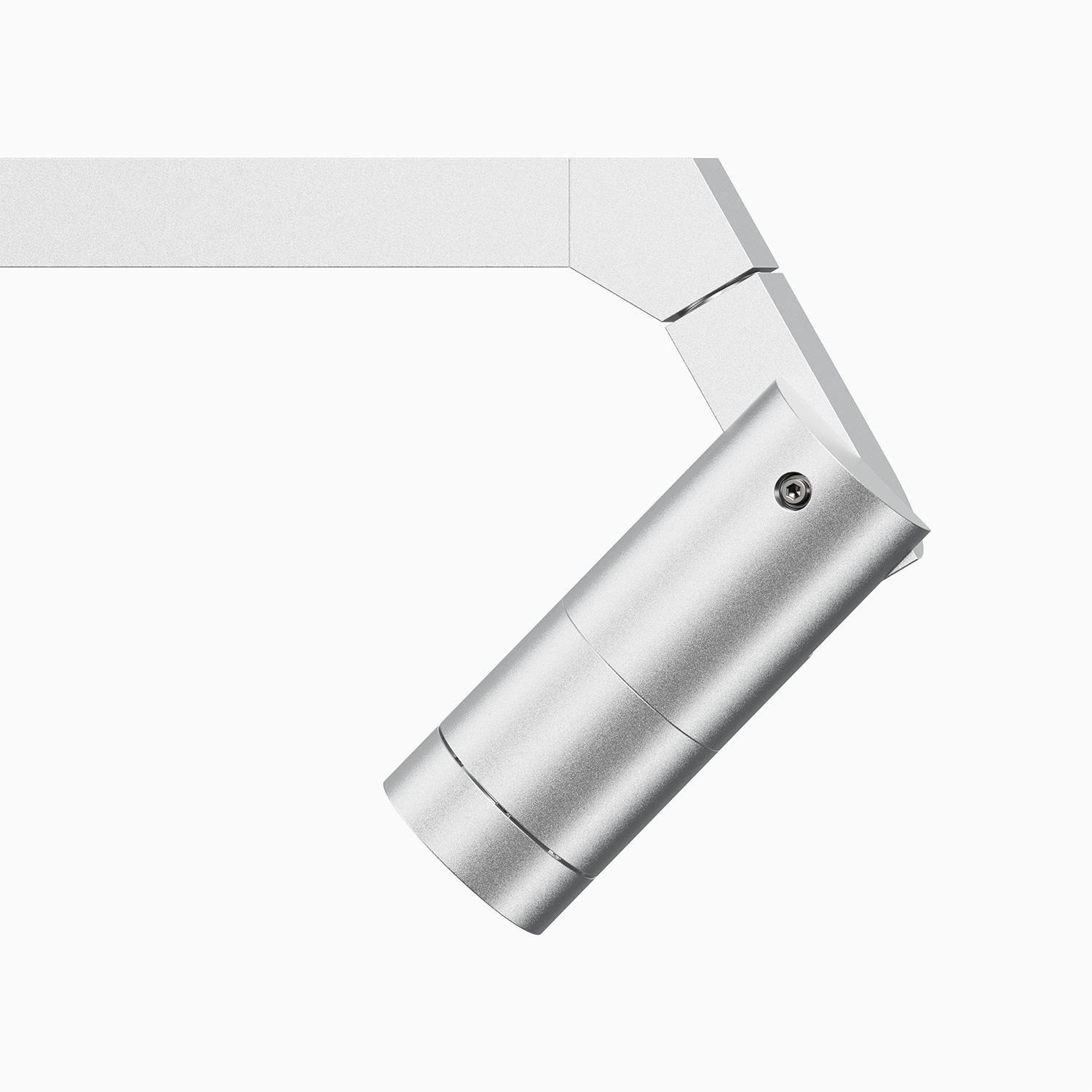

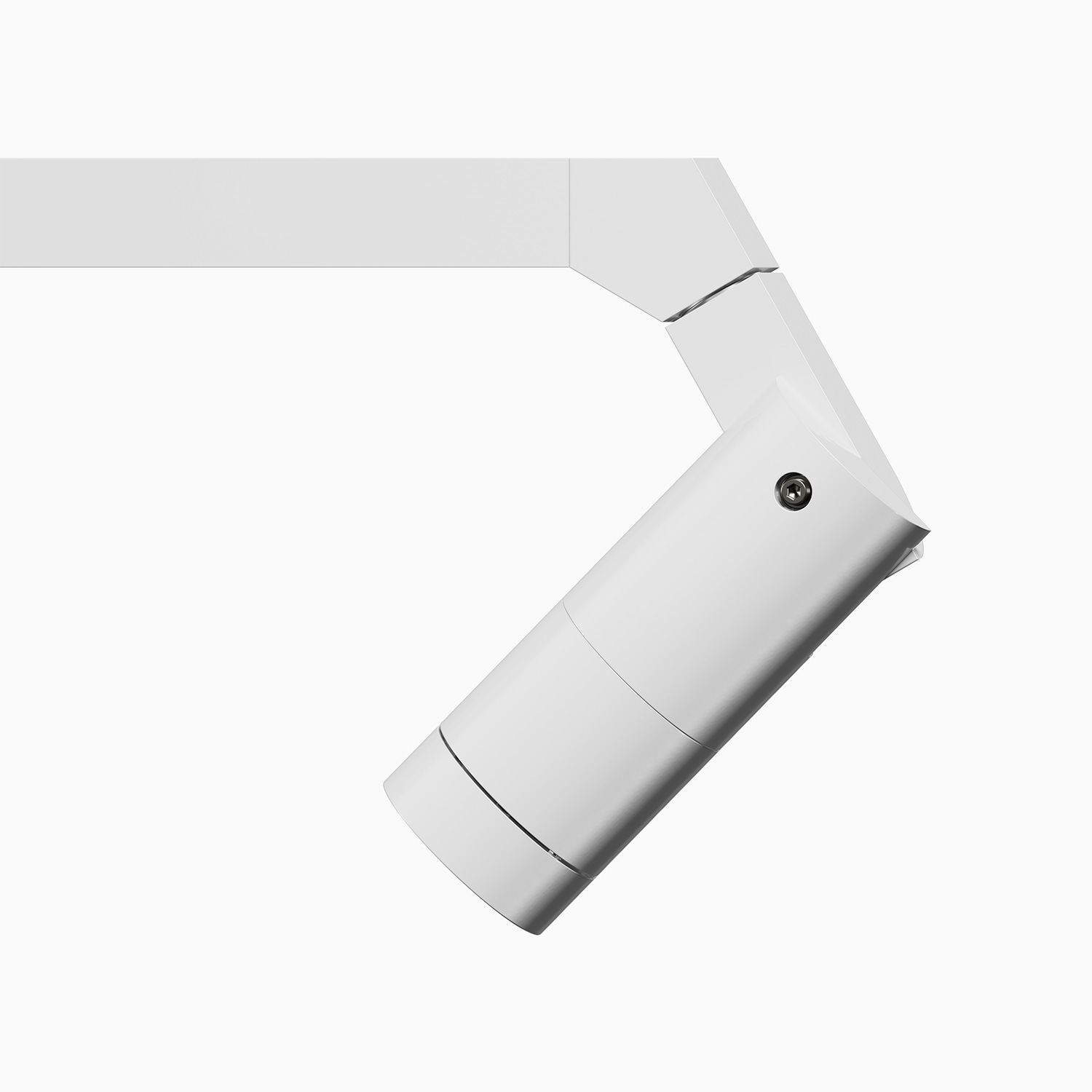

Finish

Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.

Wattage

Max. 9W for SORAA MR16 lamp with Thermobuster. Max. 50W for halogen MR16.

Optics

Accepts up to 3 accessory pieces (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.

Hood and Glare Shield

3 available hood options to suit any application. 3 optional glare shields (short, long, angled) to complement each hood choice. (See page 2 of Spec Sheet for details).

Light Engine

12V - MR16 Halogen lamp or MR16 SORAA LED lamp. Line Voltage - MR16 GU10 Halogen lamp or MR16 GU10 SORAA LED lamp.

Dimming

12V - MLV or ELV. Line voltage - Phase.

Additional information

Light Source

Shape

Lumen Output

,

Input Voltage

,

Wattage

,

Compatible Accessories

GSL

Long

GSA

Angled

GSS

Short
Long
Angled
Short

LVR

Hexcel Louver

OSL

Overall Spread Lens

LSL

Linear Spread Lens

SOL

Solite Lens

DCF

Dichroic Filter

CM2

Canopy Mount

CM1

Canopy Mount

CM3

Canopy Mount

CM5

Canopy Mount
Surface Mount

CB4

Surface Mount
Surface Mount
Surface Mount
Surface Mount
Transformers
Transformers
Transformers
Transformers
Transformers
Transformers

IGT

Transformers
Transformers
