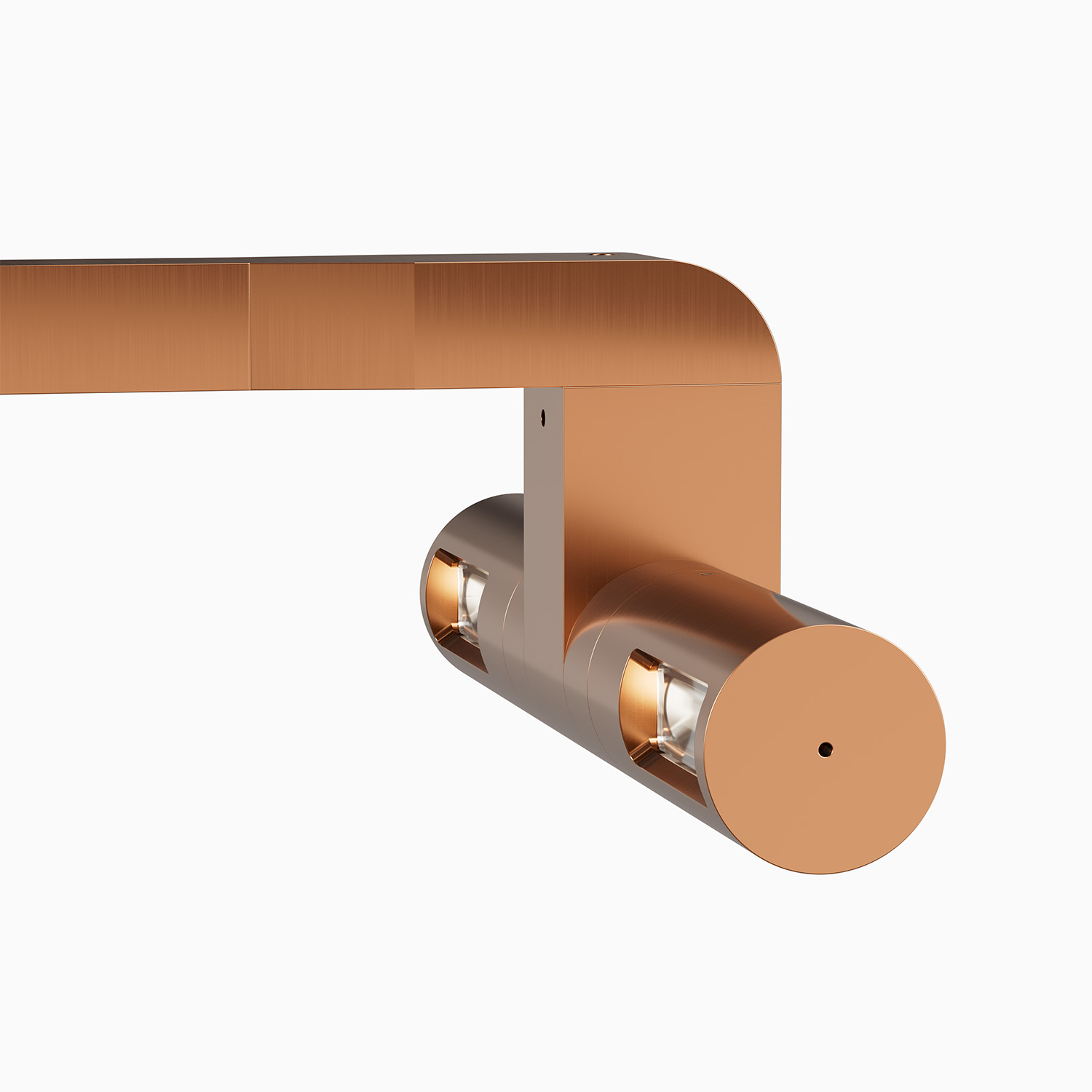

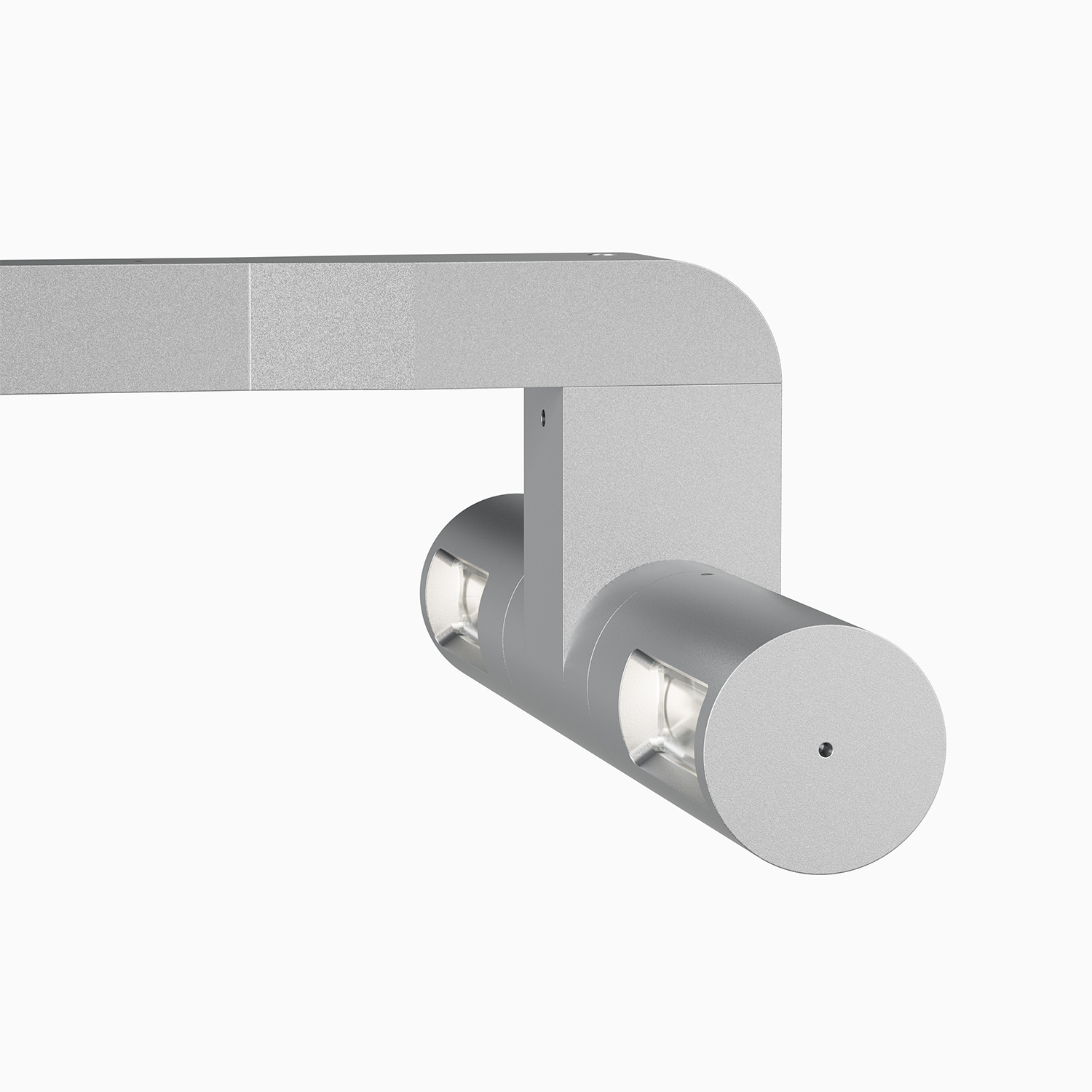

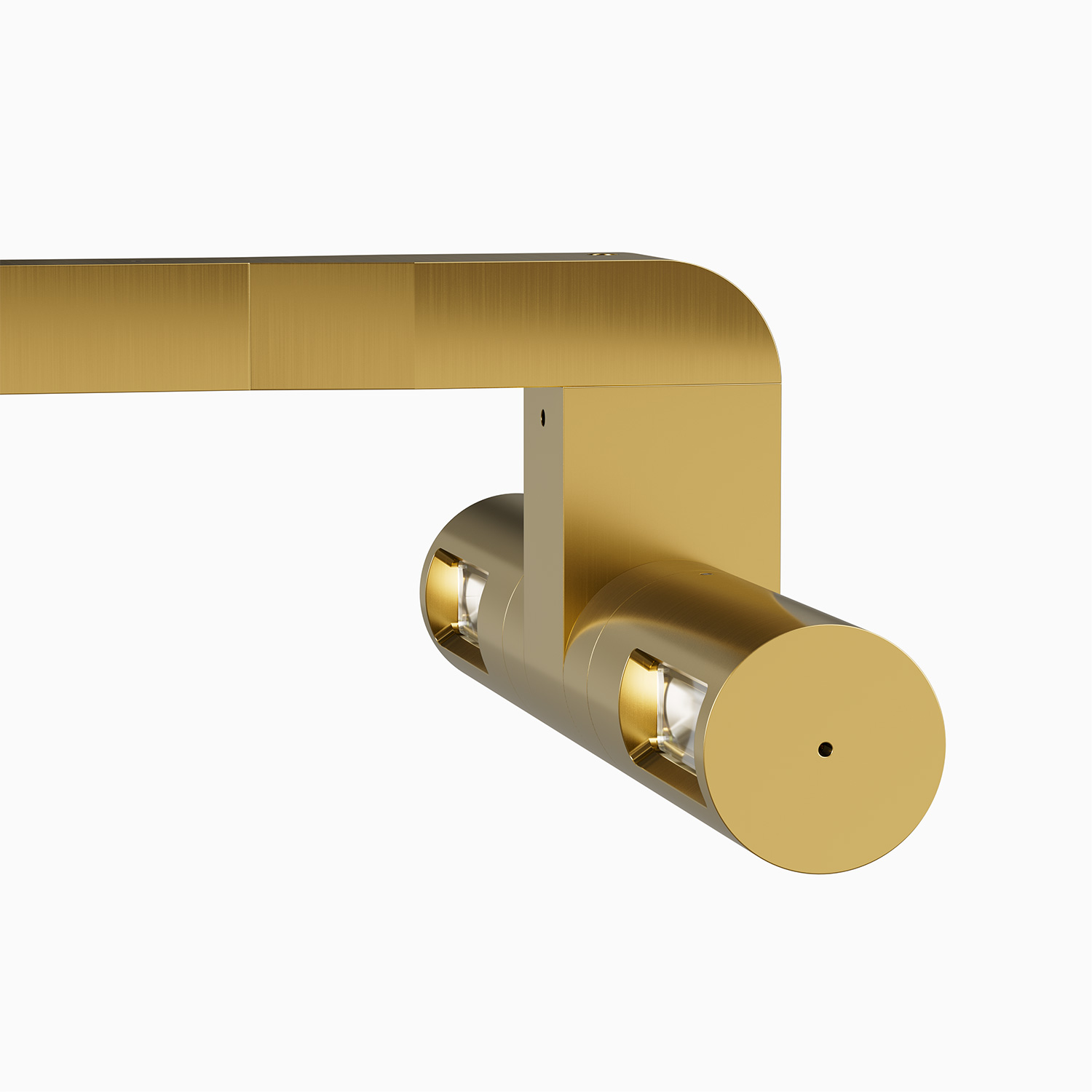

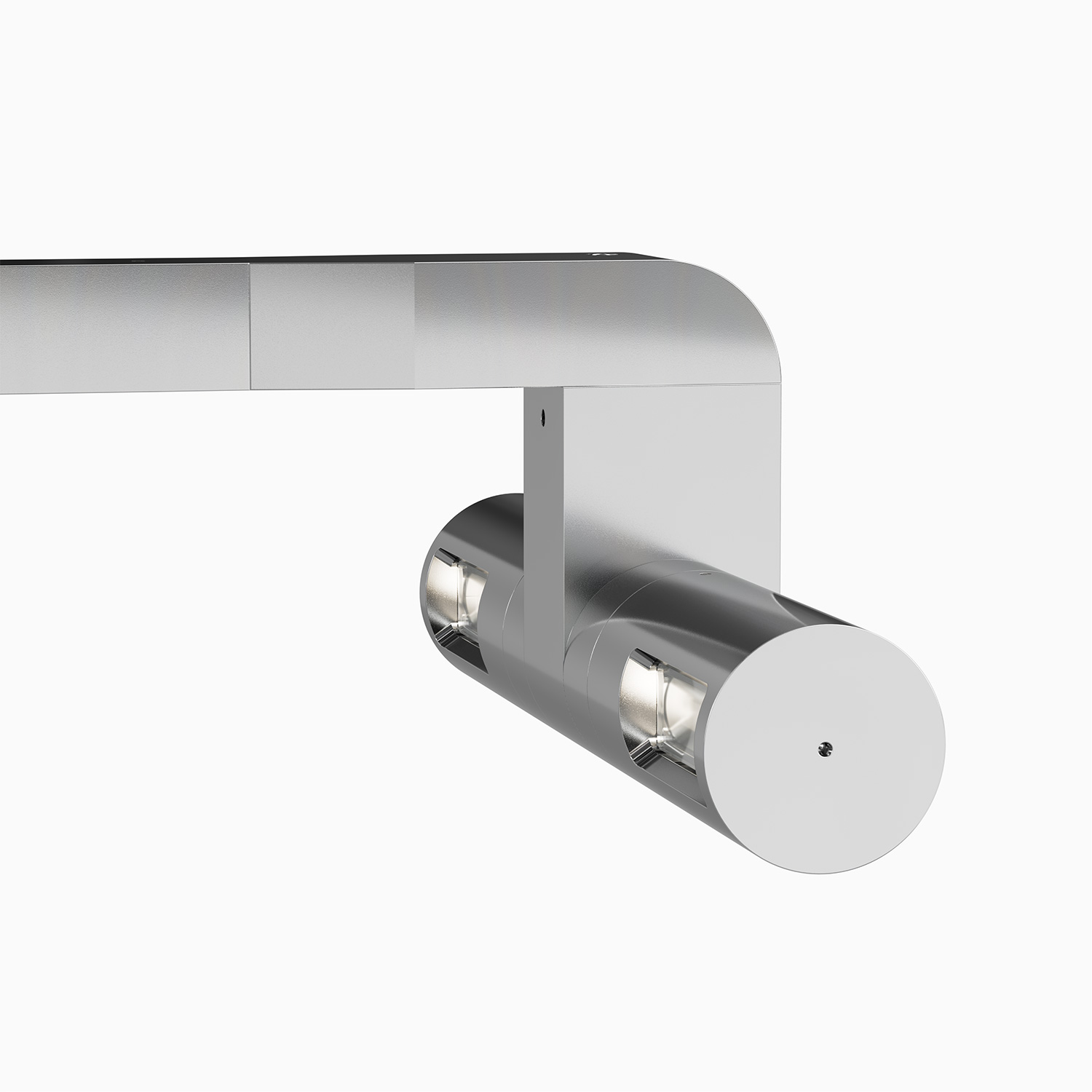

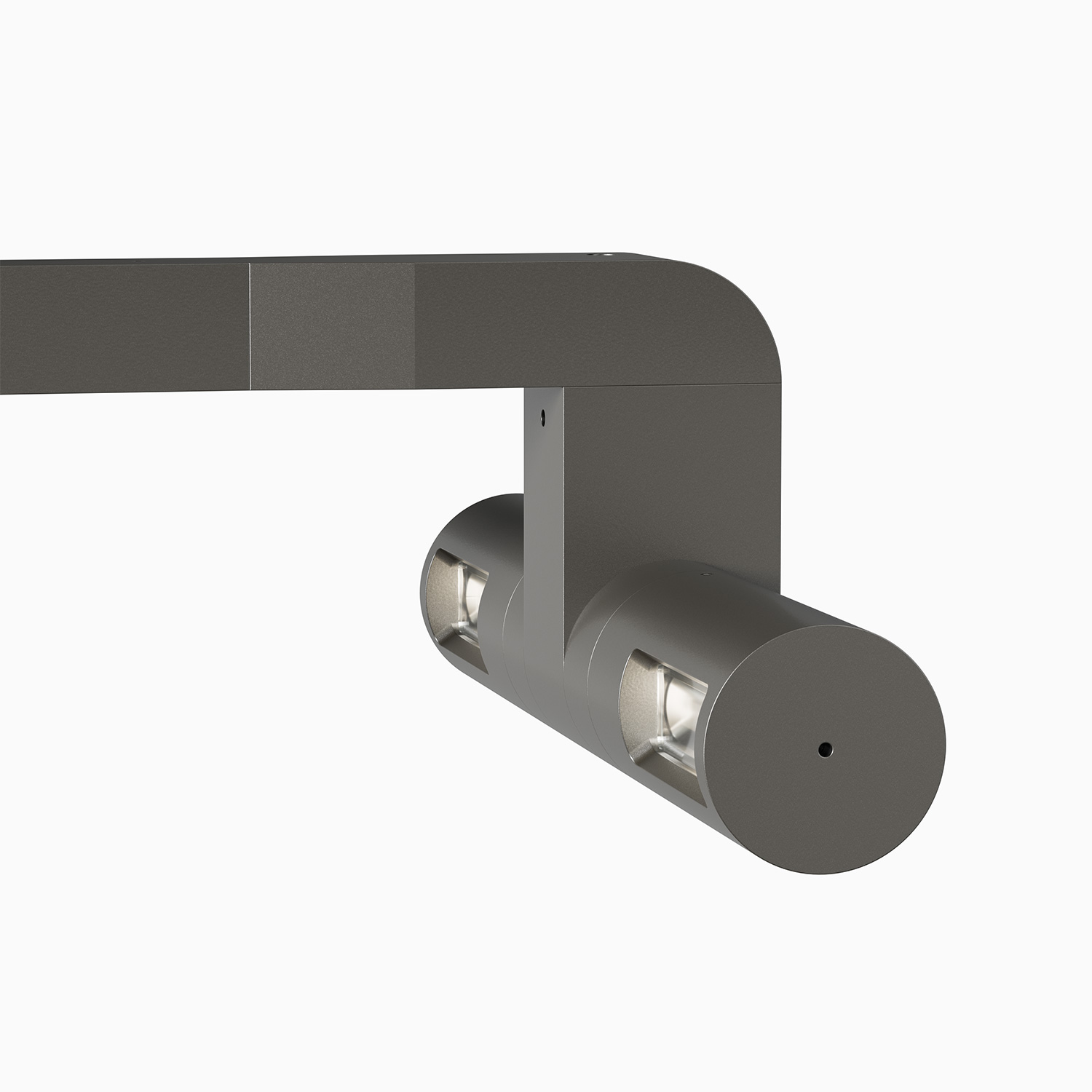

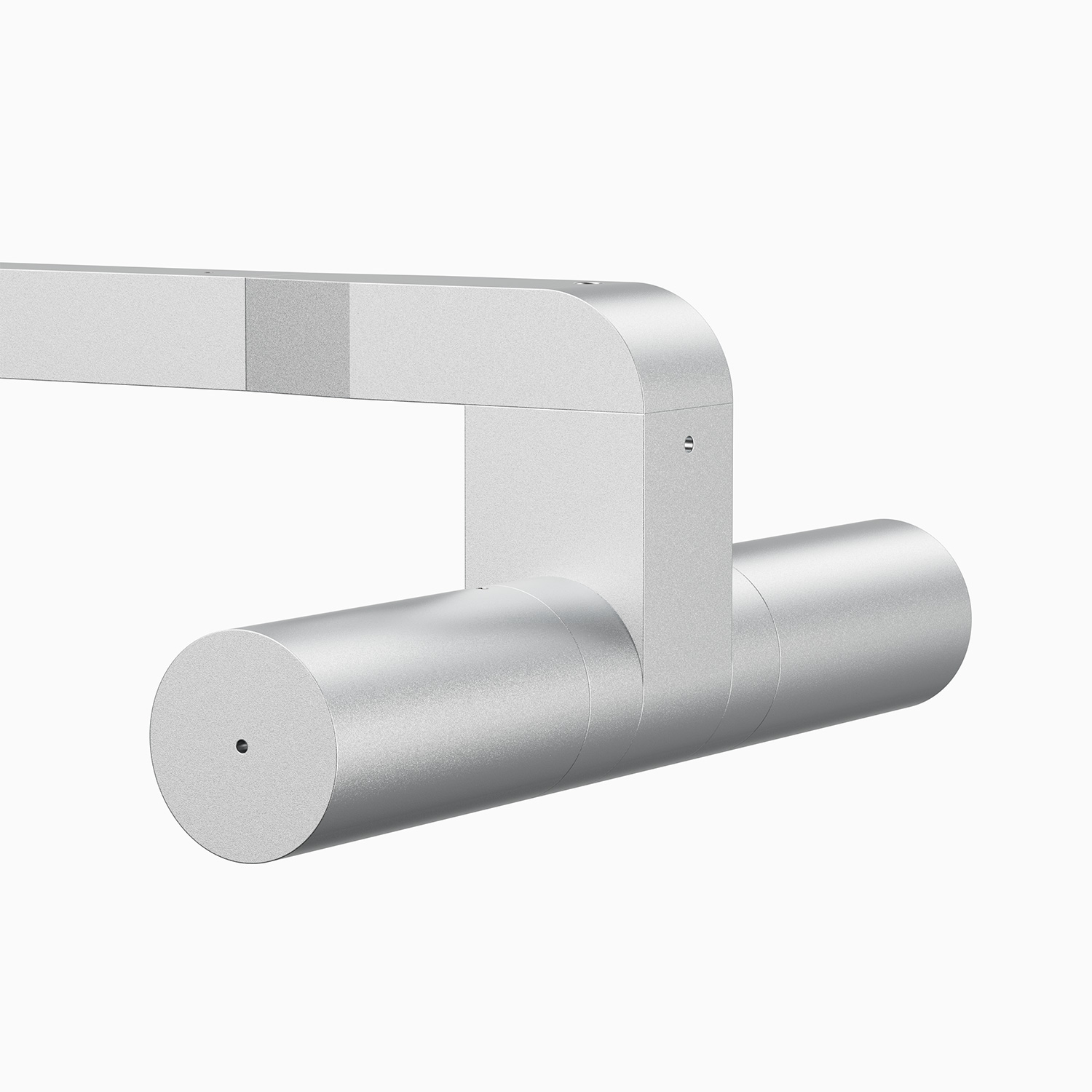

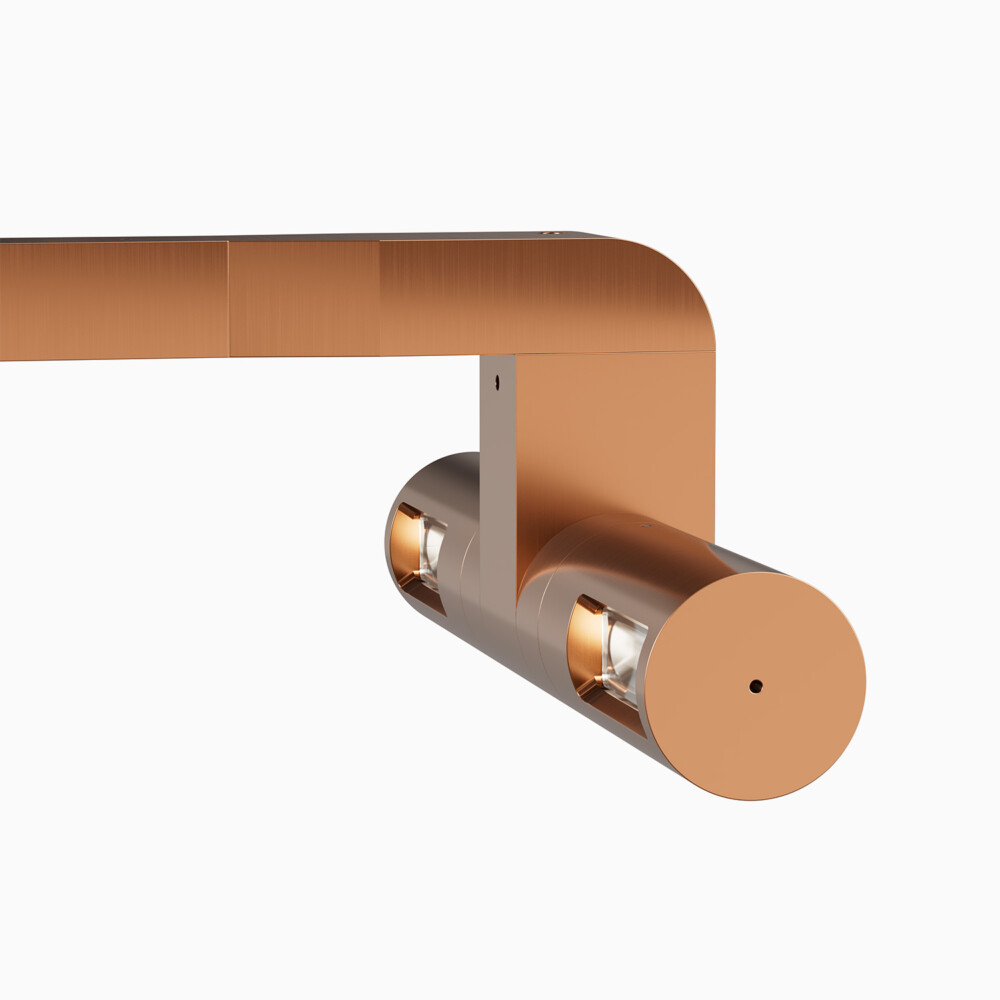

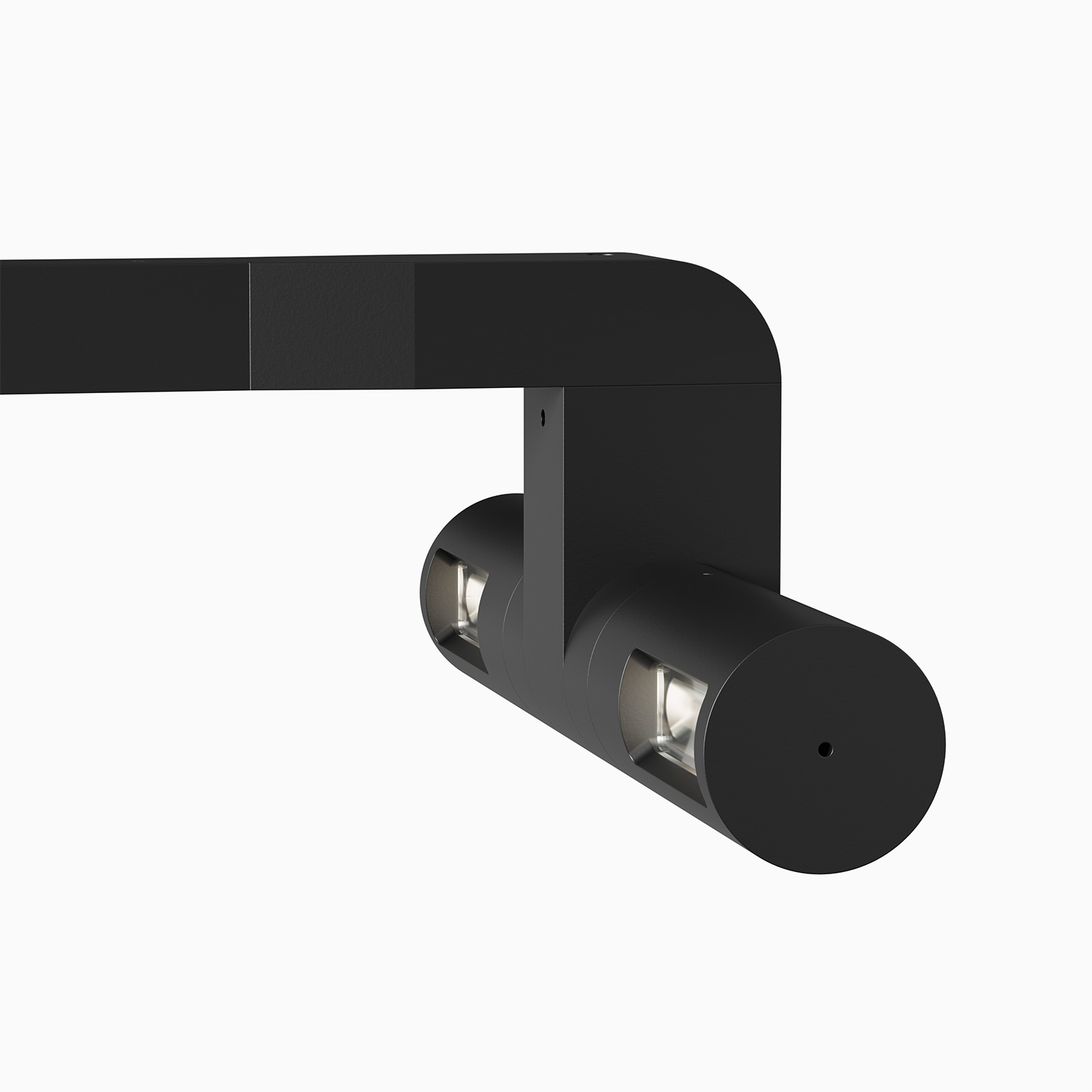

SIGN-2-F/SIGN-2-Fi
Sign & Pole Mount • SIGNF Series
SIGN-2-F/SIGN-2-Fi
Sign & Pole Mount • SIGNF Series
FEATURES:
- Twin-head (4W or 8W)x2, LED modular path light.
- 12V or line voltage with integral LED driver.
- Symmetric wide flood distribution.
- Utilizes adjustable flood fixture head.
- Modular components – field changeable LED lamps.
- ETL outdoor wet location listed. IP67 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
Specifications
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
12V AC model requires remote step down transformer. Line Voltage models come with integral transformer.
Lamp Base/Socket
Innovative cone-shaped lamp base and receptacle socket maximize the surface contact area to dissipate heat more effectively. See ‘‘Resources’’ for details.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
4 or 8W (x2) HK LED.
Barn Door (Optional)
Optional barn doors for glare control and precision cut off. (See page 2 of Spec Sheet for details).
Light Engine
CRI 83. Available in CRI95 upon request. The chromaticity range is within a 3-step McAdam Ellipse. Standard CCT options are 2700K, 3000K, 4000K.
Dimming
12V - MLV or ELV depending on the transformer used. Line voltage - 0V-10V dimming, phase dimming only at 120V.
