ZFL16
FLOOD & WALL WASH | ZFL16 Series | 2.25"
4 - 8W ( 250 - 500lm ) | 12V | HK LED, Amber

ZFL16

FLOOD & WALL WASH | ZFL16 Series | 2.25"
4 - 8W ( 250 - 500lm ) | 12V | HK LED, Amber

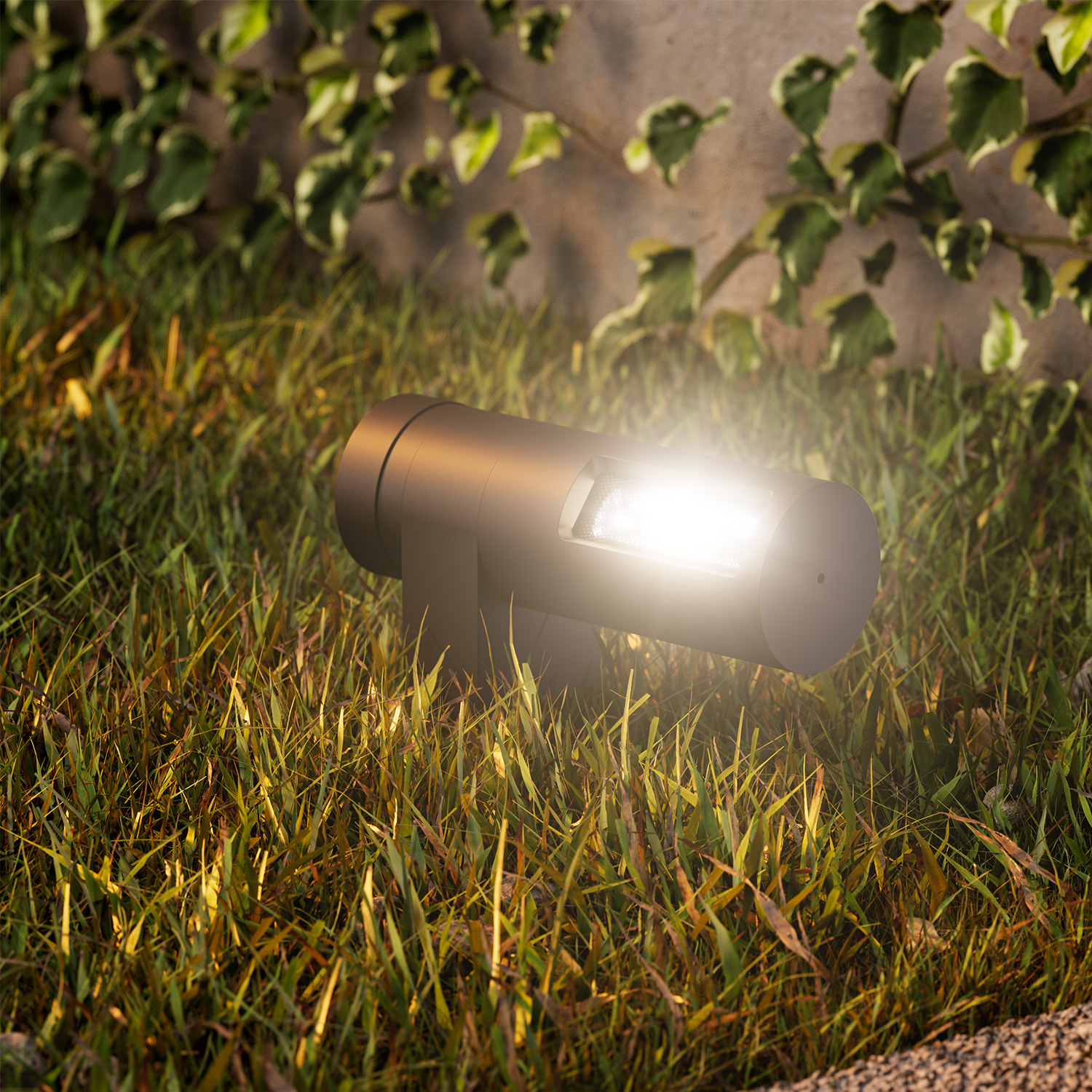

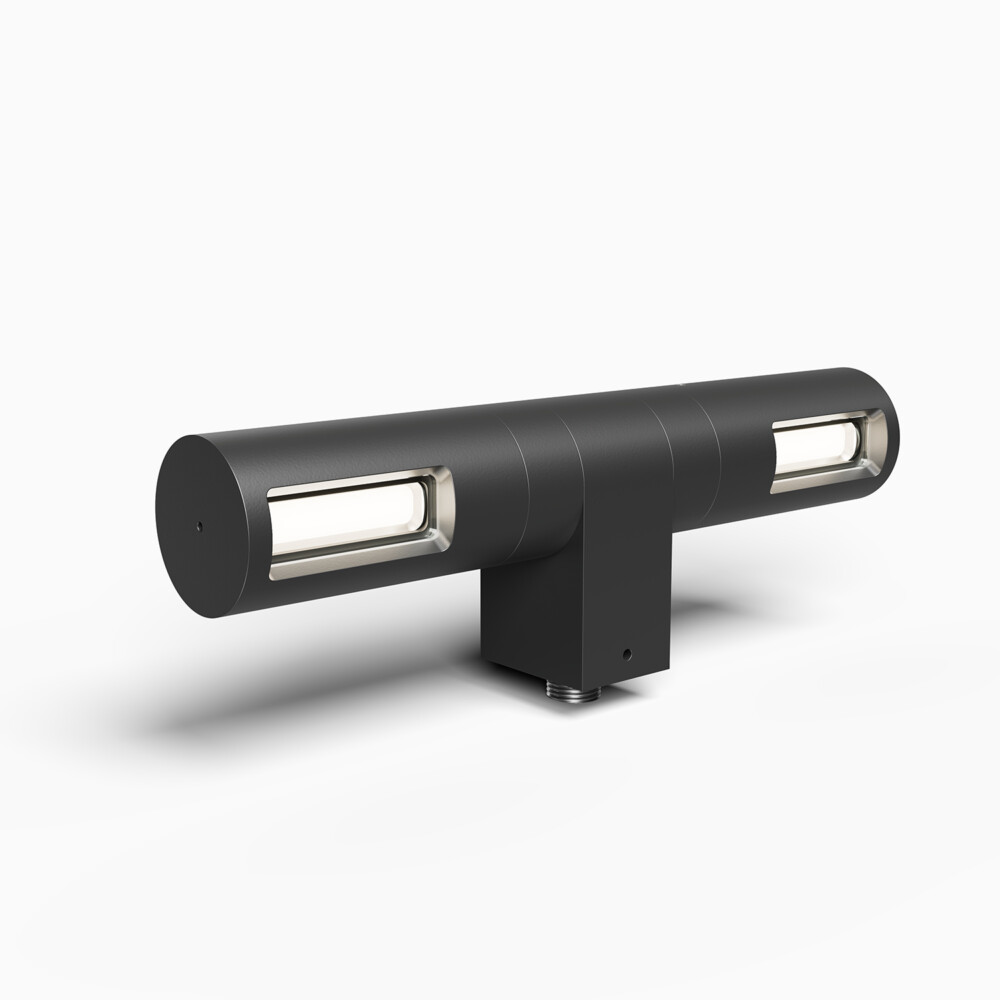

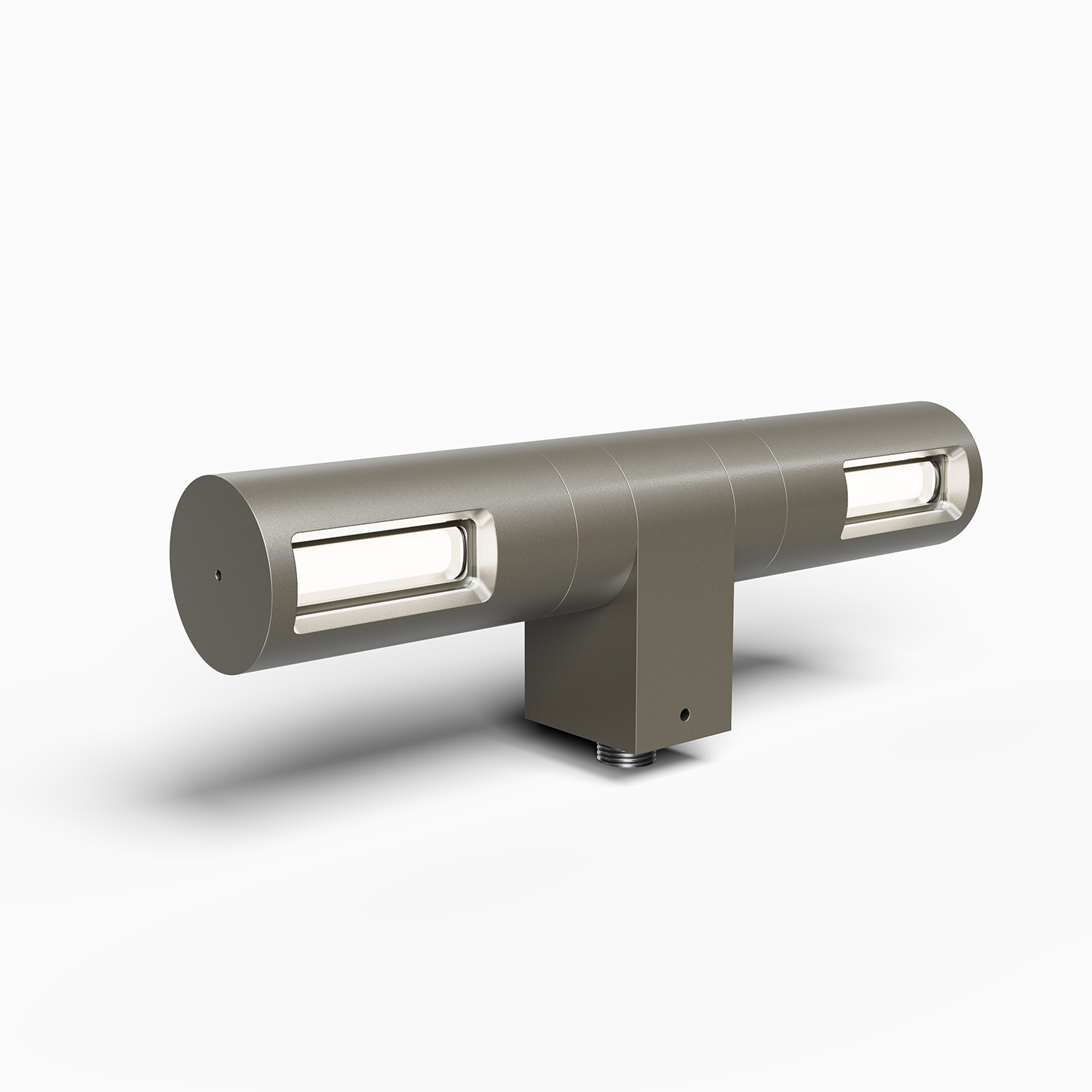

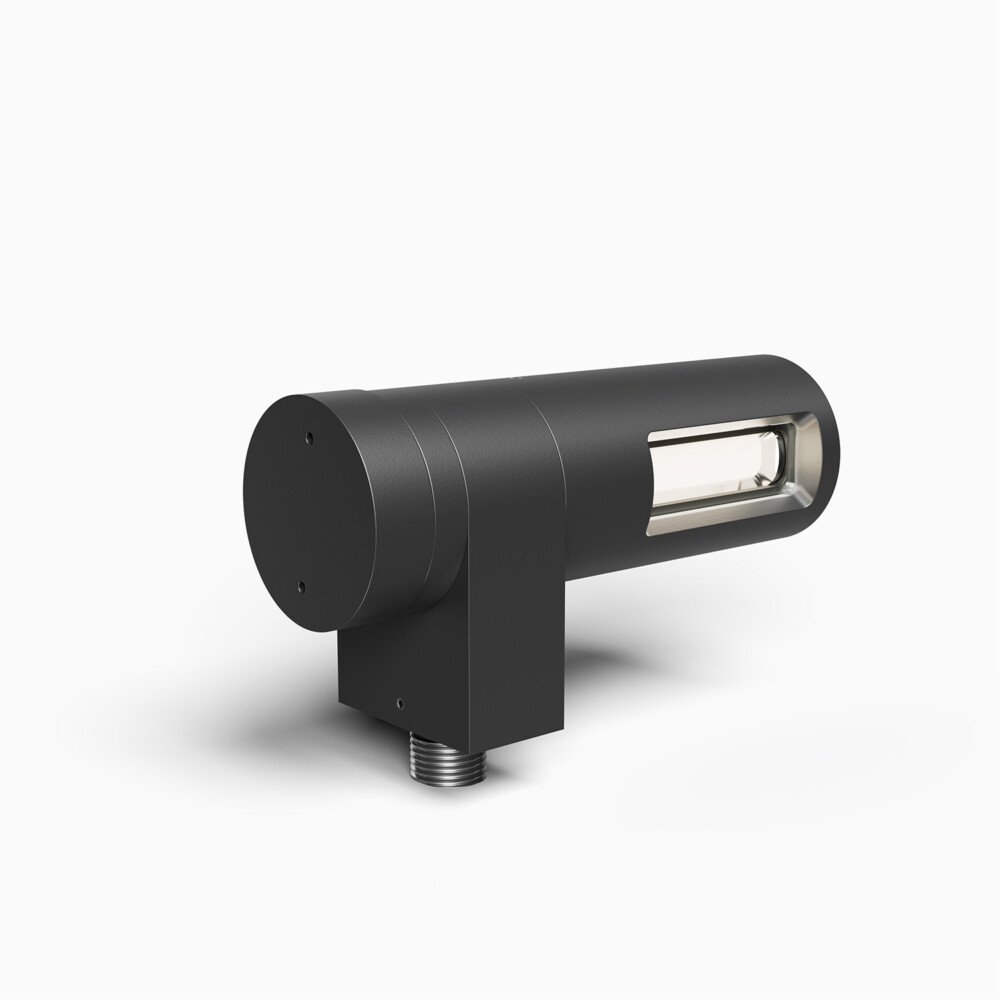

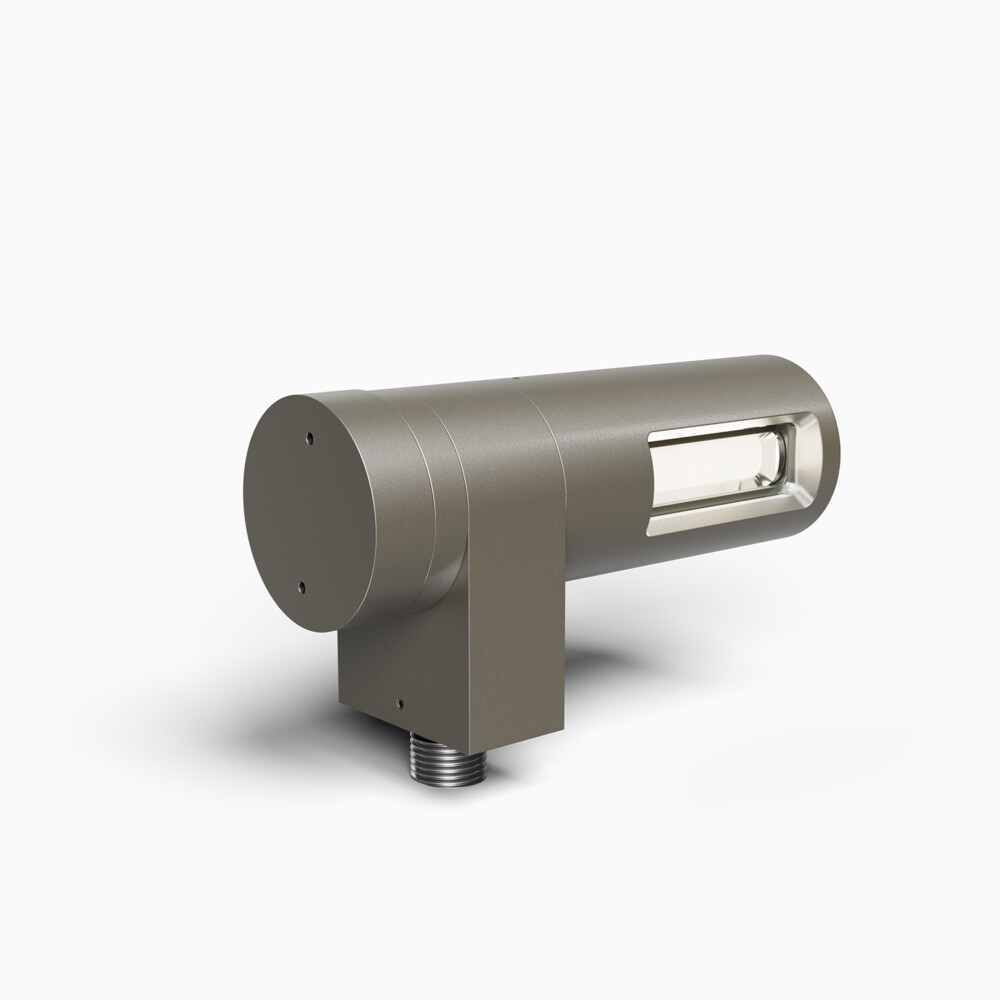

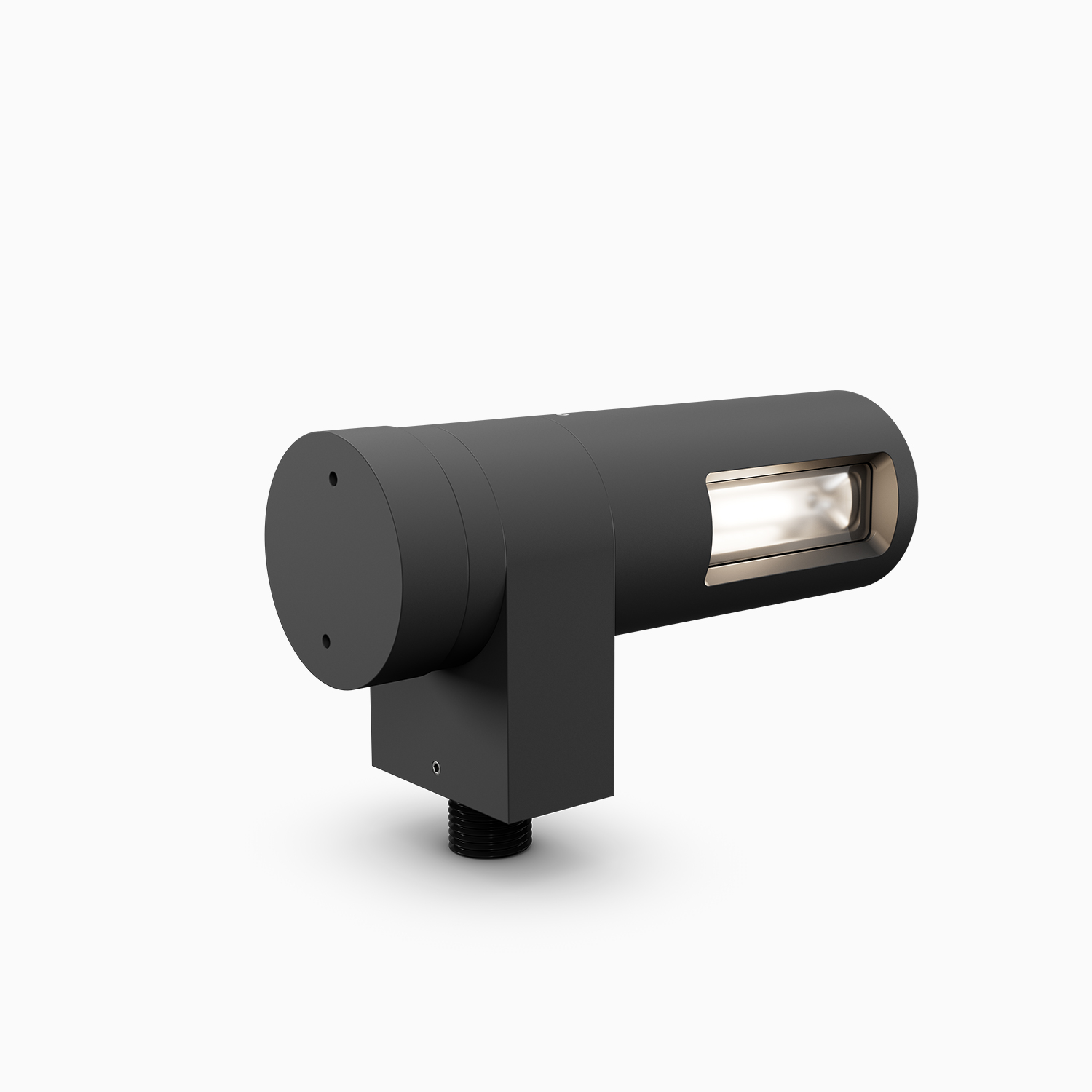

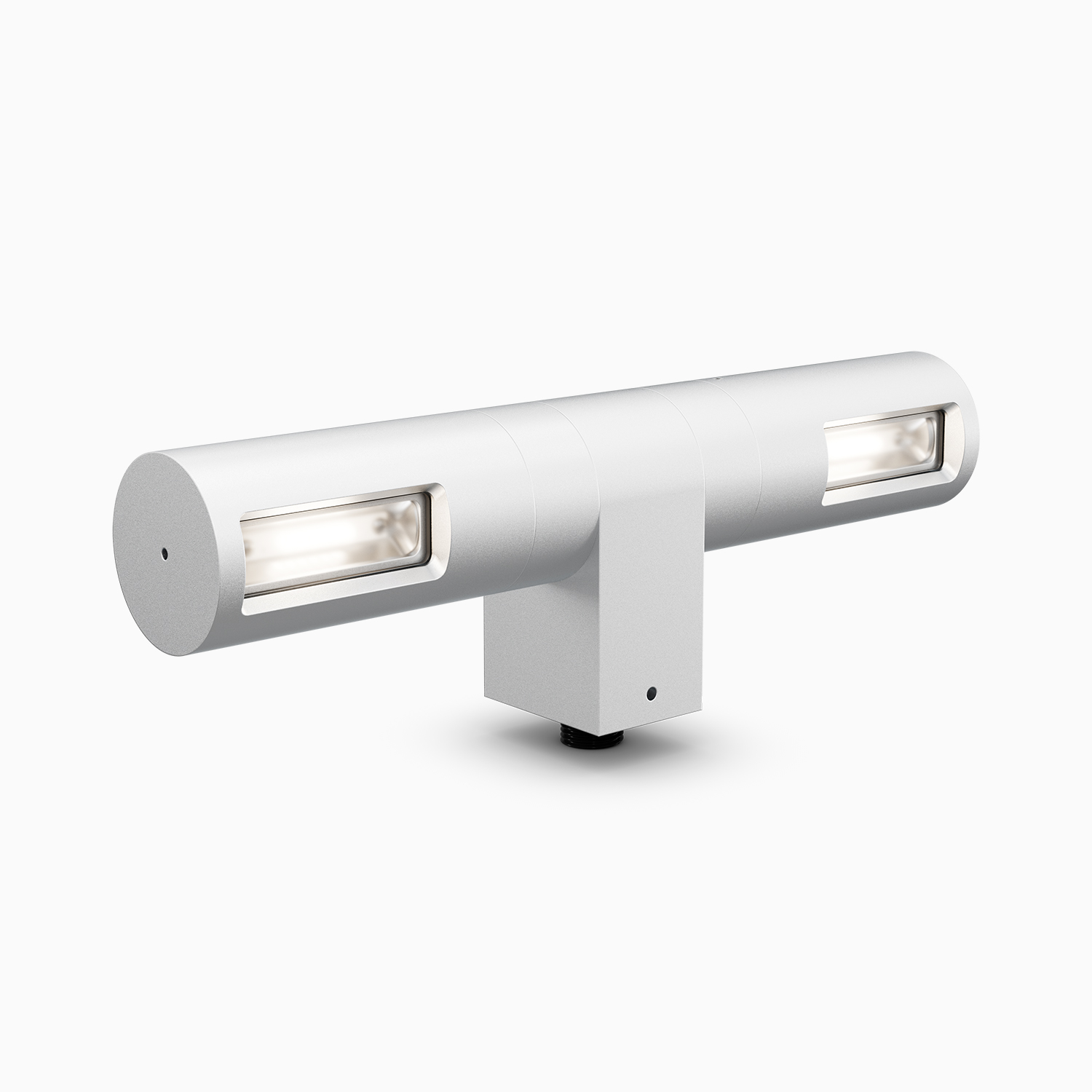

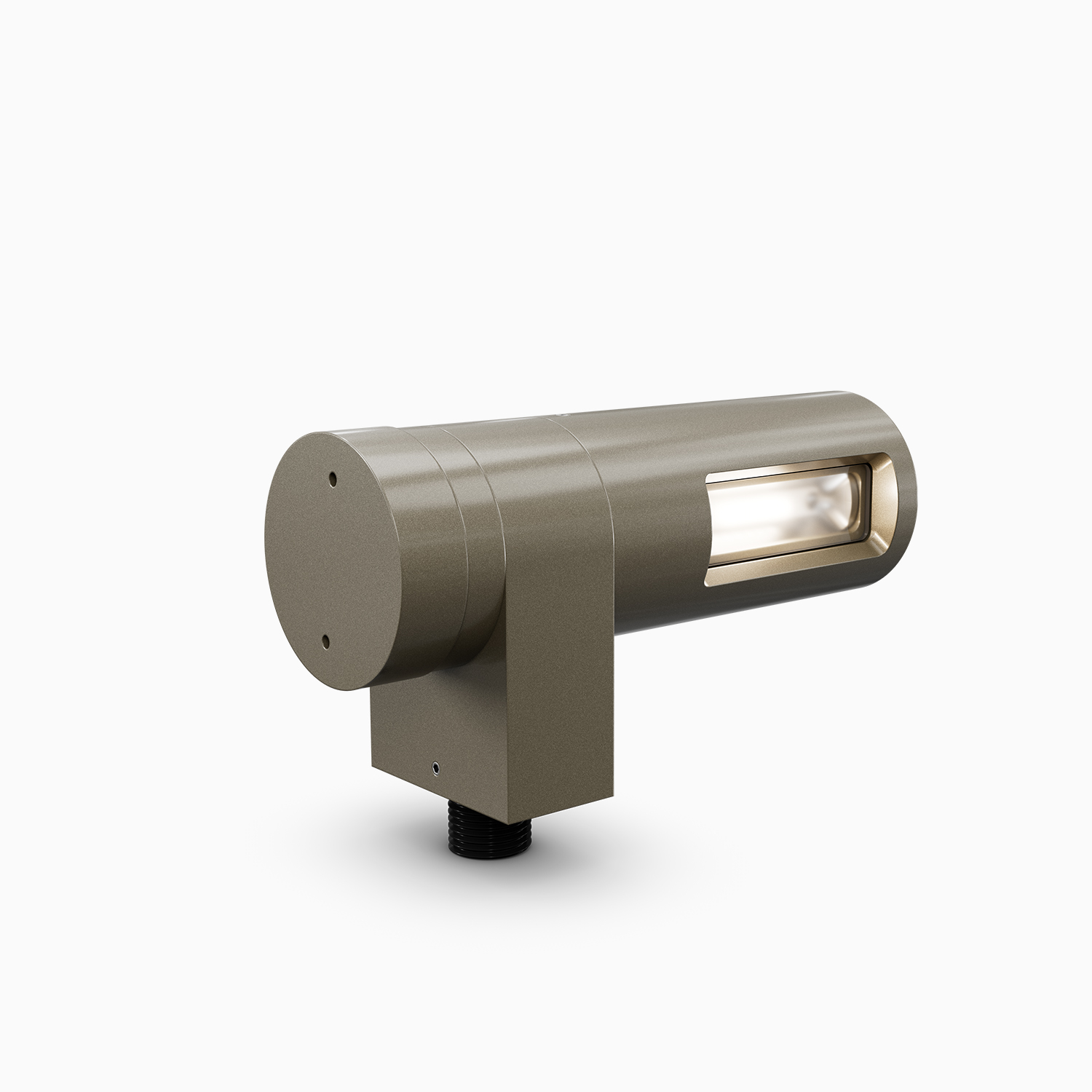

Strong 12V LED round flood light for wall wash, landscape, hardscape, and signage illumination, available in single and double light configurations.

(includes former ZXLF model)

FEATURES:

  • 4W, 8W integrated HK LED delivering 250 – 500 lumens per light. 2700 – 4000K CCT, including specialty Amber option.
  • Wet Location Listed, IP67 Standard.

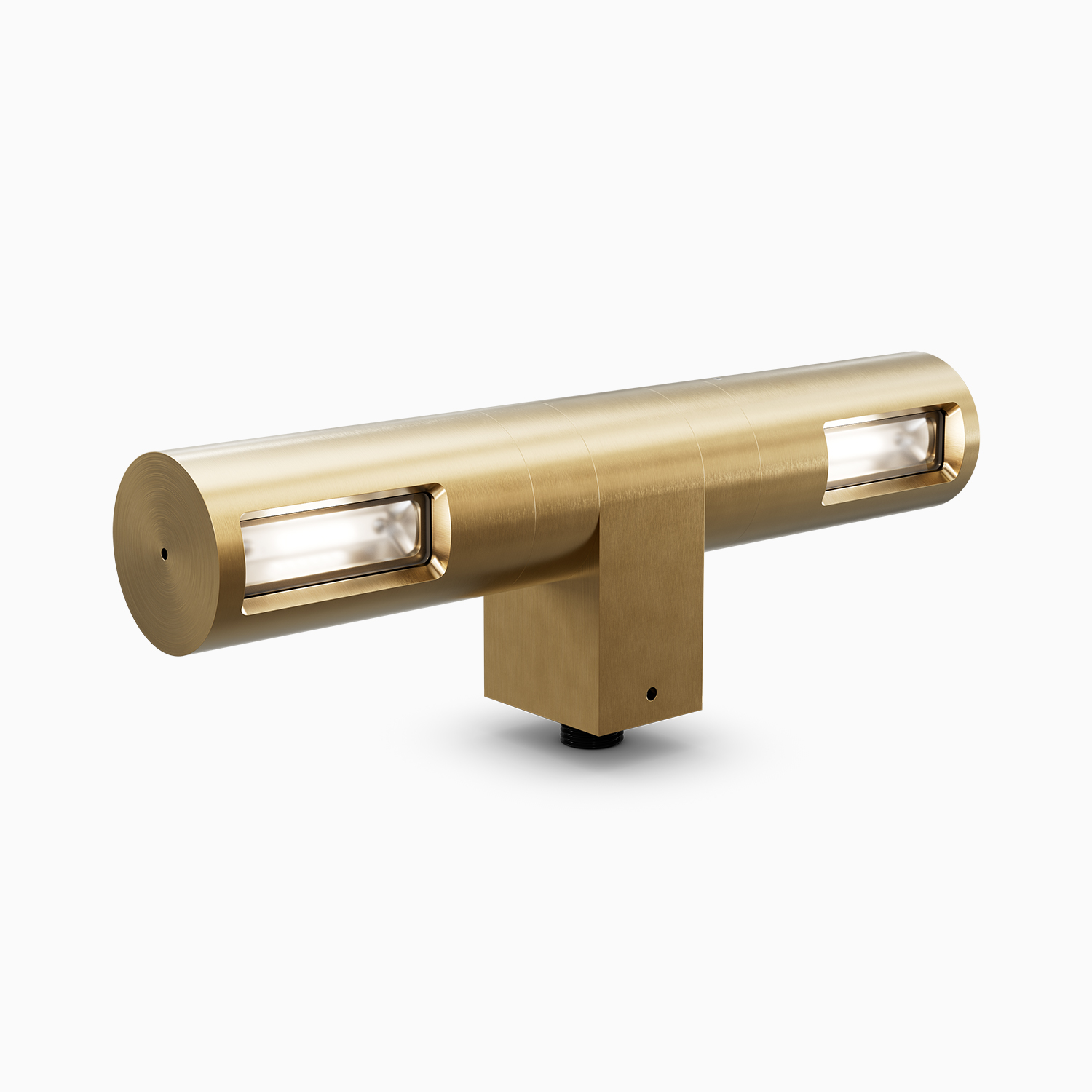

  • Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
  • 360° vertical and 360° horizontal adjustment via unique swivel stem design.
  • Available ground, surface, and canopy mounting options.
  • Every fixture tested end of line for water tightness and light quality.
  • Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Specifications

Materials

Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.

Voltage

12V AC/DC. Requires remote step down transformer.

Optics

Includes Solite Soft Focus lens for smooth, even distribution of light.

Finish

Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.

Wattage

4 or 8W HK LED delivering 250 to 500 lumens.

Mounting

Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices.

Optional Barn Door Style Glare Shield

Optional barn doors for glare control and precision cut off.

Light Engine

Innovative HK LED light engine. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Amber option available. Consult factory for specialty LED specification details.

Listings

ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.

Dimming

MLV or ELV Phase Control dimming.

Additional information

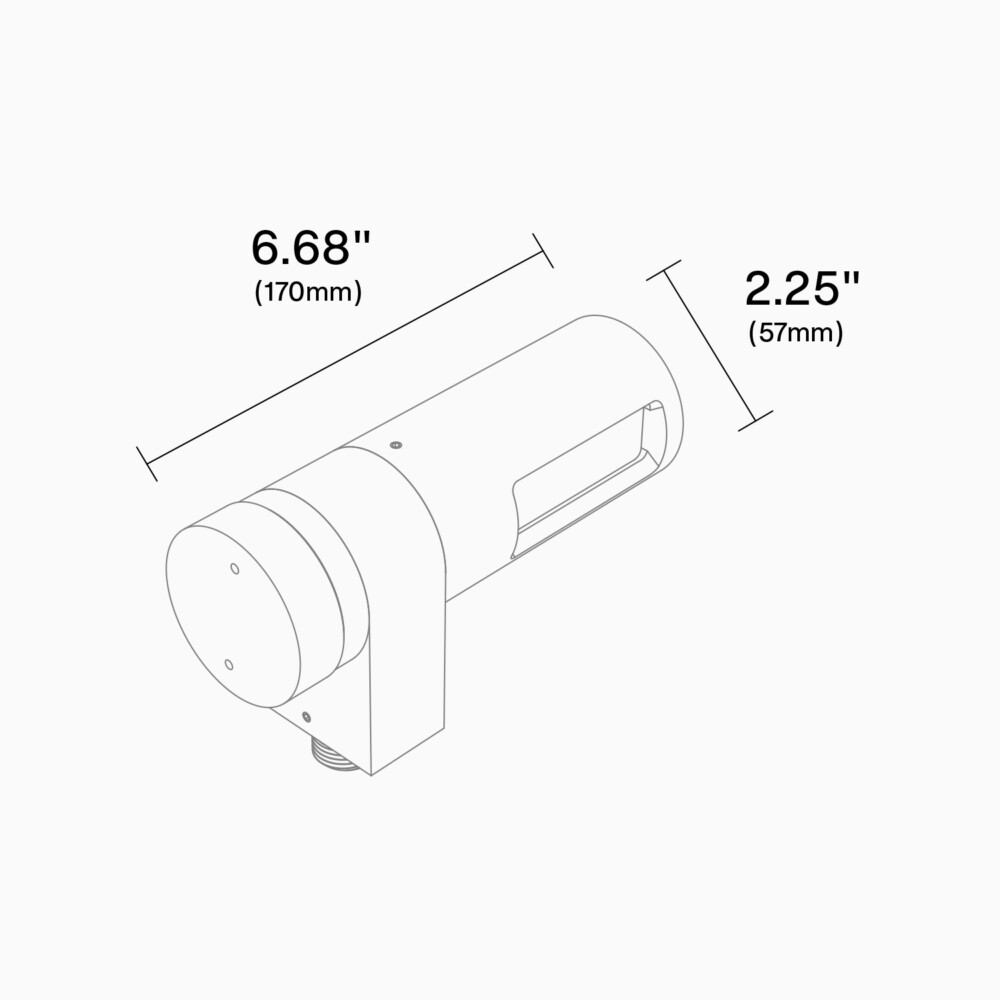

Dimensions 2.25 × 6.68 in
Light Source

,

Shape

Lumen Output

Input Voltage

Wattage

Size

2.25" dia.

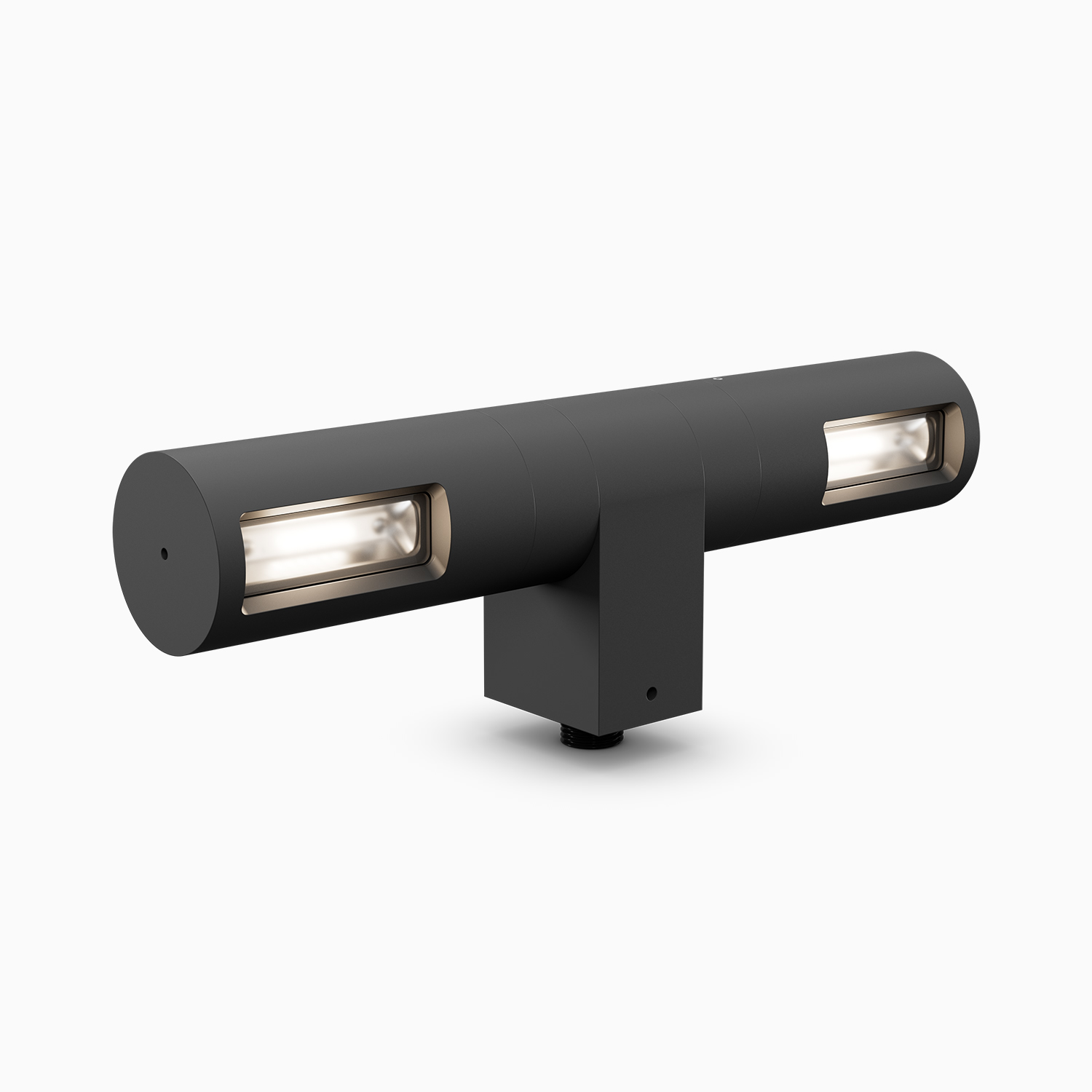

ReadyMade

Compatible Accessories

BD

Barndoors

CM1

Canopy Mount

CM3

Canopy Mount

CM5

Canopy Mount
Canopy Mount

CM2

Canopy Mount
Surface Mount

CB4

Surface Mount
Surface Mount
Surface Mount
Surface Mount
Surface Mount
Ground Mount / Spike
Ground Mount / Spike
Ground Mount / Spike
Ground Mount / Spike
Ground Mount / Spike
Ground Mount / Spike
Ground Mount / Spike
Ground Mount / Spike
Ground Mount / Spike

EXF

Extensions
Transformers
Transformers
Transformers
Transformers
Transformers
Transformers

IGT

Transformers
Transformers
