ZGL16-I

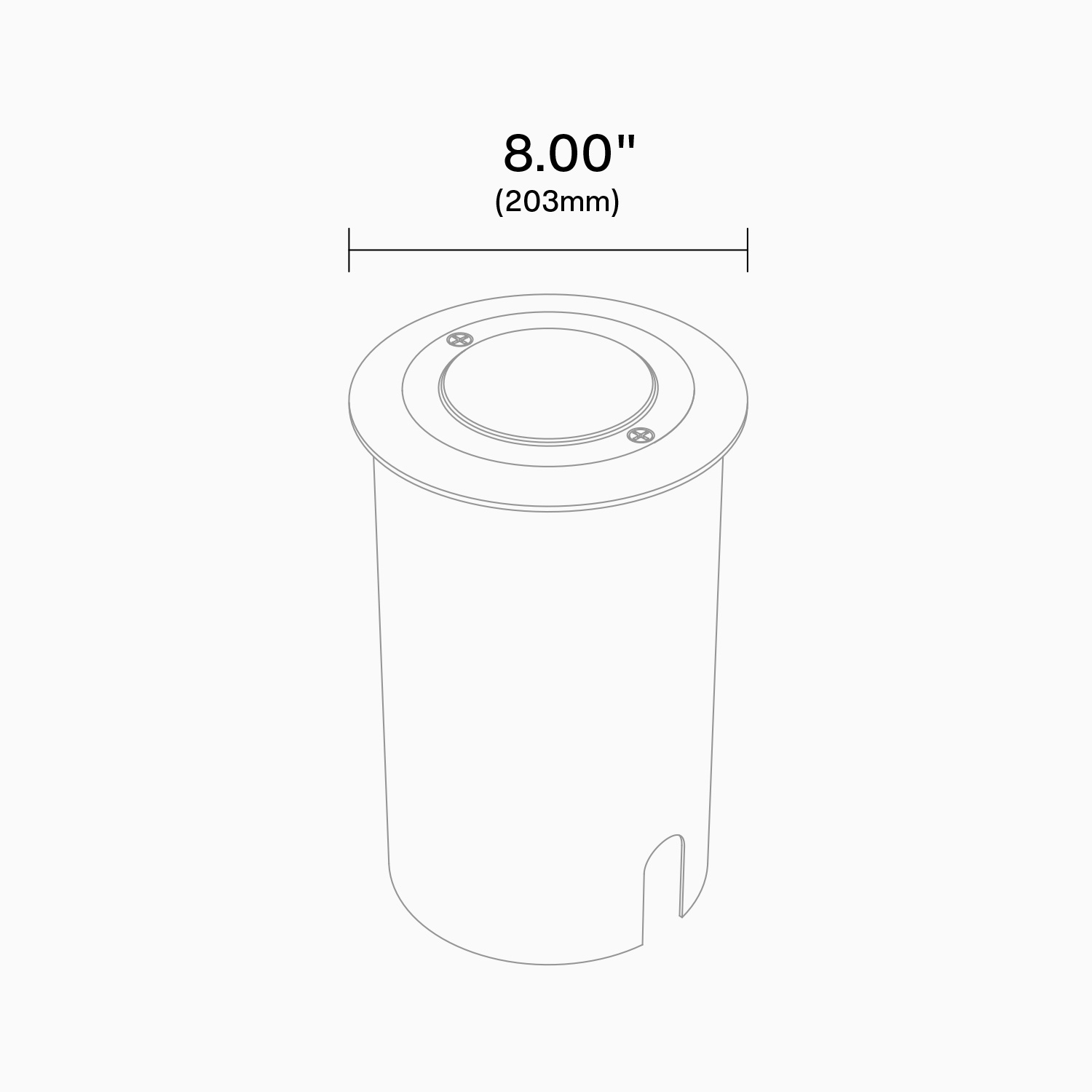

STEP & IN GROUND | ZG16 Series | 8.00"
5 - 26W ( 400 - 2600lm ) | 120V - 277V | HK LED, Amber, RGBW
5 - 26W ( 400 - 2600lm ) | 120V - 277V | HK LED, Amber, RGBW
ZGL16-I
STEP & IN GROUND | ZG16 Series | 8.00"
5 - 26W ( 400 - 2600lm ) | 120V - 277V | HK LED, Amber, RGBW
5 - 26W ( 400 - 2600lm ) | 120V - 277V | HK LED, Amber, RGBW

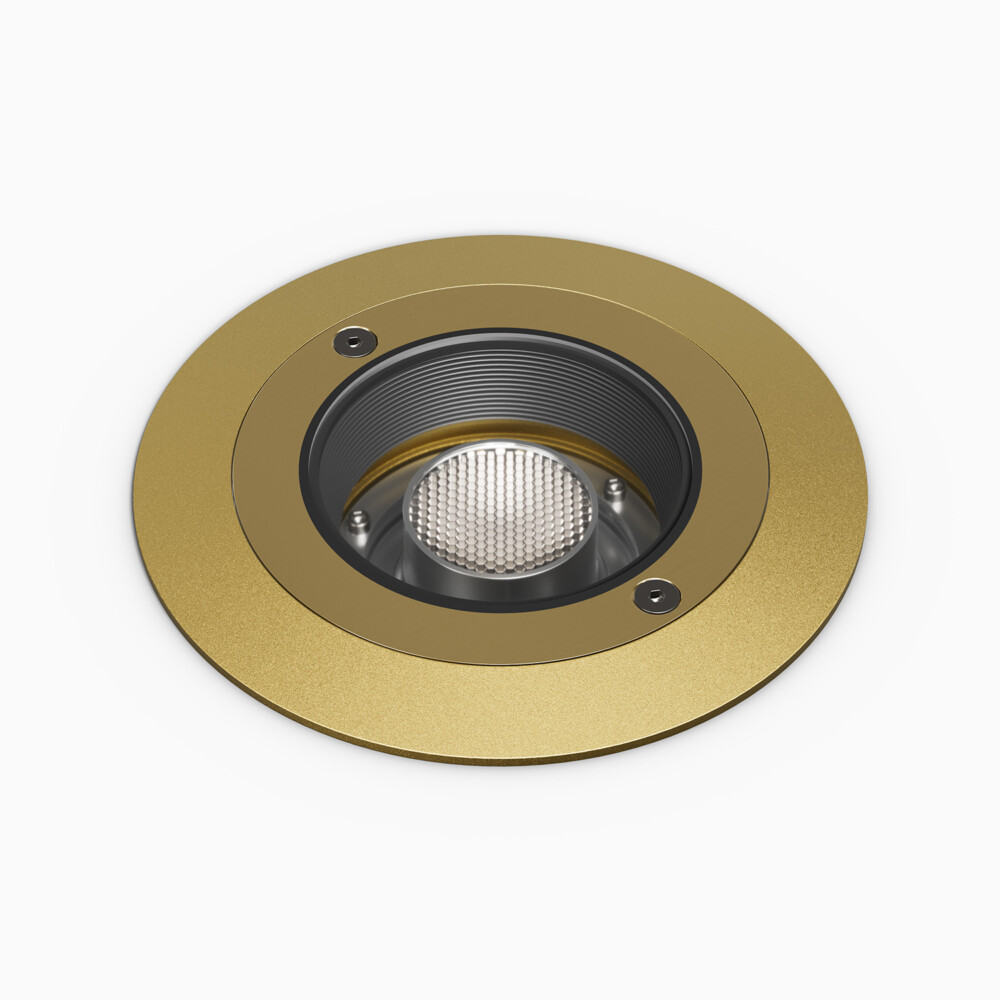

Robust and versatile line voltage, 120V - 277V LED in ground lighting fixture, with integral transformer in fixture housing, for use in a range of landscape and architectural outdoor lighting applications.
(includes former ZXG-LEDi model)
FEATURES:
- 5 – 26W integrated HK LED delivering 500 – 2500 lumens. 2200 – 4000K CCT, including specialty Amber and RGBW options.
- Wet Location Listed, IP67 Standard.

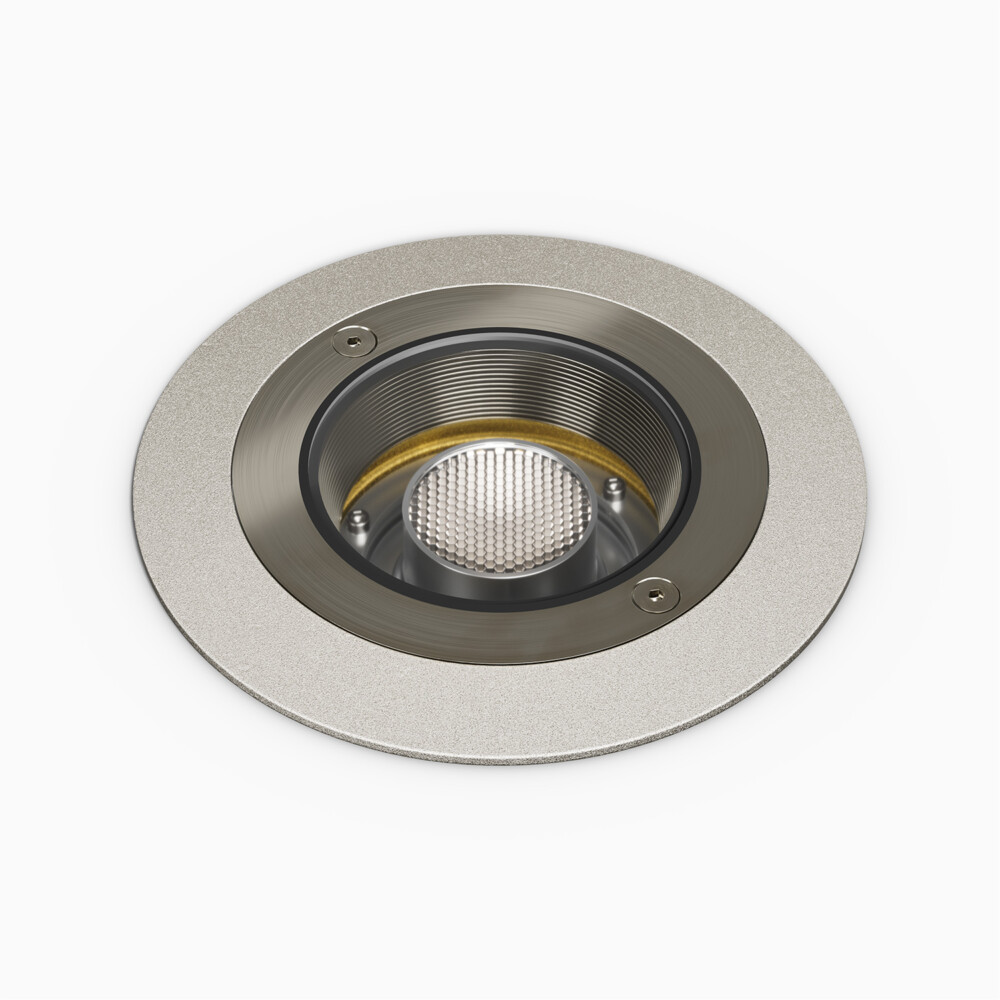

- Superior corrosion resistant die-cast and machined natural brass in ground fixture, also available in Silver Nickel and Black Oxide finishes to complement varying project aesthetics.
- 360° horizontal and and 20° vertical adjustability.

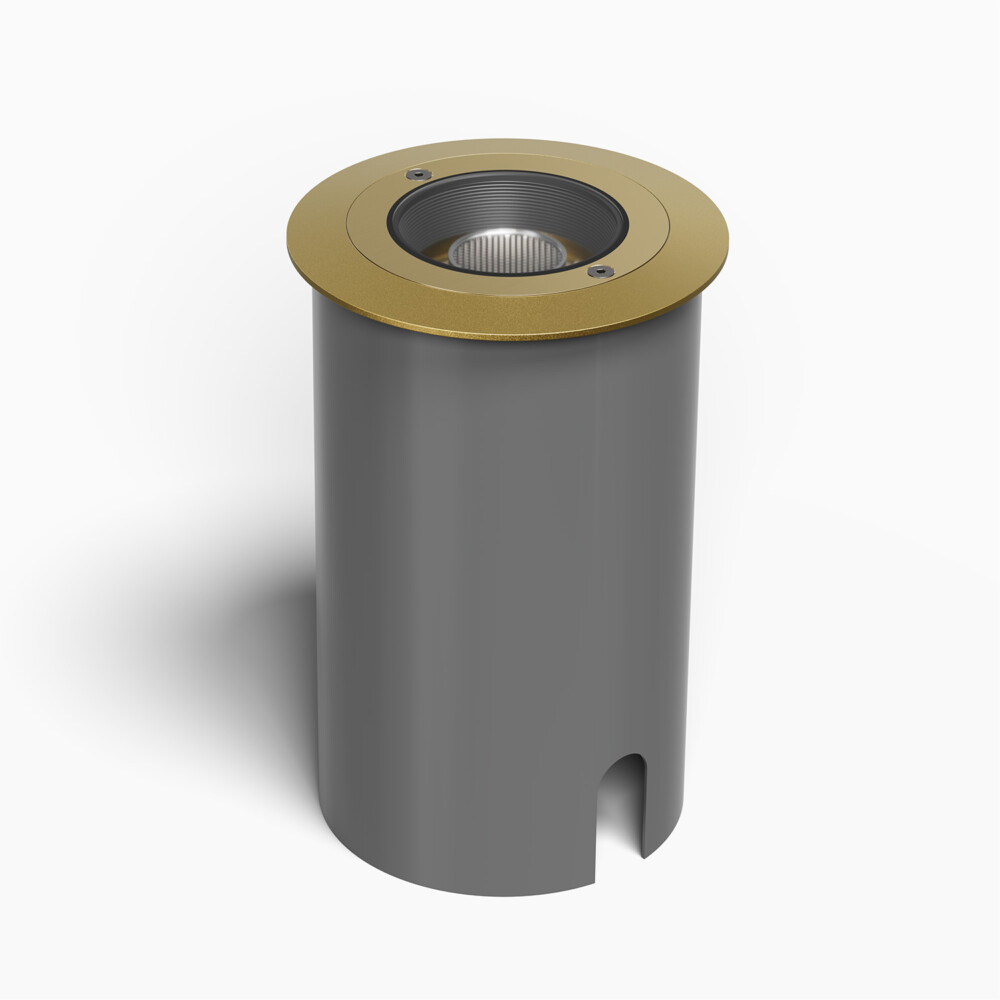

- Included PVC Outer Sleeve simplifies in ground installation.
- Optional Grate Cover, Slot Aperture, Top Cover, and Adjustable Shroud Shields available.
- Optional PVC Outer Sleeve simplifies installation.
- Every fixture tested end of line for water tightness and light quality.
- Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Specifications
Materials

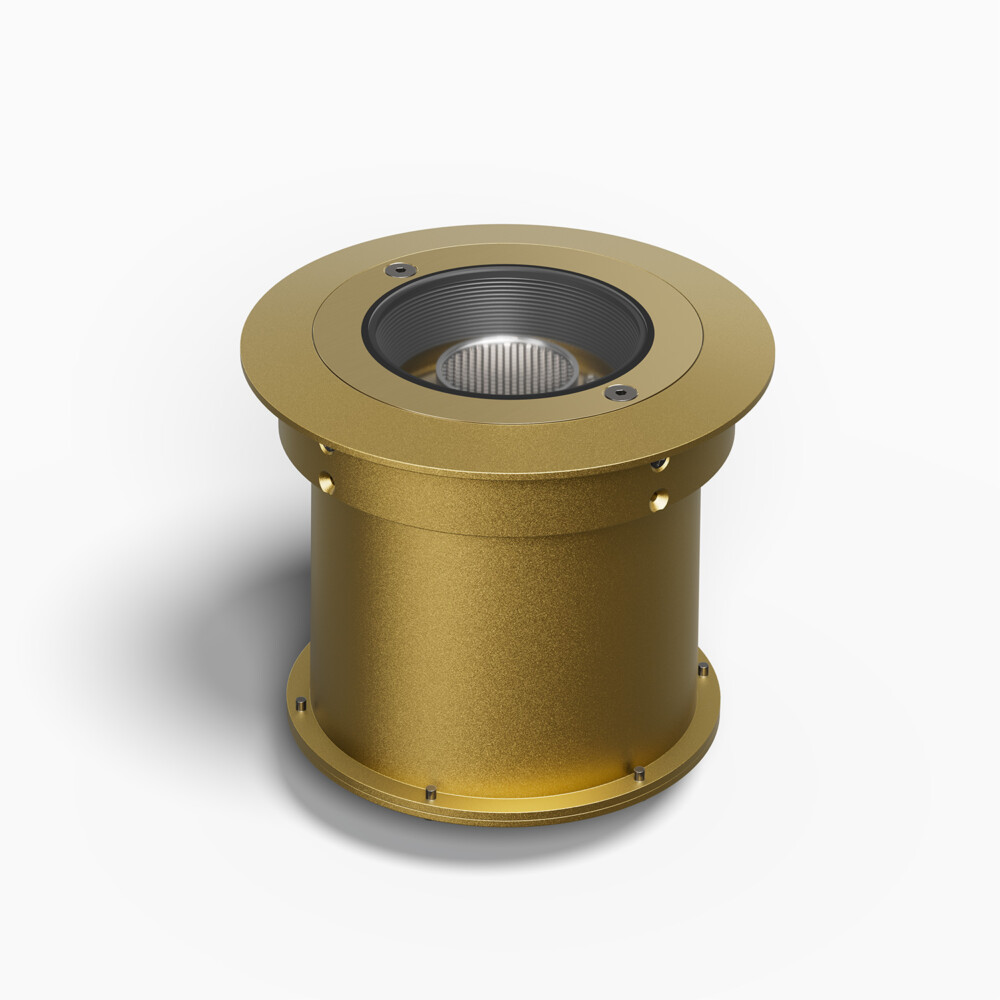

Housing: Die-cast brass. Top Plate: Machined Solid Natural Brass. Lamp holder and Aiming Assembly: Solid billet 6061-T6 corrosion resistant aluminum. Hardware: 304 stainless steel.
Voltage
120V - 277V AC.
Wattage
5, 7, 10, 14, 21, 26W HK LED delivers 500 to 2600 lumens.
Finish
Superior corrosion resistant Natural Brass, Silver Nickel, or Black Oxide for a robust marine grade finish.
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 83 Standard. Available in CRI 95 upon request. Standard CCT options are 2700K, 3000K, 4000K. Specialty 2200K, 2400K, 2500K, 3500K, Amber, and RGBW options available. Consult factory for specialty LED specification details.
Optional Shields
Grate Cover, Slot Aperture, Top Cover, and Adjustable Shroud Shields available.
Mounting
Mounts directly in ground, or poured concrete. Included PVC Outer Sleeve is available to aid installation (See page 4 of Spec Sheet for details).
Dimming
Onboard, Integrated LED Driver Phase Control @ 120V, 0-10V @ 120V-277V, DALI or DMX control available. Consult factory for details.
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Optics
Narrow (26°), Medium (38°), and Wide (48°) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.
