Additional information

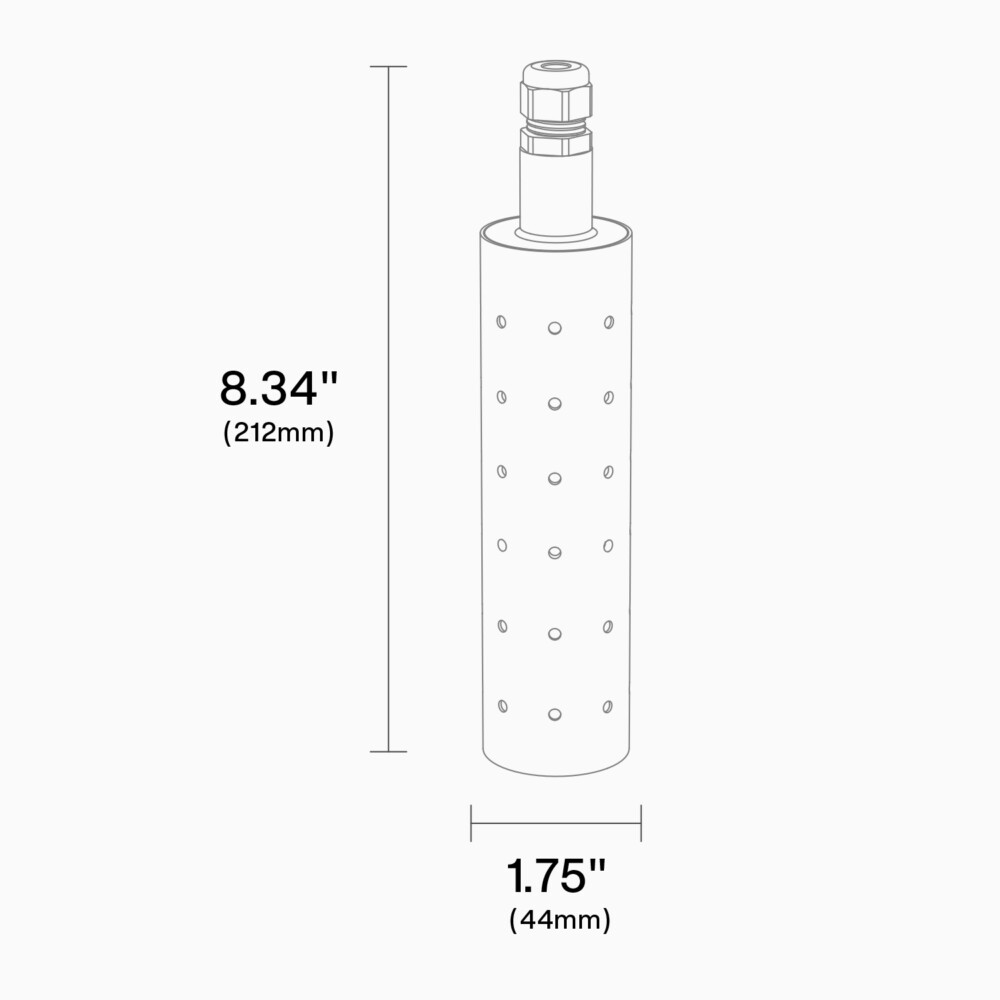

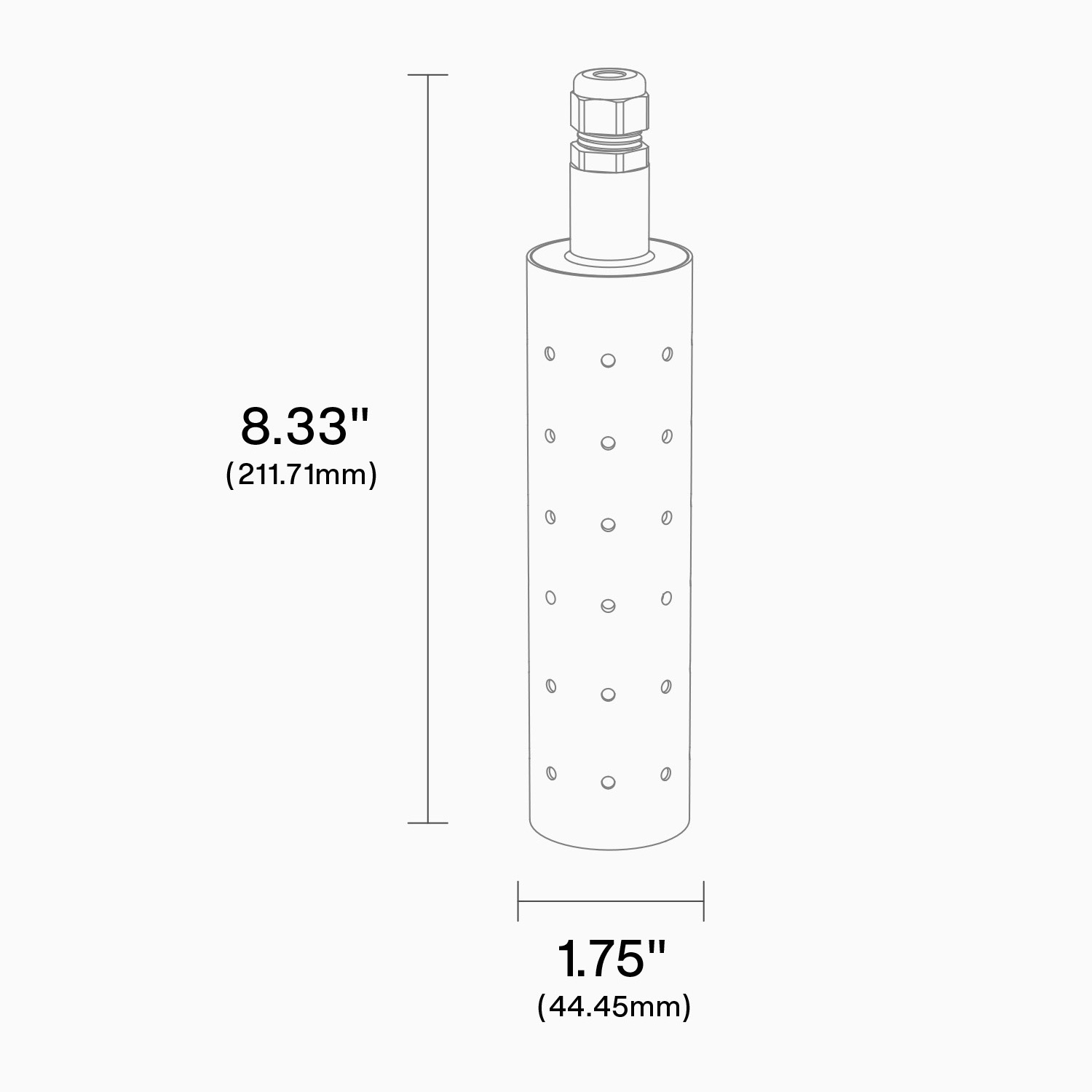

| Dimensions | 2.25 × 8.34 in |
|---|---|
| Light Source | |
| Shape | |
| Input Voltage | |
| Wattage |
ZHL11 PERFORATED
HANGING & CATENARY | ZH11 Series | DIA 1.65"
5 - 7W | 12V | HK LED, Amber, RGB
5 - 7W | 12V | HK LED, Amber, RGB
ZHL11 PERFORATED
HANGING & CATENARY | ZH11 Series | DIA 1.65"
5 - 7W | 12V | HK LED, Amber, RGB
5 - 7W | 12V | HK LED, Amber, RGB

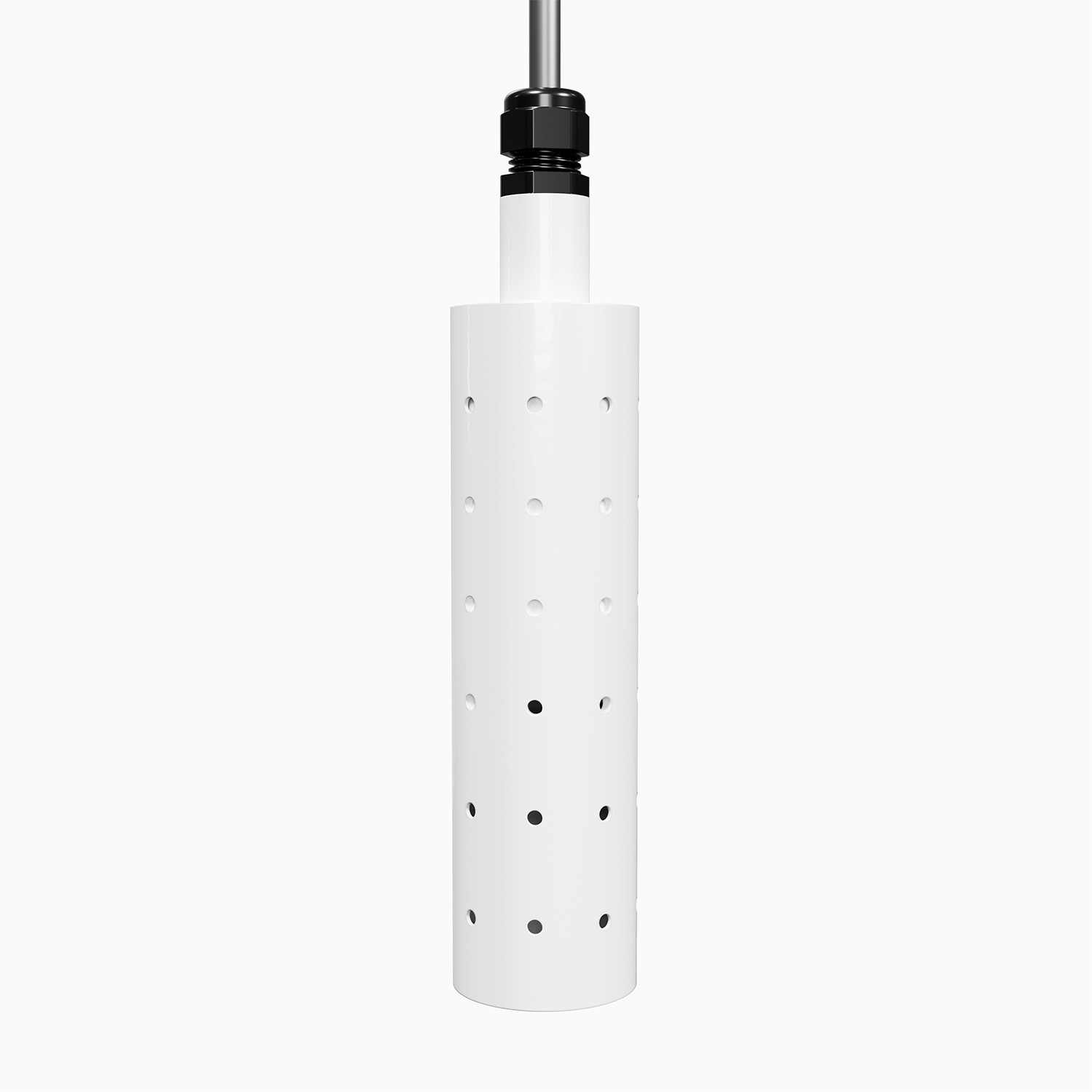

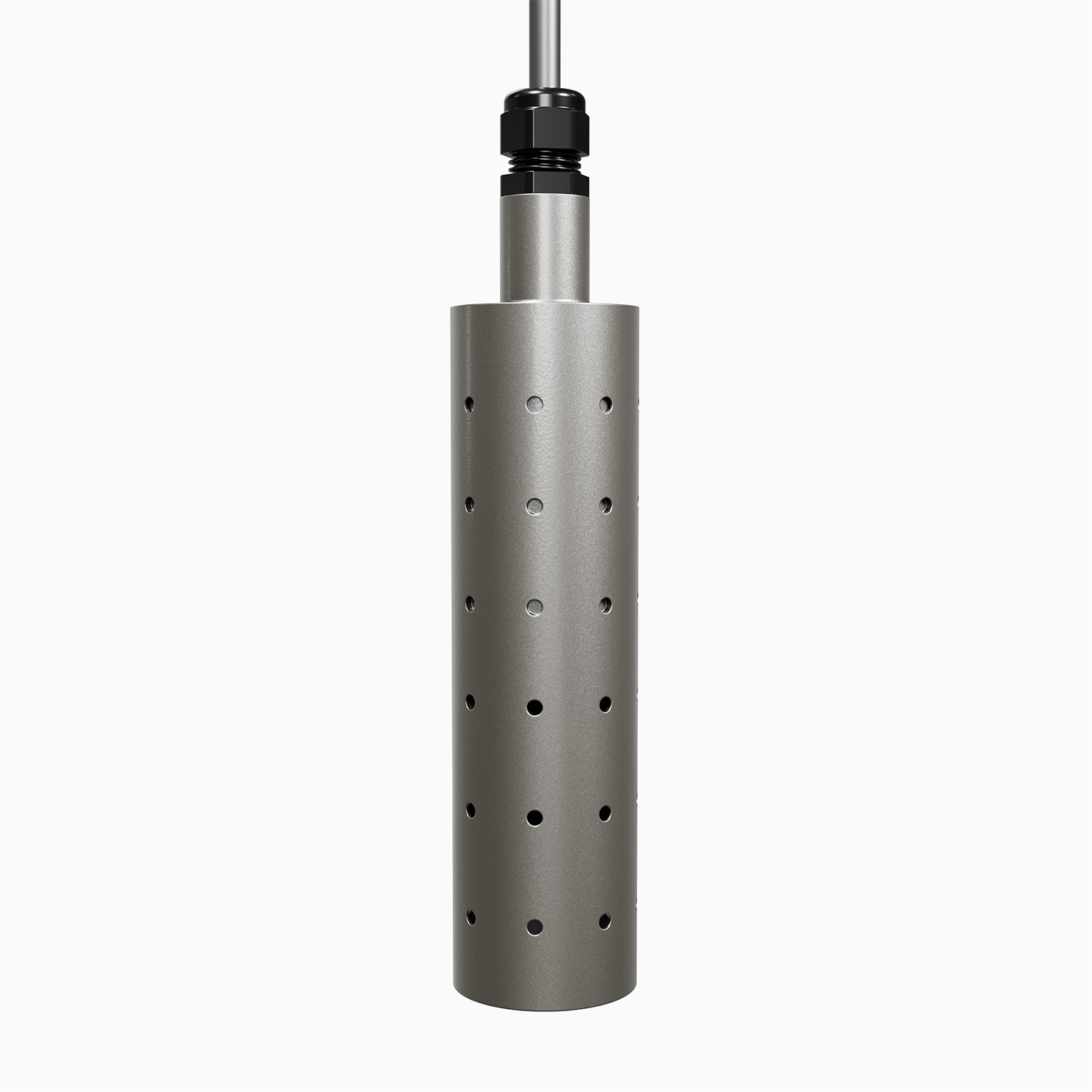

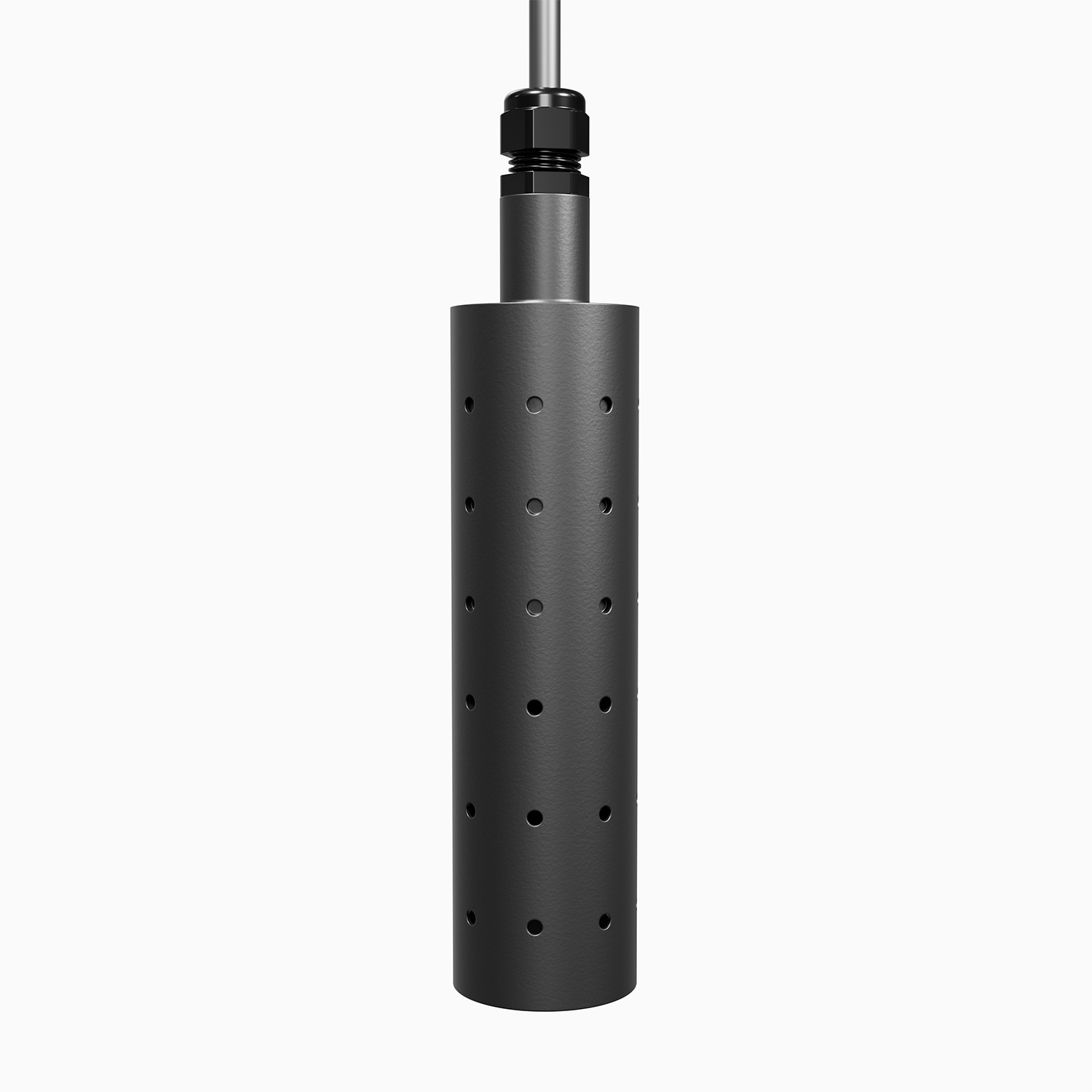

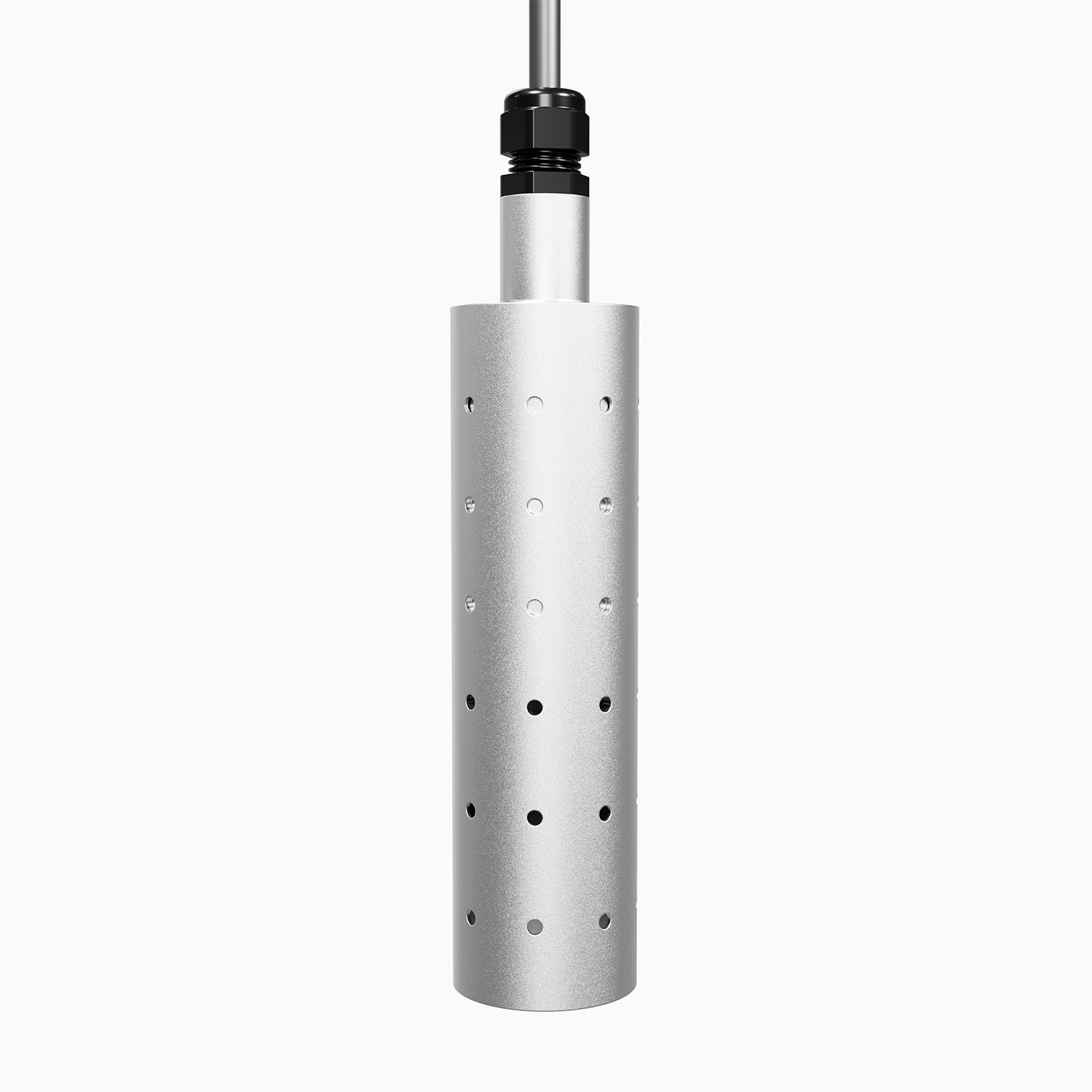

Elegant and versatile hanging light with perforated metal hood, perfect for both architectural outdoor and landscape lighting environments.
(includes former ZXL11-HP model)
FEATURES:
- 5W, 7W integrated HK LED. 2200-4000K CCT, including specialty Amber and RGB options.
- Wet Location Listed, IP65 Standard.
- Fixture body is machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
- Elegant brushed acrylic hood with diffuse sidewalls and either diffuse or polished end.
- Modular components, field changeable LED.
- Hanging light ships standard with 60″ power cable or can be ordered in any custom length. Power cord can easily affix to tree branches or beams or installed with coordinating canopy plate.
- Every fixture tested end of line for water tightness and light quality.
Specifications
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
12V AC/DC. Requires remote step down transformer.
Optics
Accepts optical accessories (dichroic color filters). Secured in place with metal snap ring.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
5 or 7W HK LED.
Mounting
Mounts to tree branches or wood beams using screw-mount cable ties or select coordinating canopy plate surface/box for pendant application. Standard fixture ships with 60" 18/2 SJTW power cable. Custom hanging lengths also available.
Fixture Weight
1 lb.
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, Amber, and RGB options available. Consult factory for specialty LED specification details.
Dimming
MLV or ELV Phase Control dimming.
Compatible Accessories
