ZPL16
PATH & BOLLARD | ZP16 Series | 2.25"
5 - 10W ( 500 - 900lm ) | 12V | HK LED, Amber
5 - 10W ( 500 - 900lm ) | 12V | HK LED, Amber
ZPL16
PATH & BOLLARD | ZP16 Series | 2.25"
5 - 10W ( 500 - 900lm ) | 12V | HK LED, Amber
5 - 10W ( 500 - 900lm ) | 12V | HK LED, Amber

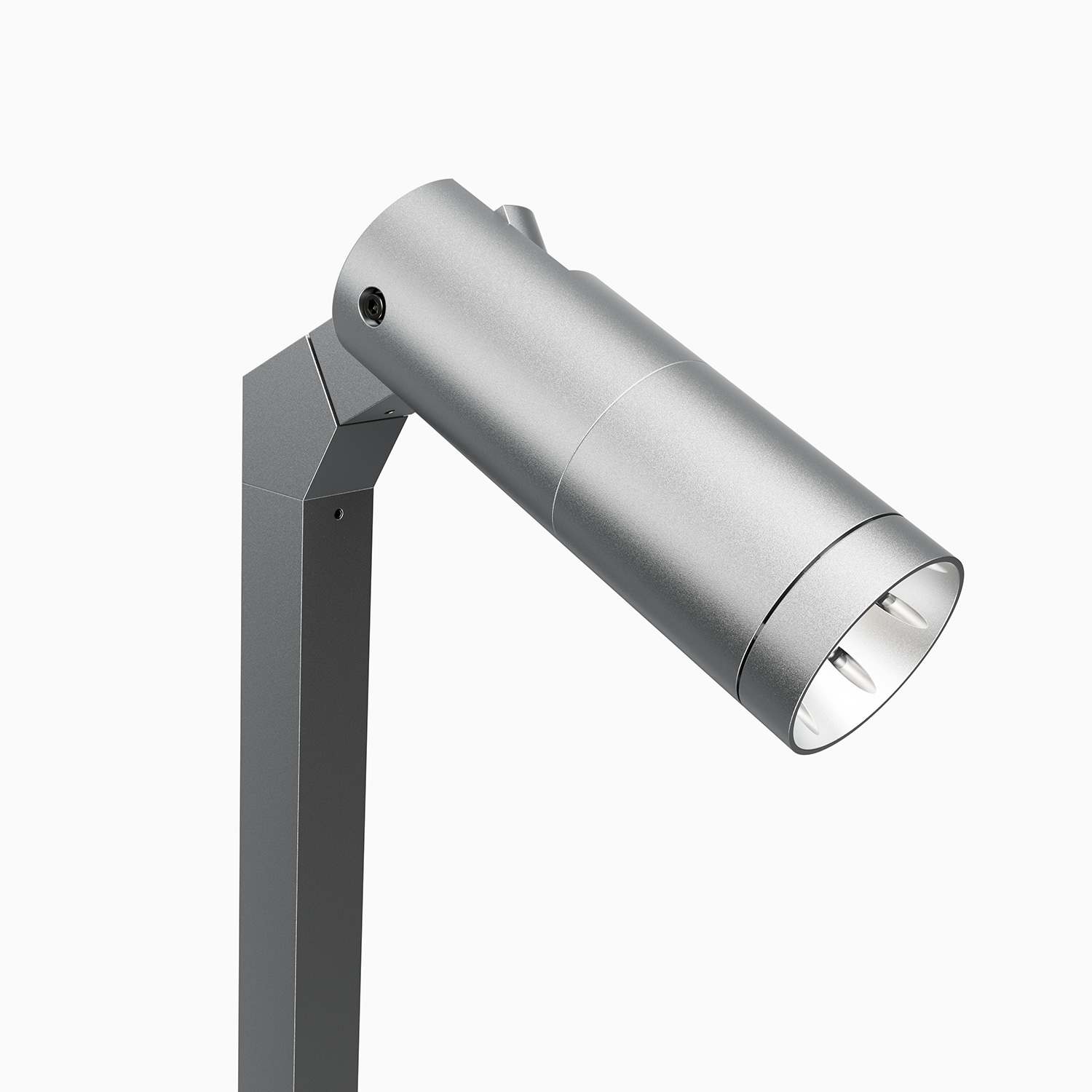

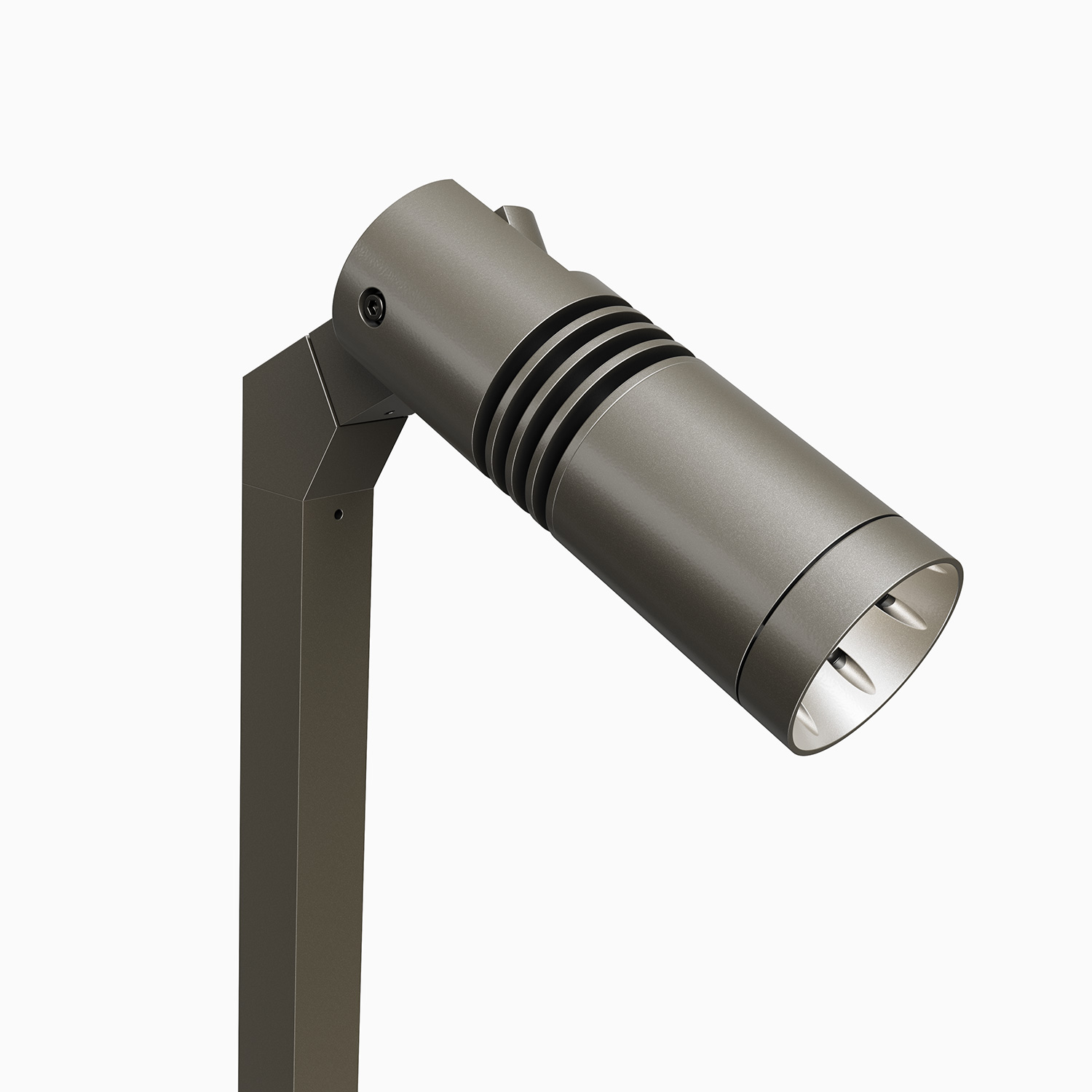

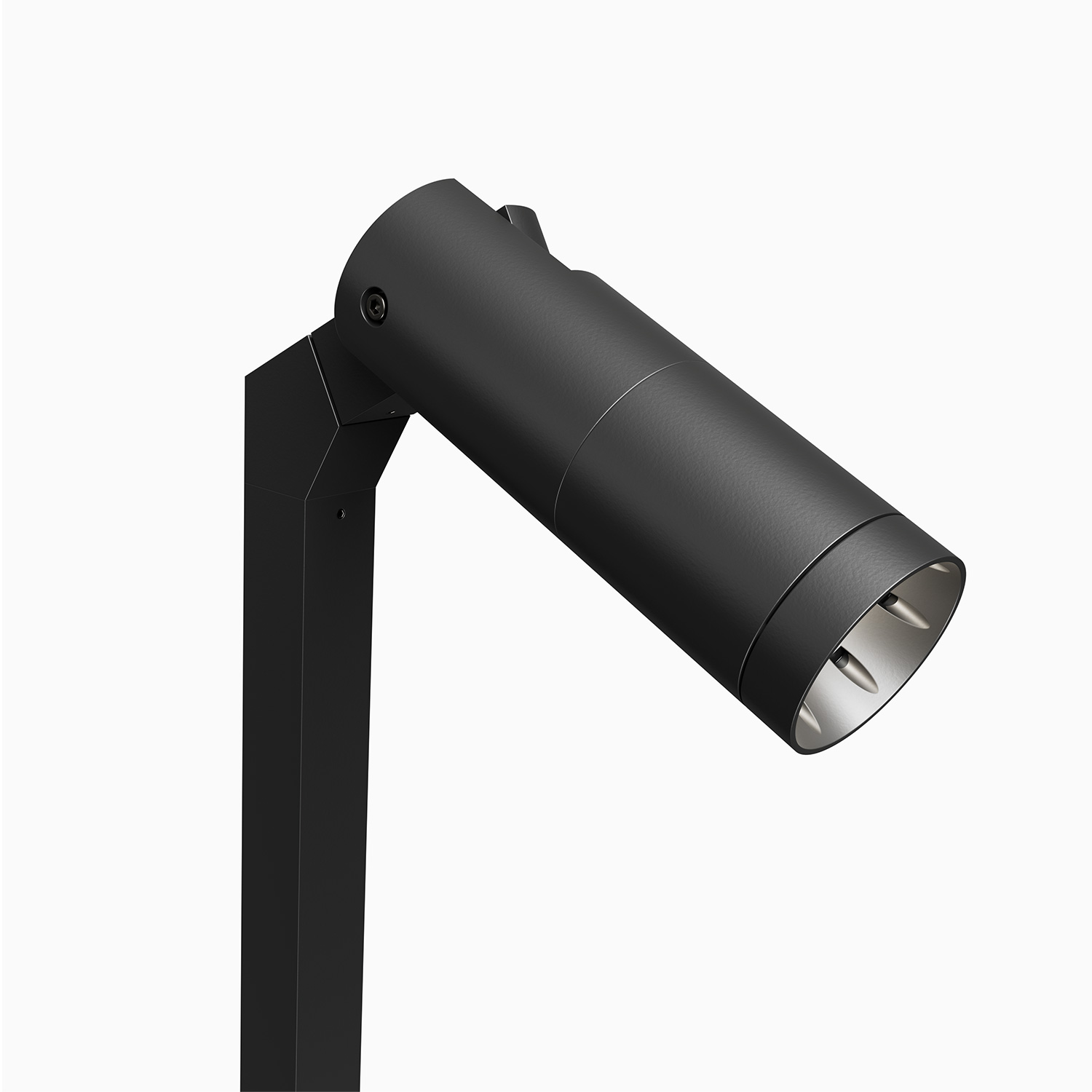

Versatile directional 12V LED path light for residential and commercial environments.
(includes former PATH-1-16L model)
FEATURES:
- 5W, 7W, 10W integrated HK LED delivering 450 to 900 lumens per light. 2200 – 4000K CCT, including specialty Amber options.
- Wet Location Listed, IP67 Standard.
- Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
- 240º vertical and 360º horizontal adjustment via locking swivel stem design.
- Modular components, field changeable LED optical beams, and lenses.
- Available with adjustable Angled, Long, and Short Glare Shields and ground, surface, and canopy mounting options.

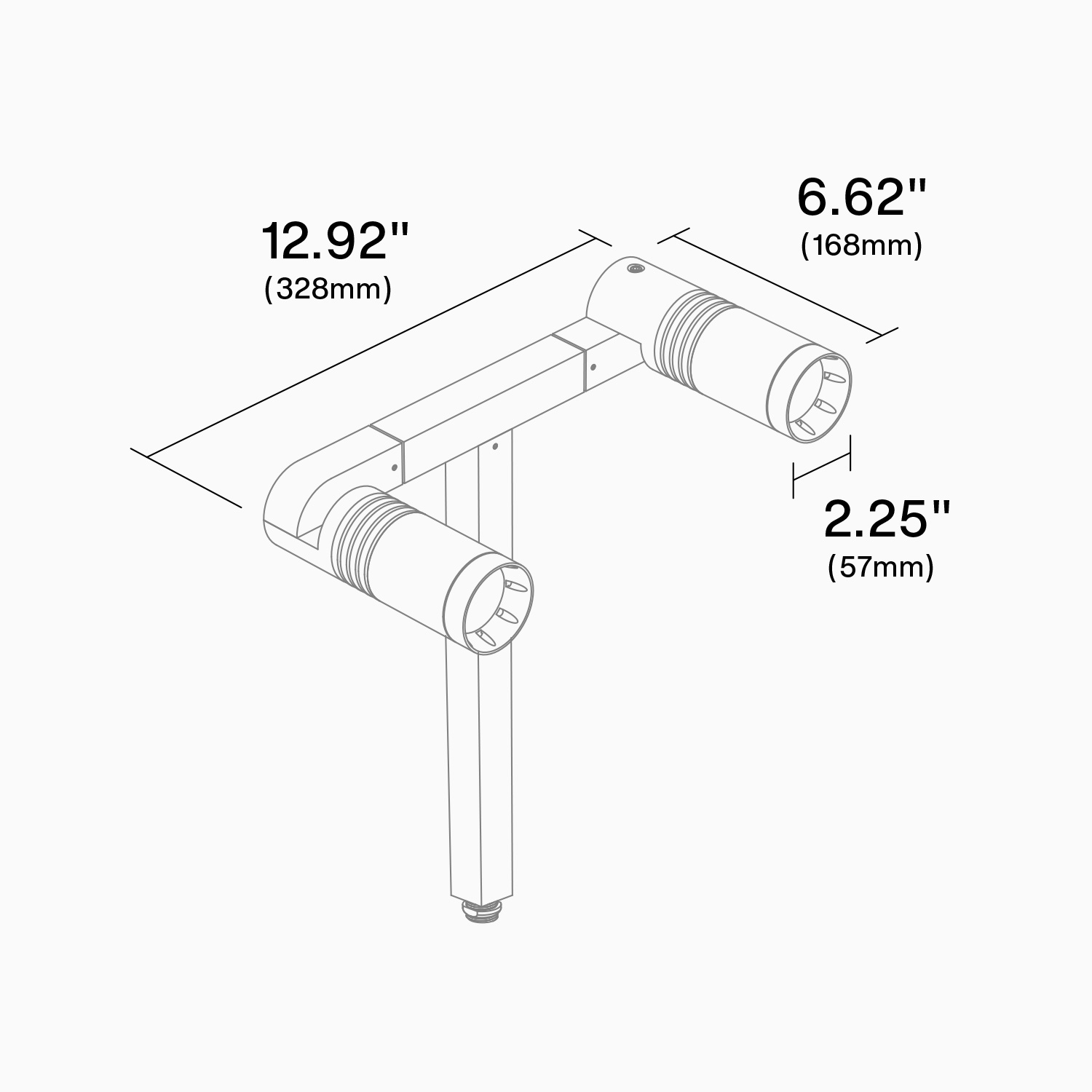

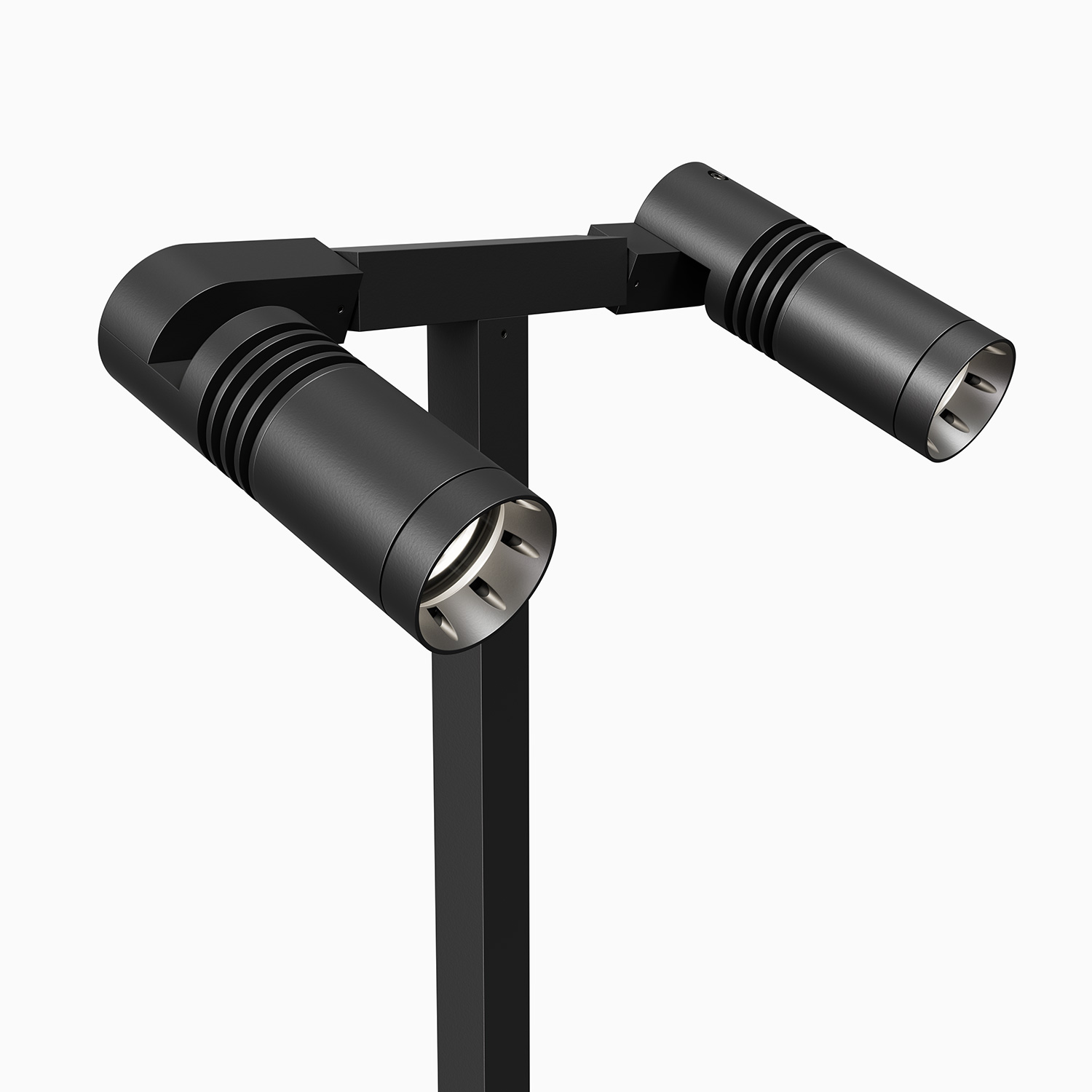

- Single and double light mounting options at 12″, 24″, 30″ or custom height.
- Every fixture tested end of line for water tightness and light quality.
- Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Specifications
Materials
Solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware.
Voltage
12V AC/DC. Requires remote step down transformer.
Optics
Narrow (20º), Medium (33º), Wide (44º), and Extra Wide (57º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
5,7 or 10W HK LED delivering 500 to 900 lumens per light.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices.
Hood and Glare Shield
3 available hood options to suit any application. 3 optional glare shields (short, long, angled) to complement each hood choice.
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, and Amber options available. Consult factory for specialty LED specification details.
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Dimming
MLV or ELV Phase Control dimming.
