ZPLMT
PATH & BOLLARD | ZPLMT Series | 6"
8W ( 450lm ) | 12V | HK LED
8W ( 450lm ) | 12V | HK LED
ZPLMT
PATH & BOLLARD | ZPLMT Series | 6"
8W ( 450lm ) | 12V | HK LED
8W ( 450lm ) | 12V | HK LED

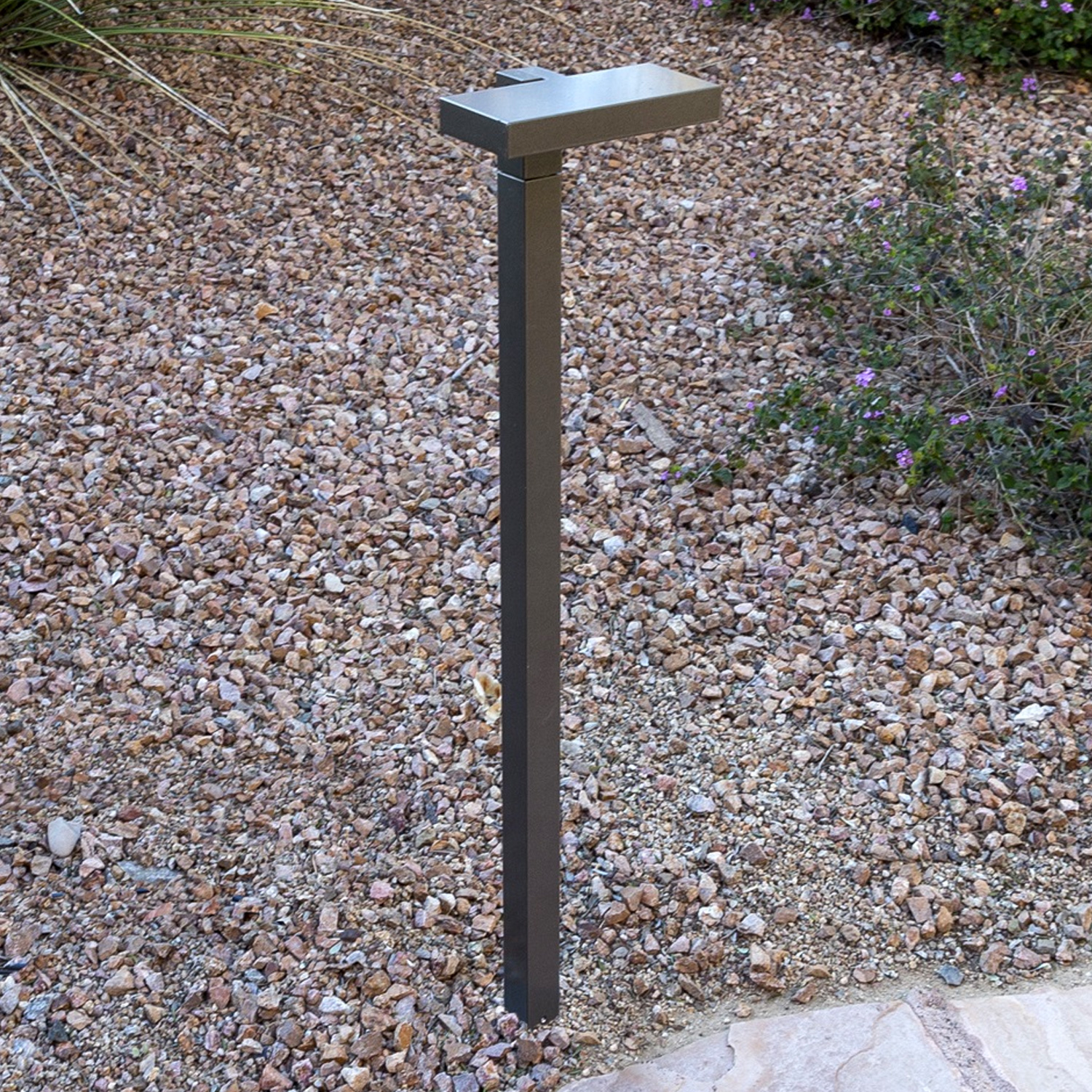

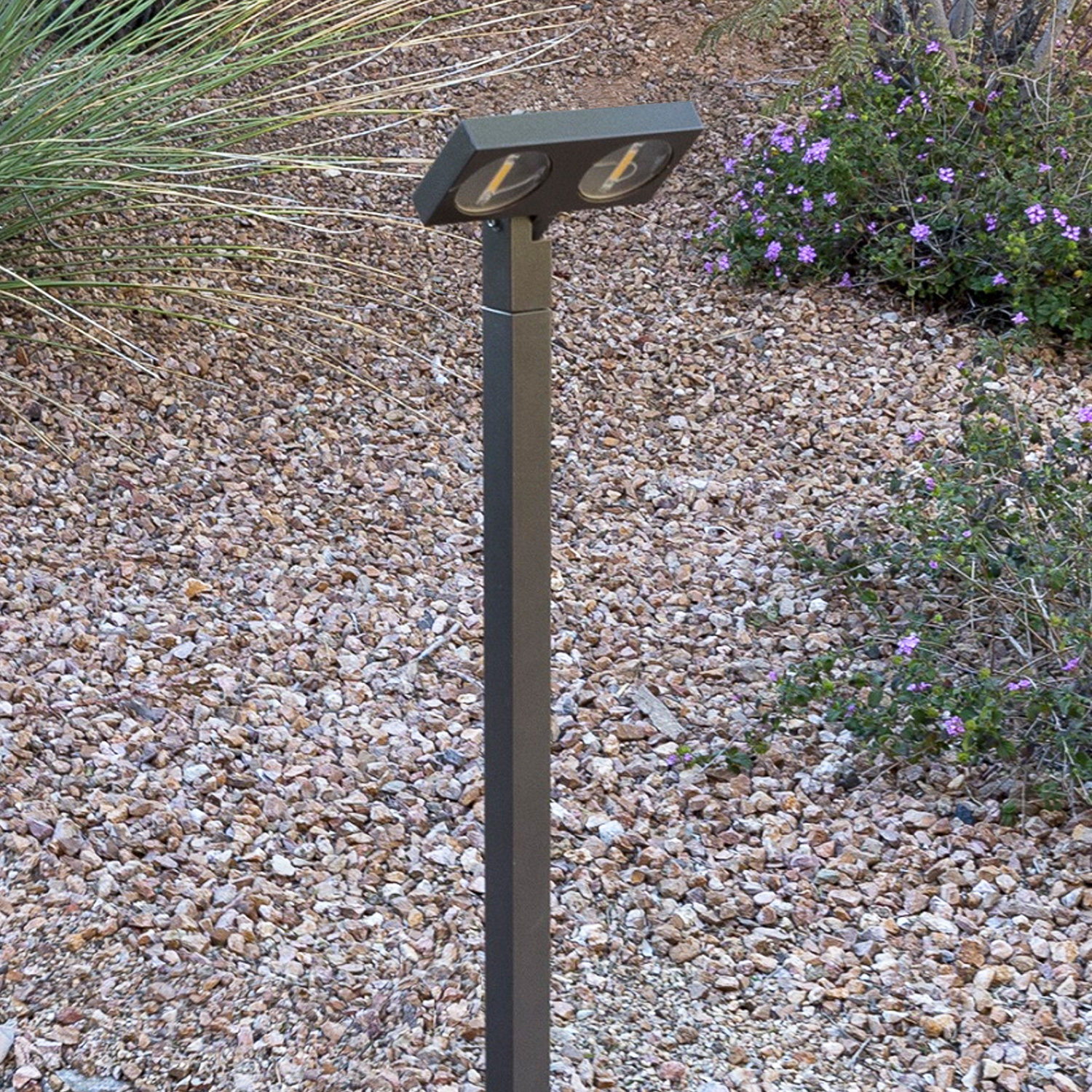

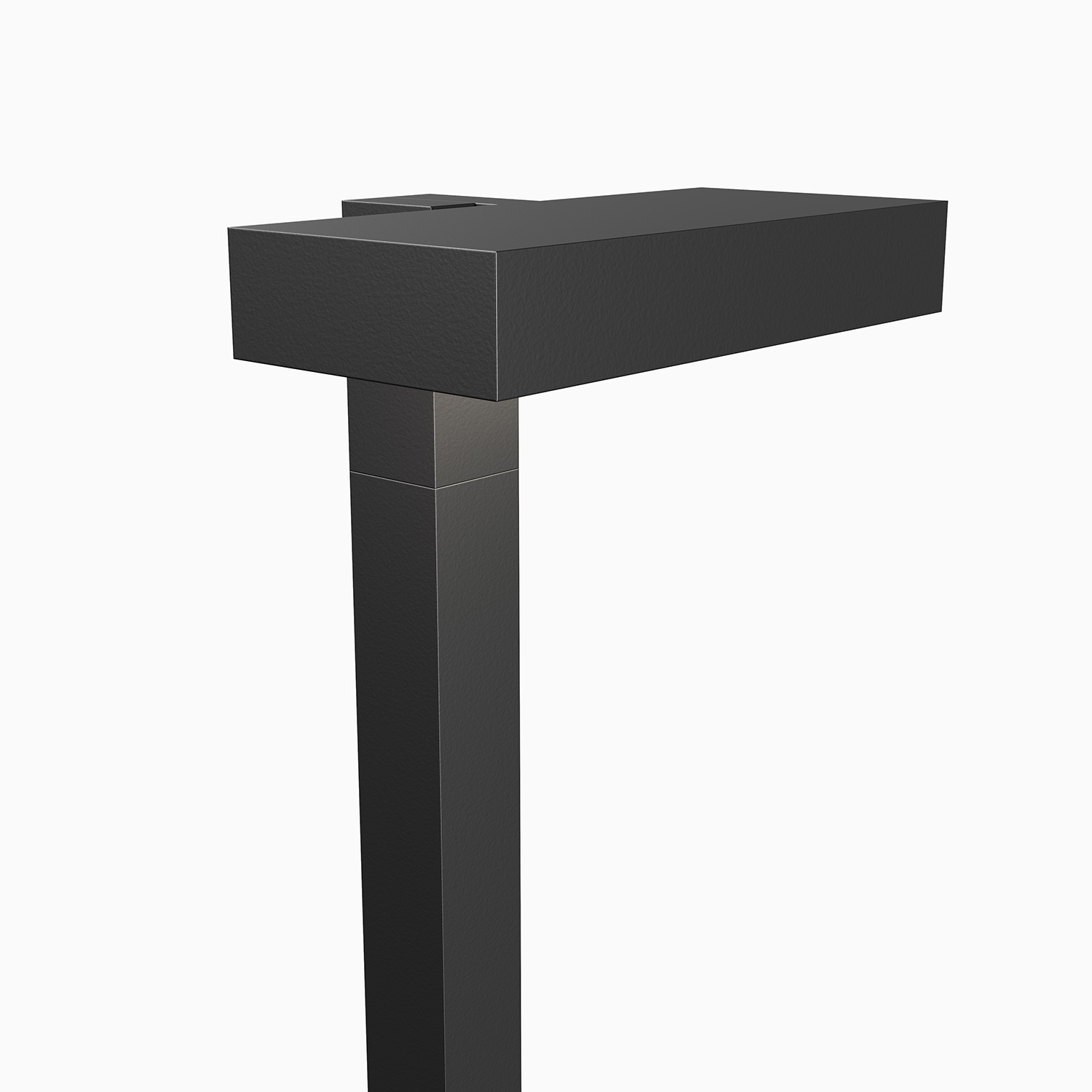

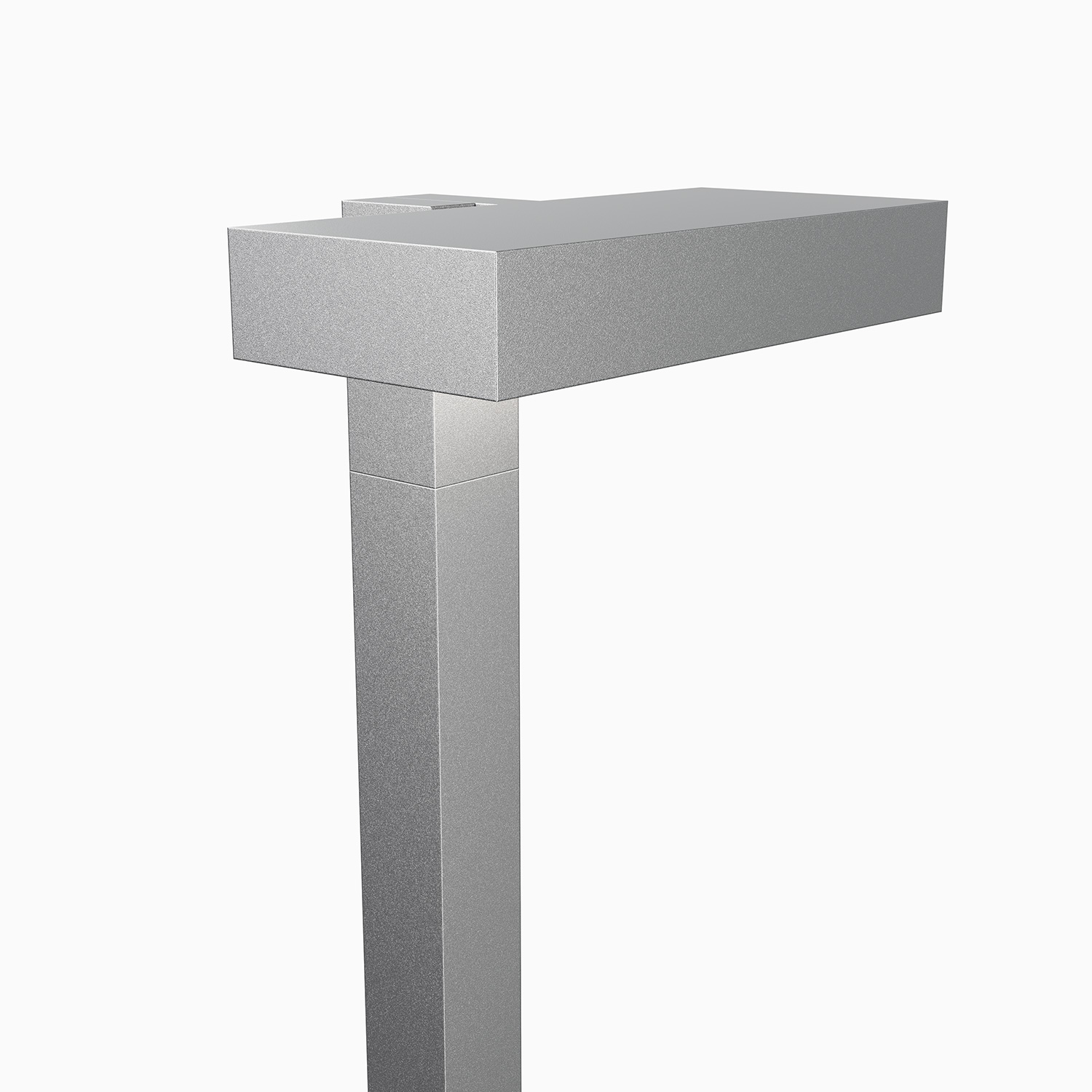

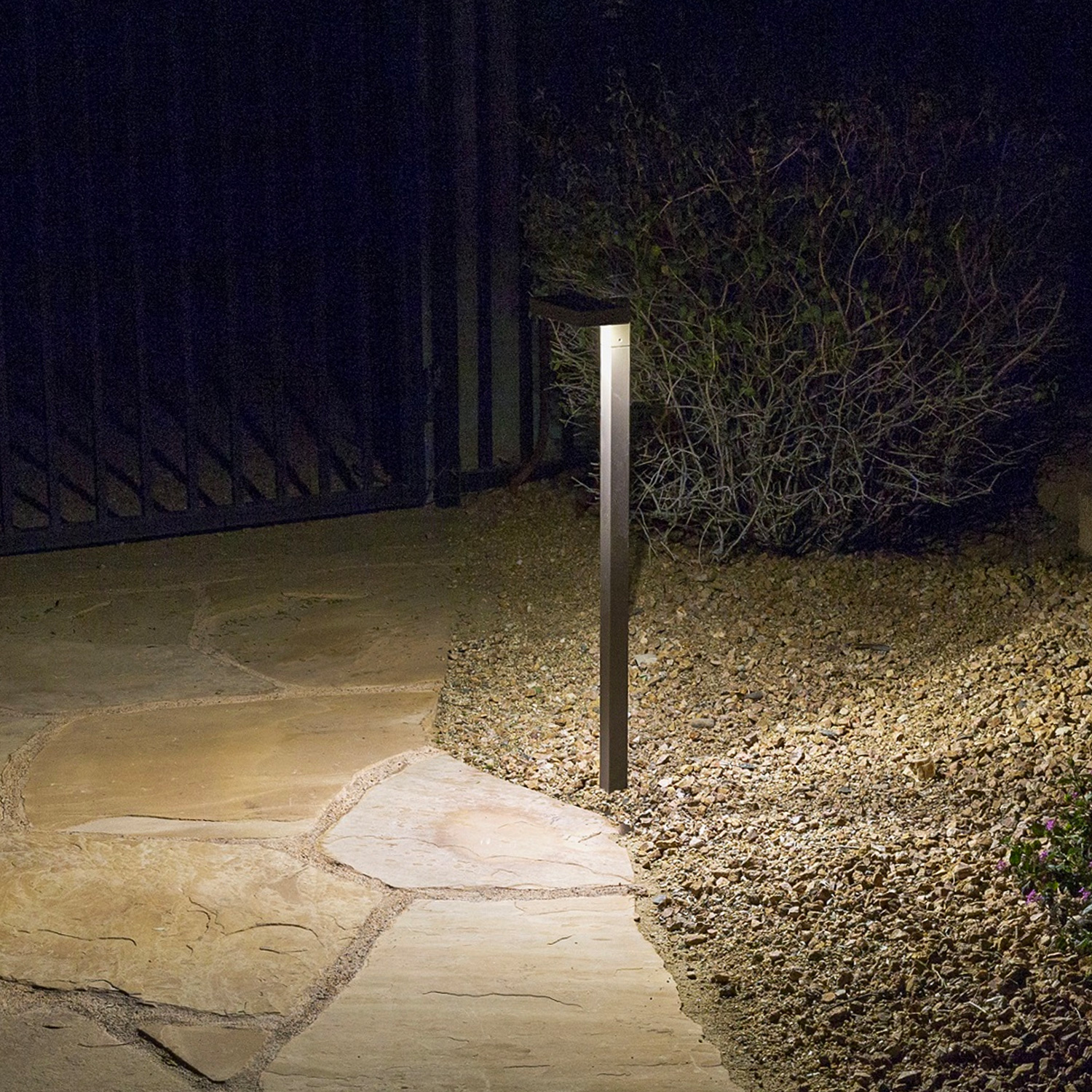

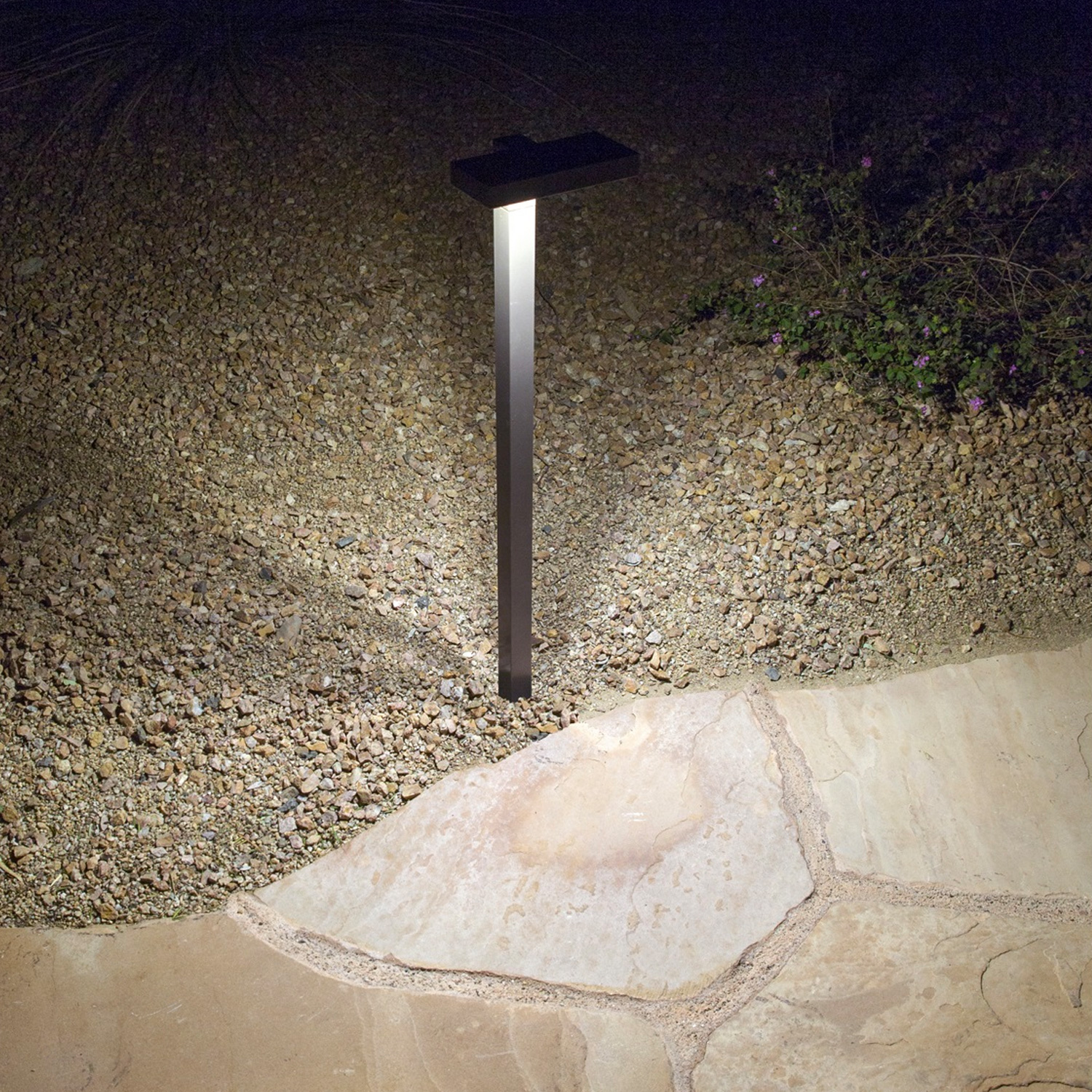

Highly versatile rectangular 12V LED path and area flood light. Perfect for commercial and residential pathways, where broad even light distribution is preferred. Also doubles as a capable, aimable flood light.
FEATURES:
- Flood or linear light distribution patterns available.
- 8W integrated HK LED and installed Solite soft focus lens delivers 450 lumens of soft, pleasing light.
- Wet Location Listed, IP67 standard.
- Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.

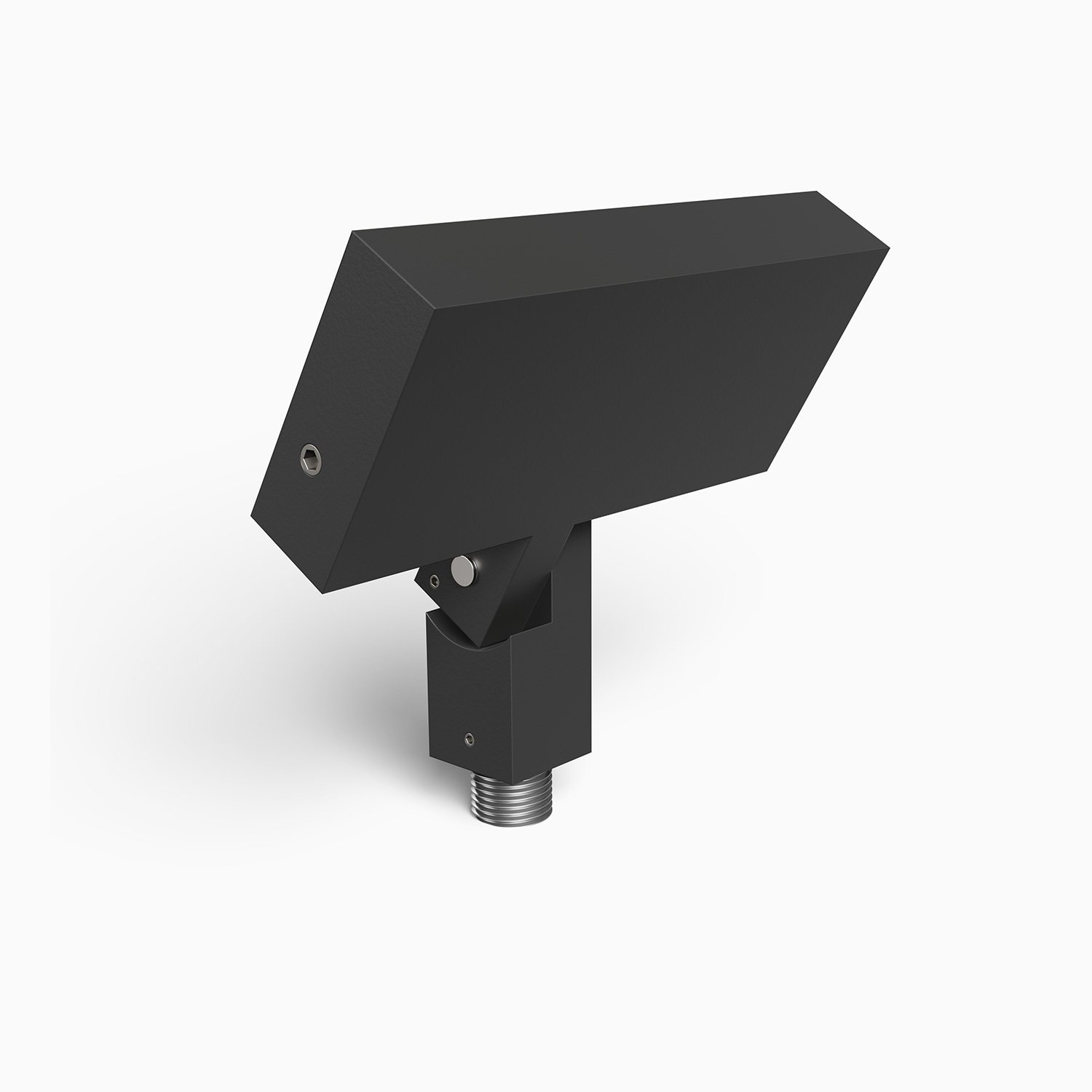

- 180° vertical adjustment via unique swivel stem design.
- Every fixture tested end of line for water tightness and light quality.
Specifications
Materials
Solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware.
Voltage
12V AC/DC. Requires remote step down transformer.
Optics
Includes Solite Soft Focus lens for smooth, even distribution of light.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
8W HK LED delivering 450 lumens.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices.
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Standard CCT options are 2700K, 3000K, 4000K. Specialty color temperature including Amber option available. Consult factory for specialty LED specification details.
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Dimming
MLV or ELV Phase Control Dimming.
