Additional information

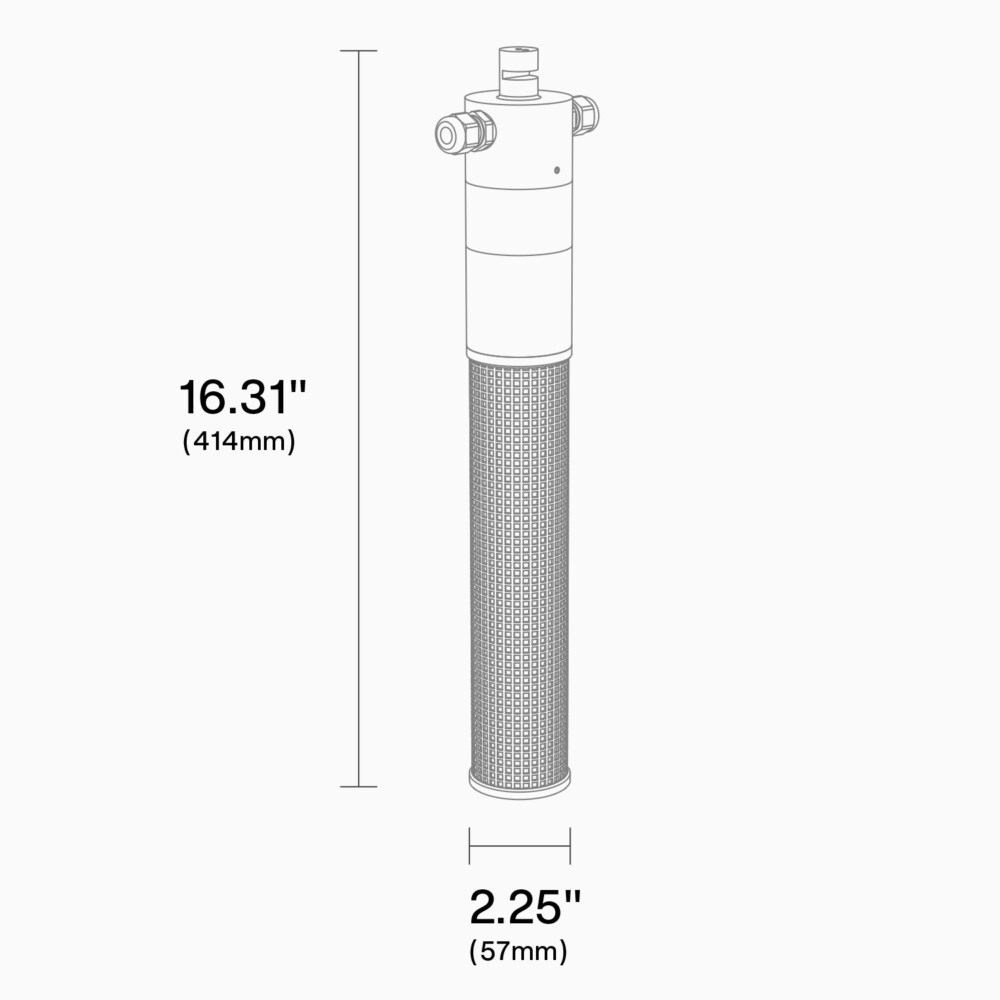

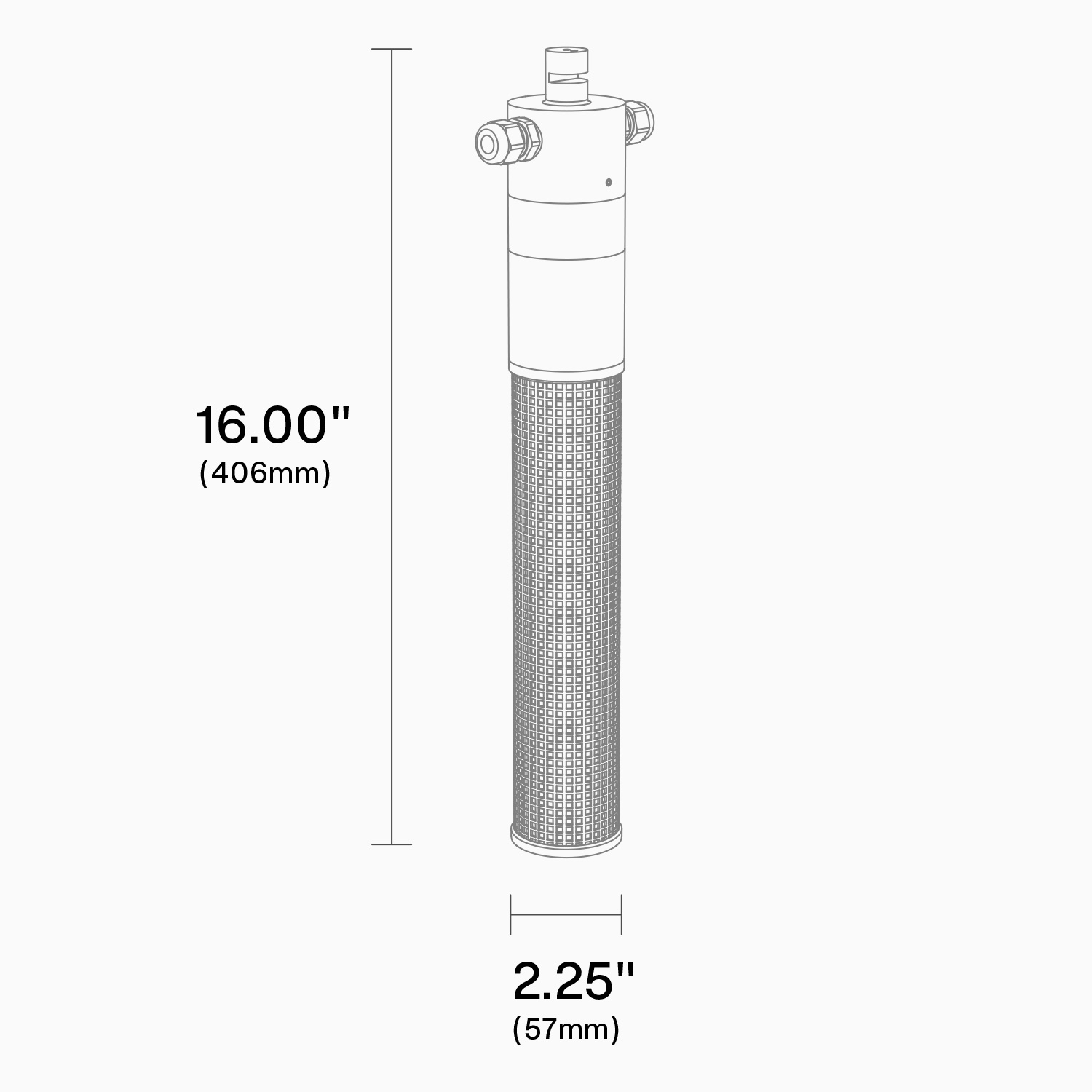

| Dimensions | 2.25 × 15.93 in |
|---|---|
| Light Source | |
| Shape | |
| Lumen Output | |
| Input Voltage | |
| Wattage |
ZX16-CAT-(GU10)-SOi-BM
Hanging & Catenary • ZX16-CAT Series
ZX16-CAT-(GU10)-SOi-BM
Hanging & Catenary • ZX16-CAT Series

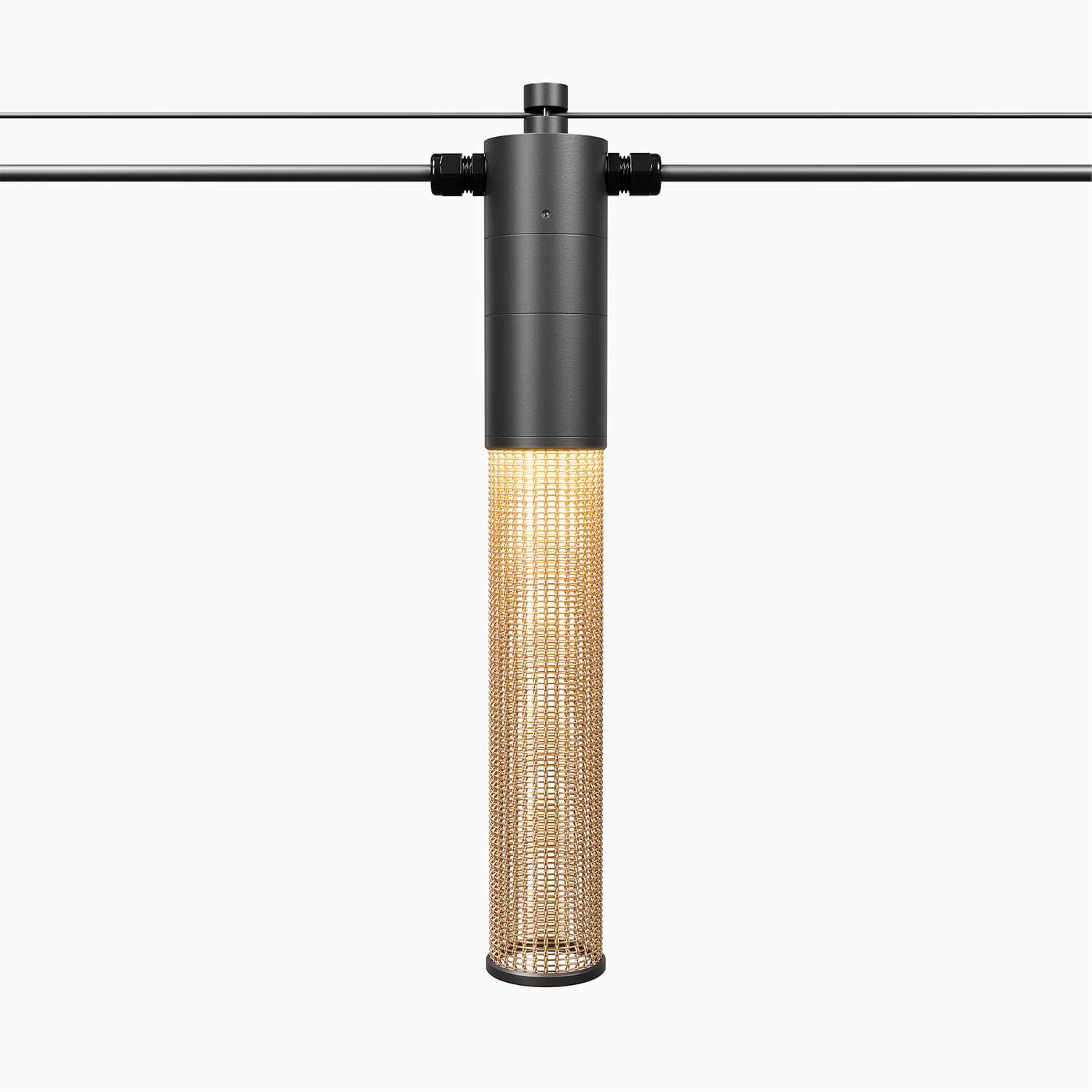

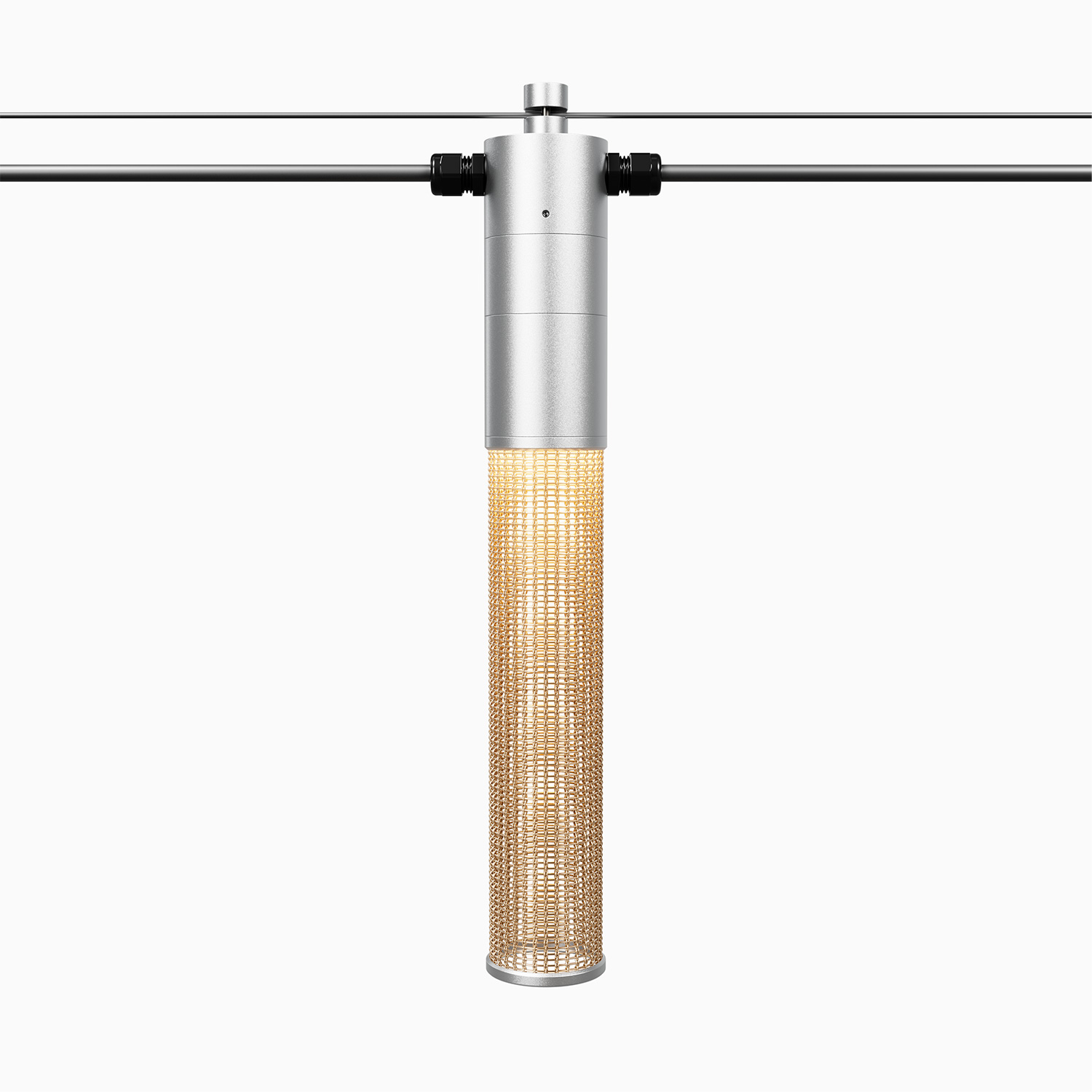

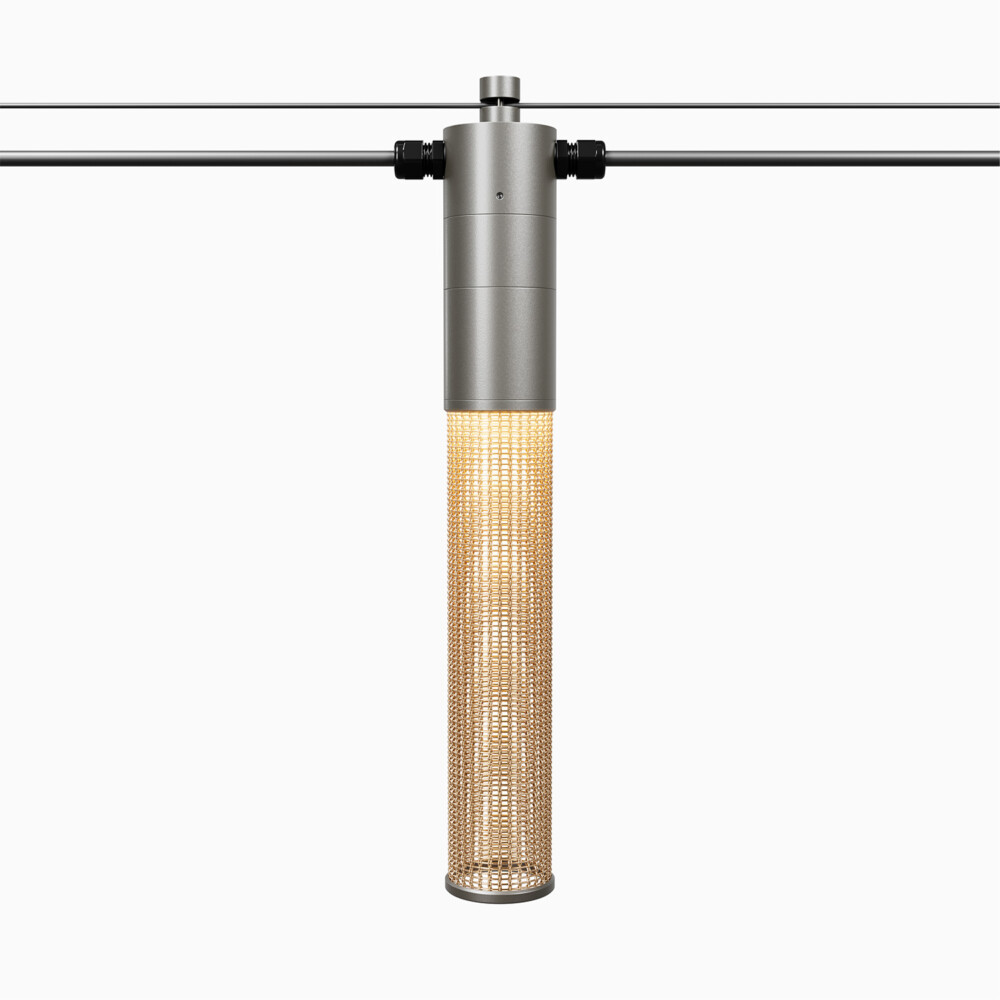

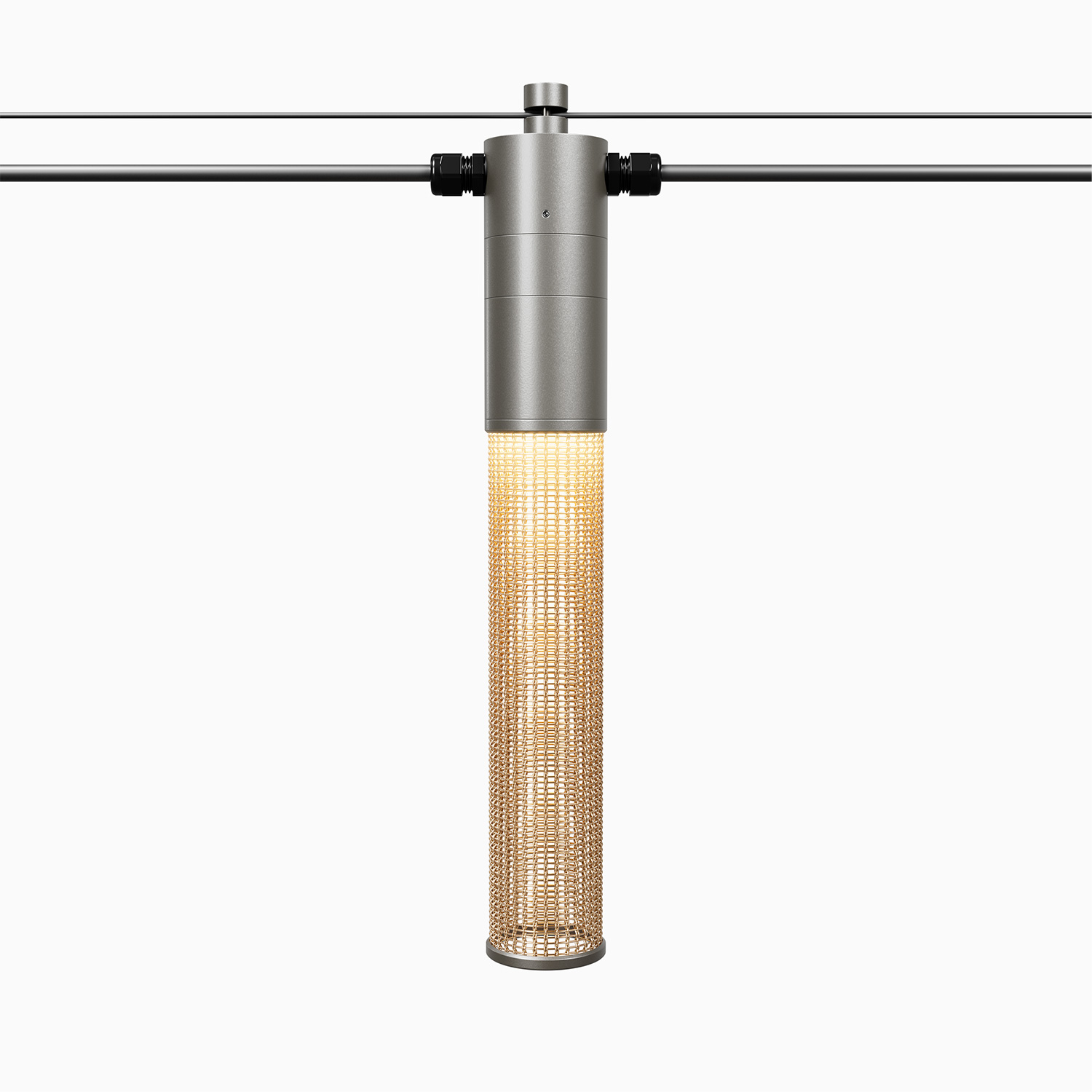

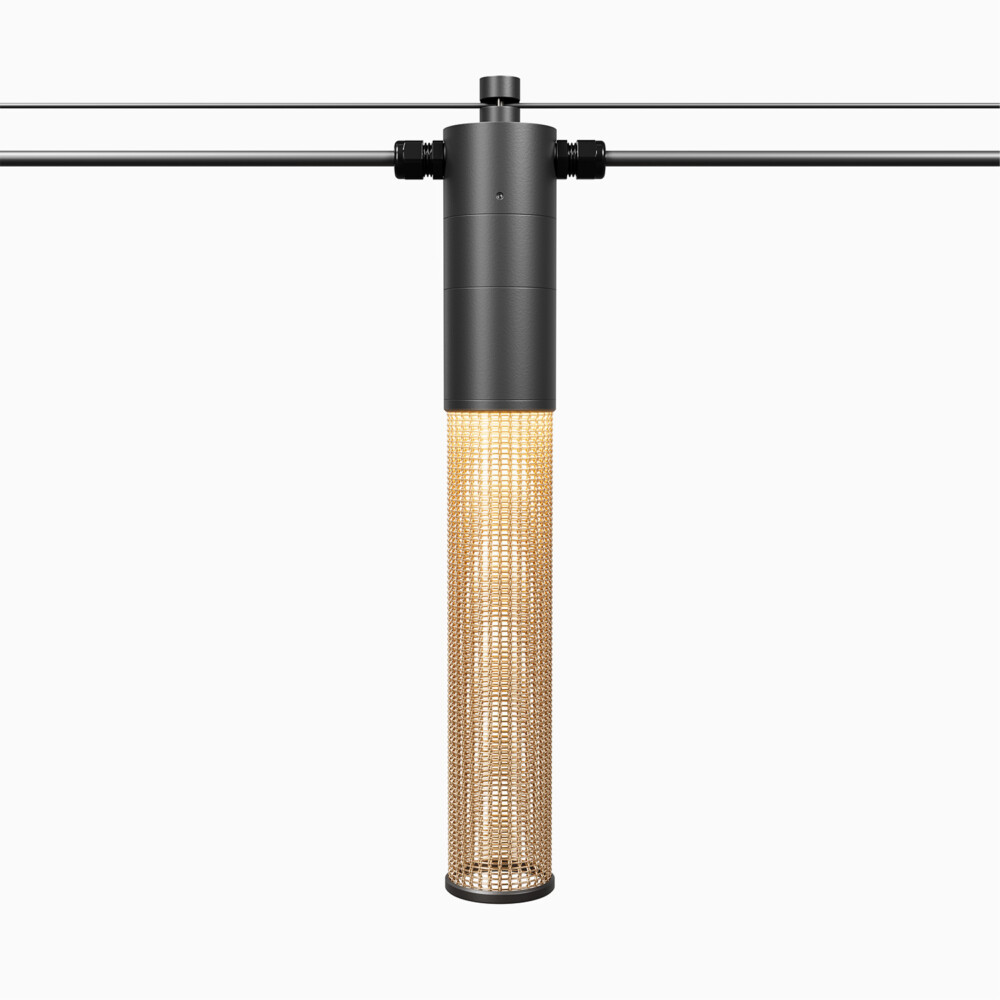

MR16 SORAA catenary with brass mesh shade
FEATURES:
- A unique catenary system including LED fixtures, turnbuckle, suspension cable, power cable for outdoor illumination.
- Integral weatherproof wiring compartment in fixture body.
- For SORAA® 12V GU5.3 base MR16 LED, or line voltage GU10 base MR16 LED.
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
- US patented integral SORAA heat sink.
- Unique brass mesh hood.
- GU10-SOi pre-wired with 18/3 power cable in factory.
Specifications
Materials
Body: Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request. Hood: Finely woven brass mesh hood.
Voltage
12V, 120V or 230V AC.
Optics
Dichroic color filters. Secured in place with metal snap ring.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
Max. 9W for SORAA MR16 lamp with Thermobuster.
Mounting
Custom hook mechanism on top of fixture that utilizes set screws to secure fixture(s) on the suspension cable and to lock the position of fixture on the cable.
Fixture Weight
2lbs.
Light Engine
12V - MR16 SORAA LED lamp. Line Voltage - MR16 GU10 SORAA LED lamp.
Turn Buckle (Optional)
Allows fine tuning of the tension on the support cable, up to 1.50" of adjustment.
Dimming
12V - MLV or ELV. Line voltage - phase dimming.
Power Cable (Optional)
12V - 18/2 SJTW cable dia. 0.29". 120V/230V - 18/3 SJTW cable dia. 0.31" pre-wired.
Lamp Base/Socket
12V with GU5.3 socket, or 120V/230V with porcelain GU10 twist-lock socket.
Suspension Cable (Optional)
7x7 stainless steel wire rope, maximum diameter is 5/32", capacity 450Ibs.
