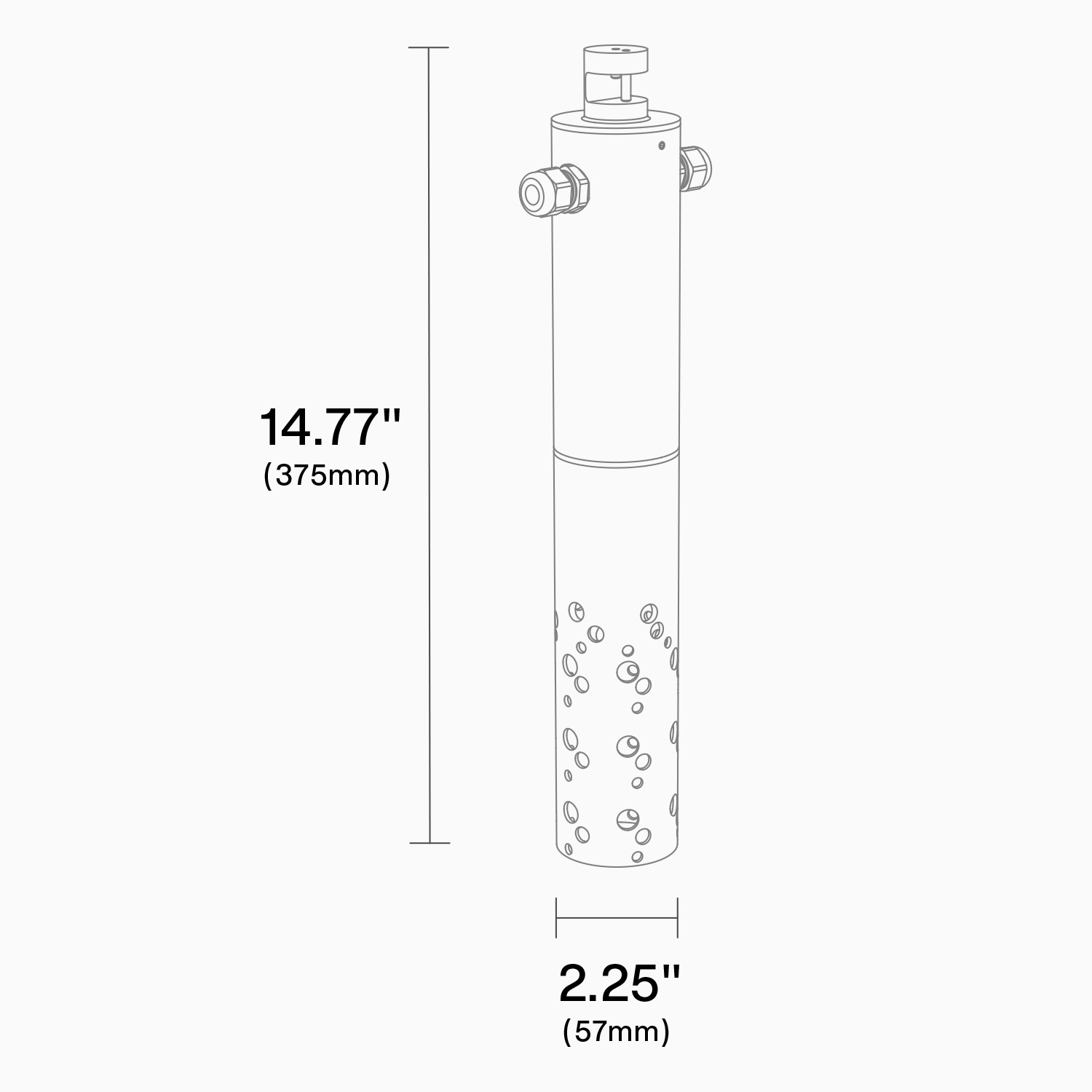

ZX16-CAT-(GU10)-SOi-JB

Hanging & Catenary • ZX16-CAT Series

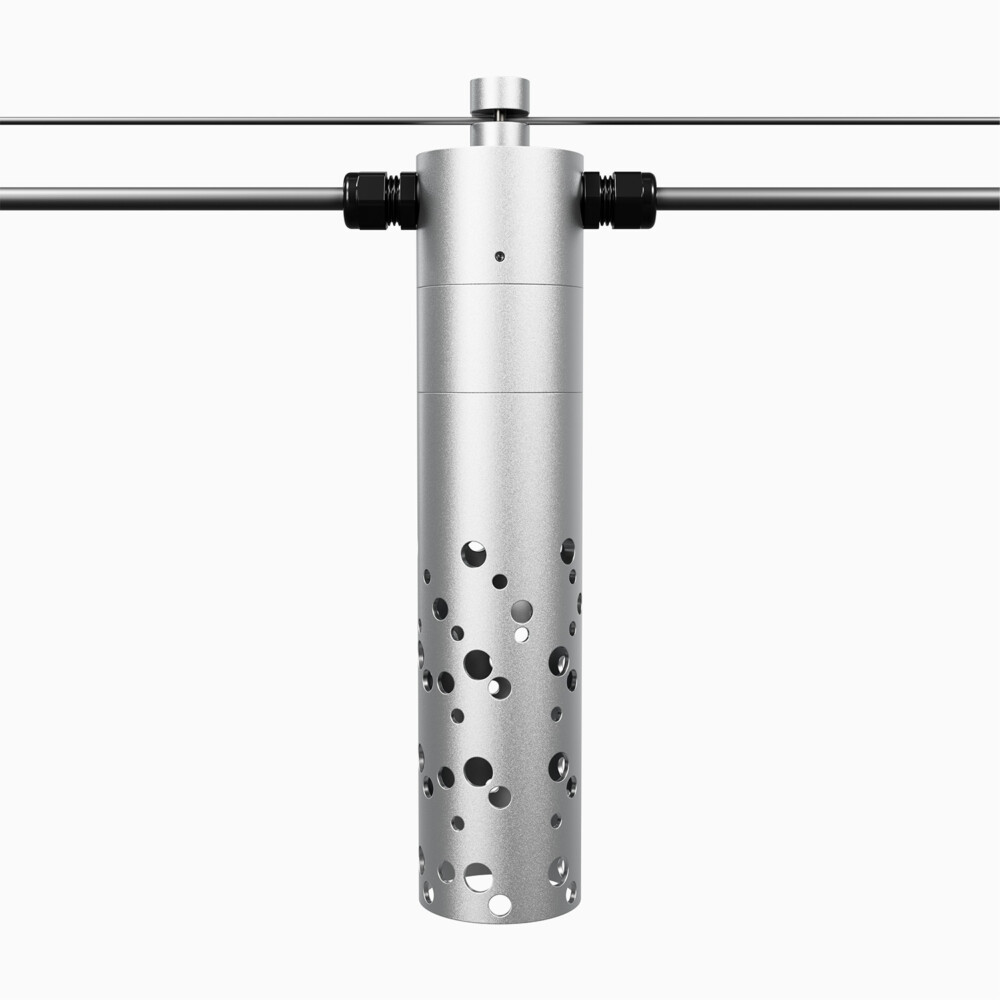

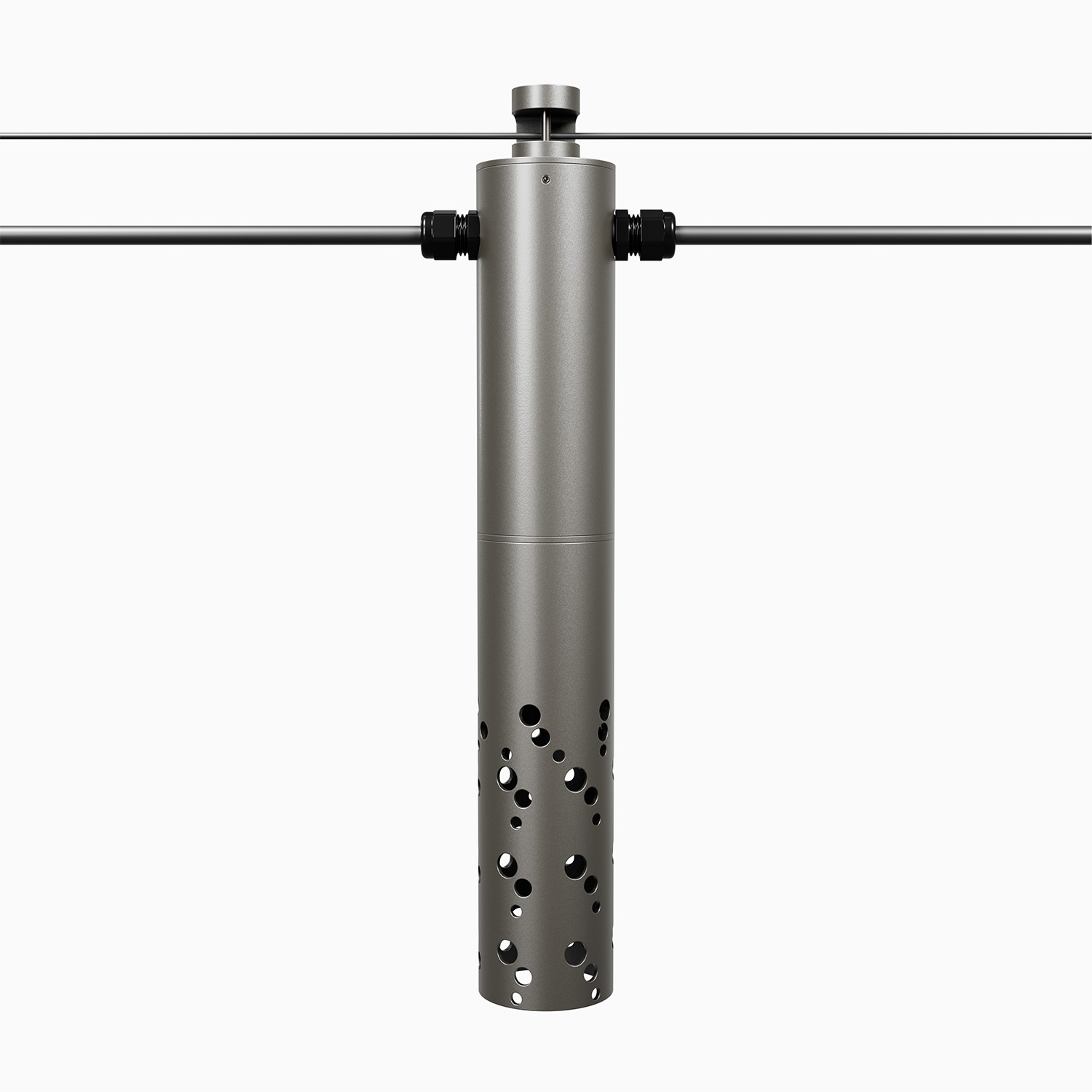

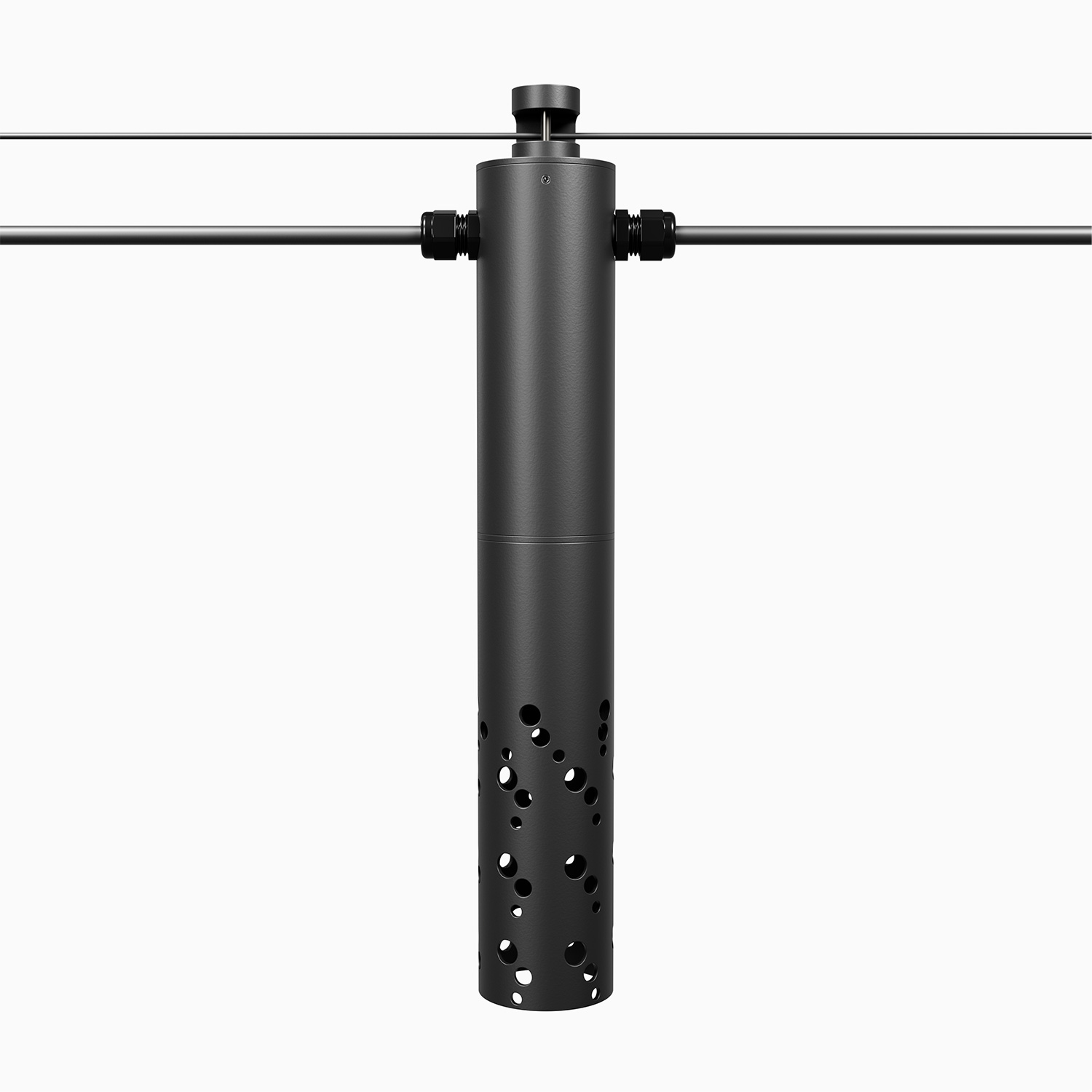

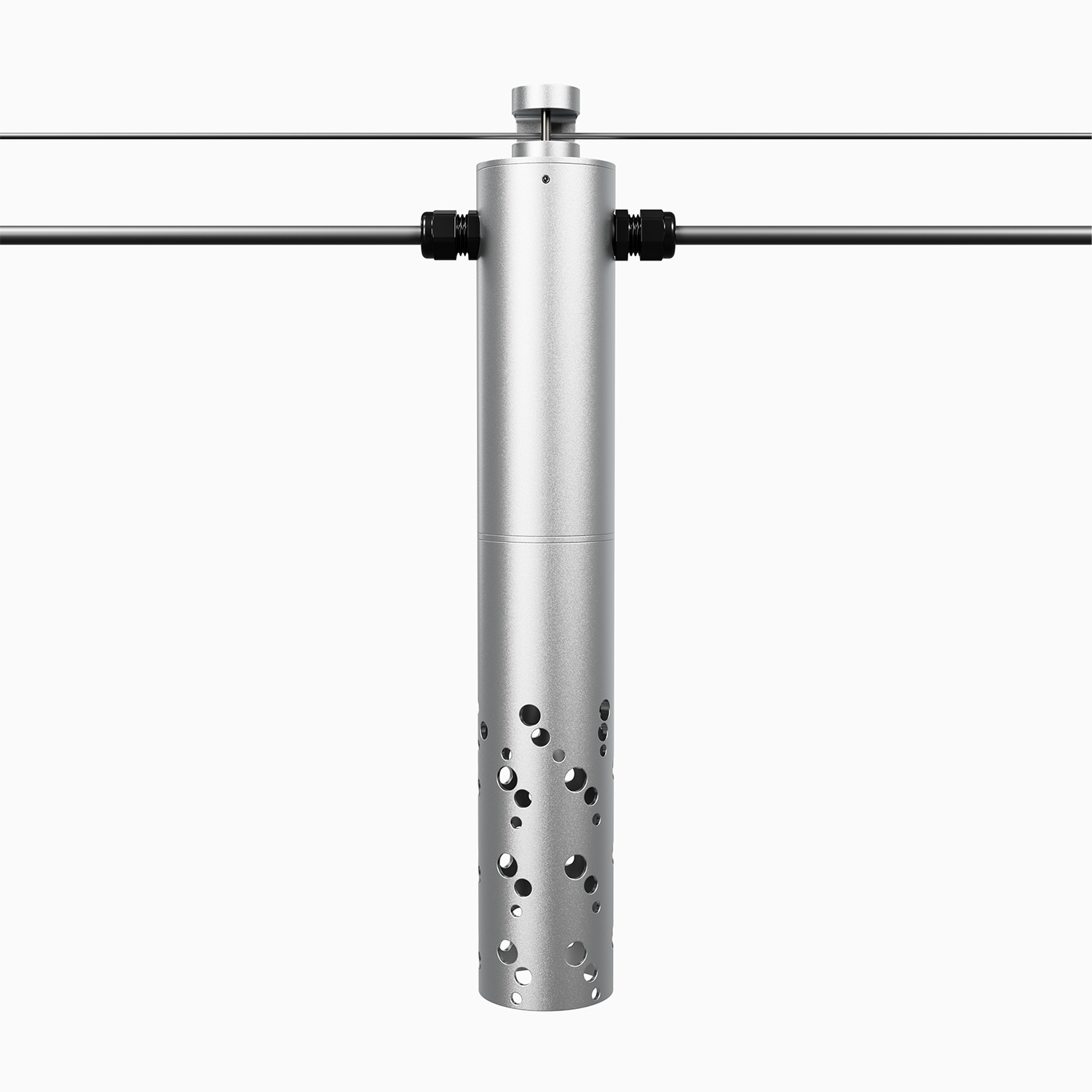

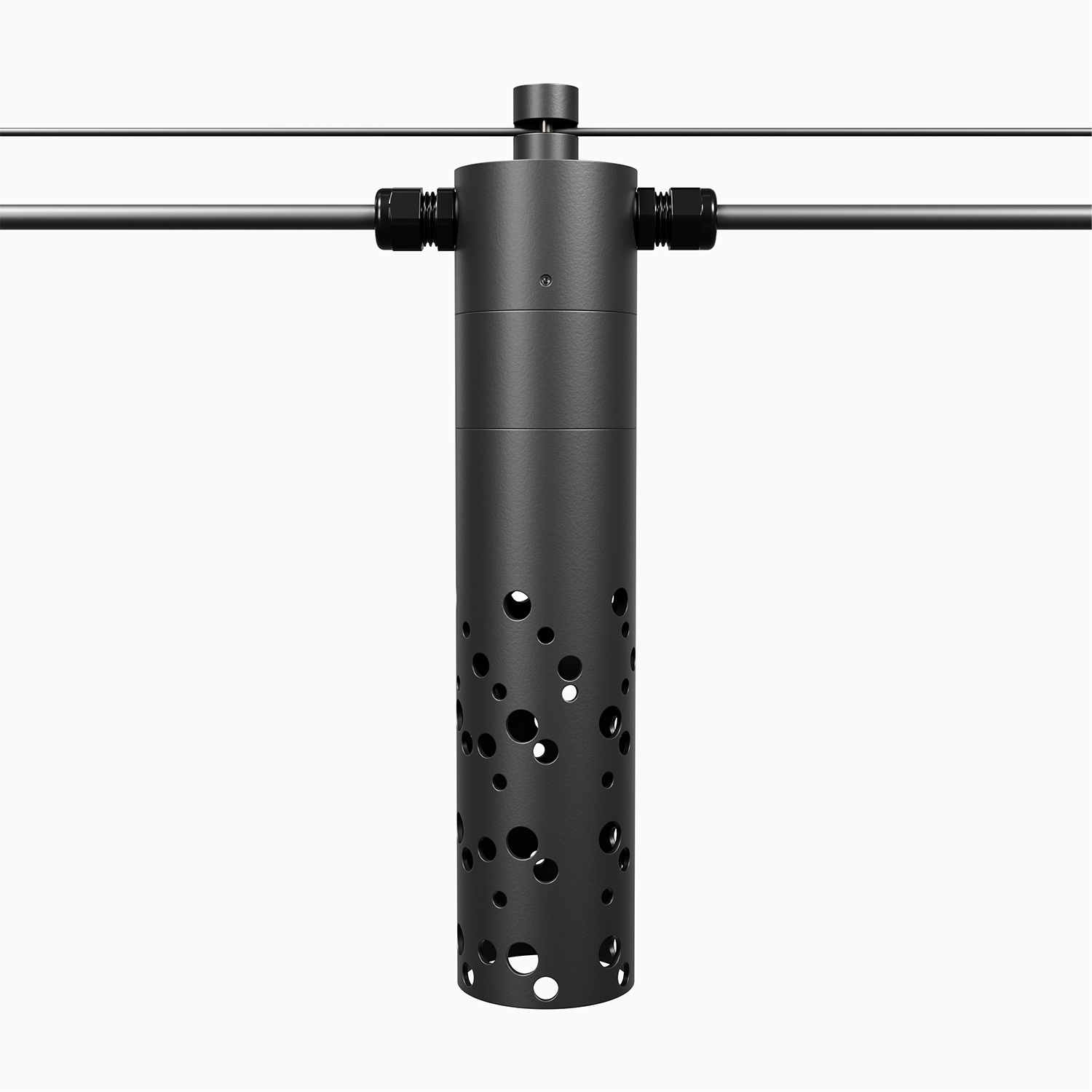

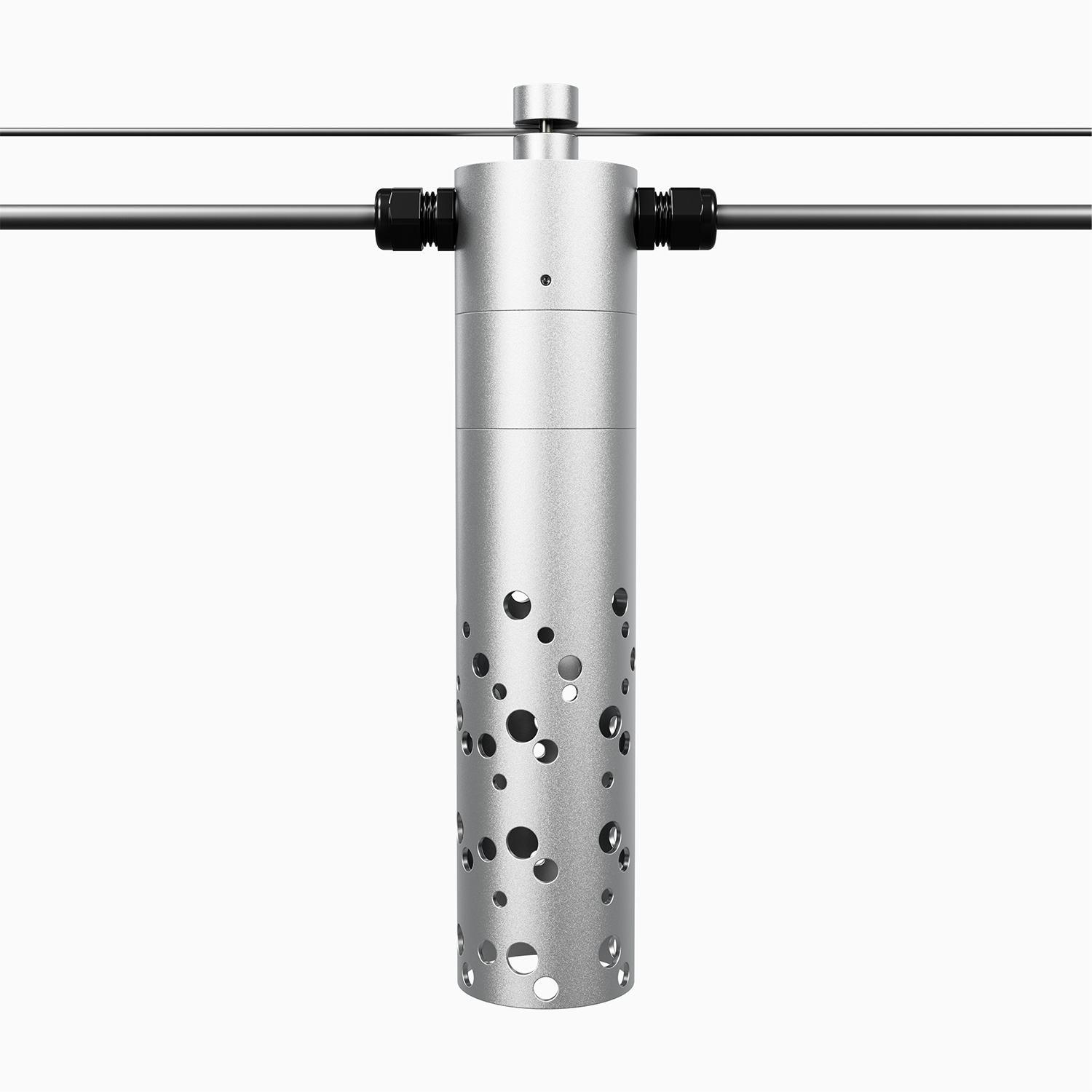

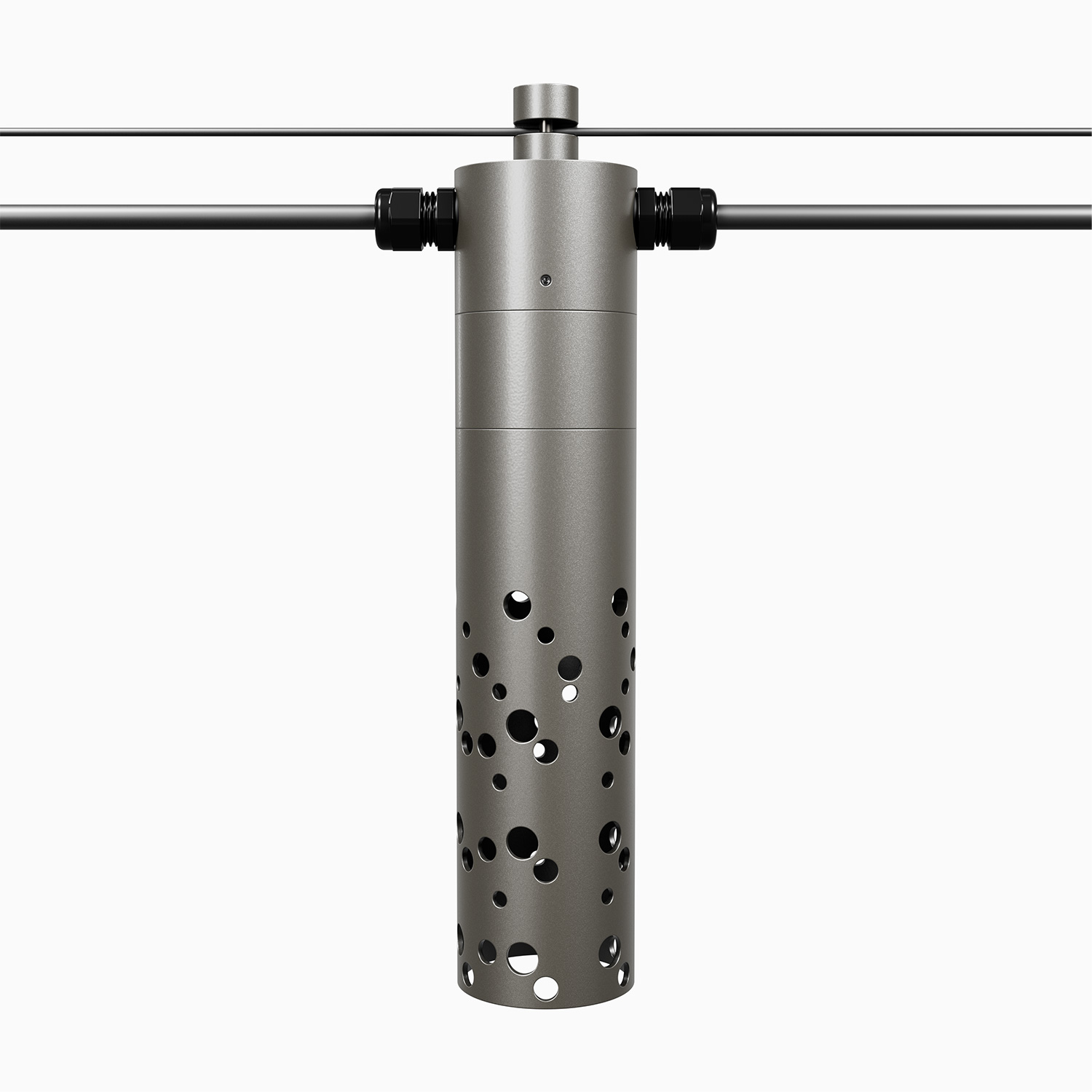

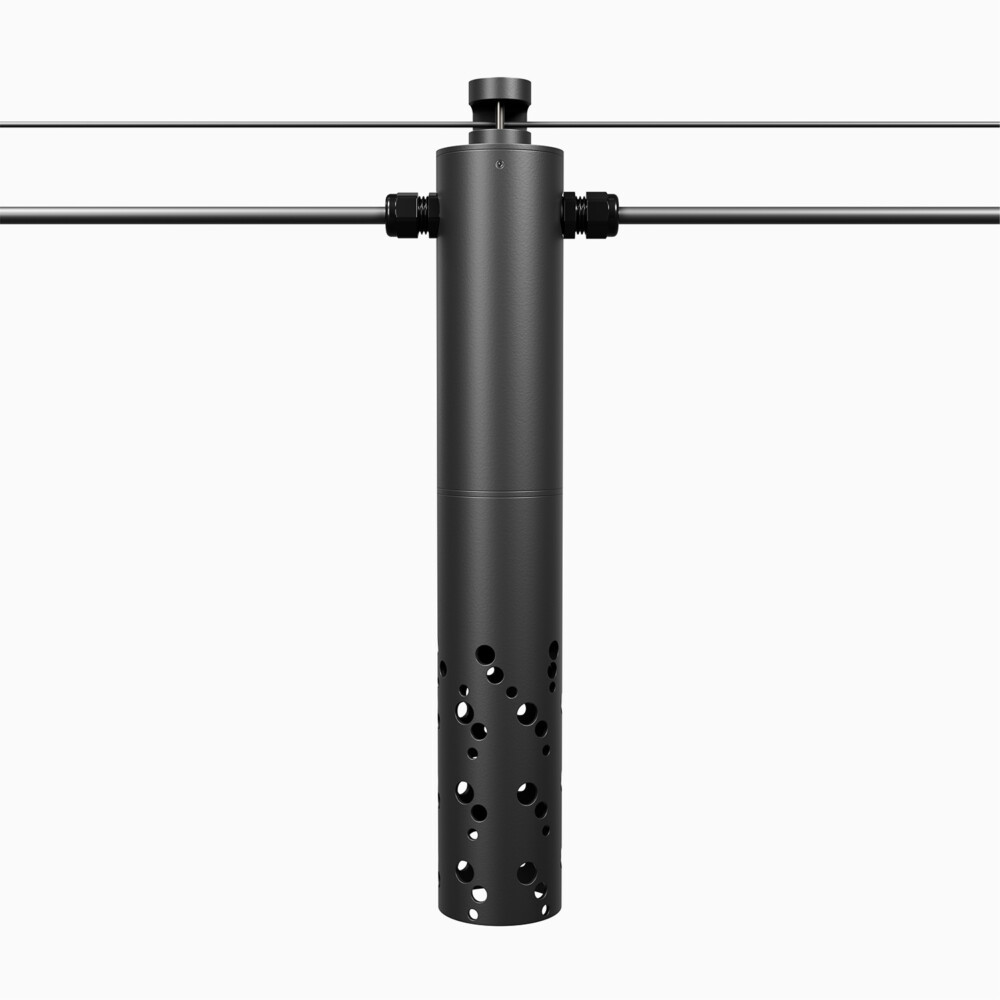

MR16 SORAA® catenary with random perferated shade

FEATURES:

A unique catenary system including LED fixtures, turnbuckle, suspension cable, power cable for outdoor illumination.
Integral weatherproof wiring compartment in fixture body.
For SORAA 12V GU5.3 base MR16 LED, or line voltage GU10 base MR16 LED.
ETL outdoor wet location listed. IP65 standard.
Machined from solid billet 6061-T6 corrosion resistant aluminum.
US patented integral SORAA heat sink.
Perforated hood with random hole pattern.
GU10-SOi pre-wired with 18/3 power cable in factory.

spec sheets

Specifications

Materials

Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.

Voltage

12V, 120V or 230V AC.

Optics

Dichroic color filters. Secured in place with metal snap ring.

Finish

Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface

Wattage

Max. 9W for SORAA MR16 lamp with Thermobuster.

Mounting

Custom hook mechanism on top of fixture that utilizes set screws to secure fixture(s) on the suspension cable and to lock the position of fixture on the cable.
