Additional information
| Dimensions | 2.25 × 4.87 in |
|---|---|
| Light Source | |
| Shape | |
| Lumen Output | |
| Input Voltage | |
| Wattage |

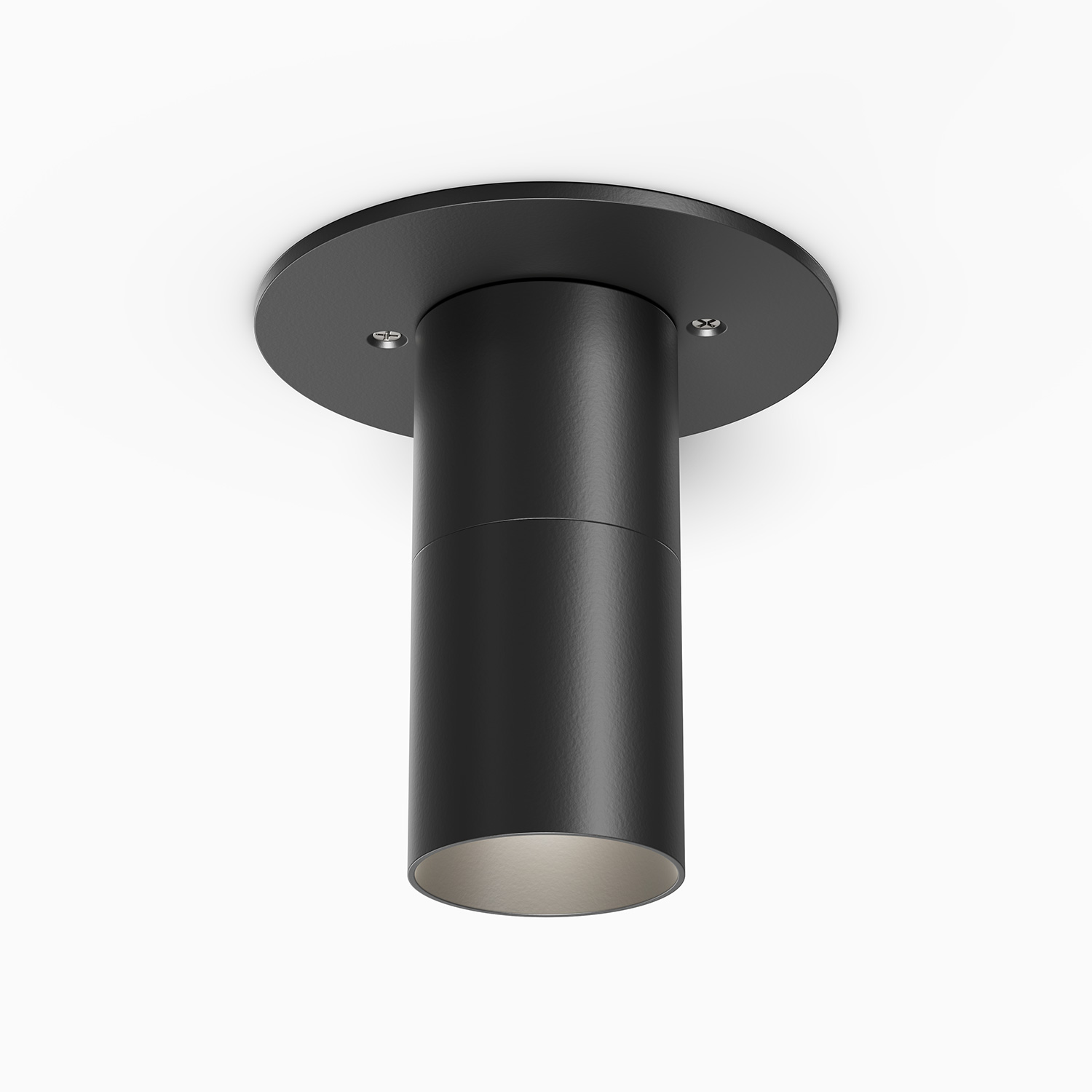

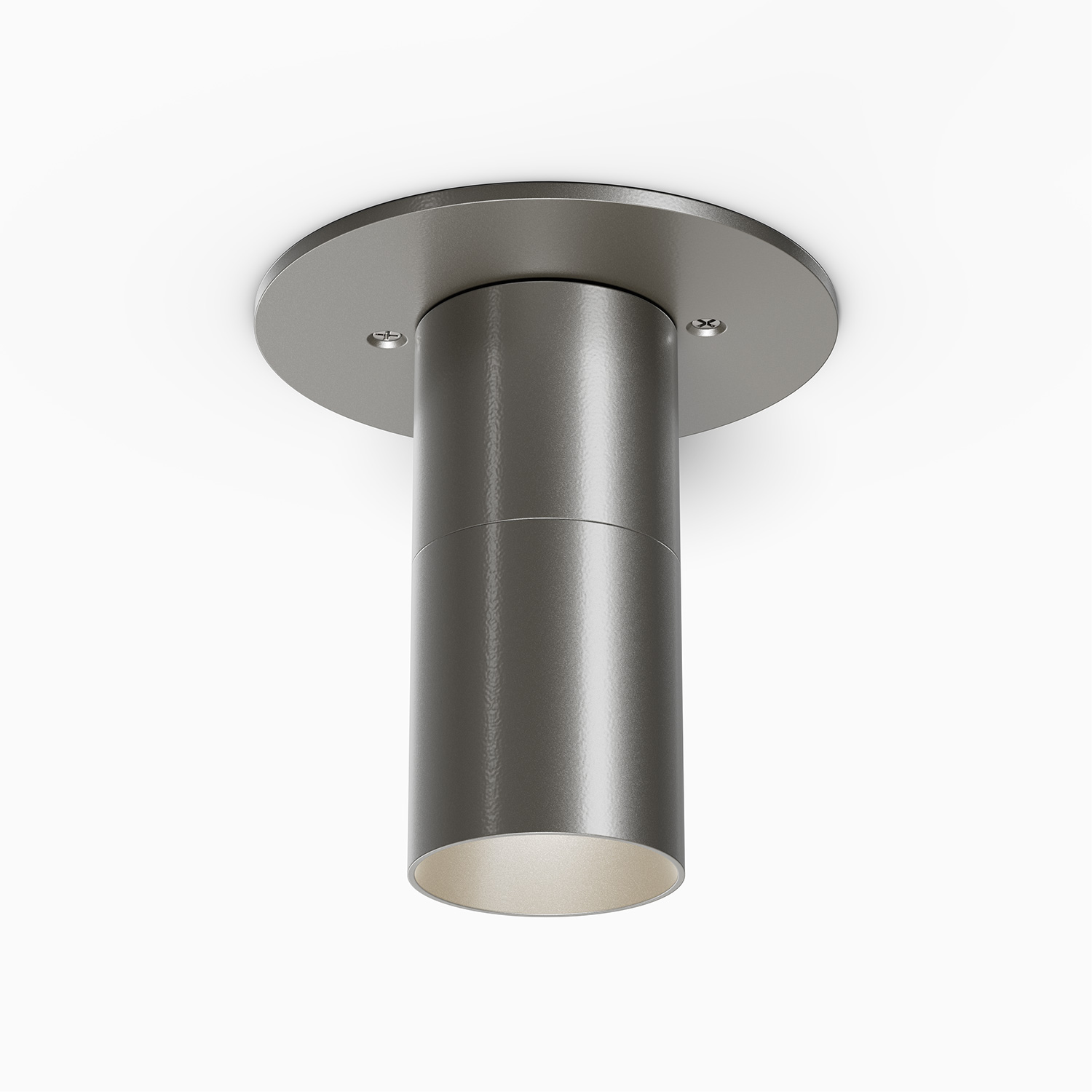

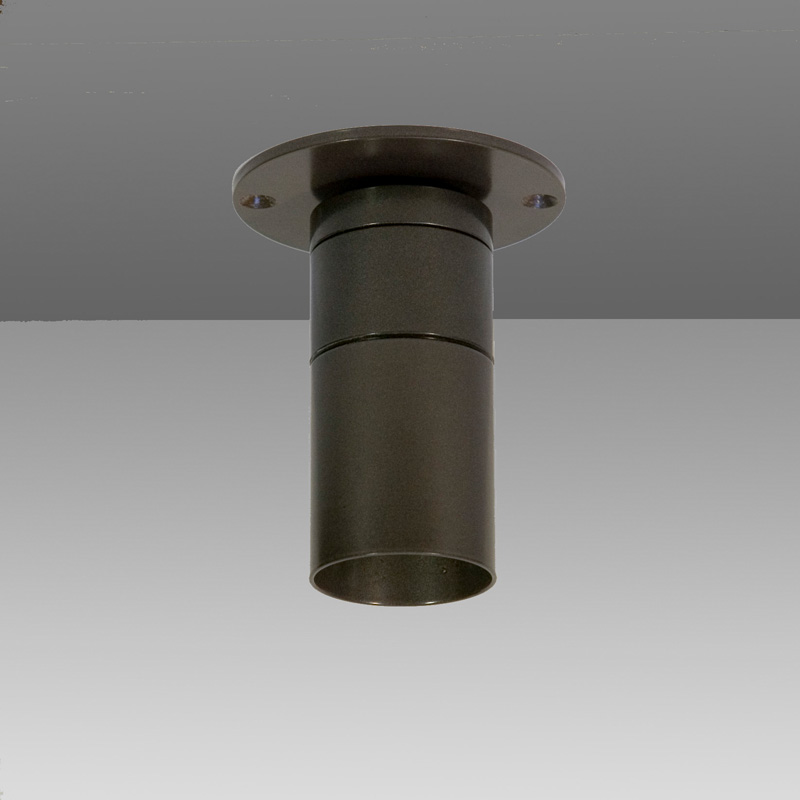

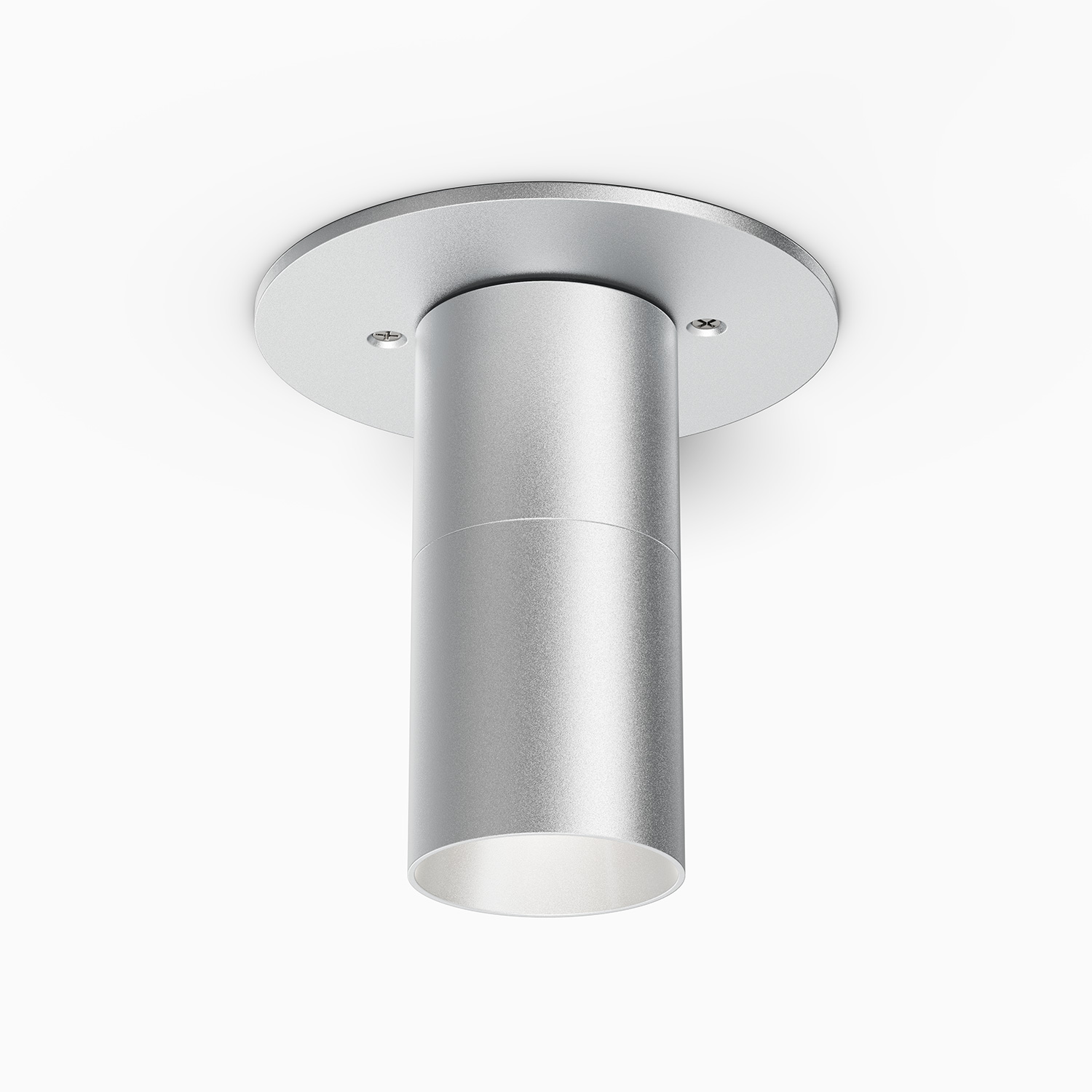

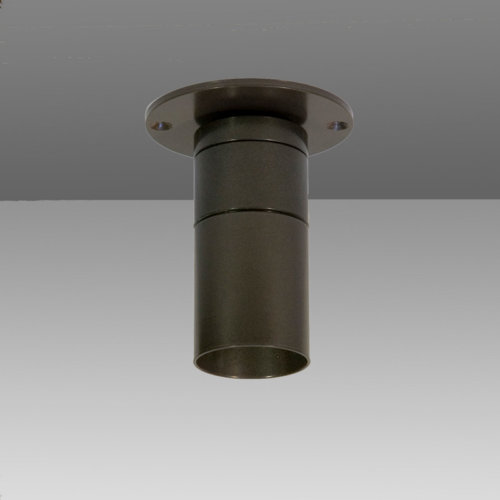

ZX16-CM-GU10-SOi
CEILING MOUNT | ZX16 Series | 2"
7.5 - 9W ( 390 - 590lm ) | 120V, 230V | SORAA LED
7.5 - 9W ( 390 - 590lm ) | 120V, 230V | SORAA LED
ZX16-CM-GU10-SOi
CEILING MOUNT | ZX16 Series | 2"
7.5 - 9W ( 390 - 590lm ) | 120V, 230V | SORAA LED
7.5 - 9W ( 390 - 590lm ) | 120V, 230V | SORAA LED
Ceiling mount lighting for architectural and down light application.
FEATURES:
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.
- US patented integral SORAA® heat sink.
- 120V input with GU10 MR16 LED. No transformer needed.
Specifications
Materials
Solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware.
Voltage
120V or 230V AC
Lamp Base/Socket
Porcelain GU10 twist - lock lamp base.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
Max. 9W for SORAA MR16 lamp with Thermobuster. Max. 35W for halogen MR16.
Optics
Accepts up to 3 accessories (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.
Hood and Glare Shield
2 available hood options to suit any application. 3 optional glare shields (short, long, angled) to complement each hood choice.
Light Engine
MR16 GU10 Halogen lamp or MR16 GU10 SORAA LED lamp. Please refer to SORAA MR16 GU10 for lamp selection.
Mounting
Utilizes 2x 8-32 UNC machine screws (provided) to attach to a standard octagon recessed back box (provided by others).
Dimming
Phase dimming. Please refer to SORAA website for SORAA MR16 GU10 dimmer compatibility.
Compatible Accessories
