ZX16 Center Pivot

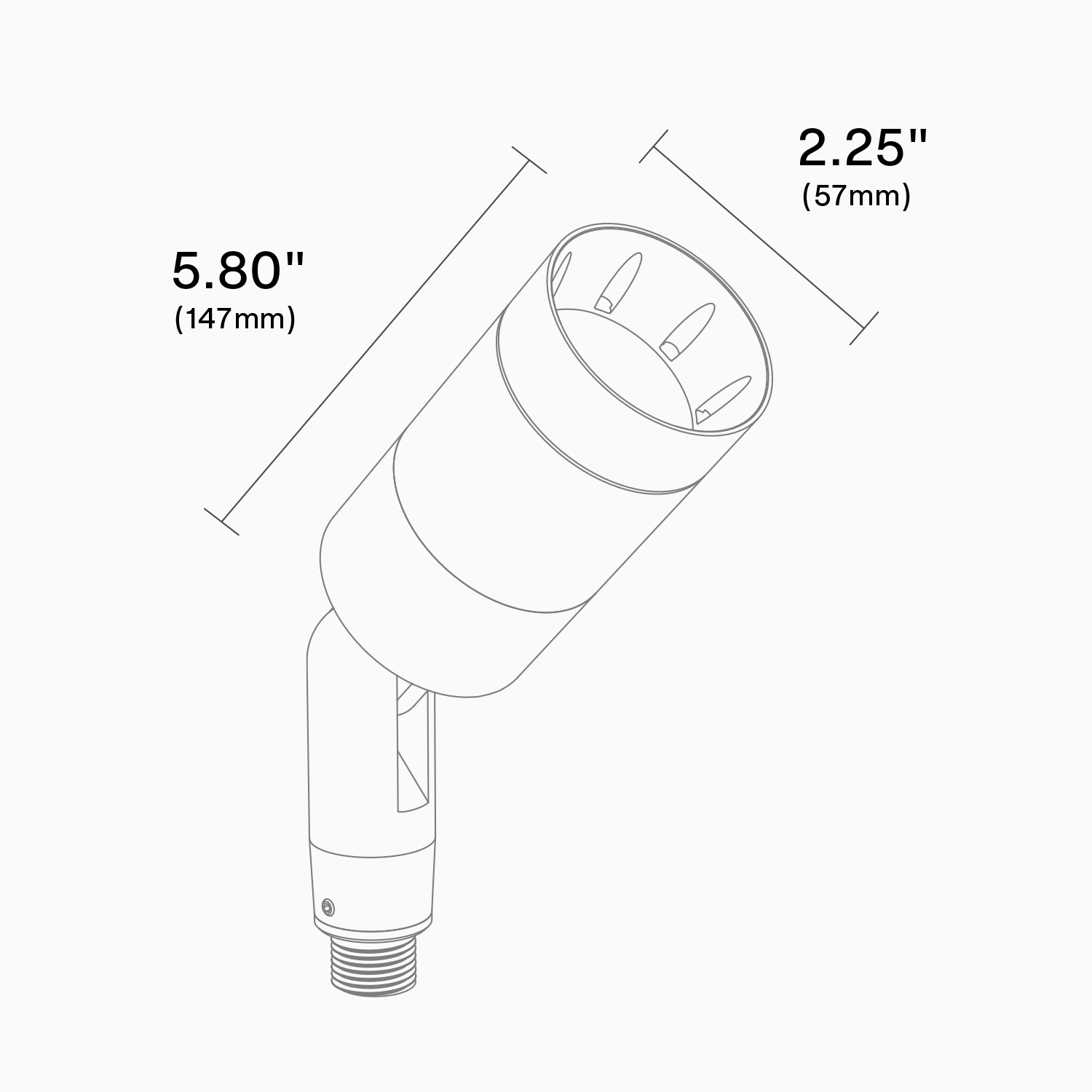

ACCENT & LANDSCAPE | ZX16 Series | 2.25"
7.5W ( 640lm ) | 12V | SORAA, LED Lamp, Halogen
7.5W ( 640lm ) | 12V | SORAA, LED Lamp, Halogen
ZX16 Center Pivot
ACCENT & LANDSCAPE | ZX16 Series | 2.25"
7.5W ( 640lm ) | 12V | SORAA, LED Lamp, Halogen
7.5W ( 640lm ) | 12V | SORAA, LED Lamp, Halogen

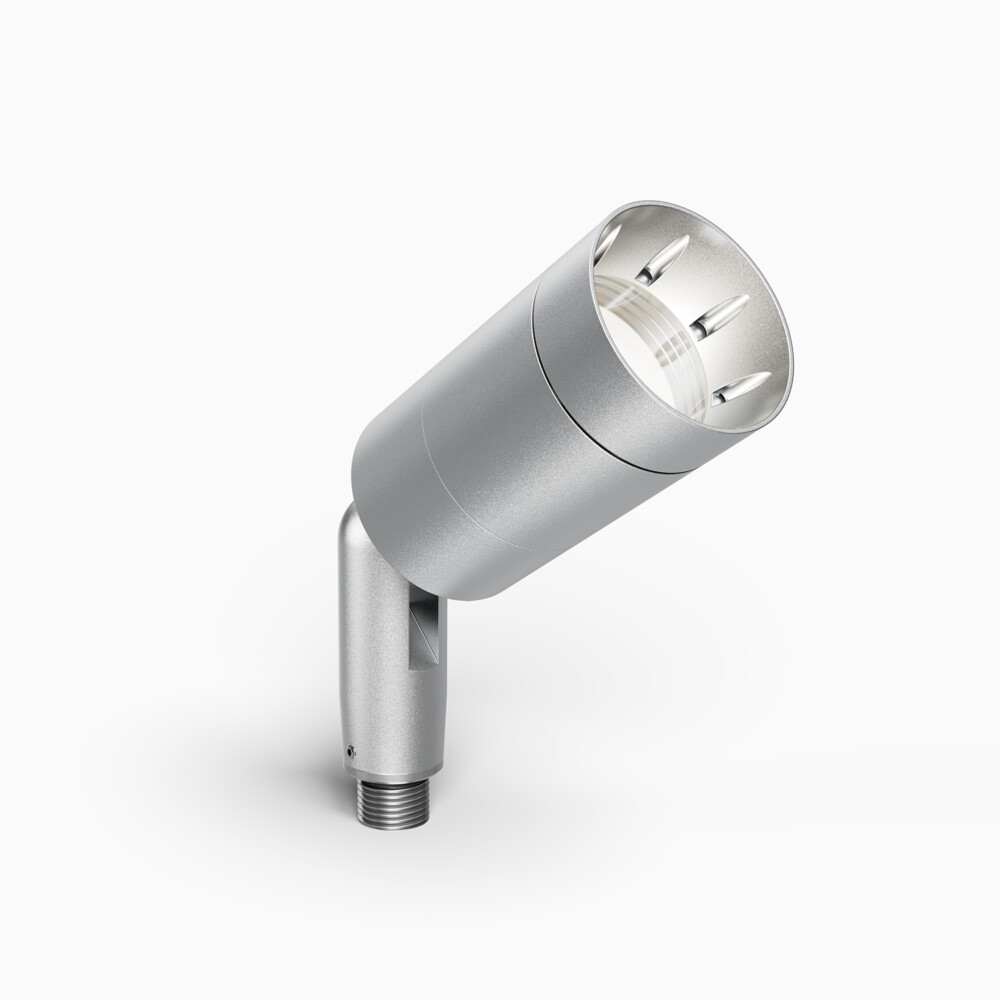

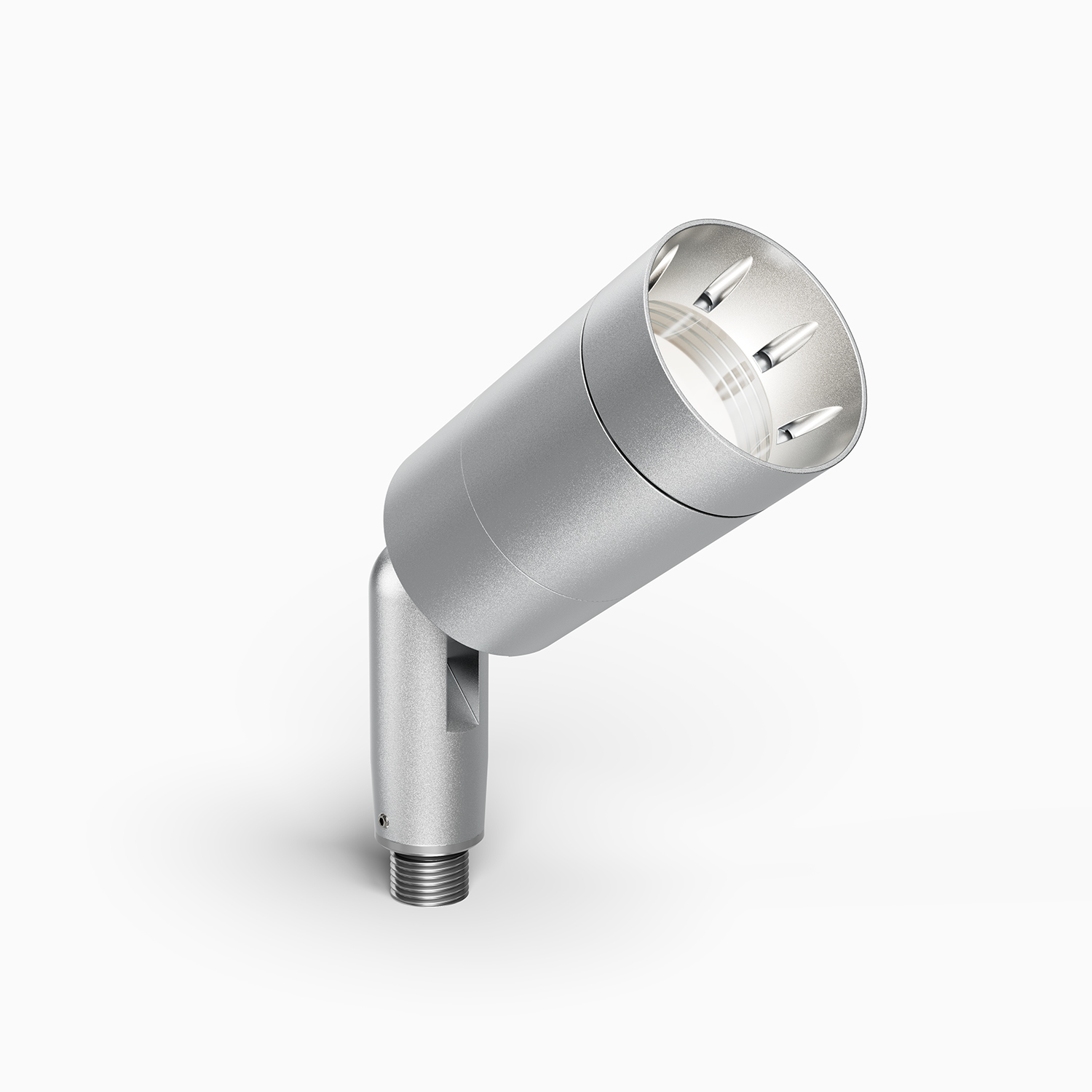

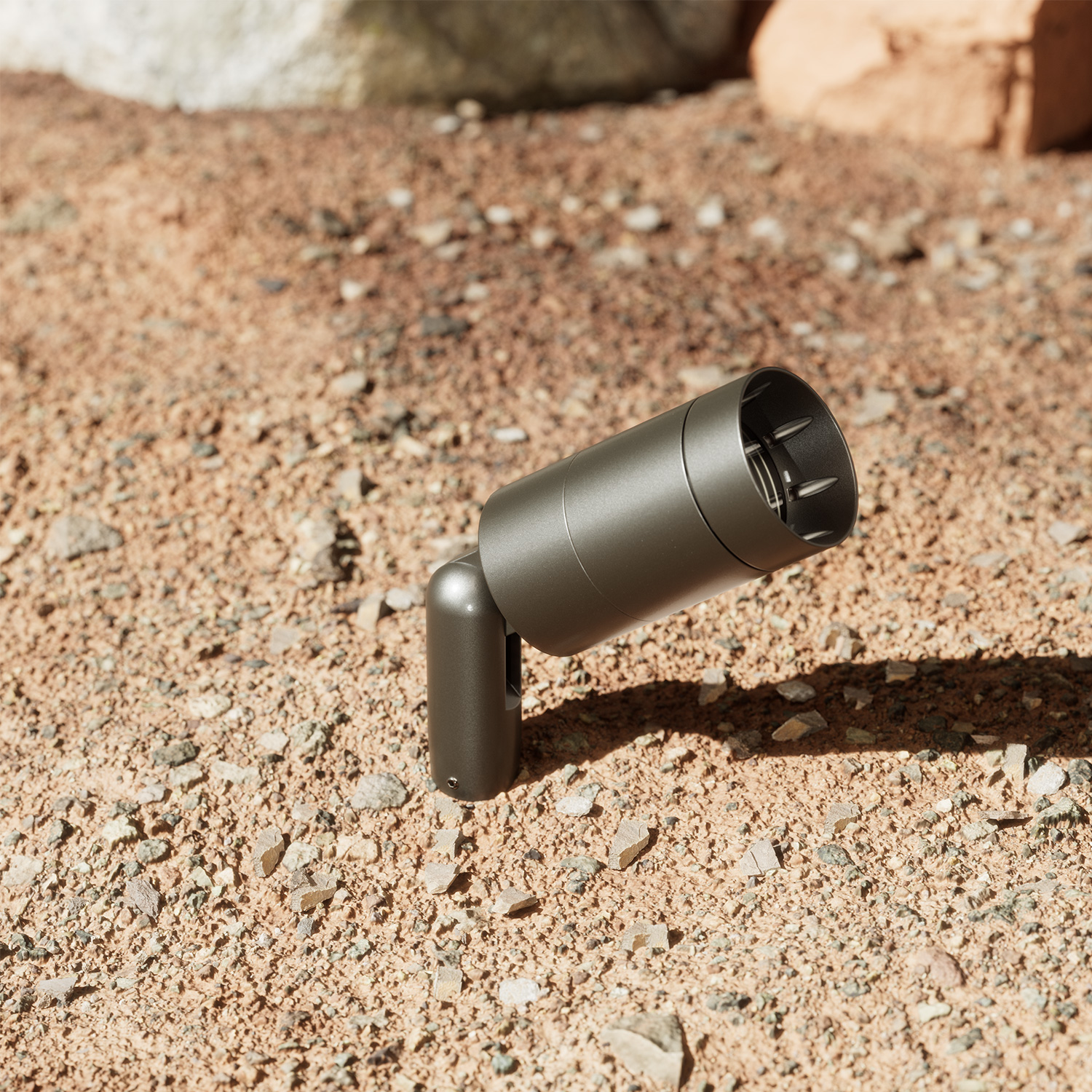

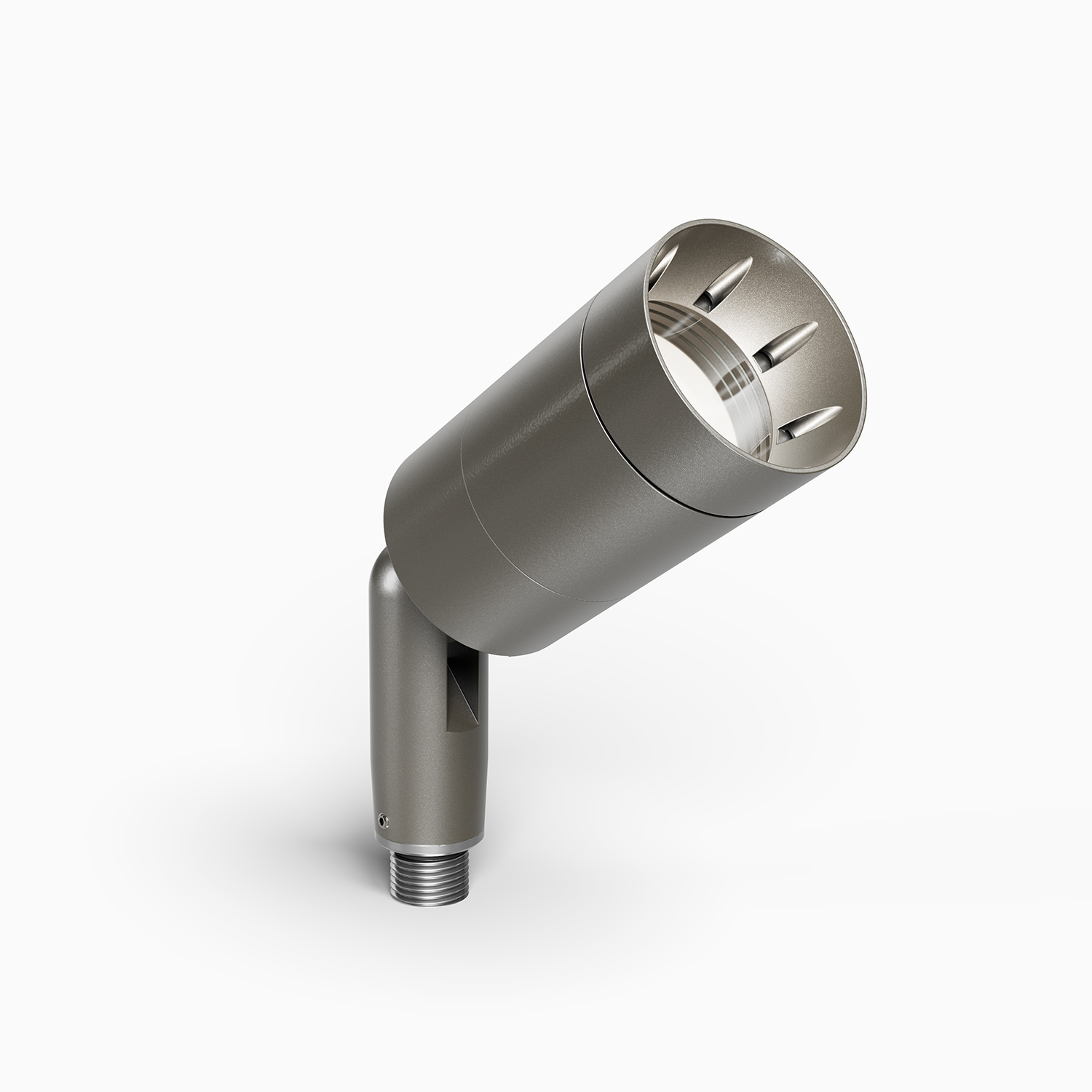

Versatile round, directional MR16 (GU 5.3) traditional Center Pivot accent light for architectural outdoor and landscape lighting environments.
(includes former ZX16-CPV and ZX16-CPV-SOi models)FEATURES:
- Flexible lamp configurations include SORAA LED Lamp with patented Heat Sink or use your preferred LED or Halogen lamp.
- Wet Location Listed, IP67 Standard.
- Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
- 240º vertical and 360º horizontal adjustment via locking swivel stem design.
- Field changeable optical lensing available.
- Available with adjustable Angled, Long, and Short Glare Shields and ground, surface, and canopy mounting options.
- Every fixture tested end of line for water tightness and light quality.
- Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Specifications
Materials

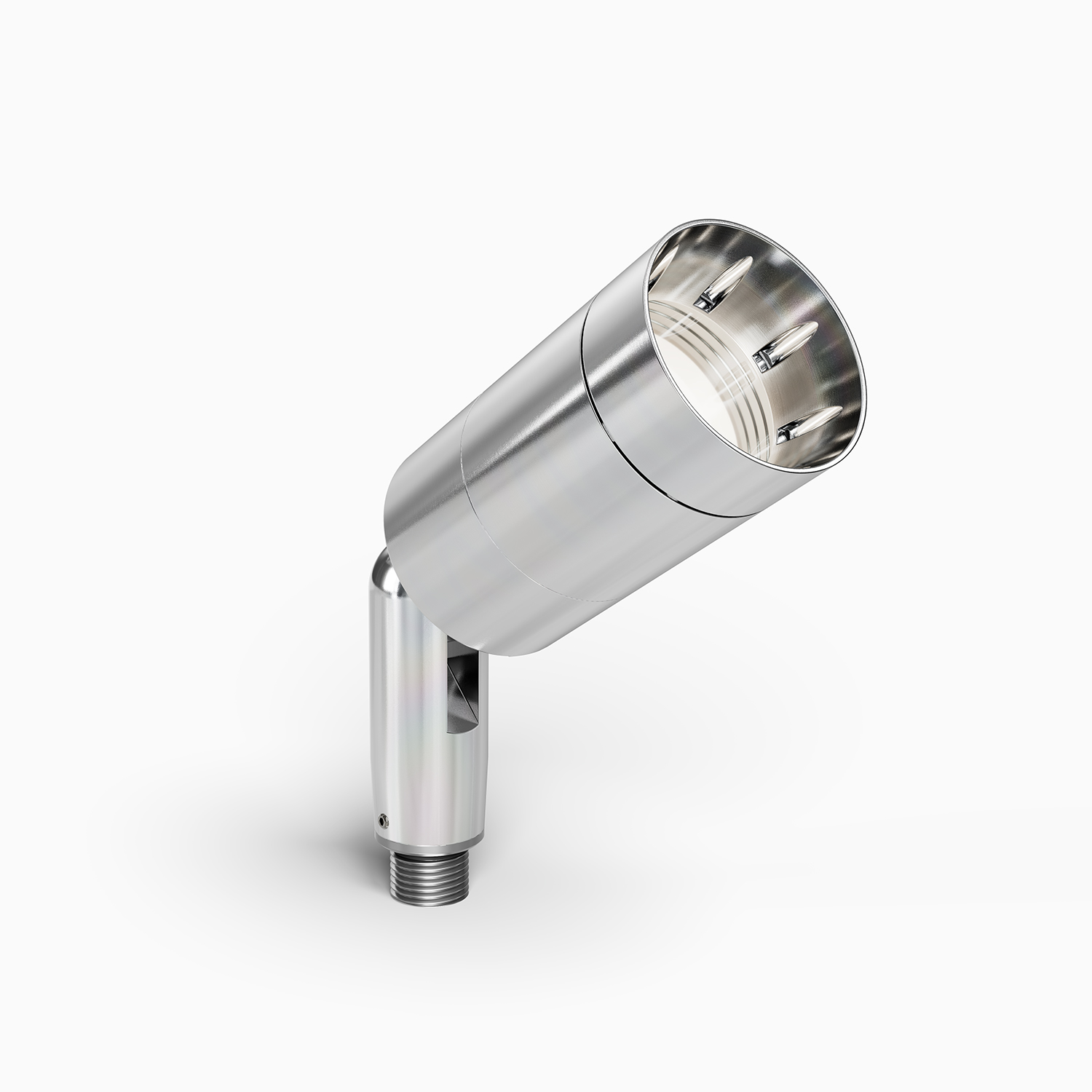

Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
12V AC/DC. Requires remote step down transformer.
Lamp Base/Socket
Standard bi-pin socket for GU5.3/G4/GX5.3/GY6.35/GZ4.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
Max. 9W for SORAA MR16 lamp with Thermobuster. Max. 50W for Halogen lamp.
Optics
Accepts up to 3 accessory pieces (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.
Hood and Glare Shield
Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 of Spec Sheets for details).
Light Engine
MR16 Halogen lamp or MR16 SORAA LED lamp.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting mounting accessories (See page 4 of Spec Sheets for details).
Dimming
MLV, ELV Phase Control dimming. Please refer to SORAA website for SORAA MR16 dimmer compatibility.
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
