Additional information

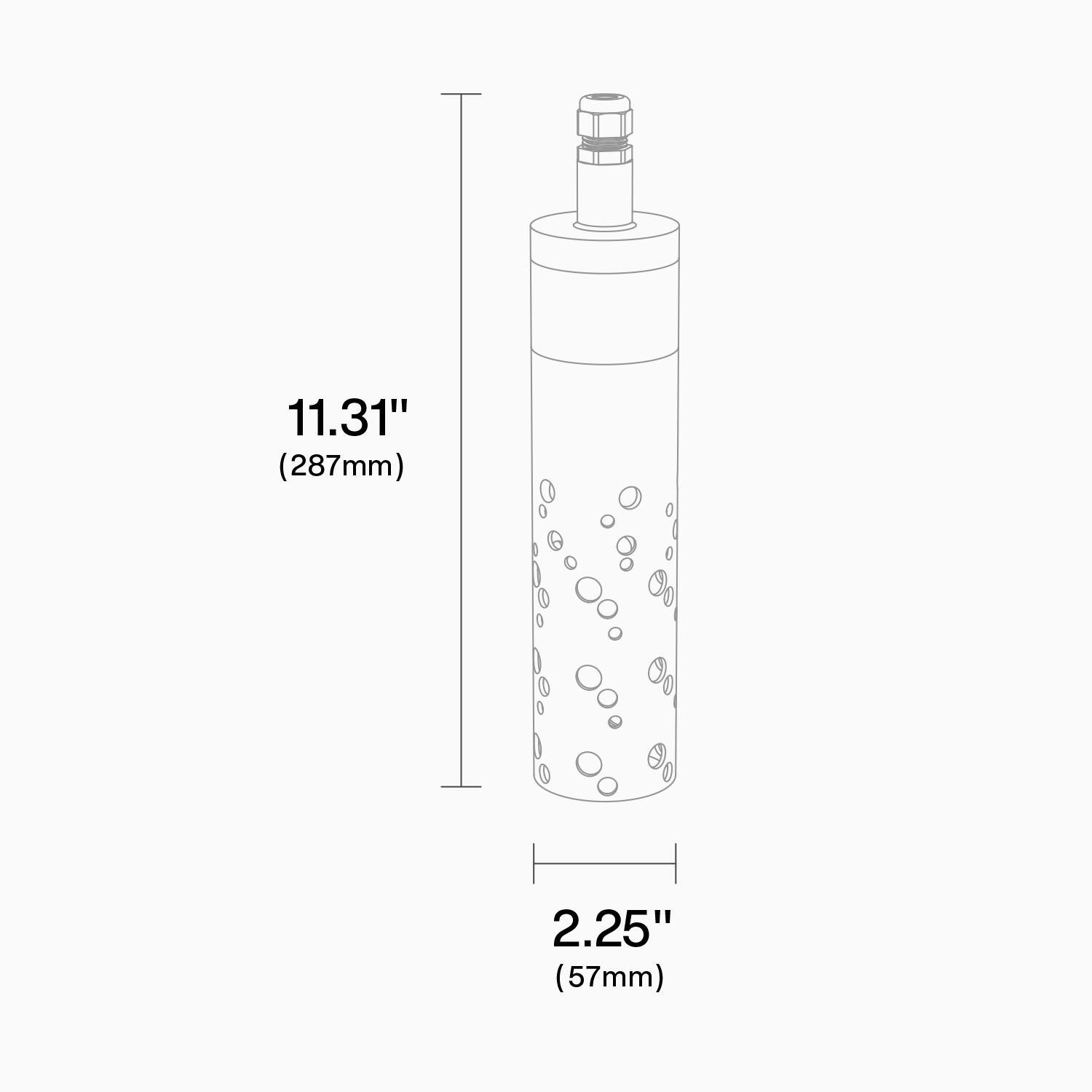

| Dimensions | 2.25 × 9.89 in |
|---|---|
| Light Source | |
| Shape | |
| Lumen Output | |
| Wattage |
ZX16-H-(GU10)-SOi-JB
Hanging & Catenary • ZX16/ZH16 Series
ZX16-H-(GU10)-SOi-JB
Hanging & Catenary • ZX16/ZH16 Series
MR16 SORAA hanging with brushed brass shade
FEATURES:
- Suspension/pendant fixture for landscape and architectural application.
- For SORAA® 12V GU5.3 base MR16 LED, or line voltage GU10 base MR16 LED.
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
- Unique brass mesh hood.
- US patented integral SORAA heat sink.
Specifications
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
12V, 120V or 230V AC.
Lamp Base/Socket
12V with GU5.3 socket, or 120V/230V with porcelain GU10 twist-lock socket.
Fixture Weight
2lbs.
Wattage
Max. 9W for SORAA MR16 lamp with Thermobuster.
Optics
Dichroic color filters. Secured in place with metal snap ring.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Light Engine
12V - MR16 SORAA LED lamp. Line Voltage - MR16 GU10 SORAA LED lamp.
Mounting
Mount cable on tree branches or beam using screw-mount-cable ties, or attach to a canopy plate/box for pendant application. Standard fixture comes with 5’ 18/2 SJTW power cable.
Dimming
12V - MLV or ELV dimming. Line voltage - Phase dimming.
