Additional information

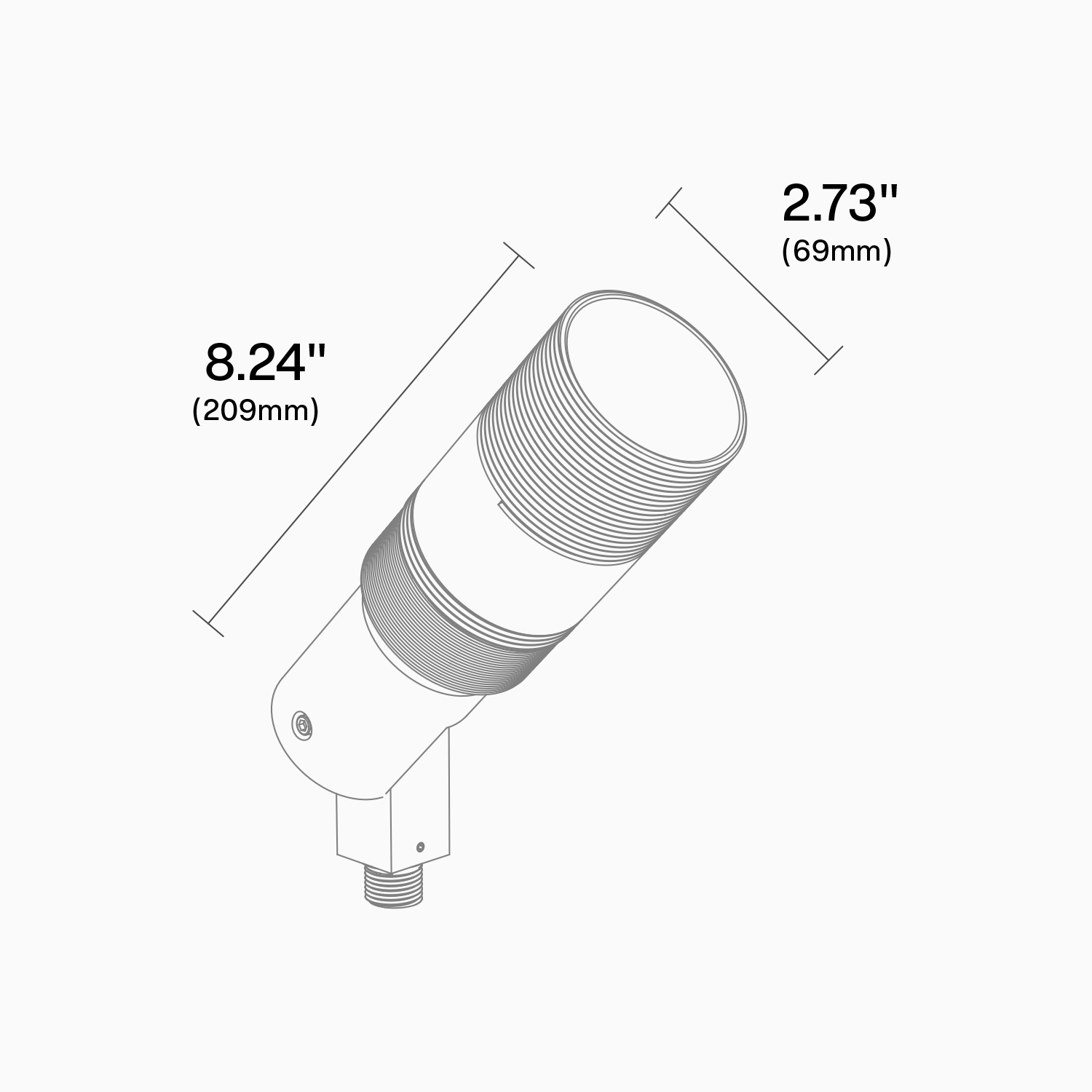

| Dimensions | 2.73 × 8.24 in |
|---|---|
| Light Source | |
| Shape | |
| Input Voltage |

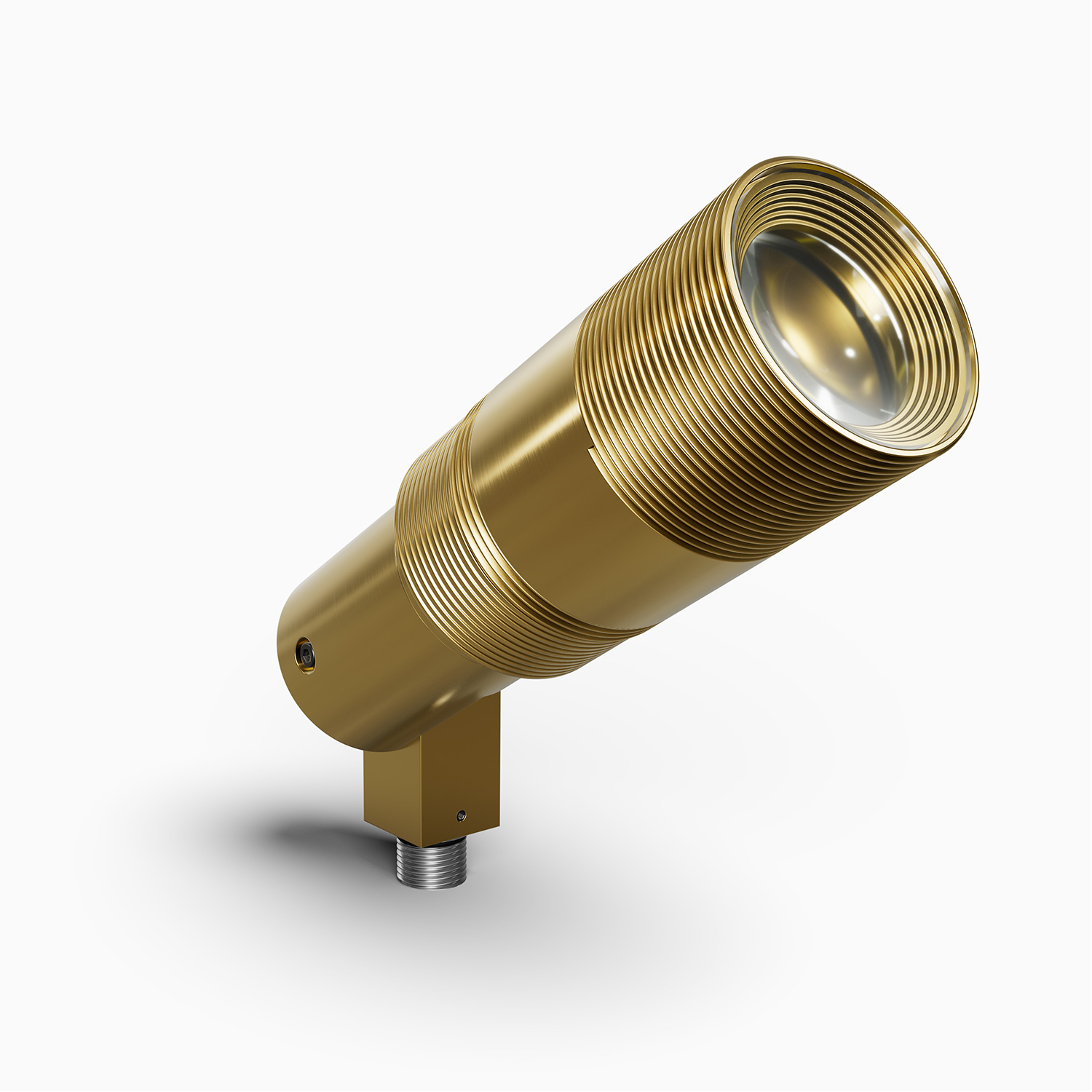

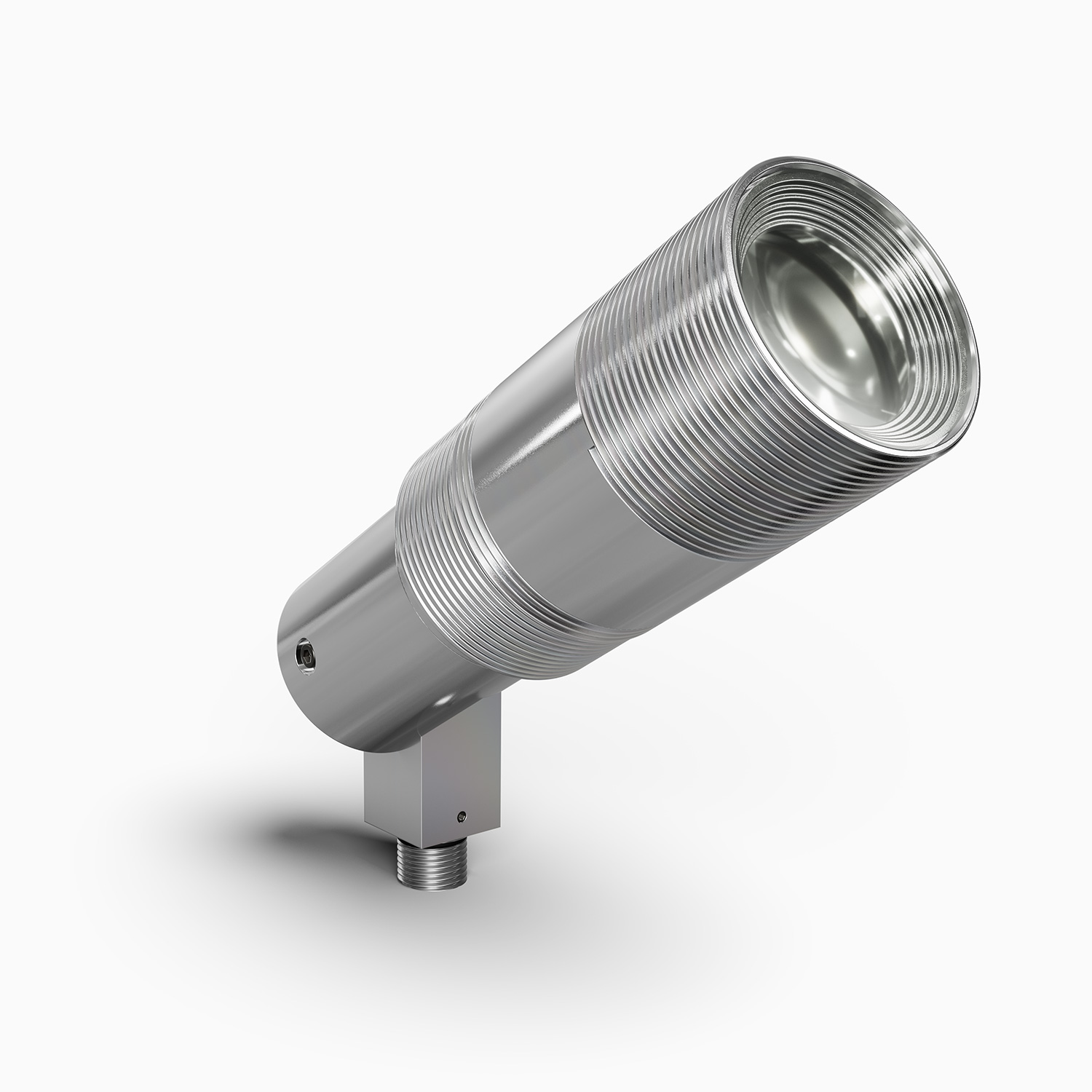

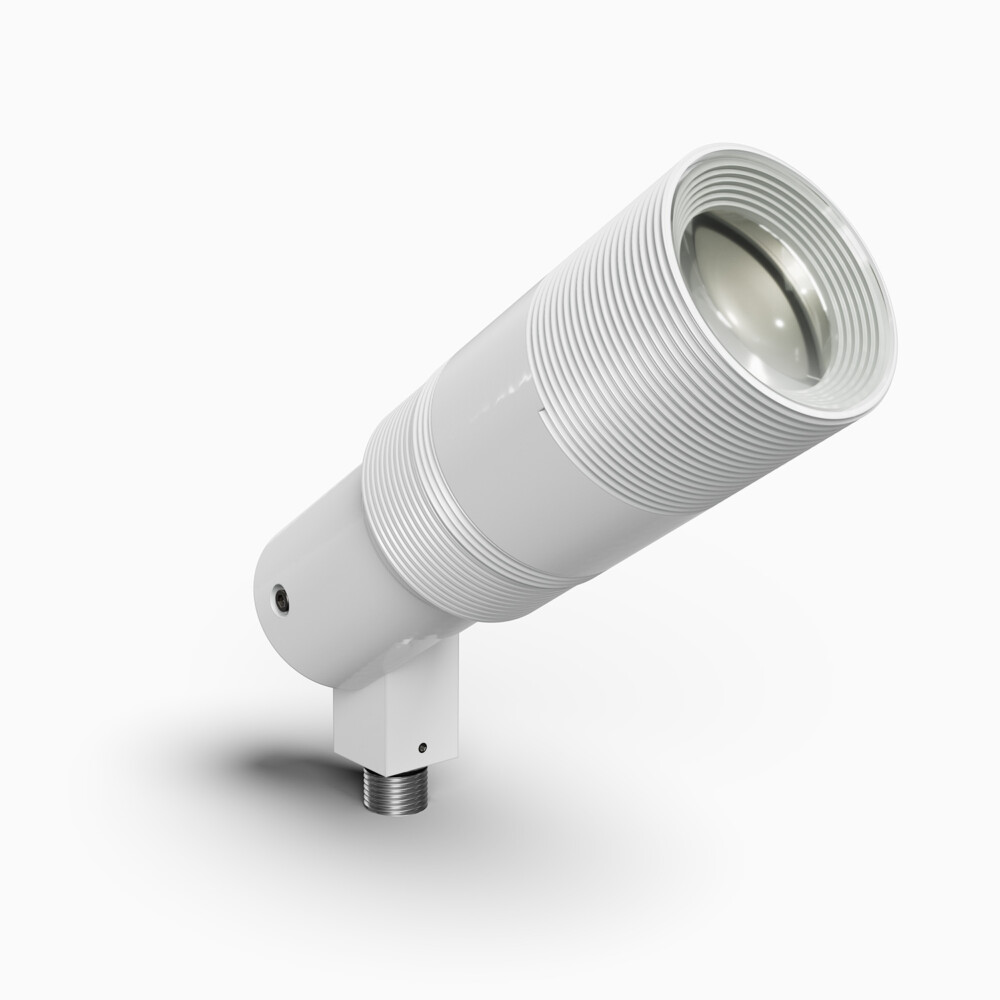

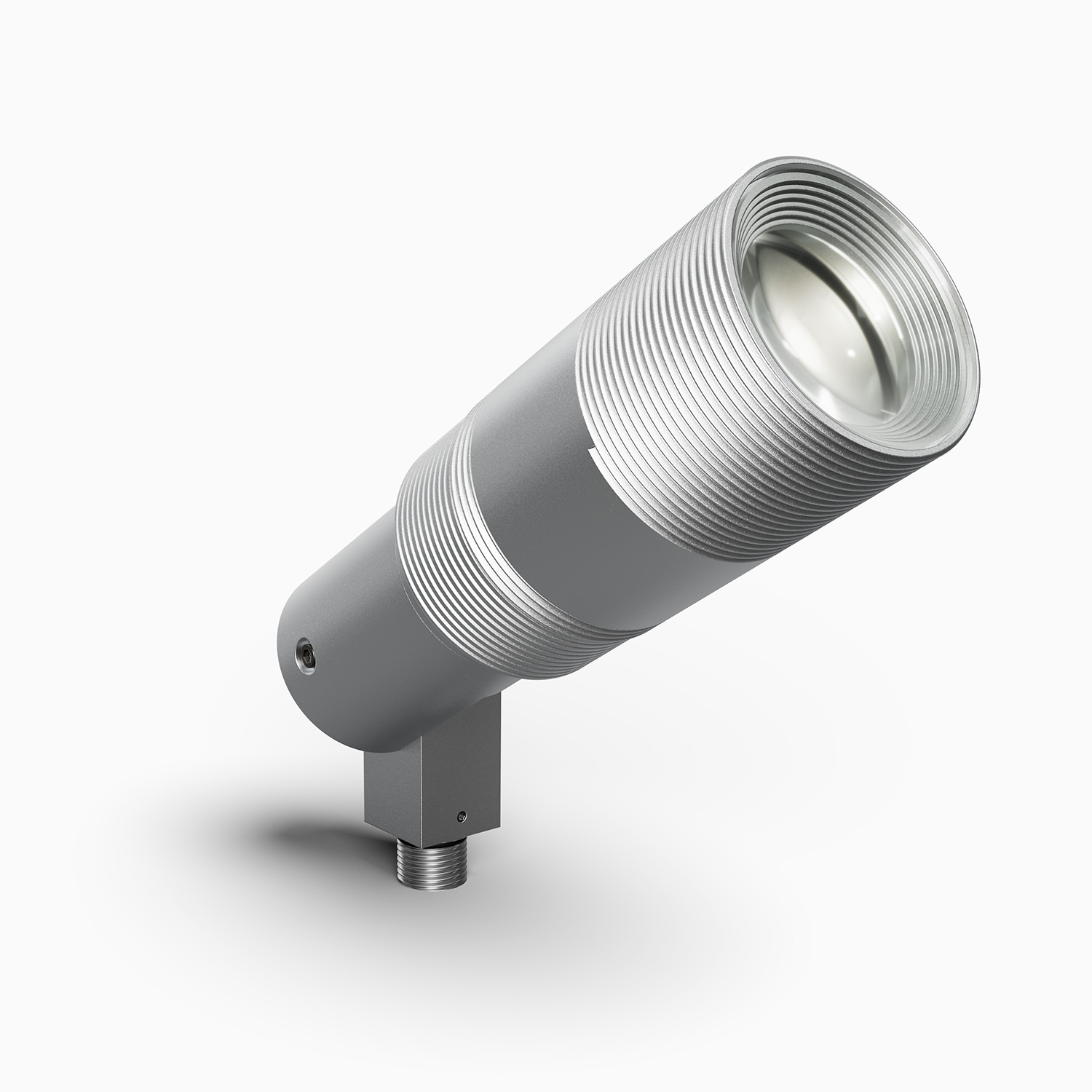

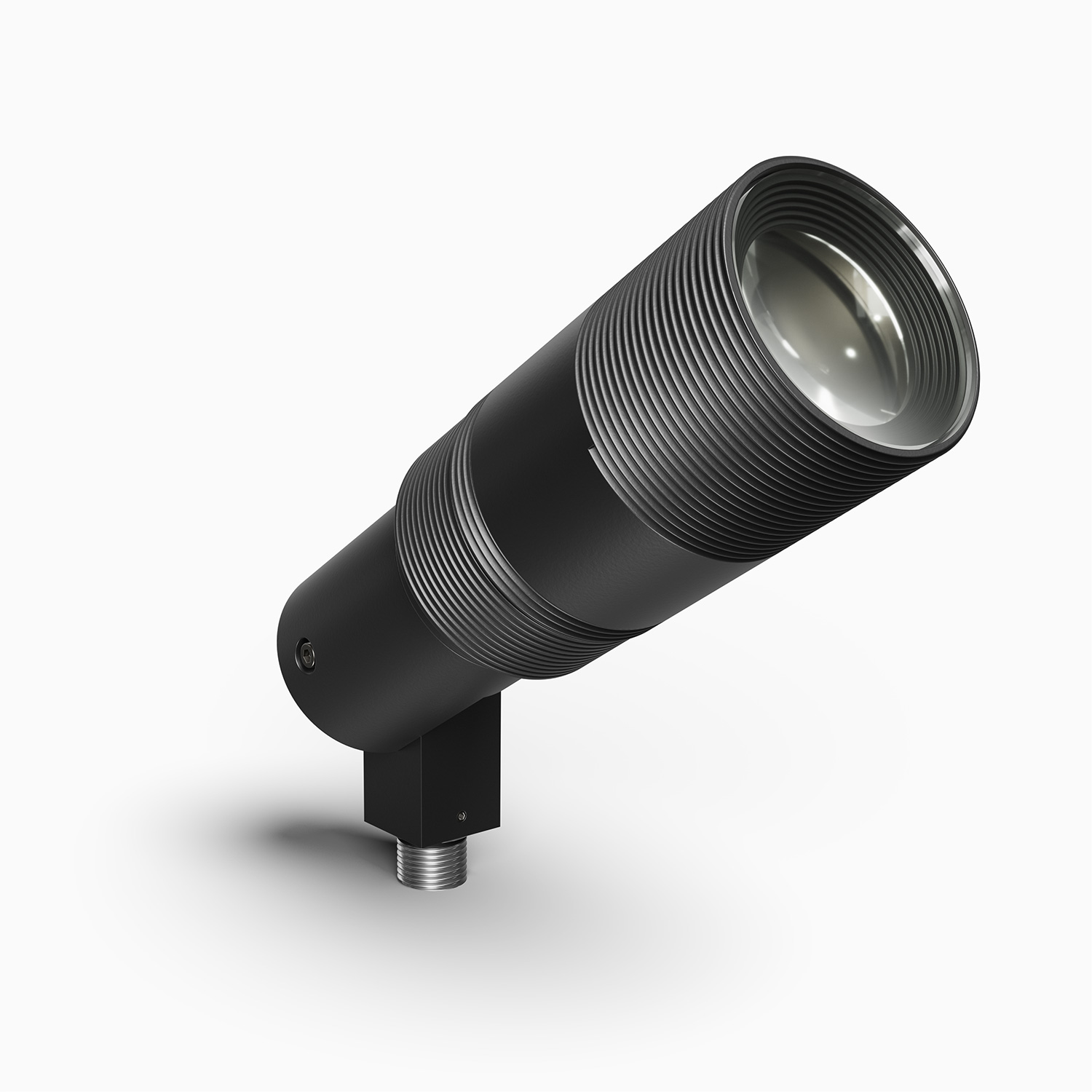

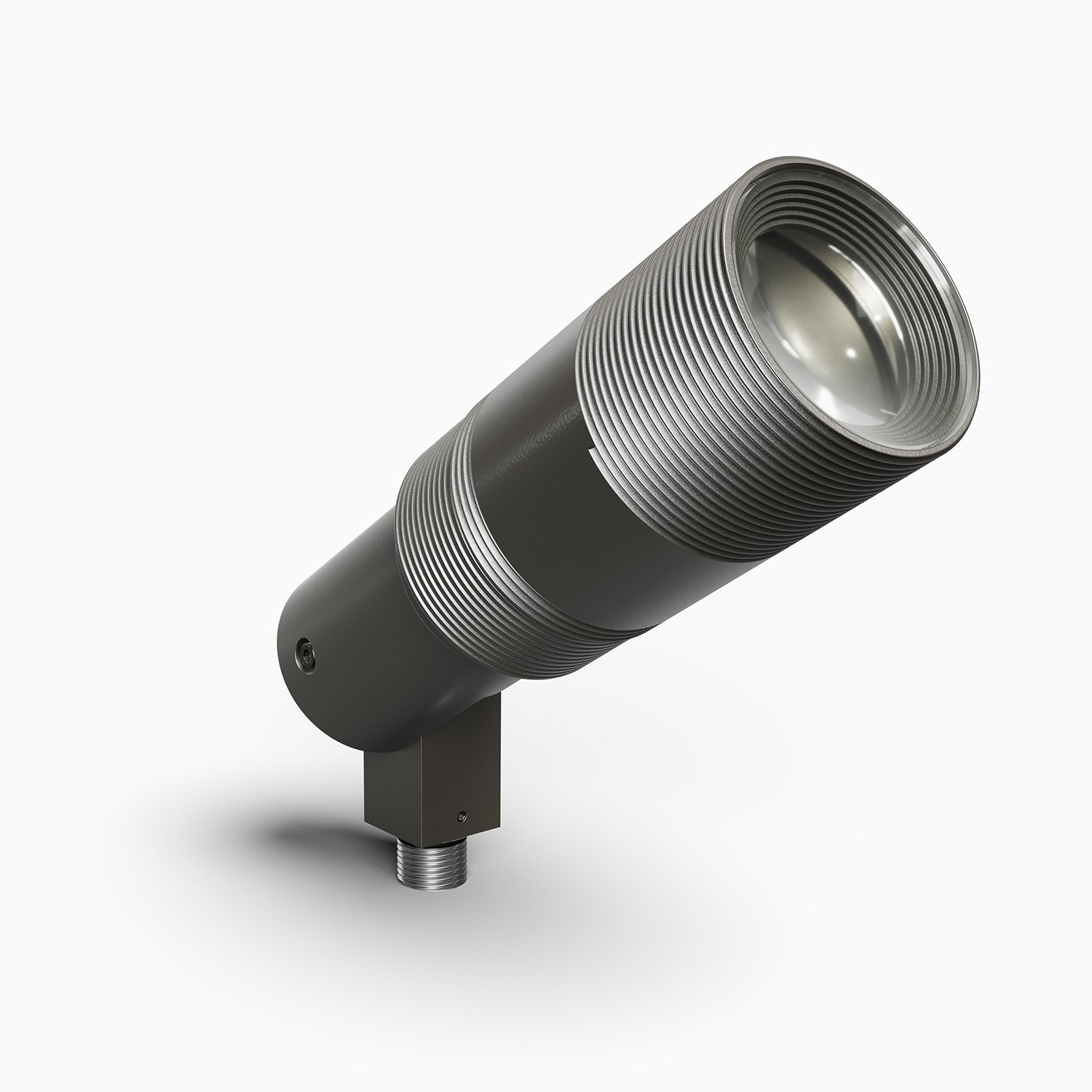

ZX16-IP (SOi)
Image Projector • ZX16-IP Series
ZX16-IP (SOi)
Image Projector • ZX16-IP Series
MR16 SORAA® LED image projector
FEATURES:
- Small Image projector using GOBO, color filter or colorizer for outdoor or indoor application.
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
- 240° vertical and 360° horizontal adjustment via unique swivel stem design.
- US patented integral SORAA heat sink.
Specifications
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
12V AC/DC. Requires remote step down transformer.
Optics
Accepts combinations of accessories (including colorizer, color filters, steel gobo etc.). Secured in place with metal snap ring.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
Max. 9W for SORAA MR16 lamp with Thermobuster. Max. 50W for halogen MR16 without Thermobuster.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices.
Glare Shield
3 optional glare shields(GSL-long, GSA-angled, GSS-short) for additional glare control. (See page 3 of Spec Sheet for details).
Light Engine
MR16 Halogen lamp or MR16 SORAA LED lamp.
GOBO Size
See data on second page of Spec Sheet.
Lamp Base/Socket
Standard bi-pin socket for GU5.3/G4/GX5.3/GY6.35/GZ4.
Dimming
MLV or ELV
Compatible Accessories
