Additional information

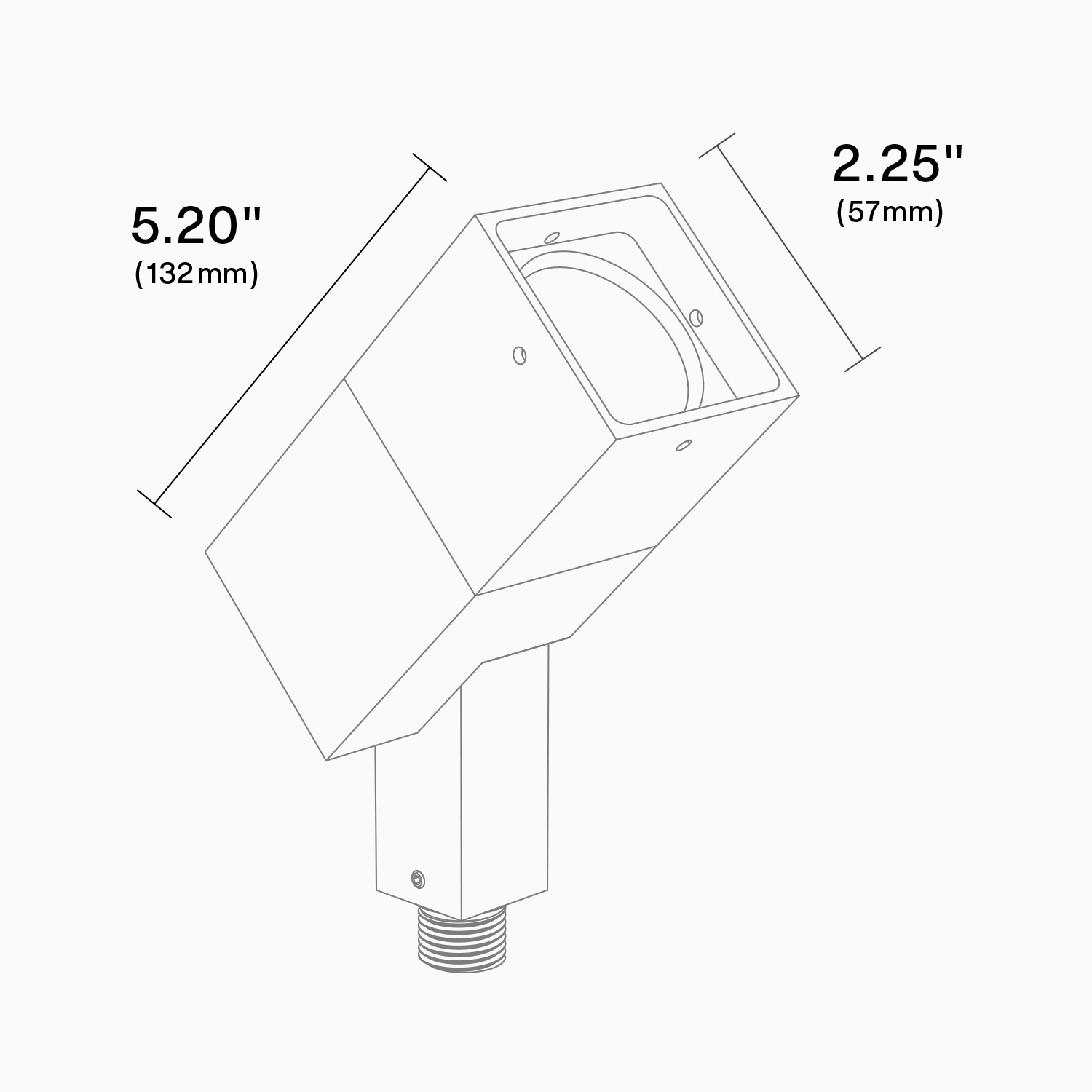

| Dimensions | 2.25 × 5.88 in |
|---|---|
| Light Source | |
| Shape | |
| Lumen Output | |
| Input Voltage | |
| Wattage |

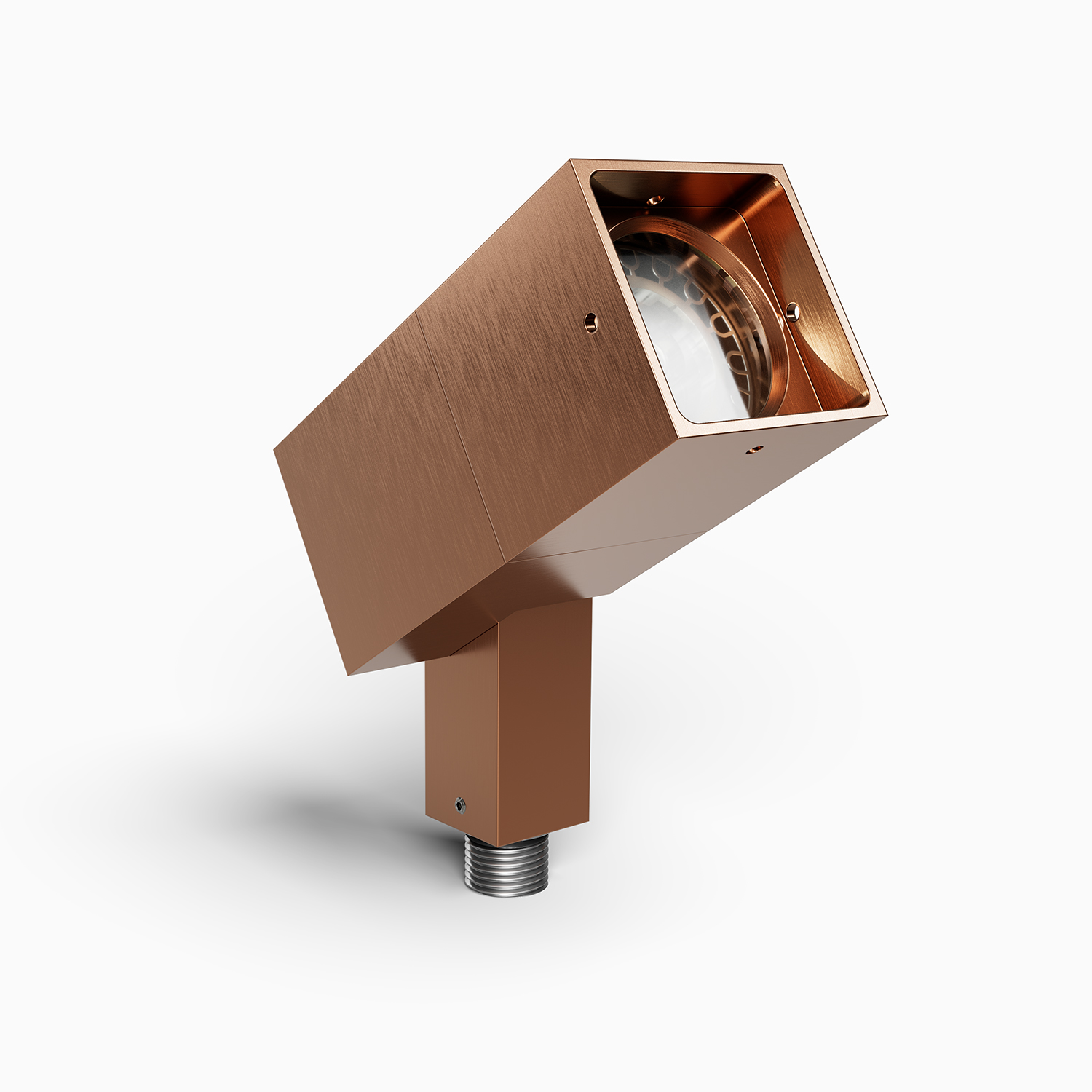

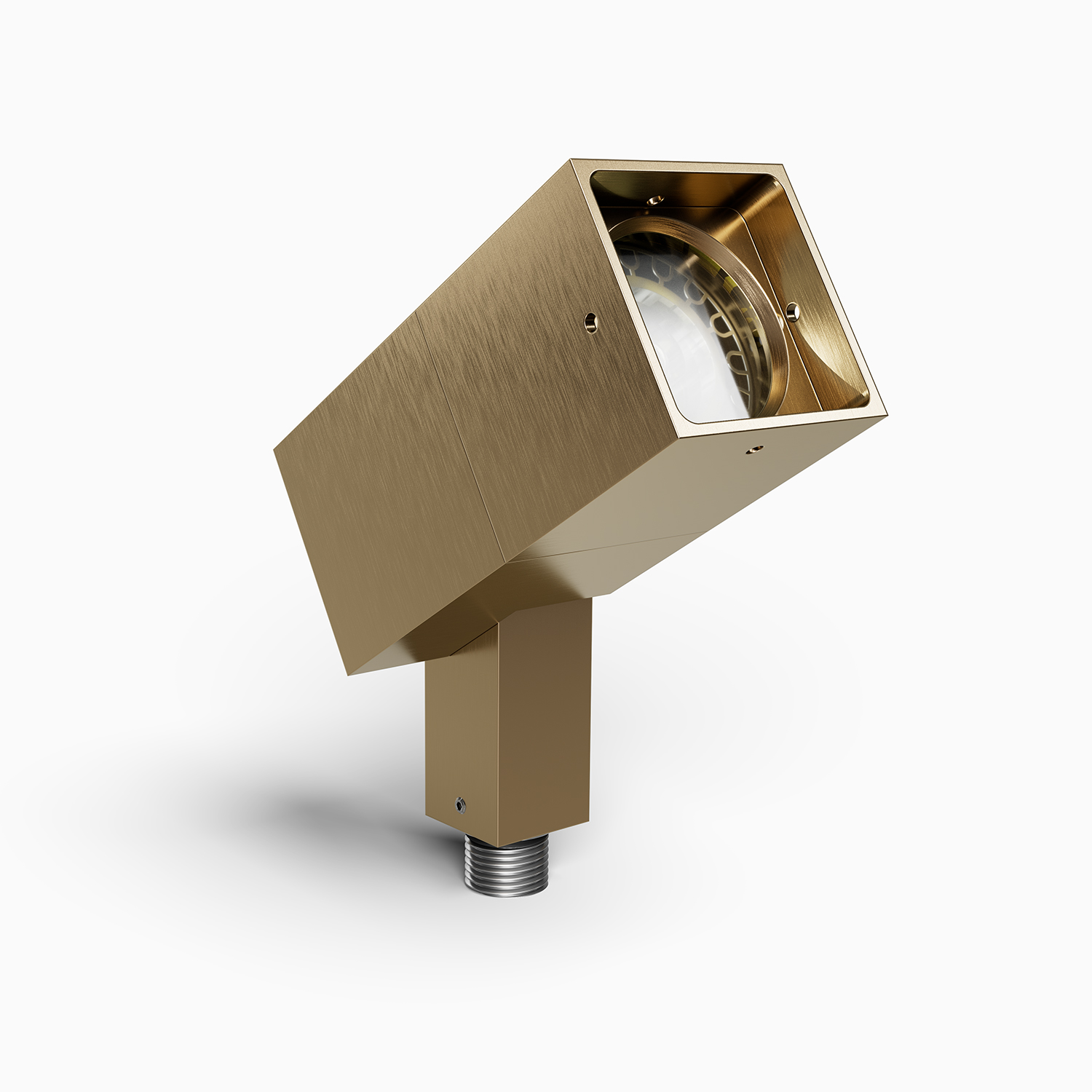

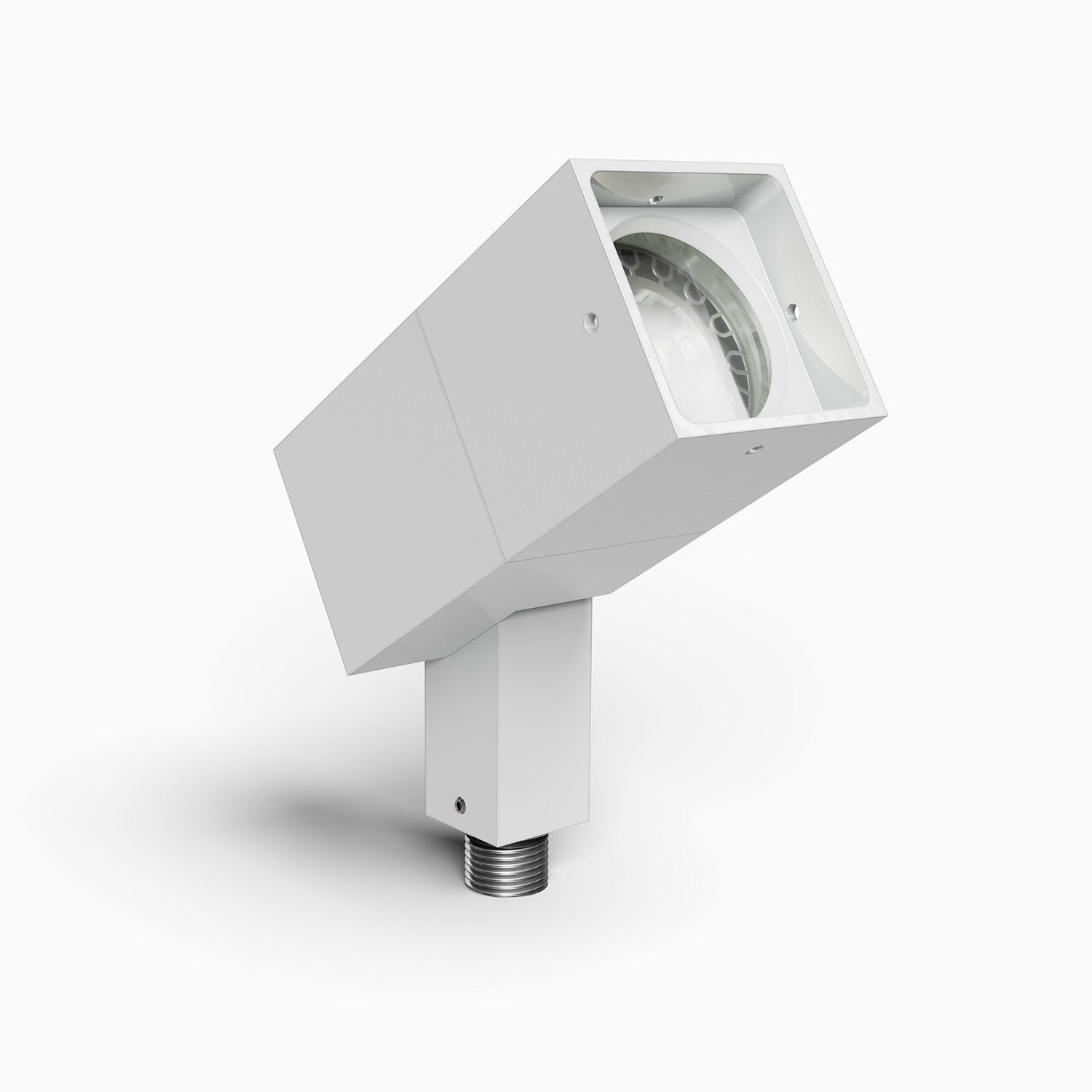

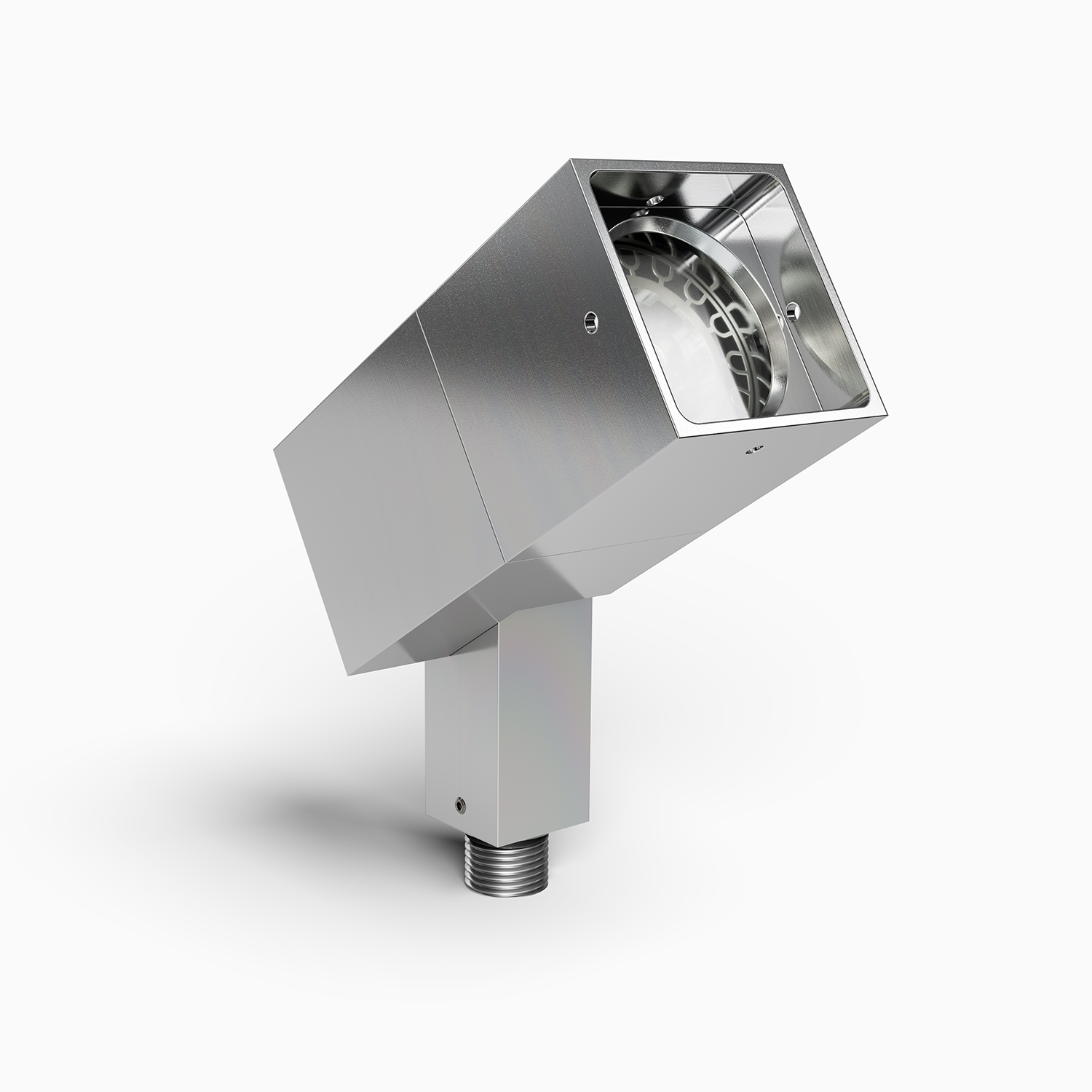

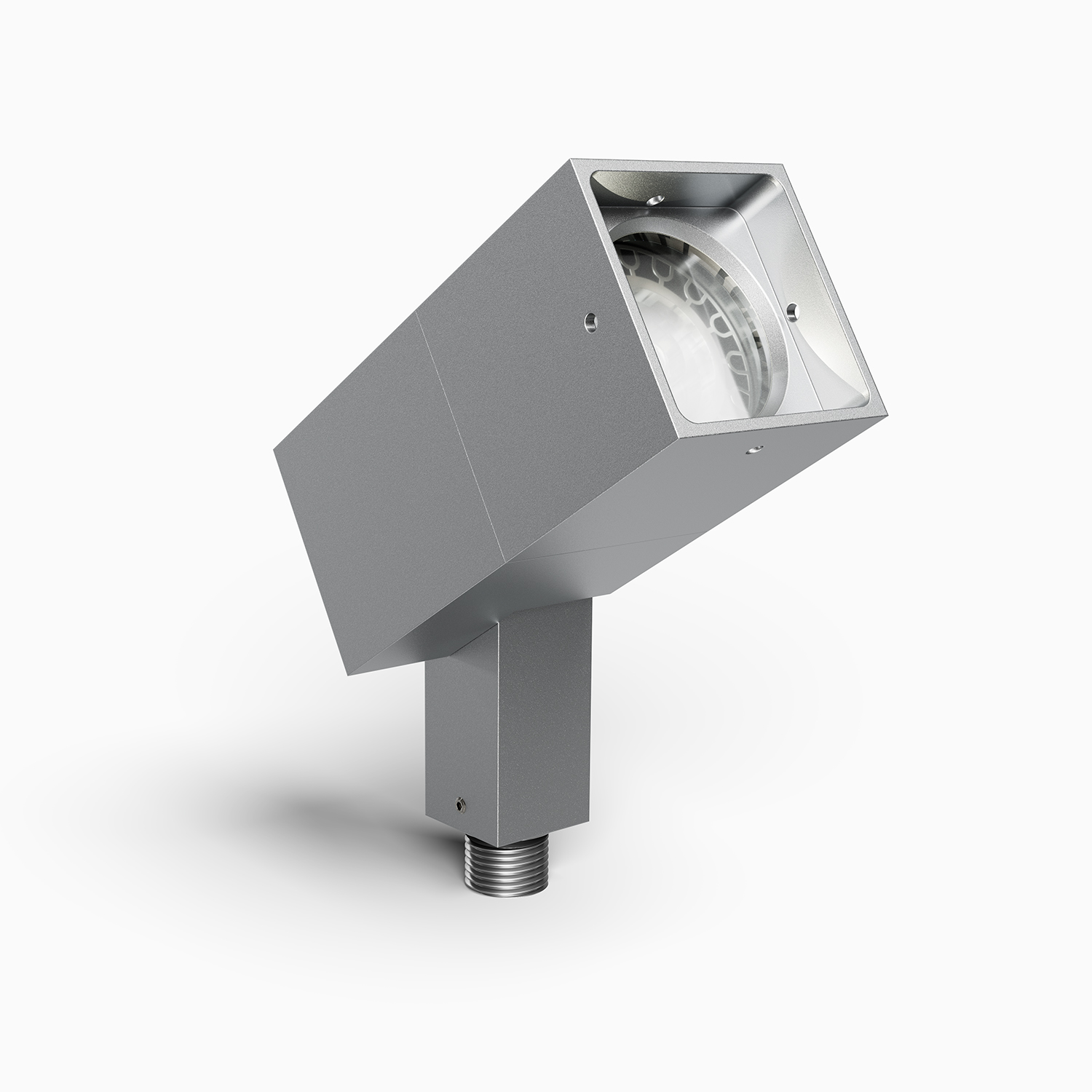

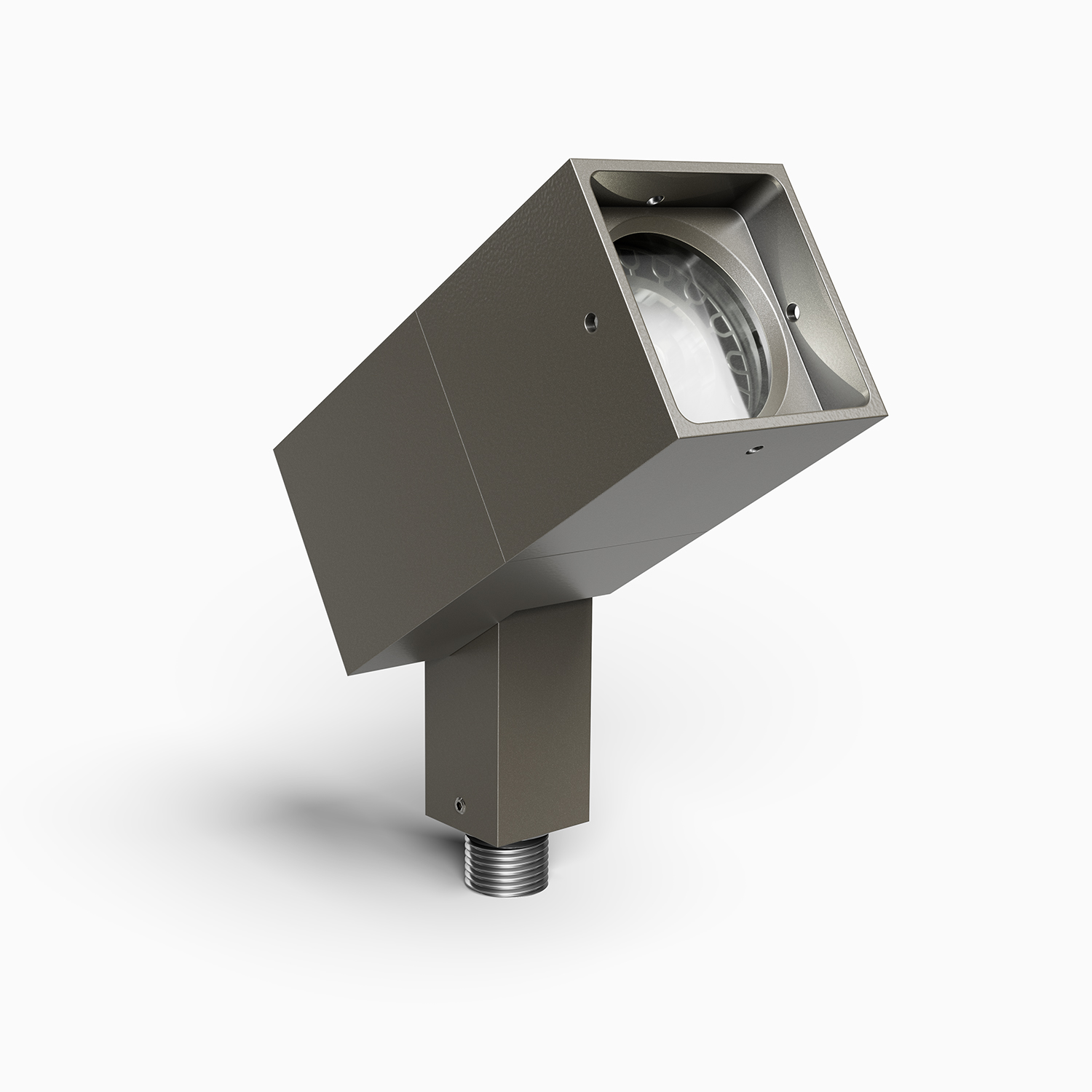

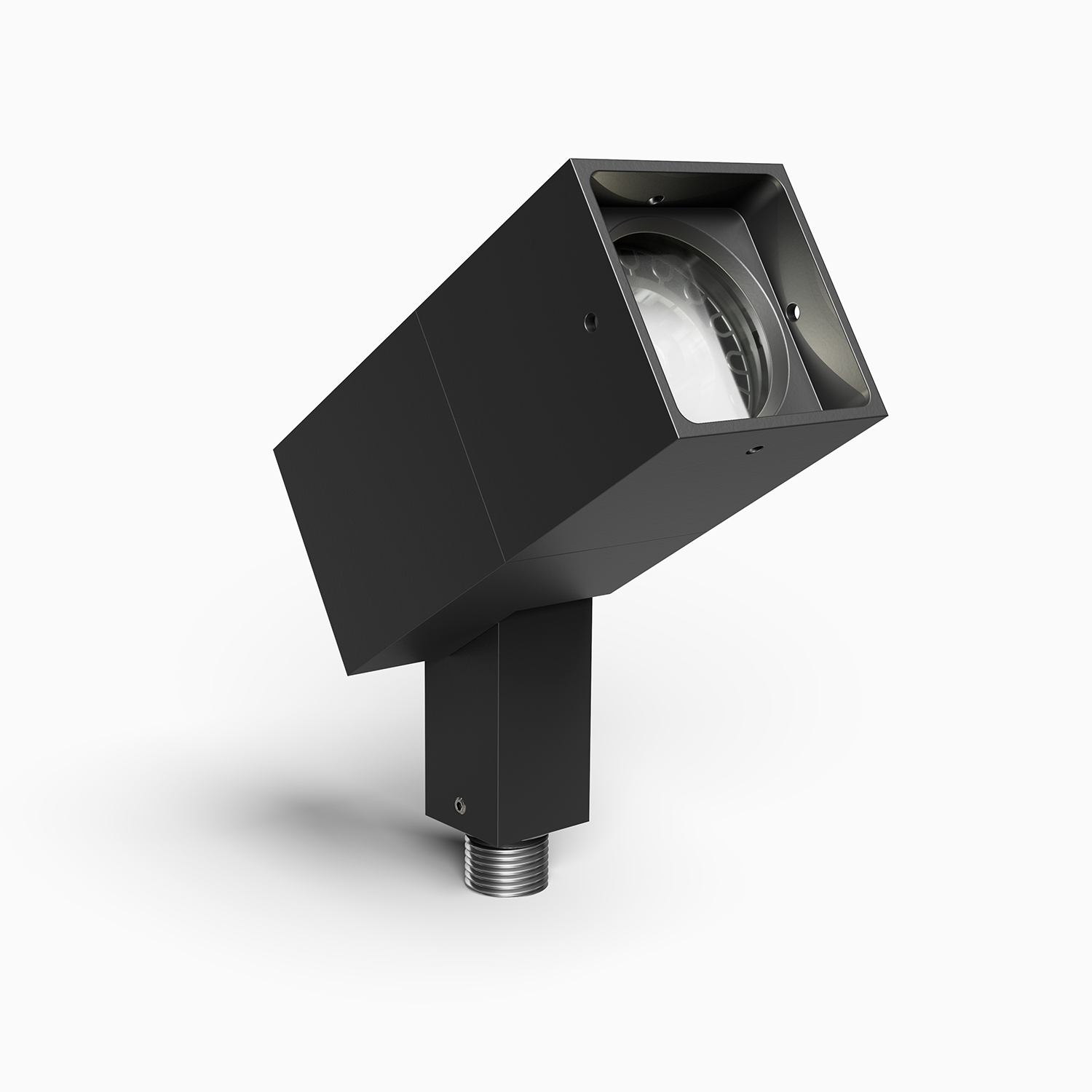

ZX16 Square GU10
ACCENT & LANDSCAPE | ZX16 Series | 2"
7.5W ( 600lm ) | 120V, 230V | SORAA, LED Lamp, Halogen
7.5W ( 600lm ) | 120V, 230V | SORAA, LED Lamp, Halogen
ZX16 Square GU10
ACCENT & LANDSCAPE | ZX16 Series | 2"
7.5W ( 600lm ) | 120V, 230V | SORAA, LED Lamp, Halogen
7.5W ( 600lm ) | 120V, 230V | SORAA, LED Lamp, Halogen
Versatile square, directional 120V/230V MR16 (GU10) modern accent light for residential and commercial environments.
(includes former ZX16-SQ-GU10-SOi model)
FEATURES:
- Flexible lamp configurations include SORAA LED Lamp with patented Heat Sink or use your preferred LED or Halogen lamp.
- Wet Location Listed, IP67 Standard.
- Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.
- 90º vertical and 360º horizontal adjustment via locking swivel stem design.
- Field changeable optical lensing available.
- Available with adjustable Angled, Long, and Short Glare Shields and ground,
- surface, and canopy mounting options.
- Every fixture tested end of line for water tightness and light quality.
- Ships complete with selected accessories installed.
Specifications
Materials
Solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware.
Voltage
120V or 230V AC.
Lamp Base/Socket
Porcelain GU10 twist - lock lamp base.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
Max. 9W for SORAA MR16 lamp with Thermobuster. Max. 50W for halogen MR16 without Thermobuster.
Optics
Accepts up to 3 accessories (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.
Hood and Glare Shield
Weeping Hood Style with Angled, Short, or Long Glare Shields. (See page 4 of Spec Sheet for details).
Light Engine
MR16 GU10 Halogen lamp or MR16 GU10 SORAA LED lamp. Please refer to SORAA MR16 GU10 for lamp selection.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices.
Dimming
Phase. Please refer to SORAA website for SORAA GU10 dimmer compatibility.
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Compatible Accessories
