Additional information
| Light Source | |
|---|---|
| Shape | |
| Lumen Output | |
| Input Voltage | |
| Wattage |

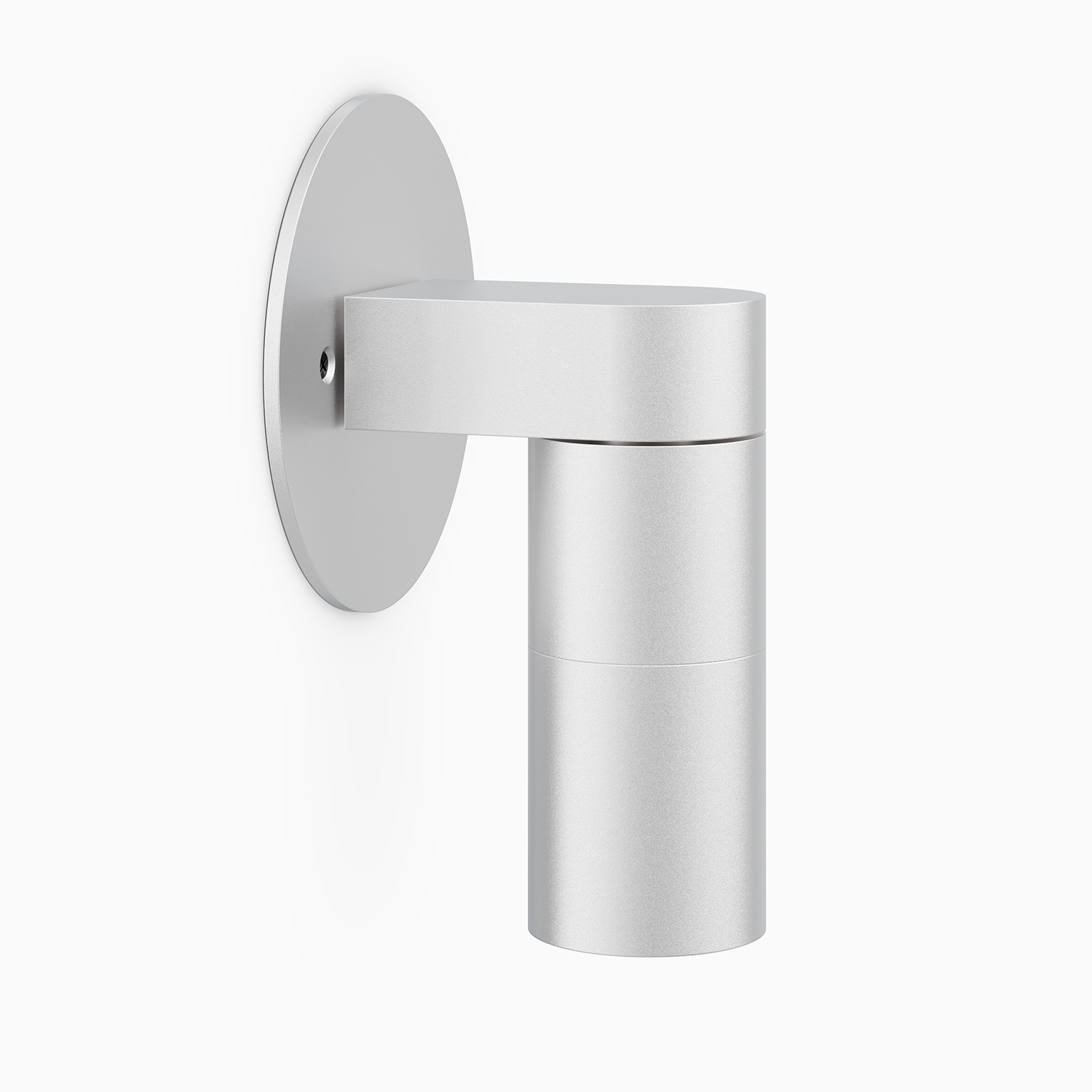

ZX16-WM-GU10 (SOi)
Wall Mount • ZWL16/ZX16-WM Series
ZX16-WM-GU10 (SOi)
Wall Mount • ZWL16/ZX16-WM Series
FEATURES:
- Fixed angle wall mount up light or down light with mounting canopy.
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
- Swivel stem insert allows for precision adjustment during installation.
- Unique weep hole design in hood allows for either upward or downward facing installation with minimum light leak.
- US patented integral SORAA® heat sink.
- Line voltage input with GU10 MR16 LED. No transformer needed.
Specifications
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
120V or 230V AC.
Lamp Base/Socket
Porcelain GU10 twist - lock lamp base.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
Max. 9W for SORAA MR16 lamp with Thermobuster. Max. 50W for halogen MR16.
Optics
Accepts up to 3 accessory pieces (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.
Hood and Glare Shield
3 available hood options to suit any application. 3 optional glare shields (short, long, angled) to complement each hood choice. (See page 2 of the Spec Sheet for details).
Light Engine
MR16 GU10 Halogen lamp or MR16 GU10 SORAA LED lamp.
Mounting
Utilizes 2x 8-32 UNC machine screws (provided) to attach to a standard octagon recessed back box (provided by others).
Dimming
Phase.
Compatible Accessories
