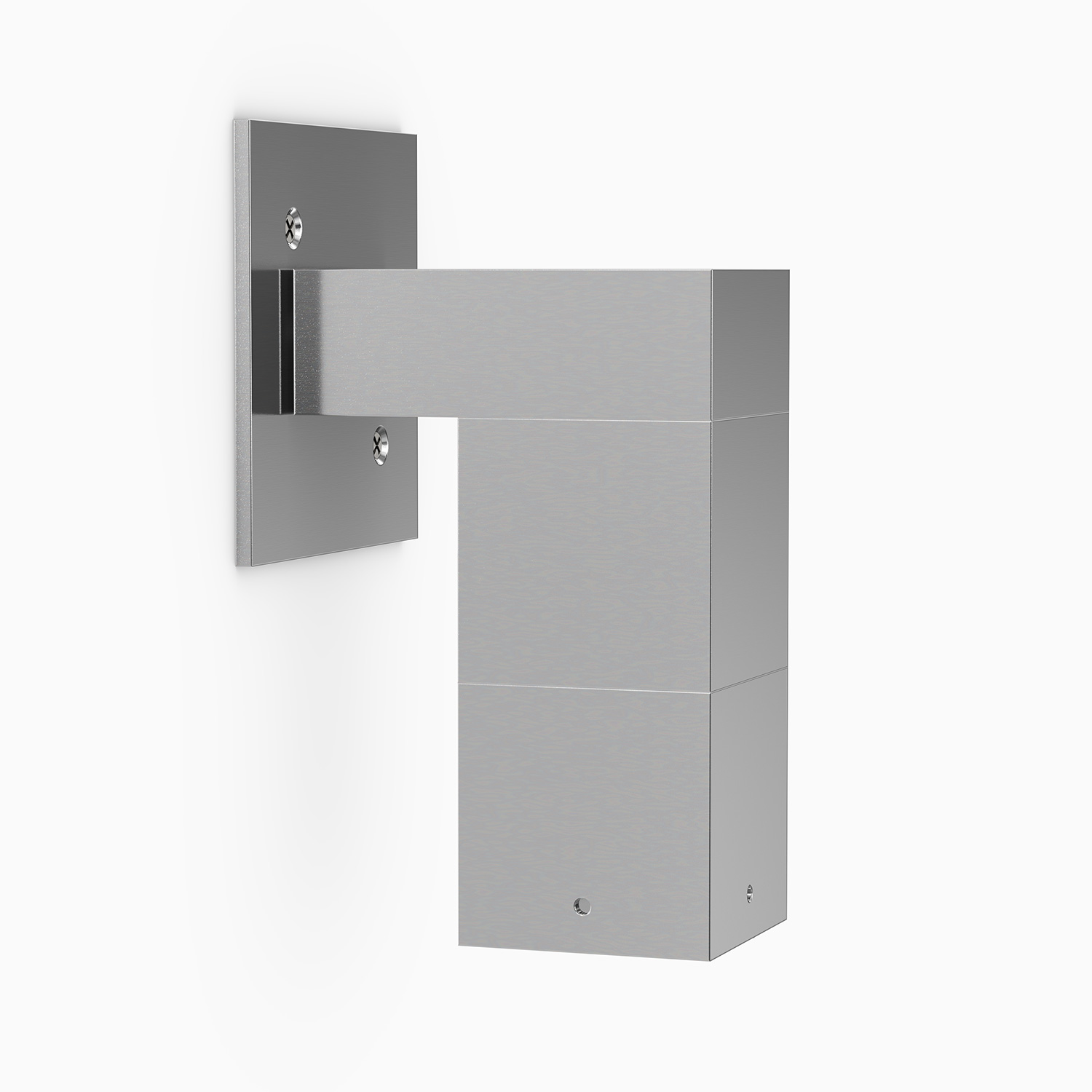

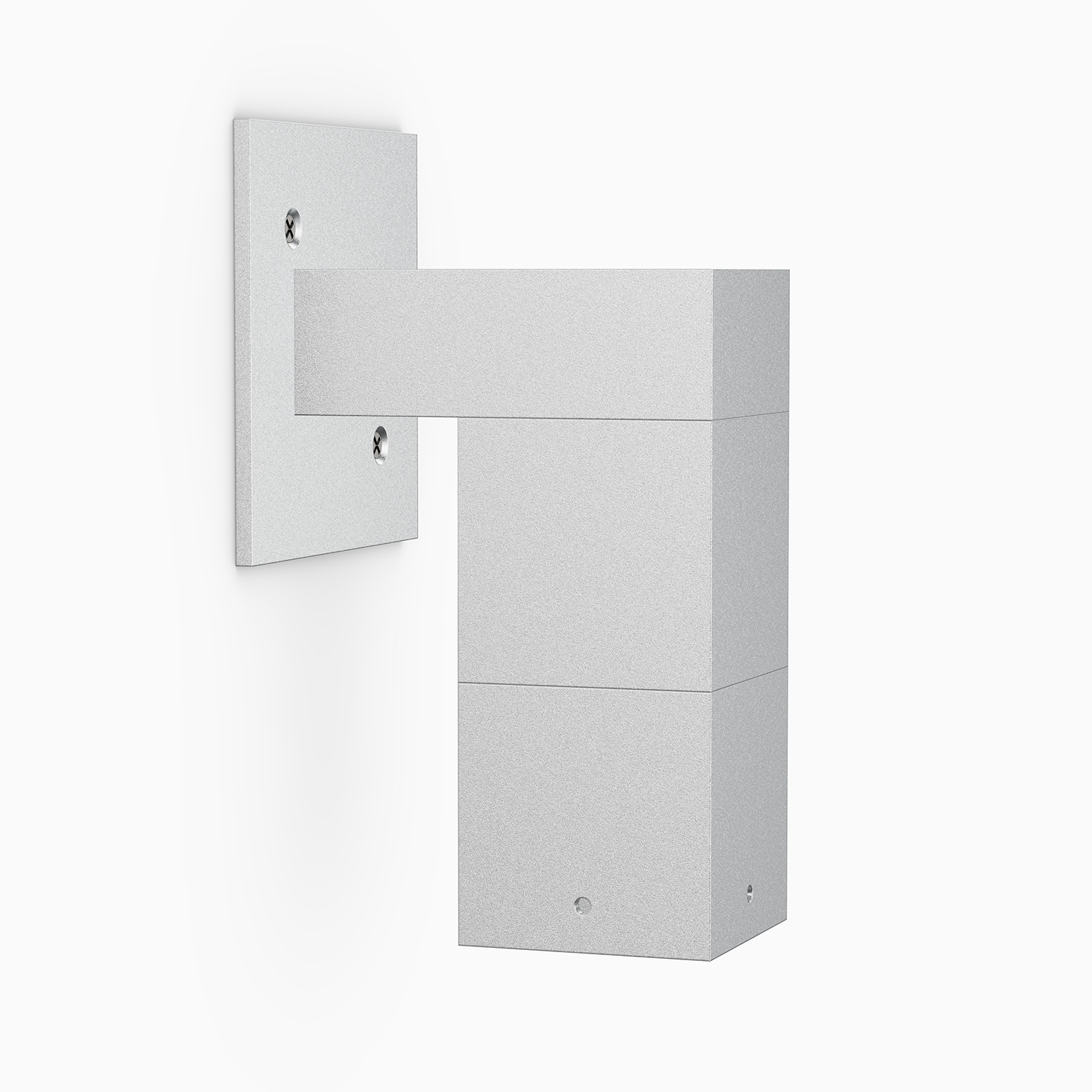

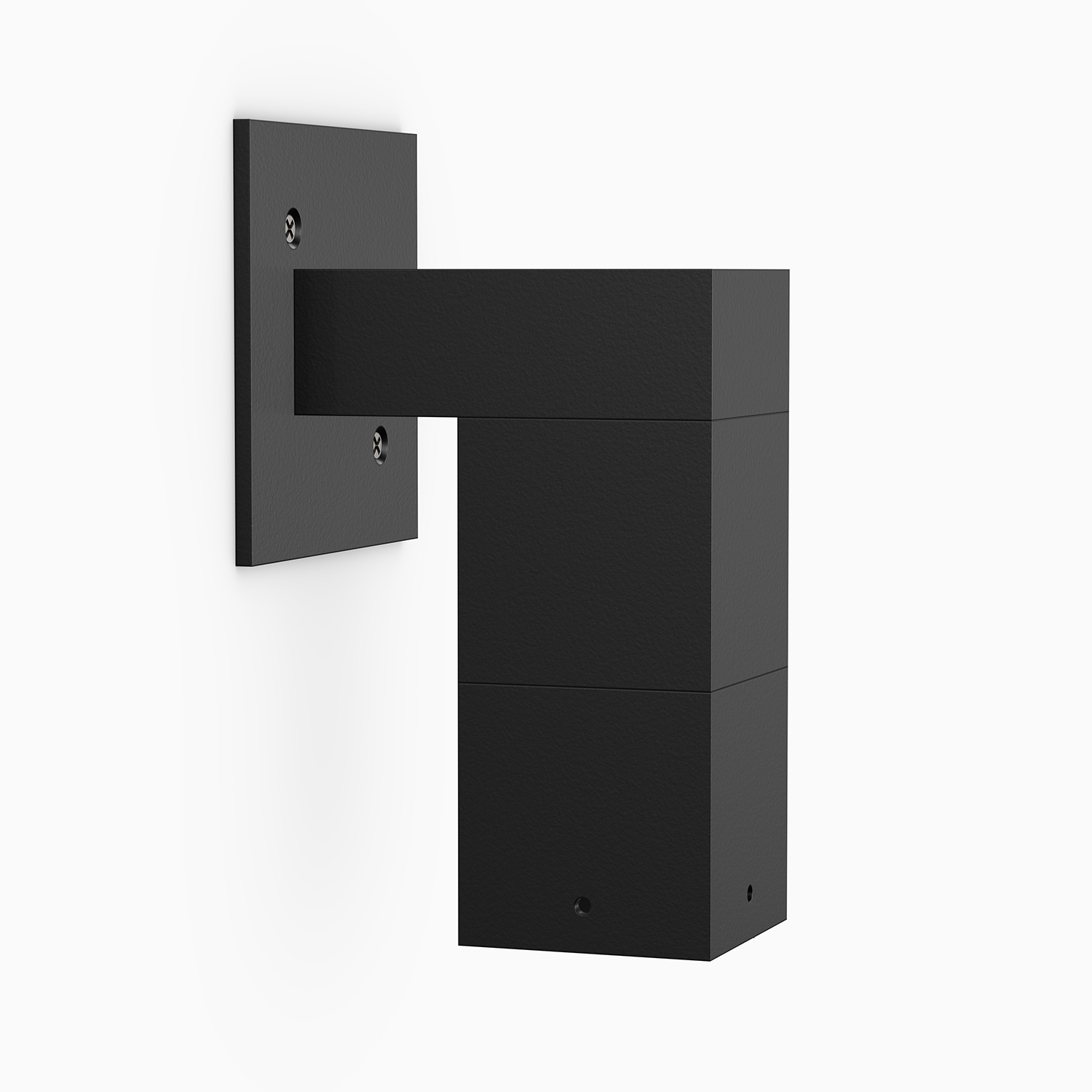

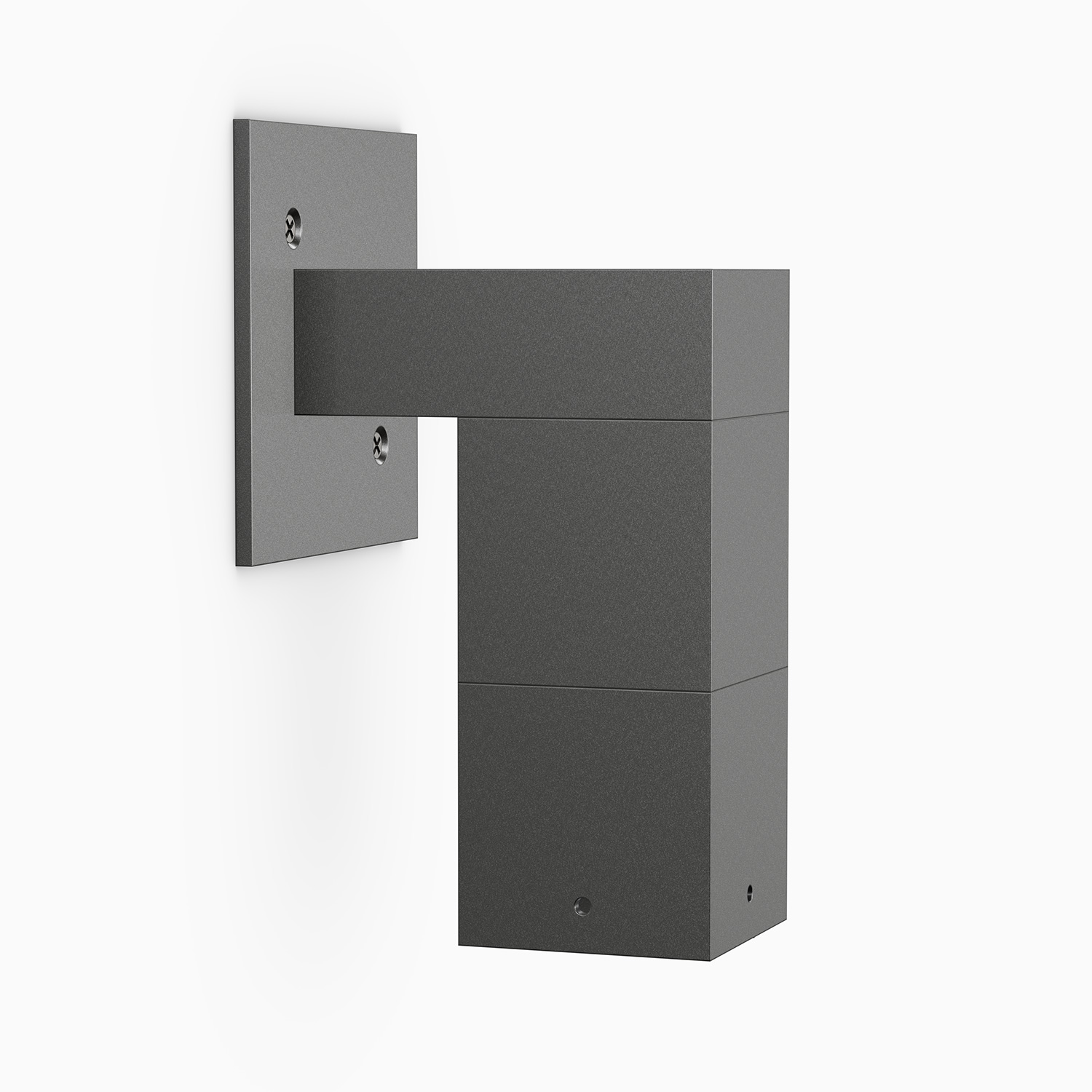

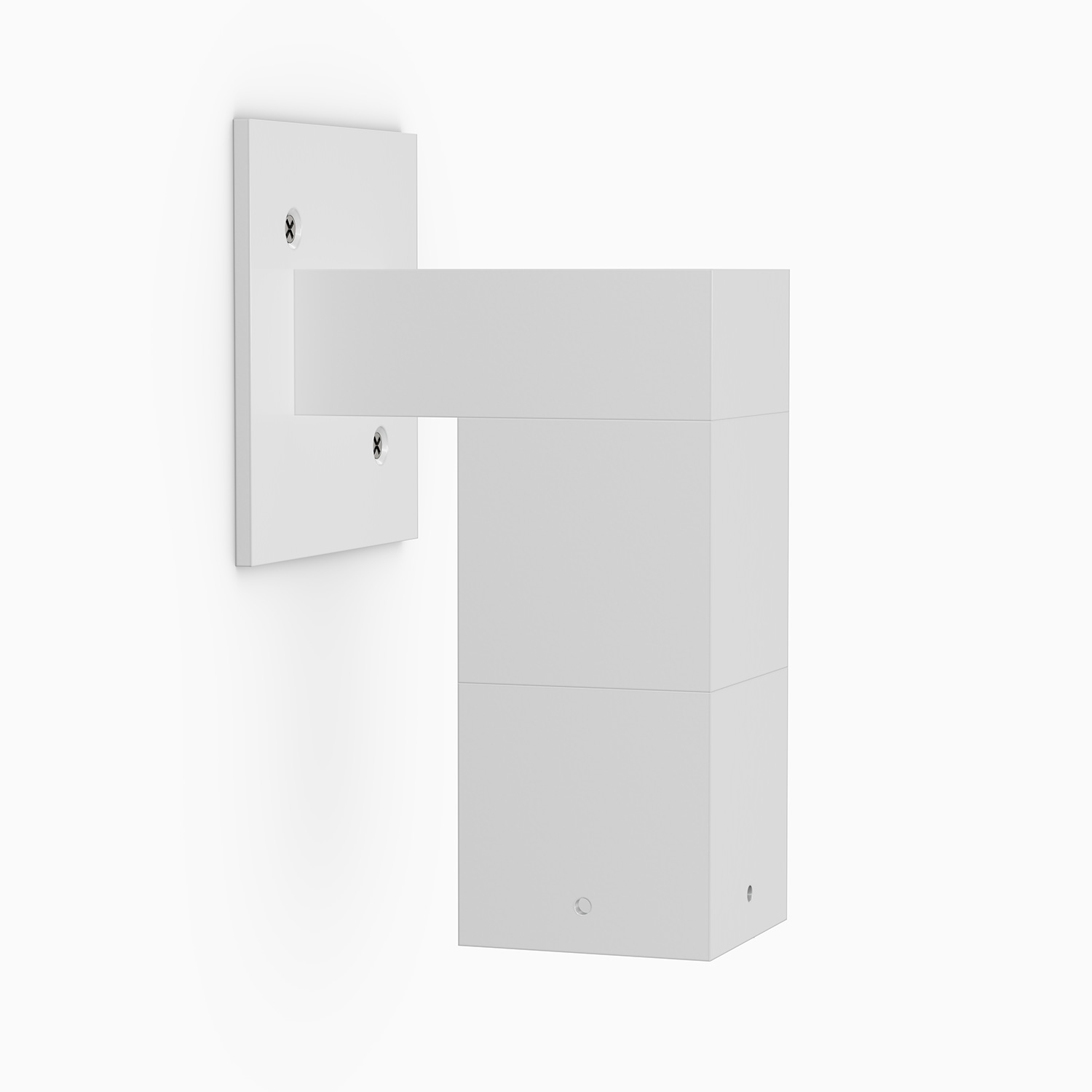

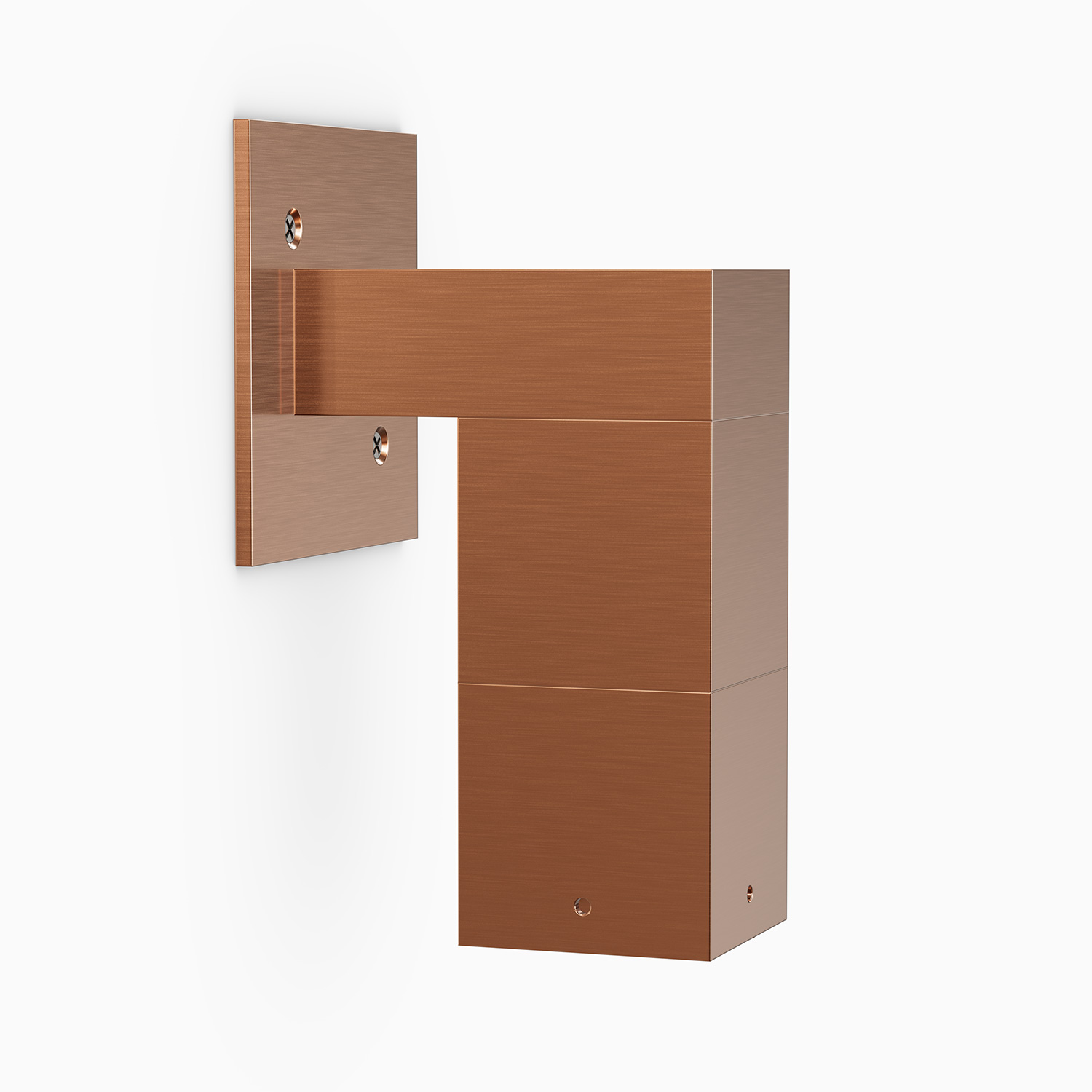

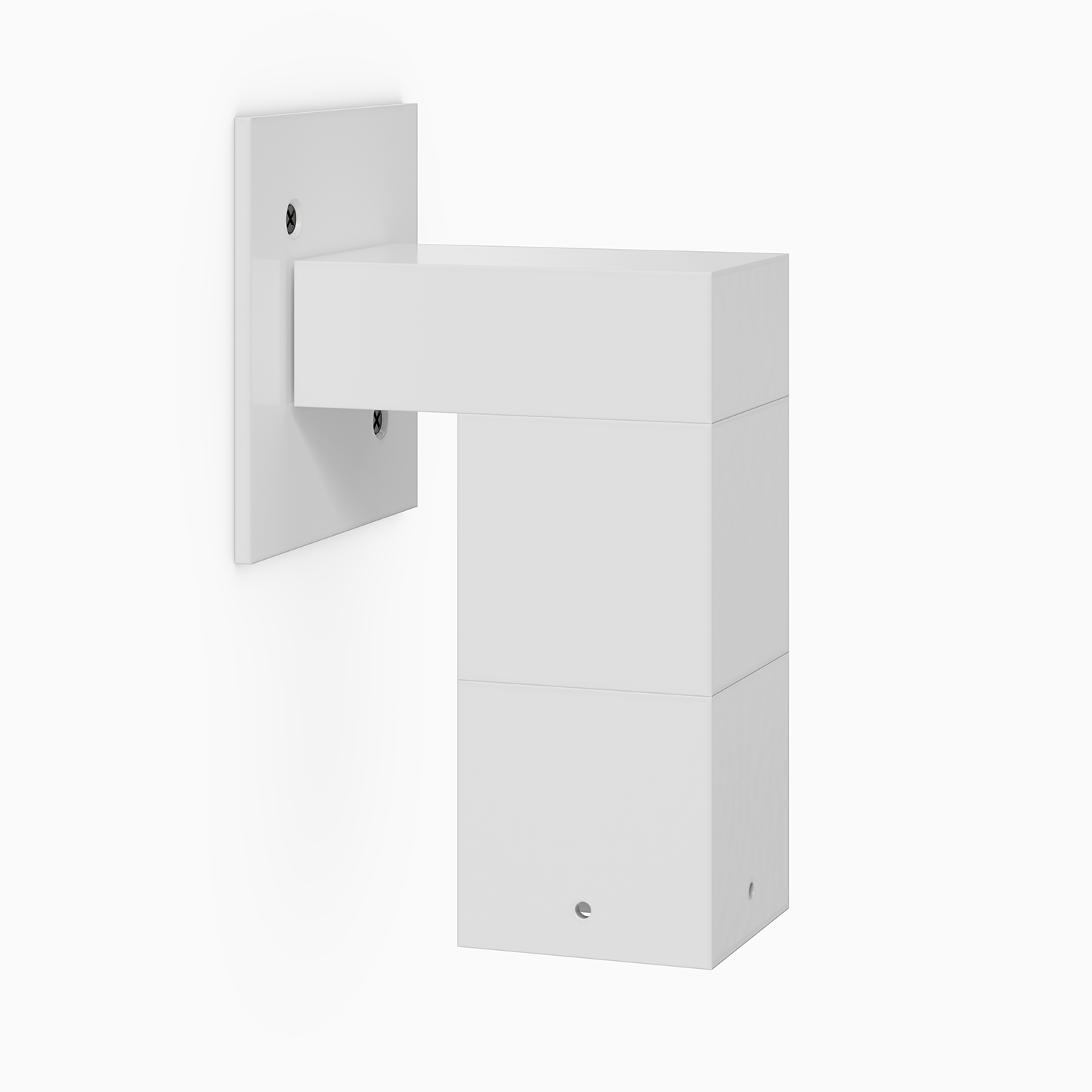

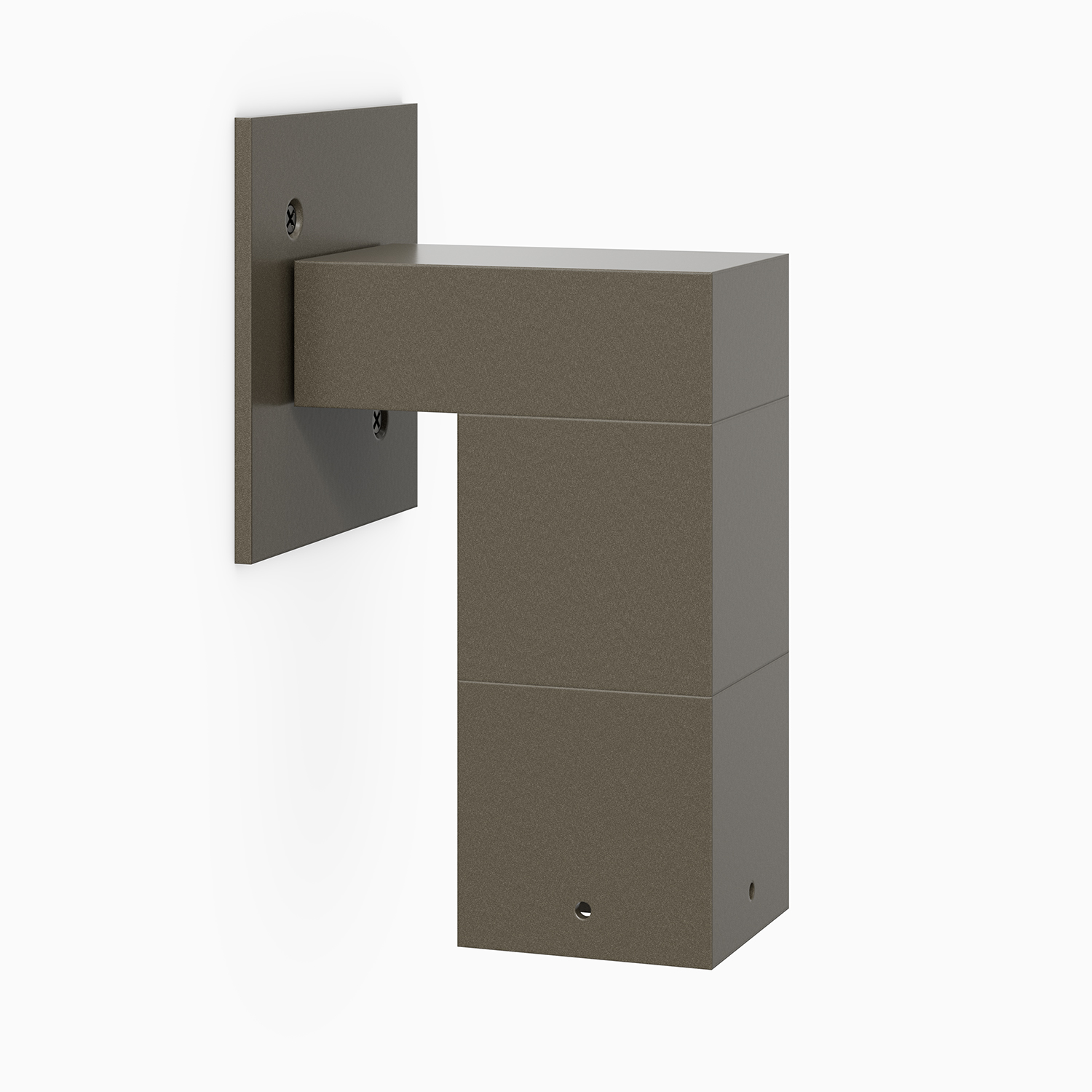

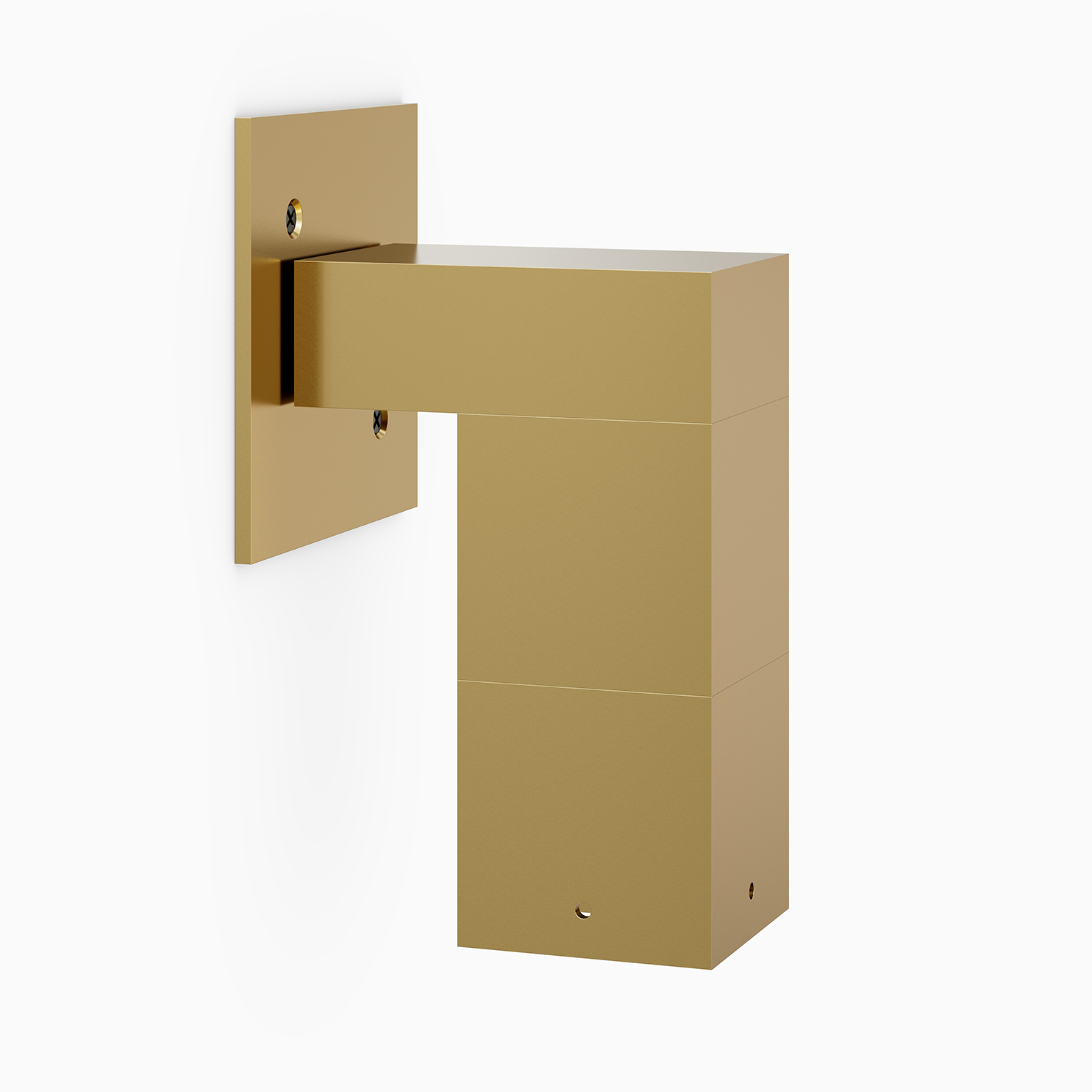

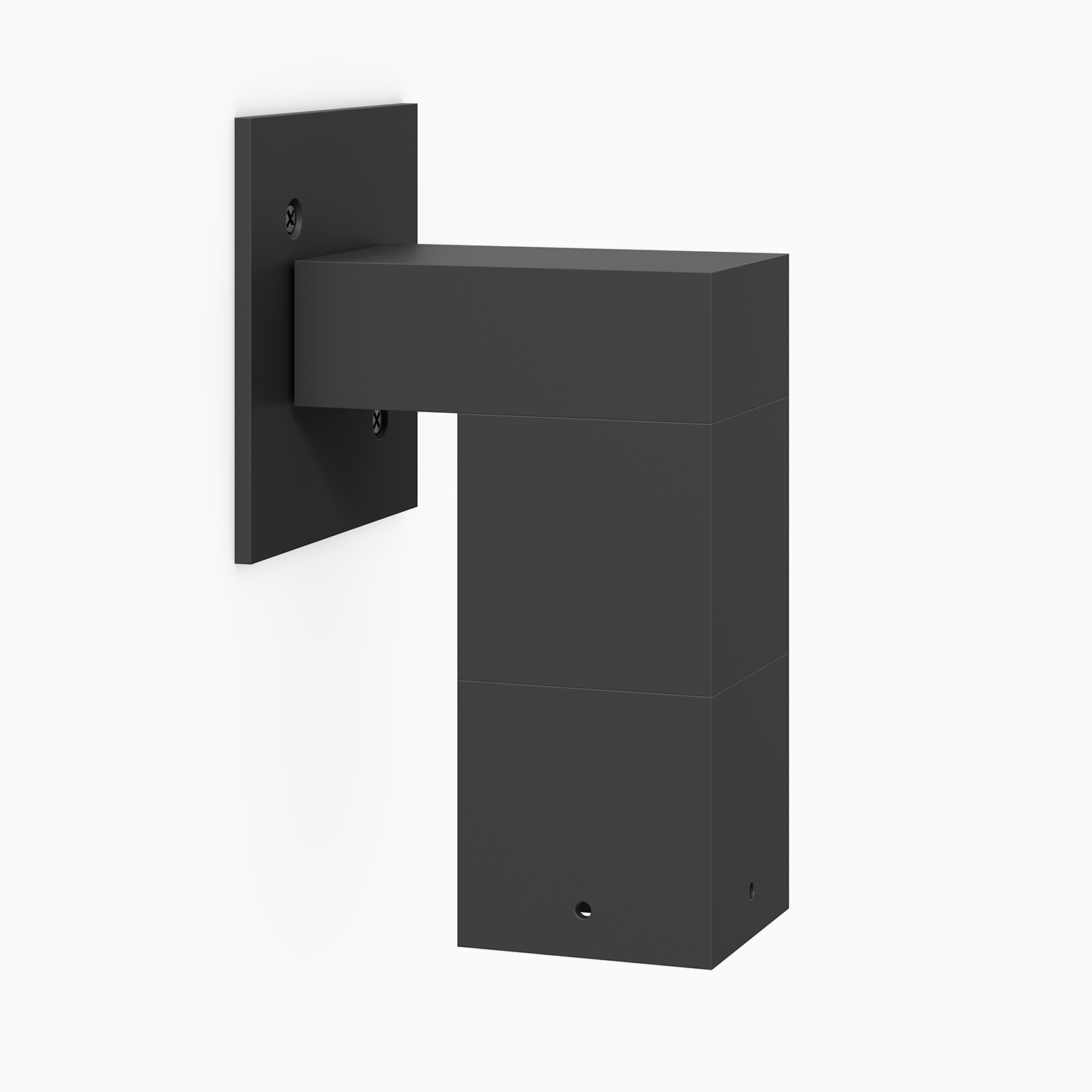

ZX16-WM-SQ (SOi)
Wall Mount • ZX16-WM-SQ Series
ZX16-WM-SQ (SOi)
Wall Mount • ZX16-WM-SQ Series
FEATURES:
- Fixed angle wall mount up light or down light with mounting canopy.
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
- Swivel stem insert allows for precision adjustment during installation.
- Unique weep hole design in hood allows for either upward or downward facing installation with minimum light leak.
- US patented integral SORAA® heat sink.
Specifications
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
12V AC/DC. Requires remote step down transformer.
Lamp Base/Socket
Standard bi-pin socket for GU5.3/G4/GX5.3/GY6.35/GZ4.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface
Wattage
Max. 9W for SORAA MR16 lamp with Thermobuster. Max. 50W for halogen MR16.
Optics
Accepts up to 3 accessory pieces (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.
Glare Shield
3 optional glare shields (GSL-SQ long, GSA-SQ angled, GSS-SQ short) for additional glare control. (See page 2 of Spec Sheet for details).
Light Engine
MR16 Halogen lamp or MR16 SORAA LED lamp.
Mounting
Utilizes 2x 8-32 UNC machine screws (provided) to attach to a standard octagon recessed back box (provided by others).
Dimming
MLV or ELV.
