Additional information

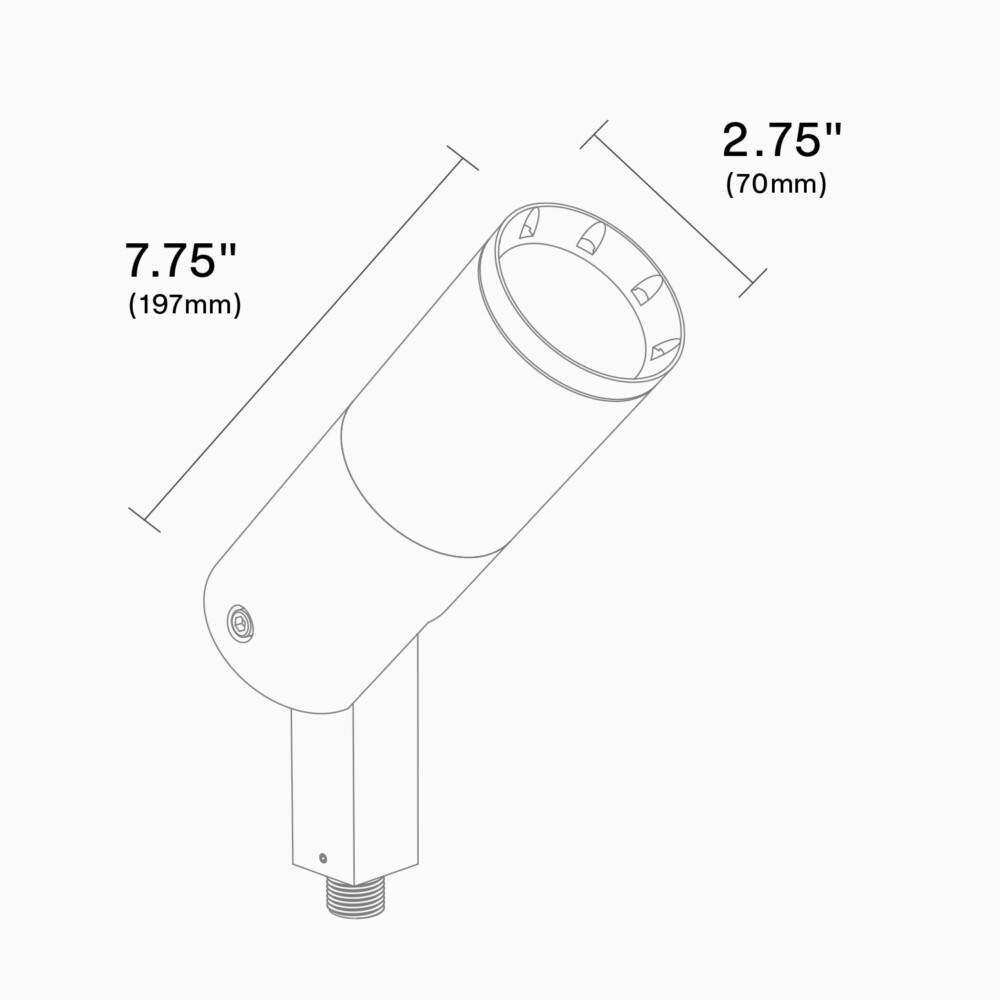

| Dimensions | 2.75 × 7.75 in |
|---|---|
| Light Source | |
| Shape | |
| Input Voltage | |
| Wattage | |
| Size | 2.75" |
ZX20
ACCENT & LANDSCAPE | ZX20 Series | 2.75"
11W ( 960lm ) | 120V, 230V | SORAA, Halogen
11W ( 960lm ) | 120V, 230V | SORAA, Halogen
ZX20
ACCENT & LANDSCAPE | ZX20 Series | 2.75"
11W ( 960lm ) | 120V, 230V | SORAA, Halogen
11W ( 960lm ) | 120V, 230V | SORAA, Halogen

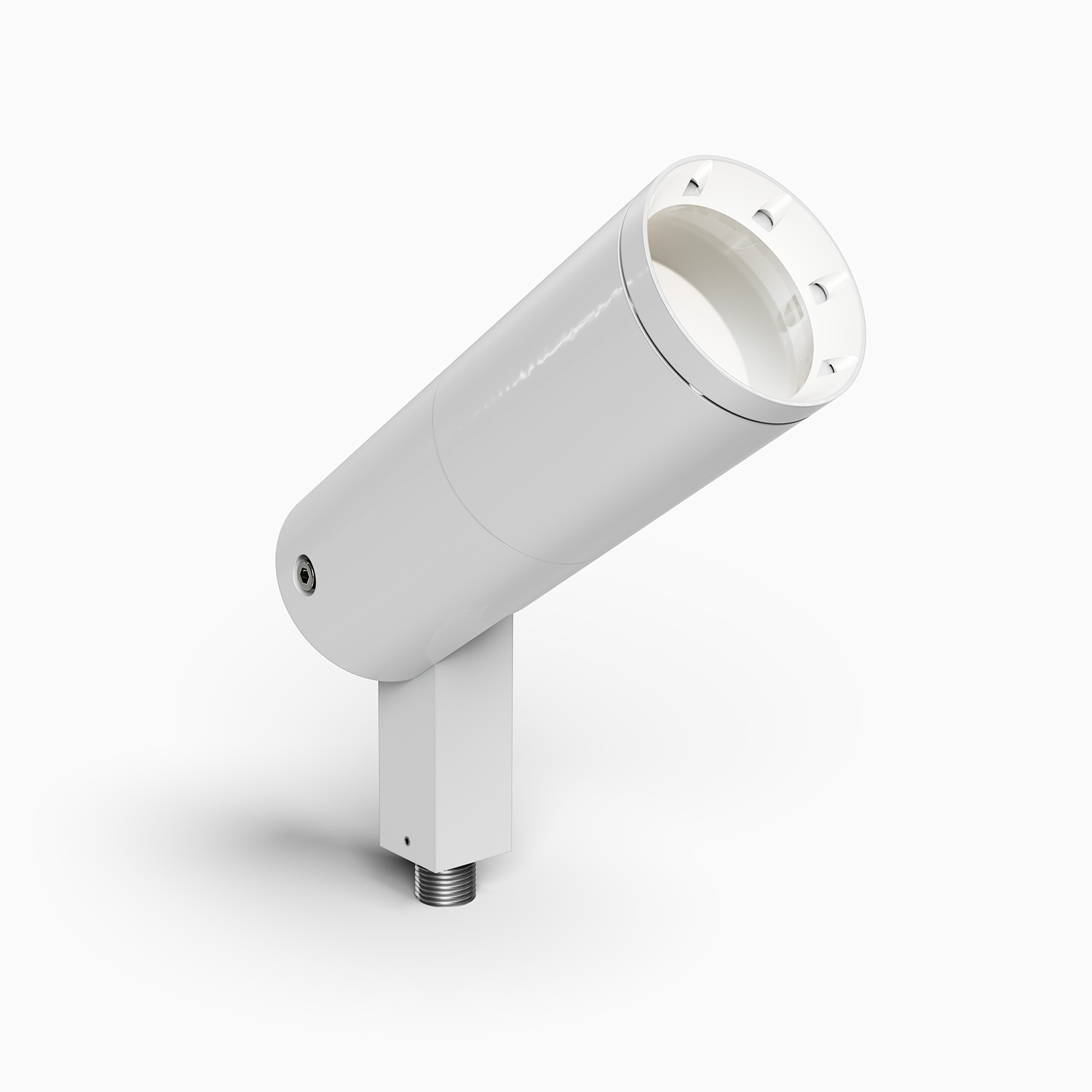

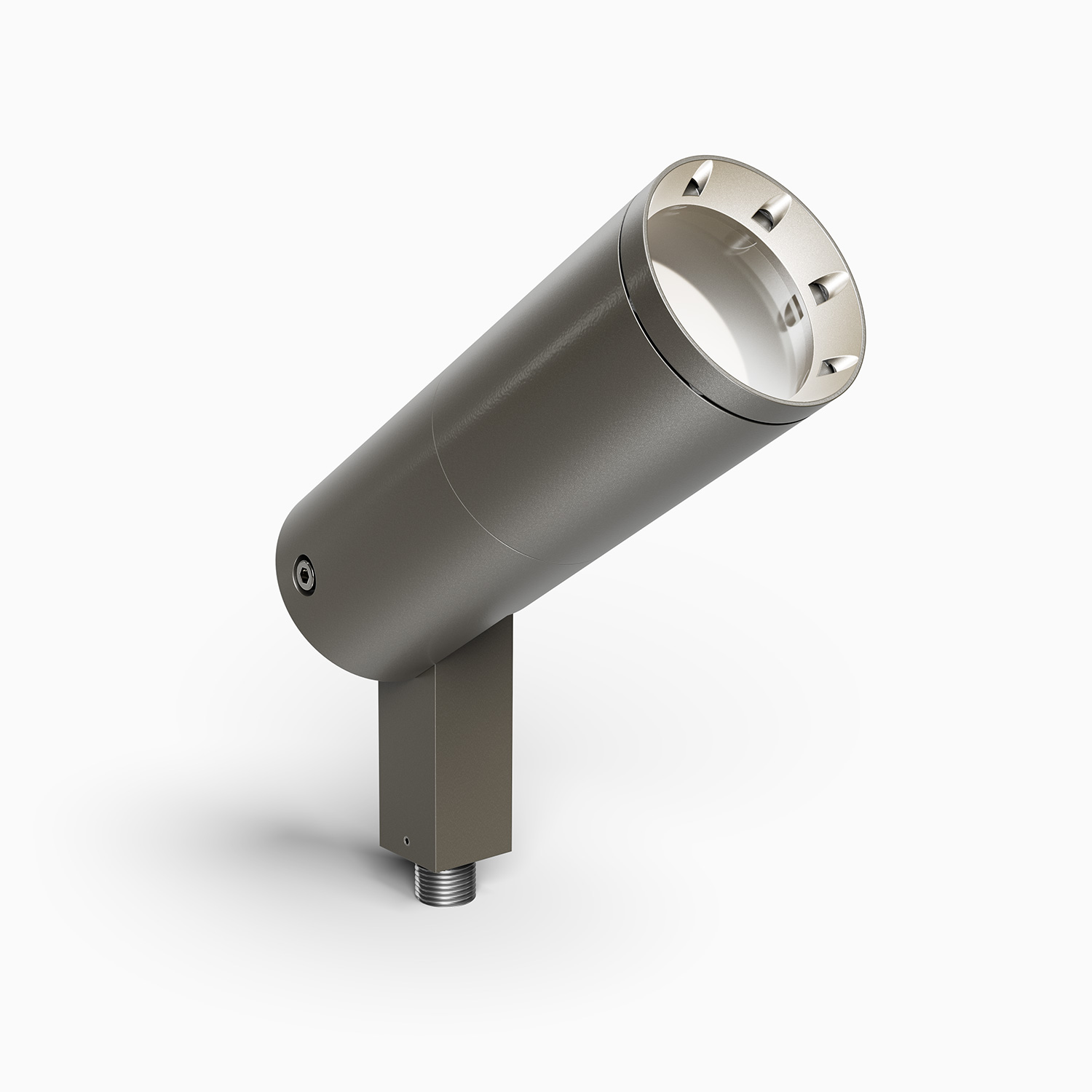

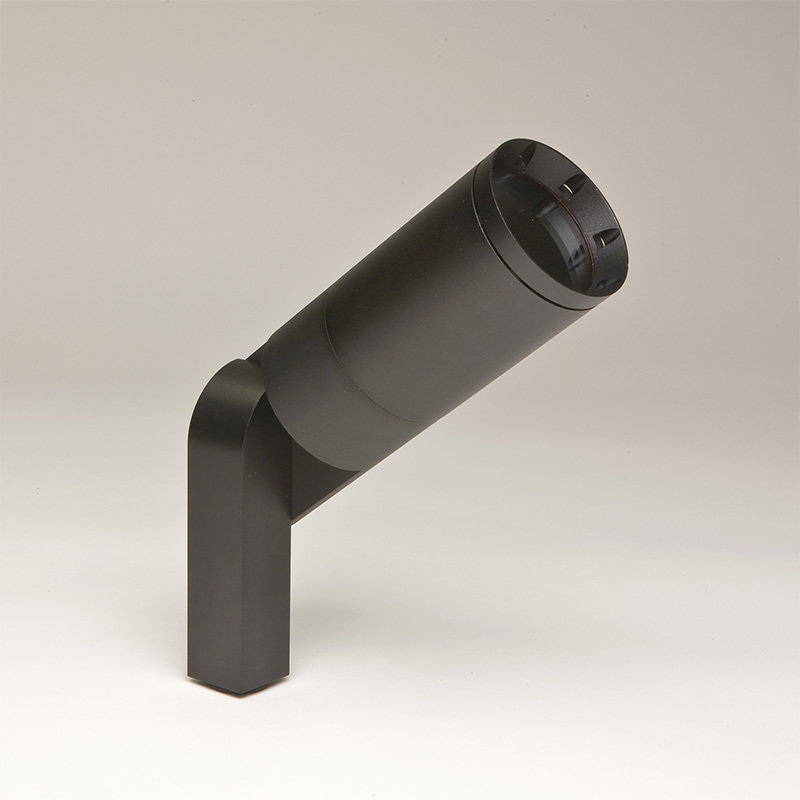

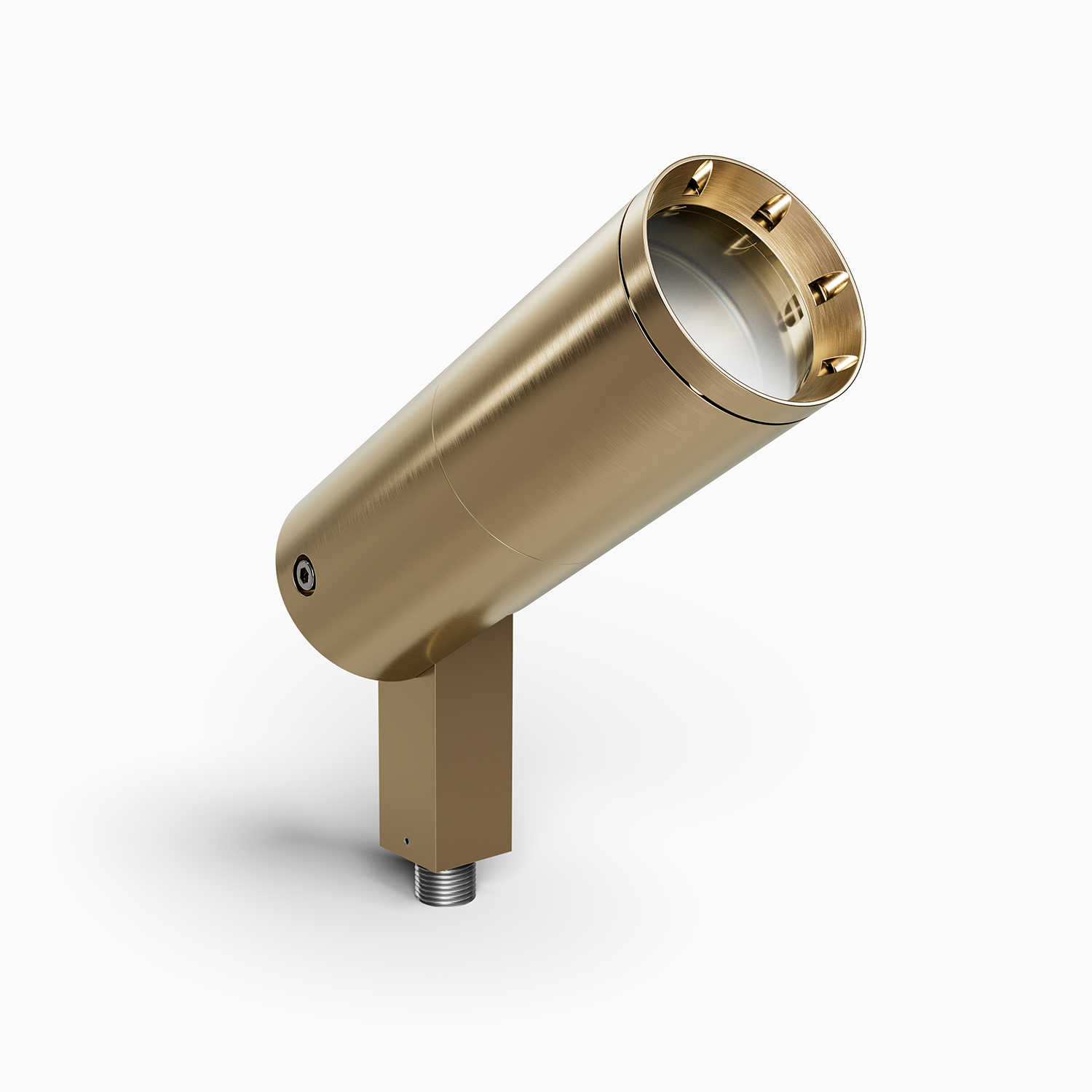

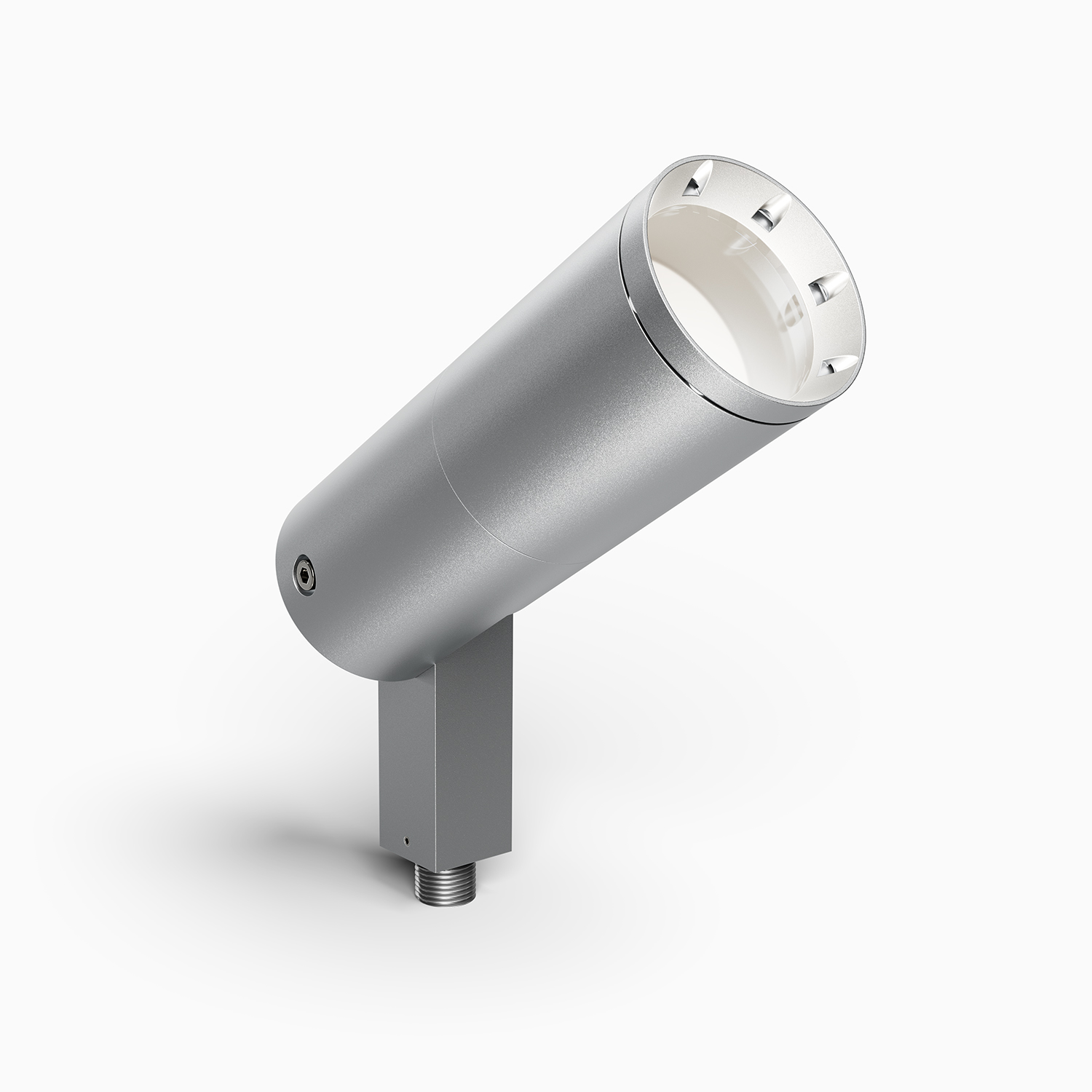

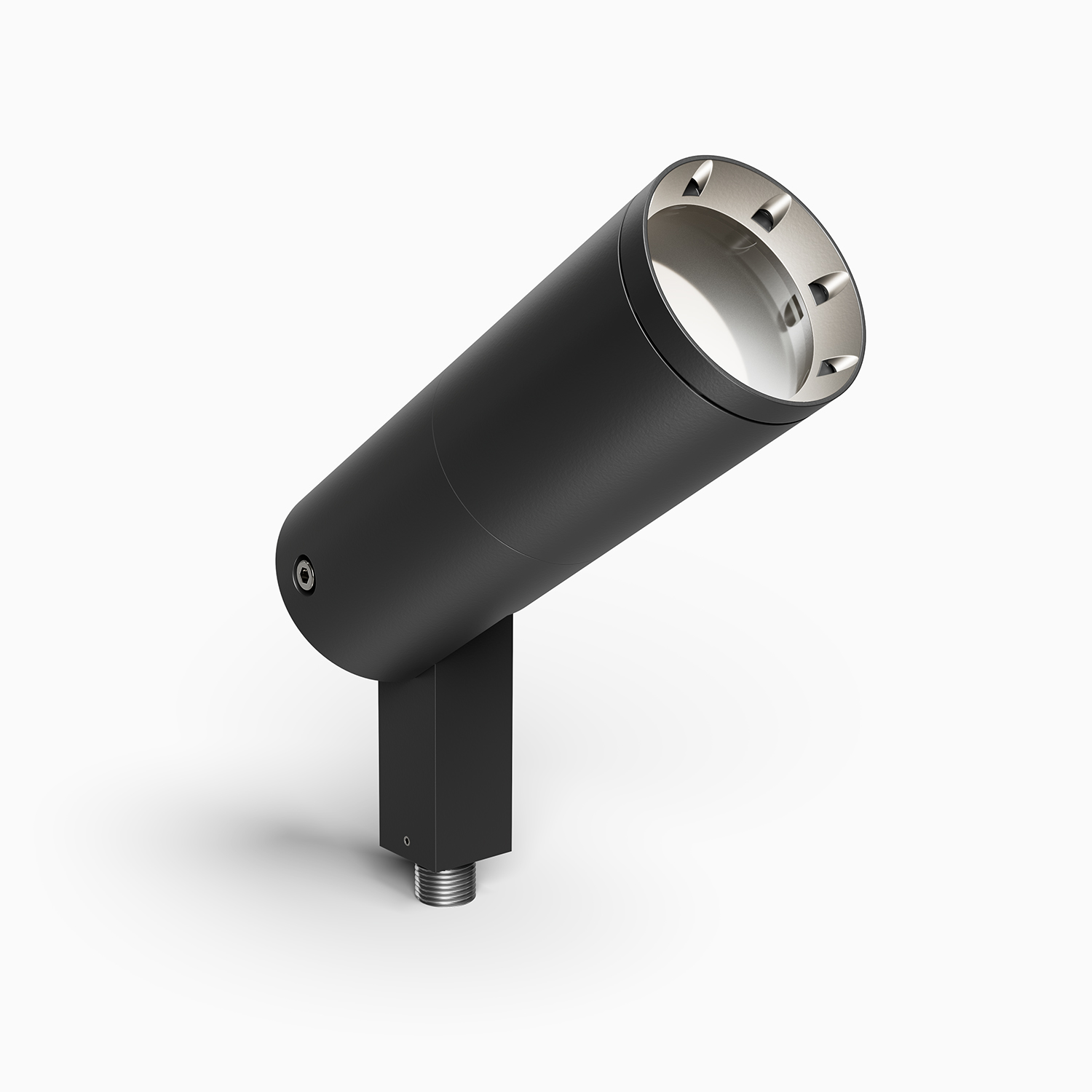

Larger round, directional 120V/230V PAR20 modern accent light for residential and commercial environments.
(includes former ZX20-SOi model)
FEATURES:
- Flexible lamp configurations include SORAA LED Lamp with patented Heat Sink or use your preferred LED or Halogen lamp.
- Wet Location Listed, IP67 Standard.
- Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.
- 240º vertical and 360º horizontal adjustment via locking swivel stem design.
- Field changeable optical lensing available.
- Available with adjustable Angled, Long, and Short Glare Shields and ground, surface, and canopy mounting options.
- Every fixture tested end of line for water tightness and light quality.
- Ships complete with selected accessories installed.
Specifications
Materials
Solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware.
Voltage
120V or 230V AC.
Lamp Base/Socket
Standard PAR20 E26 lamp base/socket.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
Max. 11W for SORAA PAR20 lamp.
Optics
Accepts up to 3 accessory pieces (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.
Hood and Glare Shield
Weeping and Non-weeping Hood Styles. Set screw or threaded Angled, Short, or Long Glare Shields. (See page 4 of Spec Sheet for details)
Light Engine
PAR20 Halogen lamp or PAR20 SORAA LED lamp. .
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting mounting accessories (See page 4 of Spec Sheet for details).
Dimming
Phase dimming, with trailing edge dimming preferable. Please refer to website for SORAA PAR20 dimmer compatibility.
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Compatible Accessories
