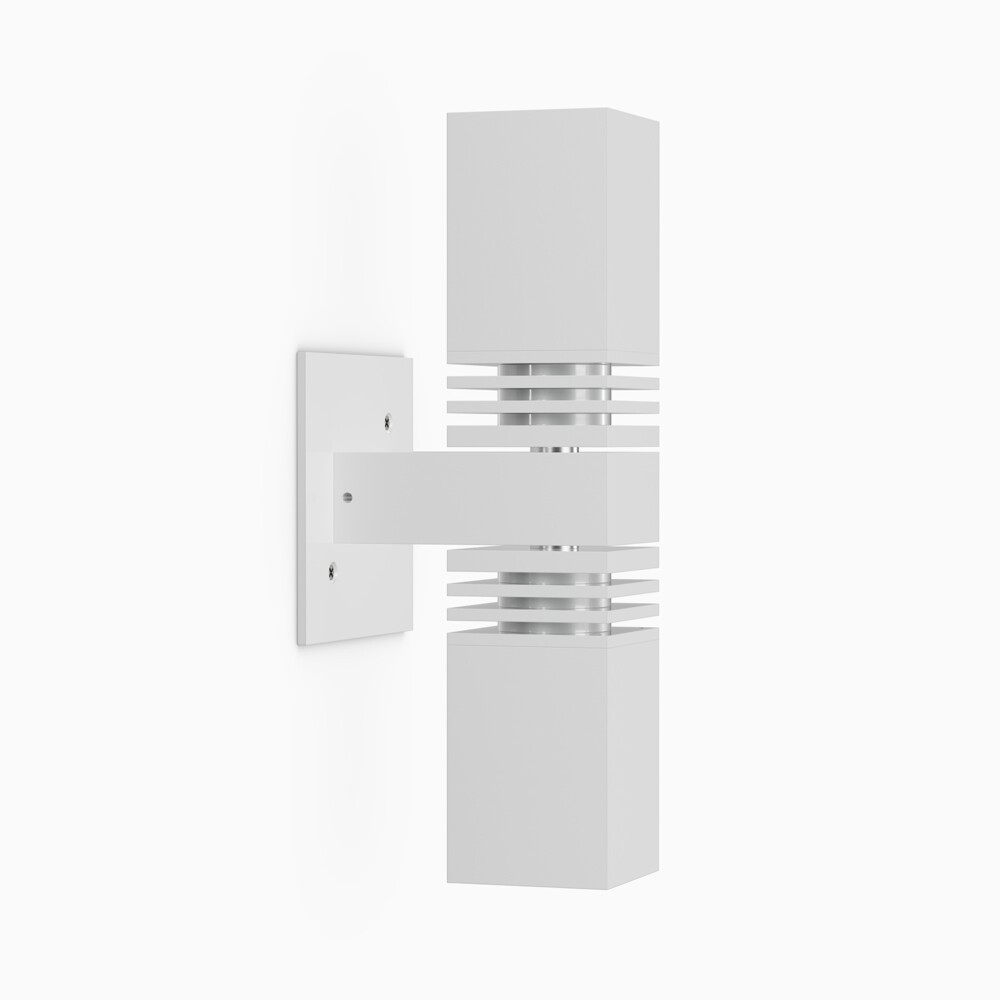

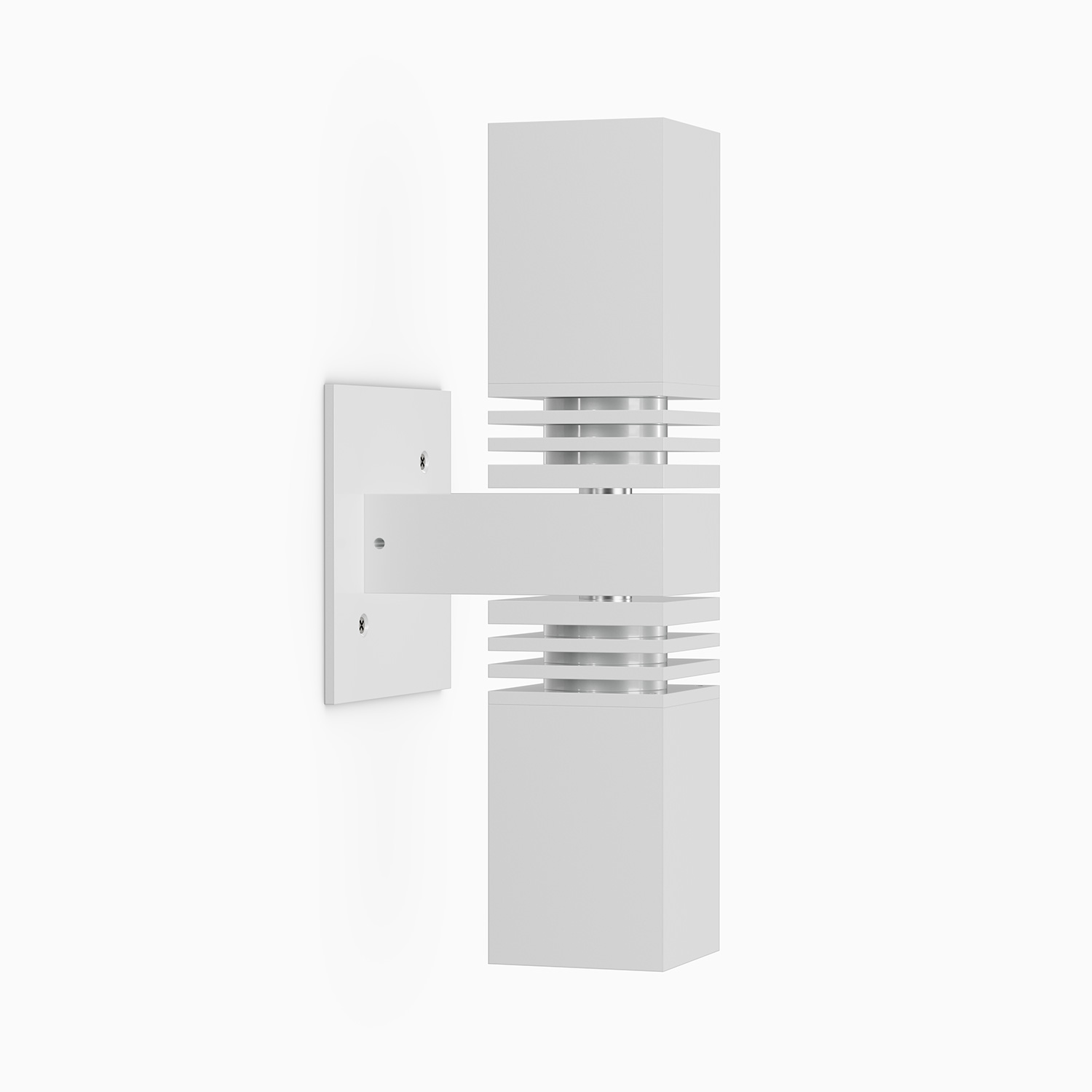

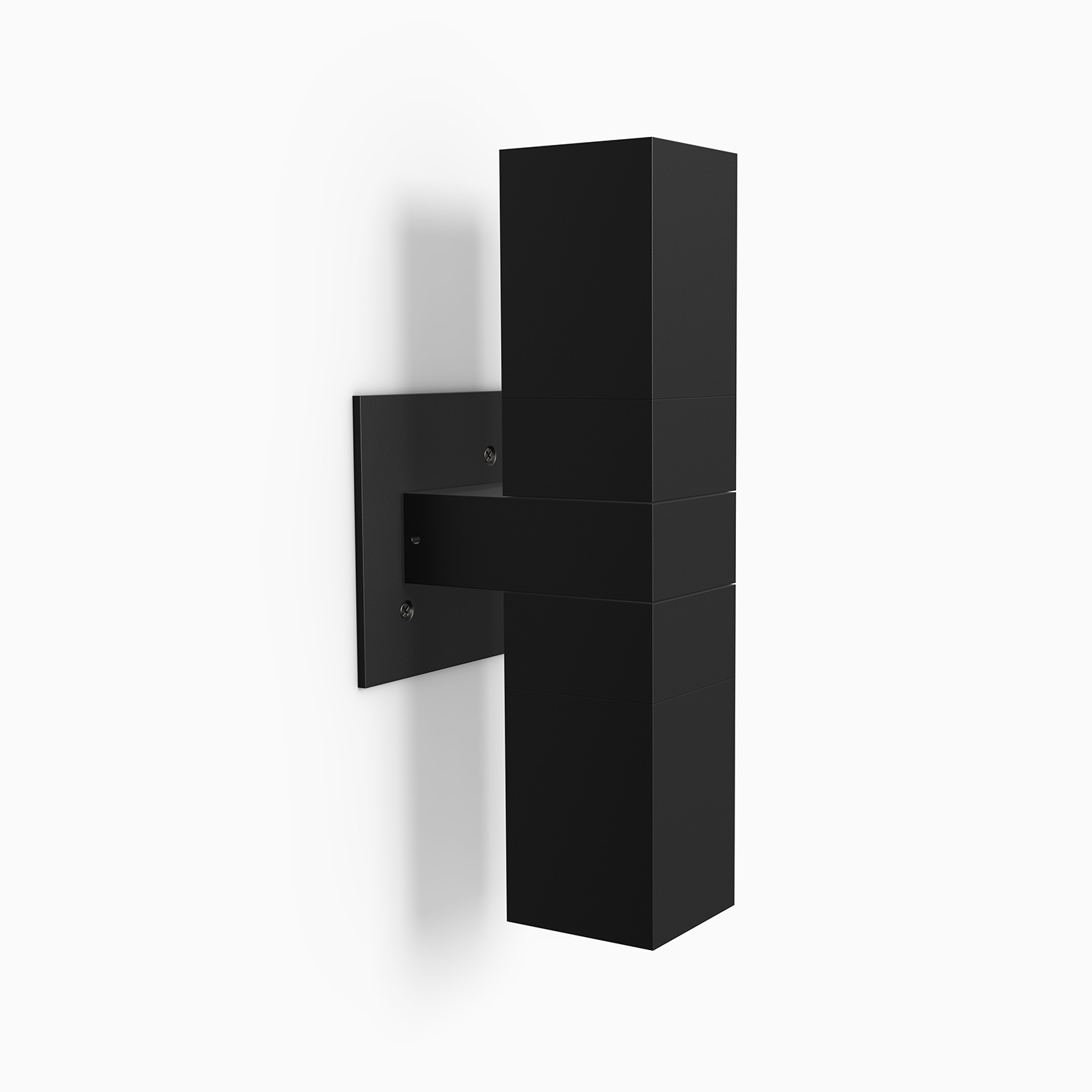

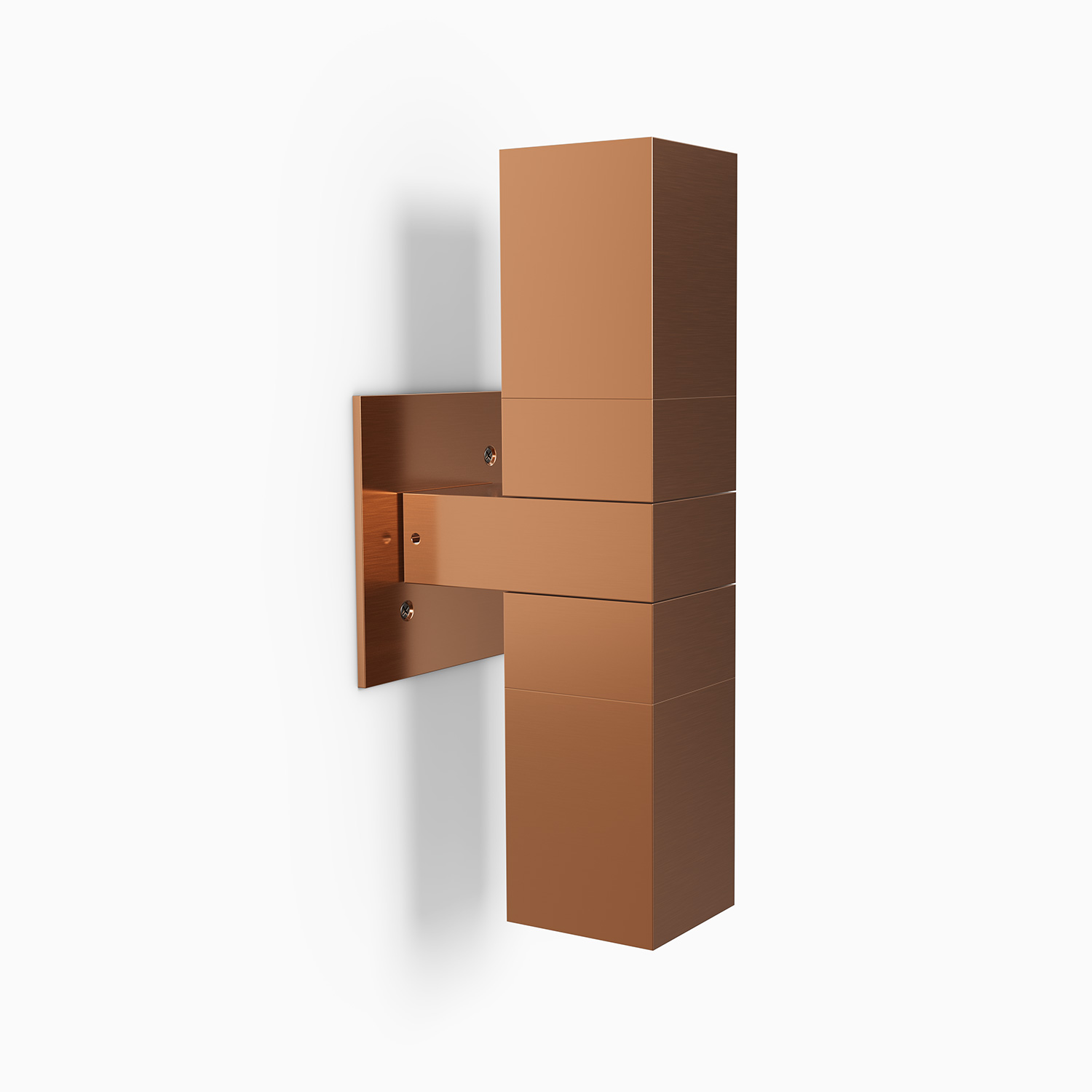

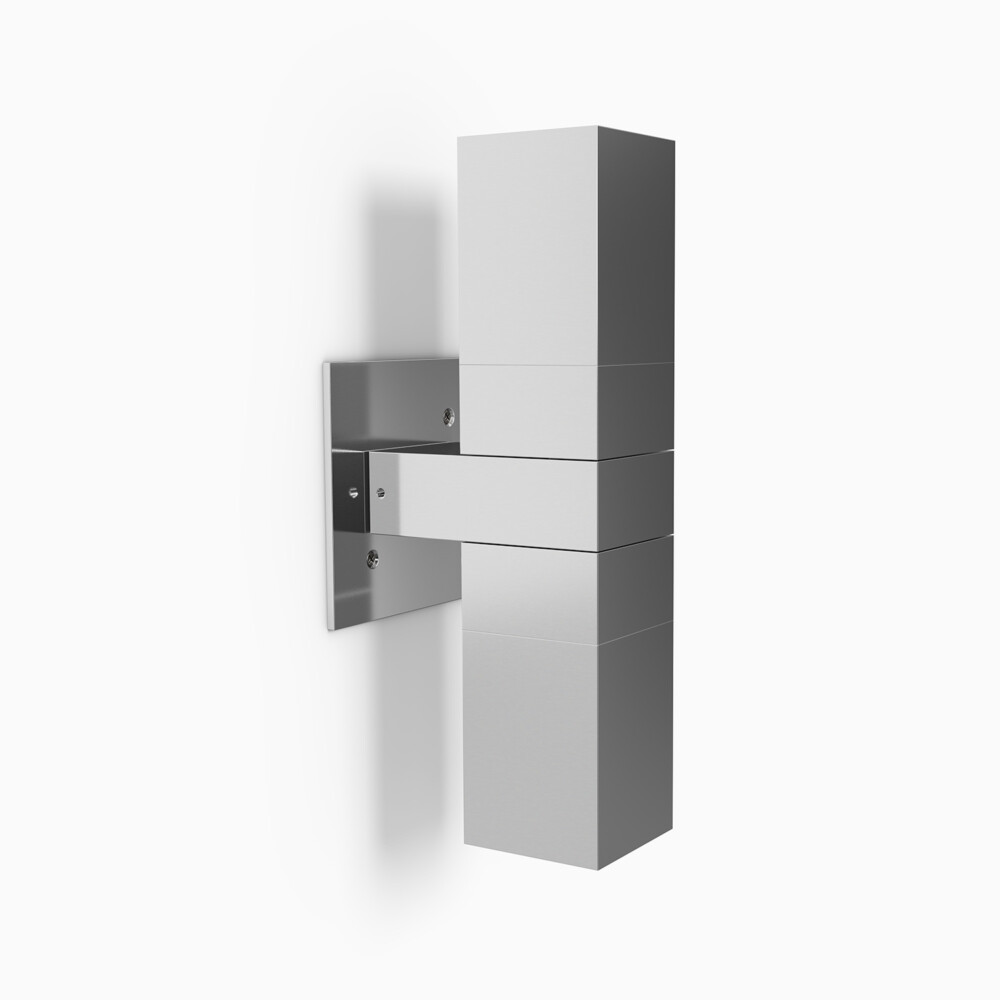

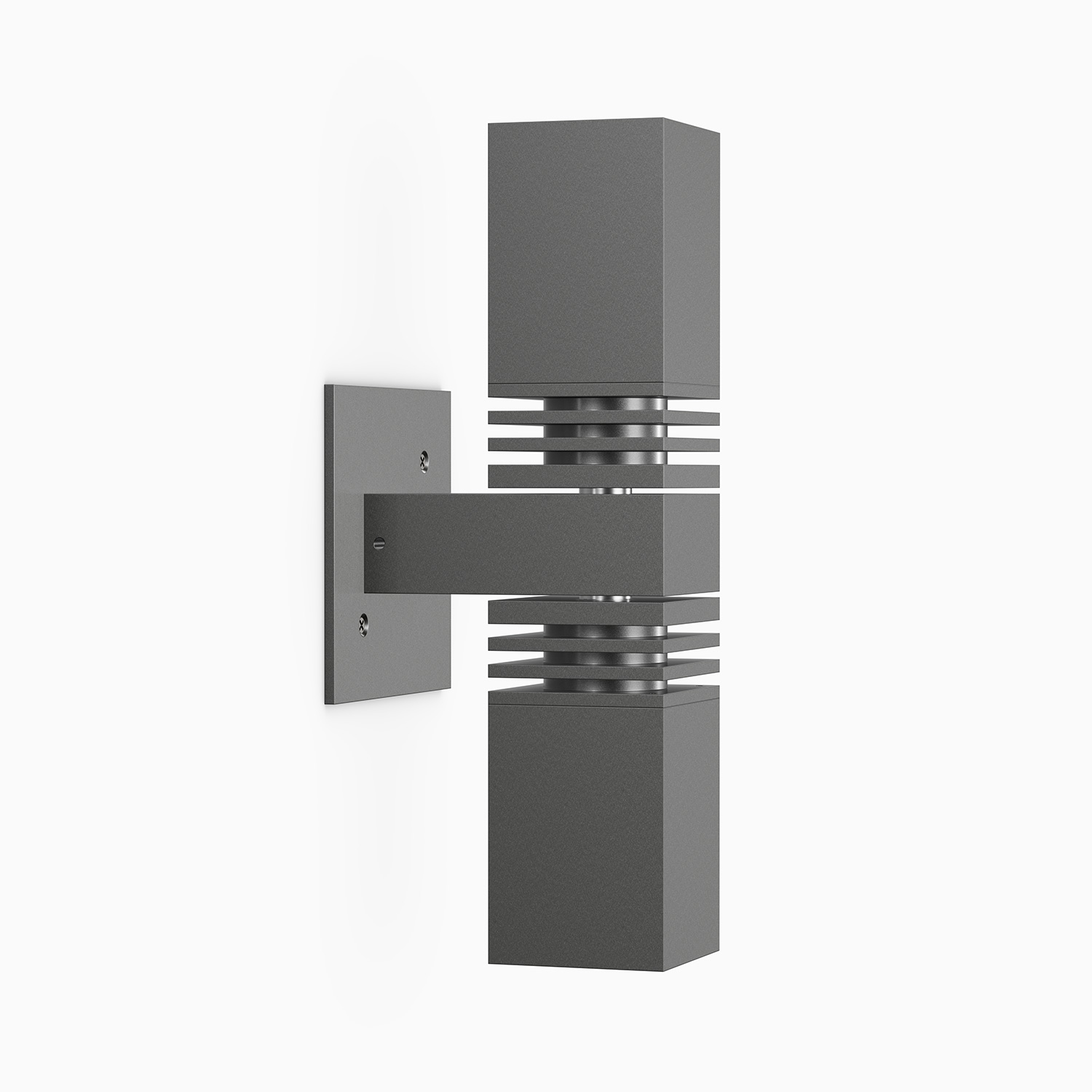

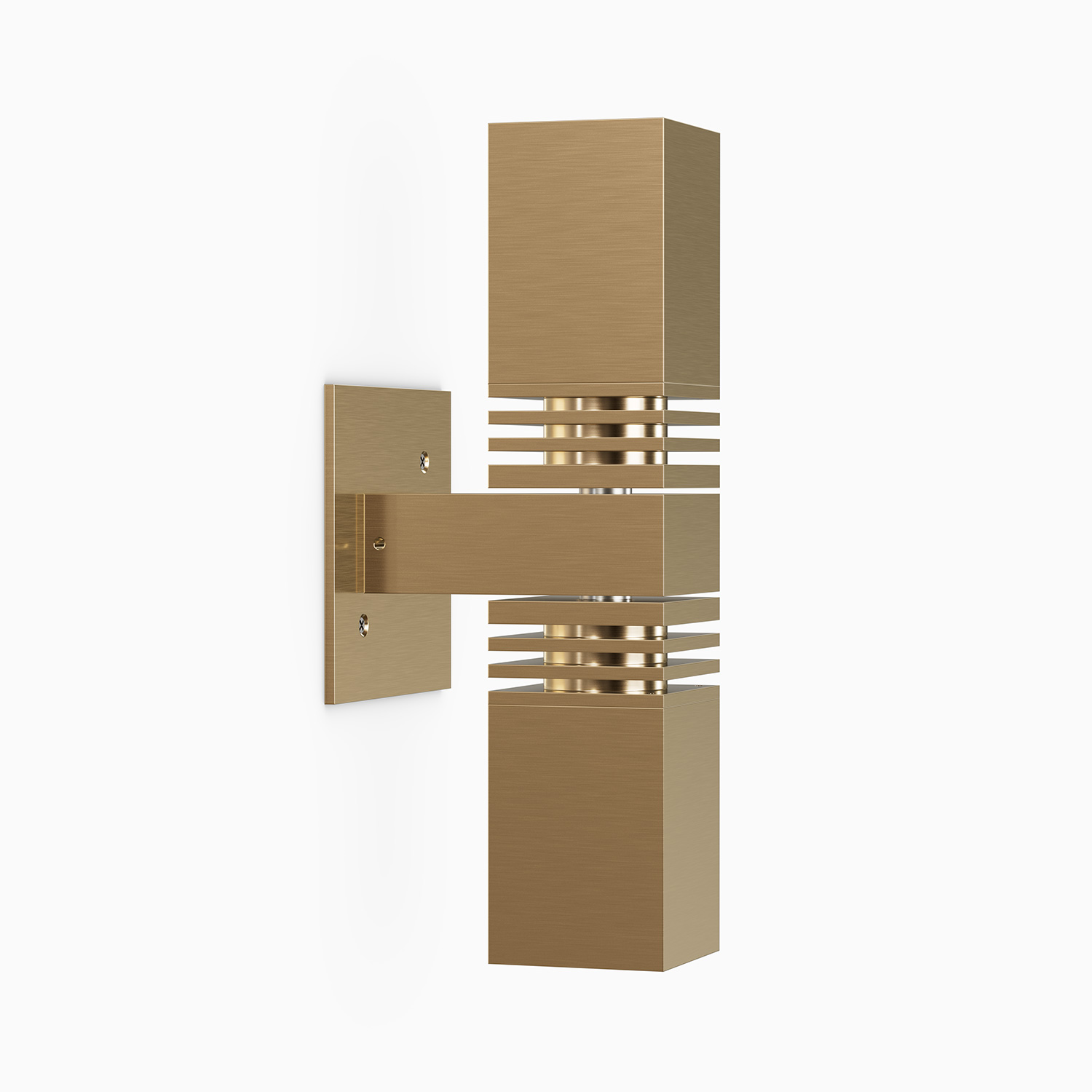

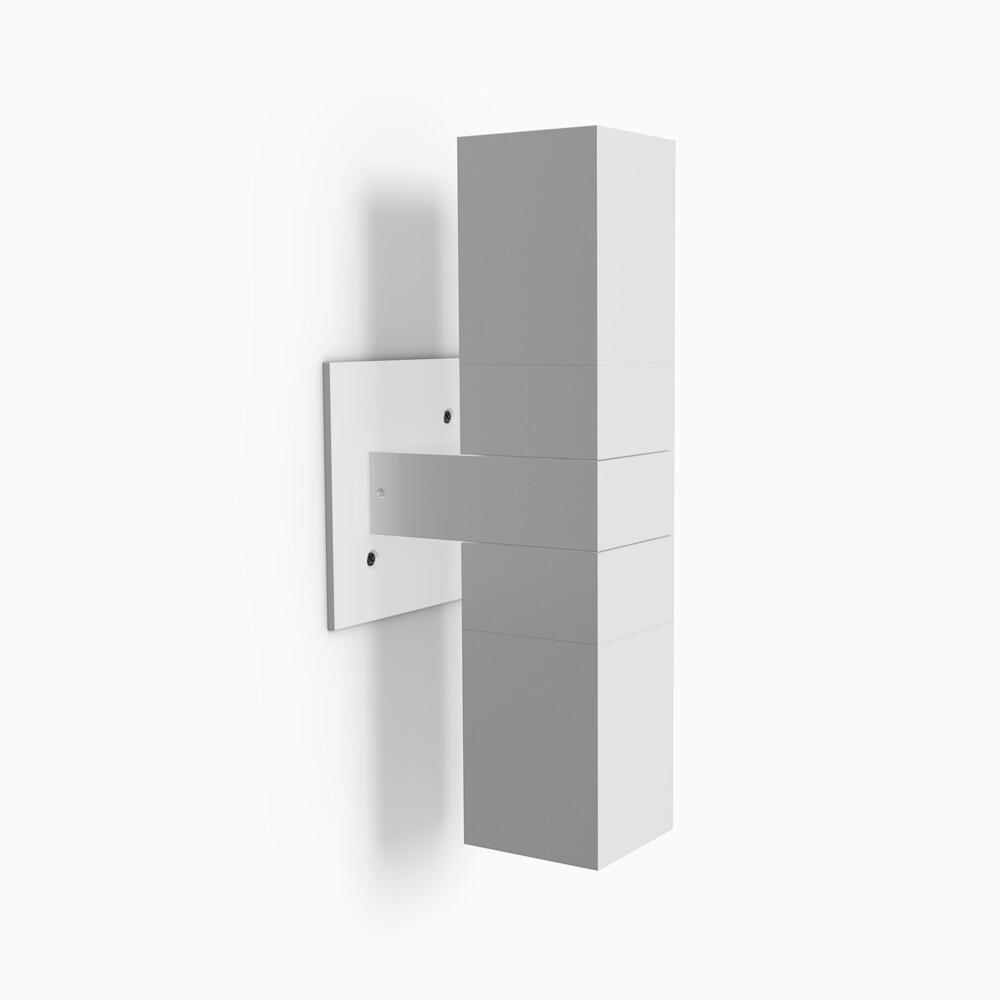

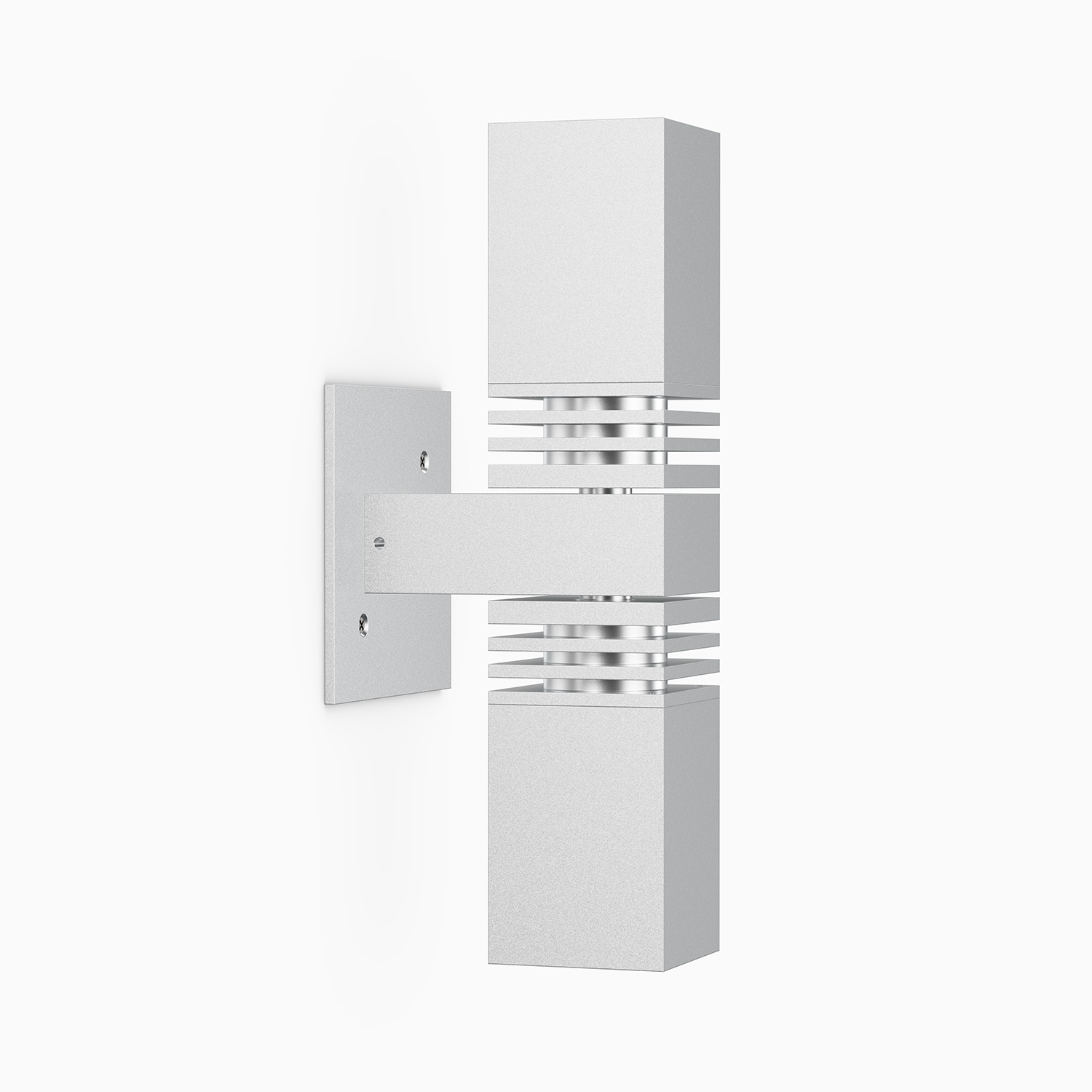

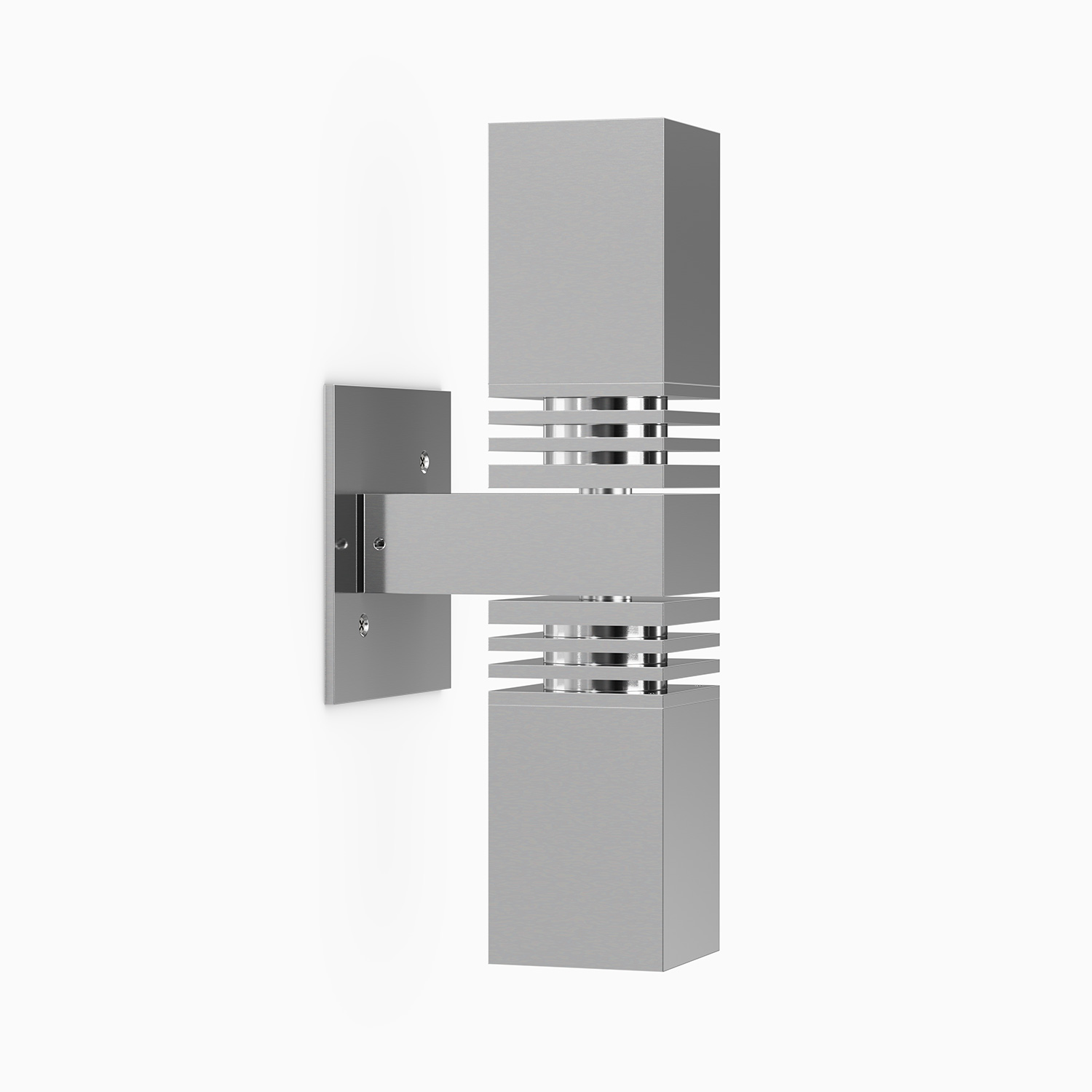

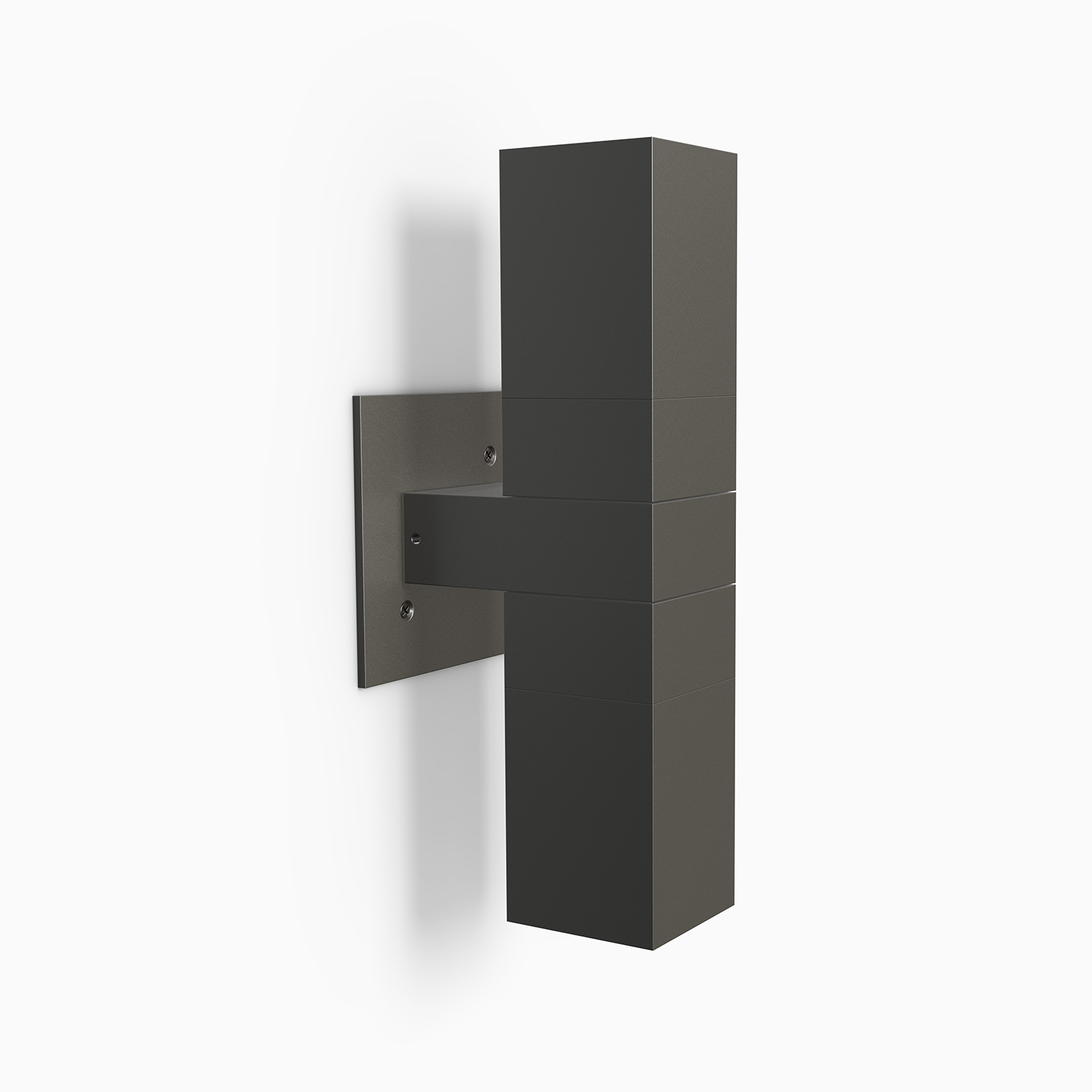

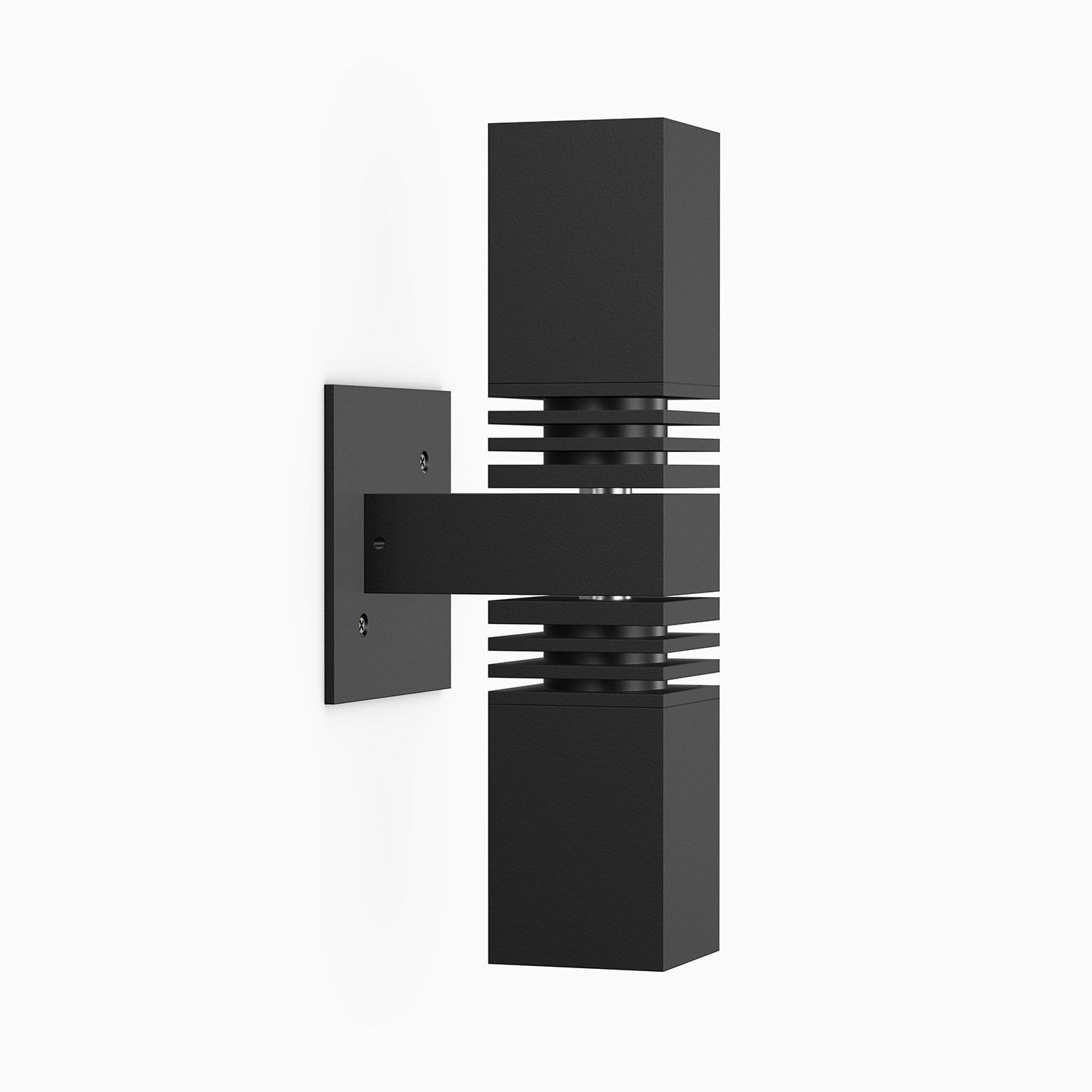

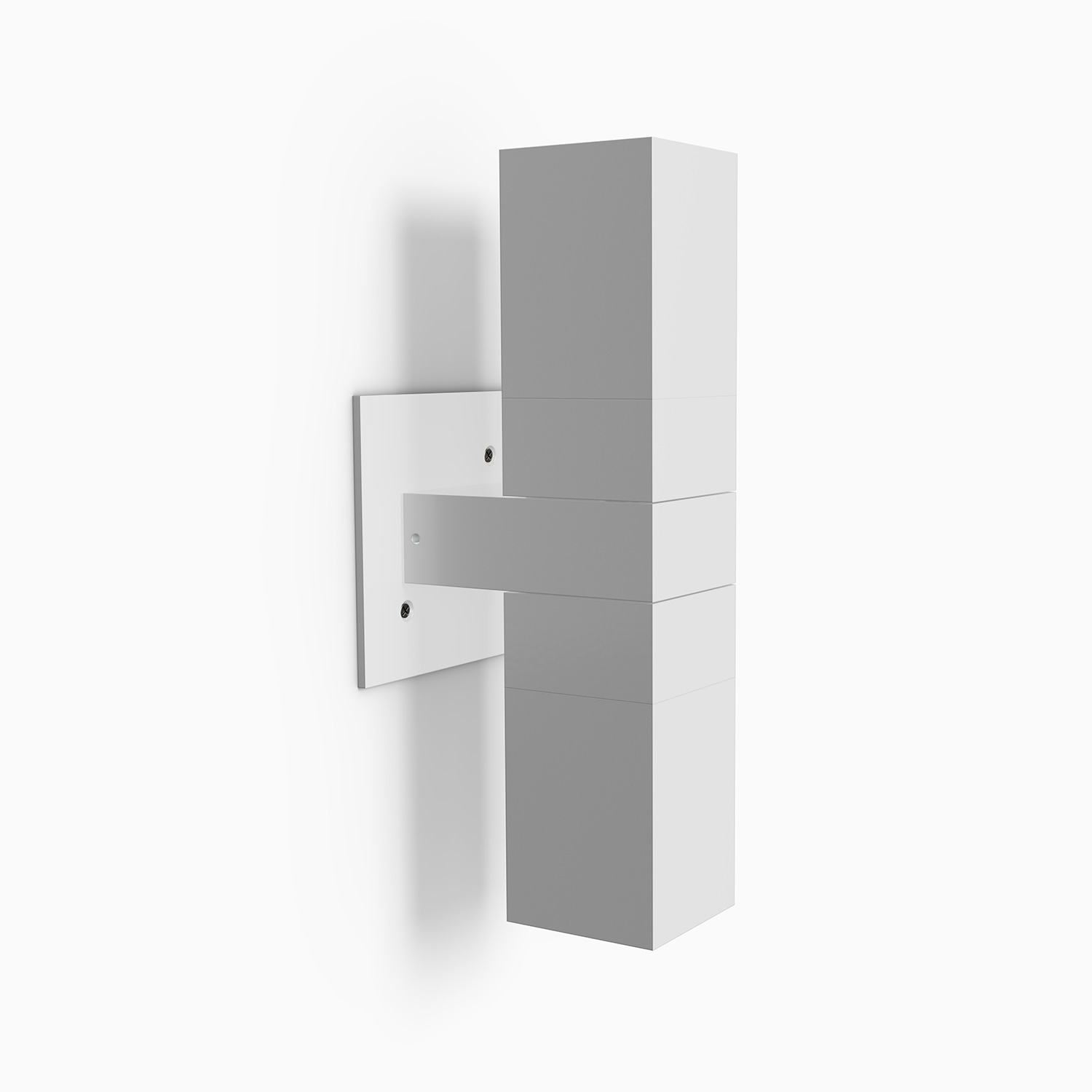

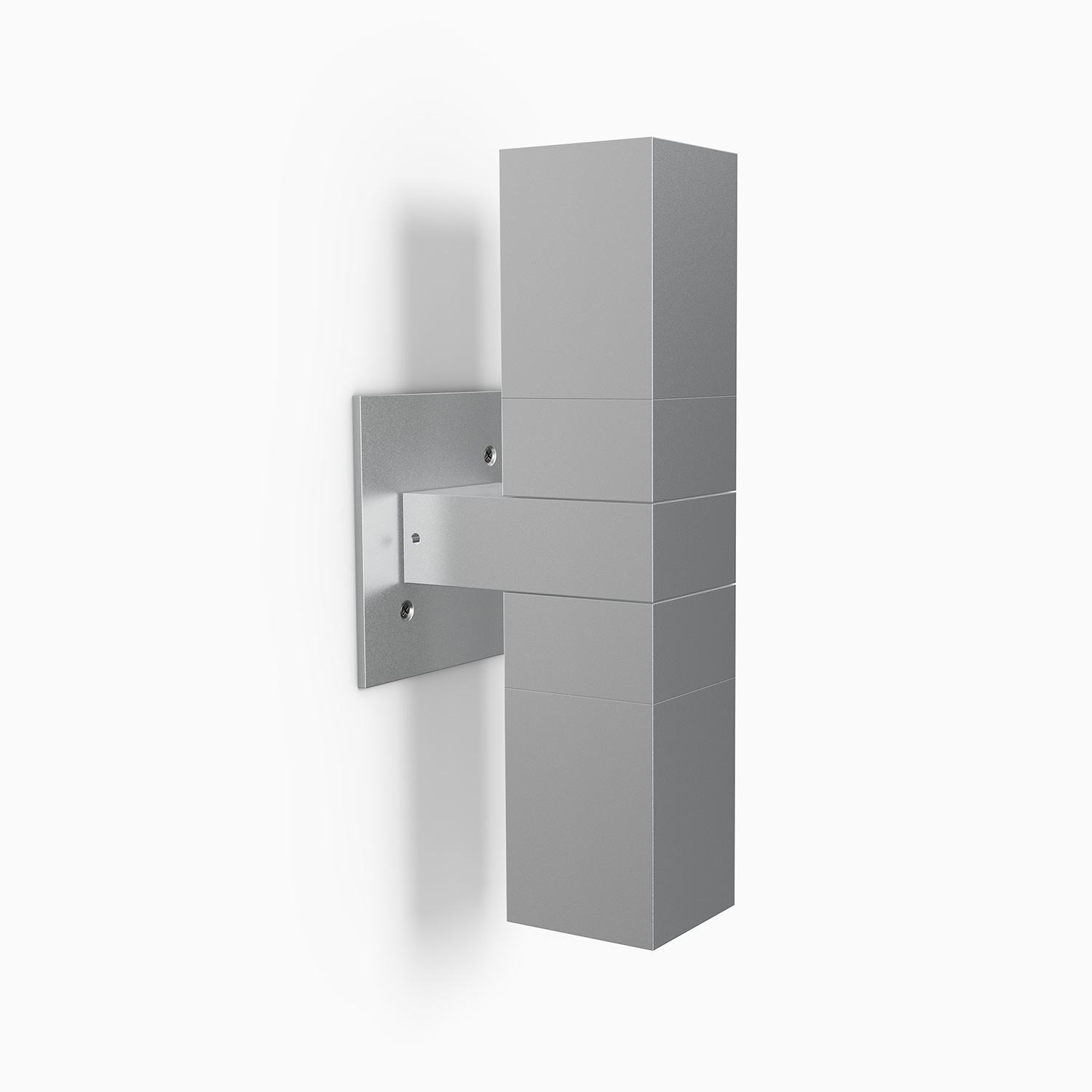

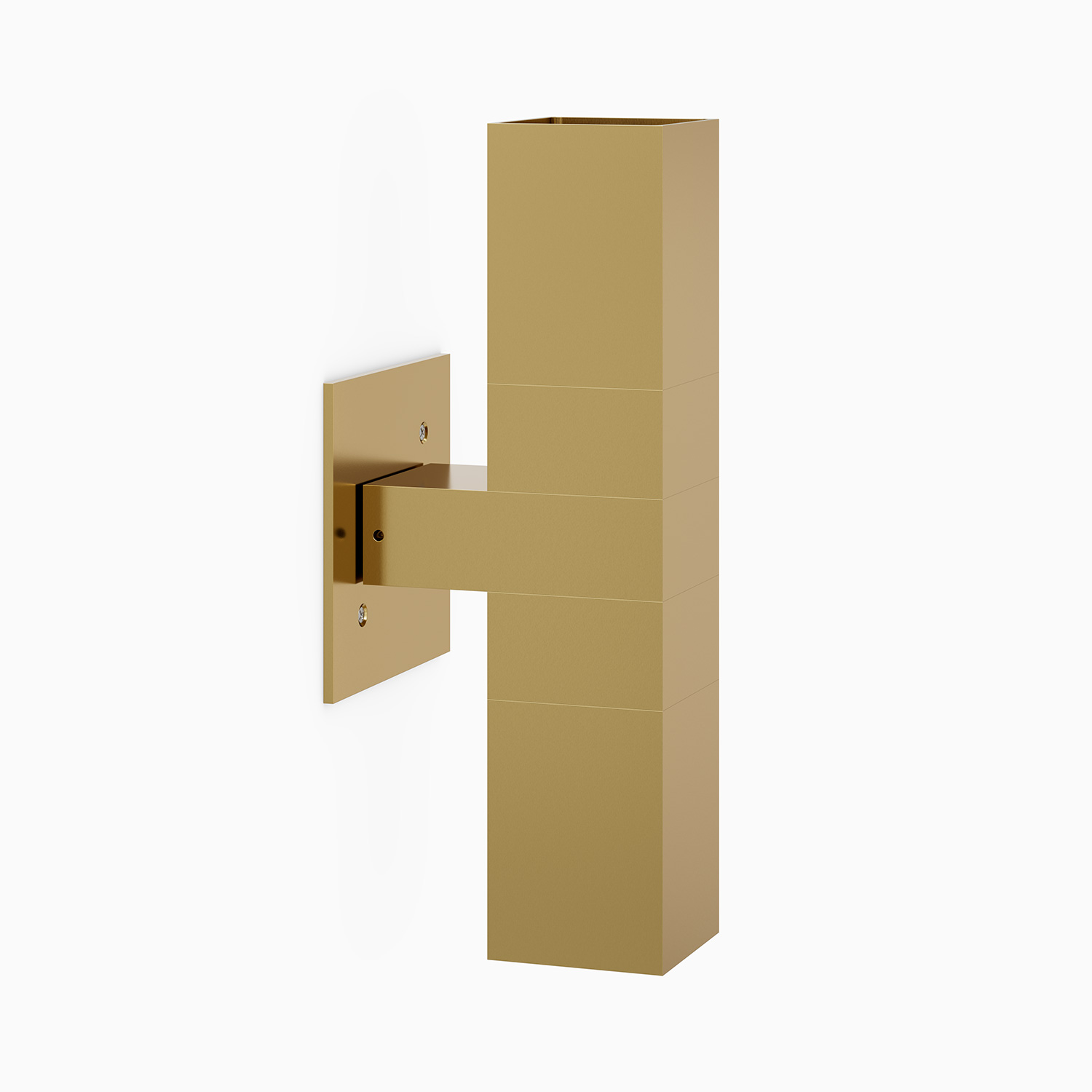

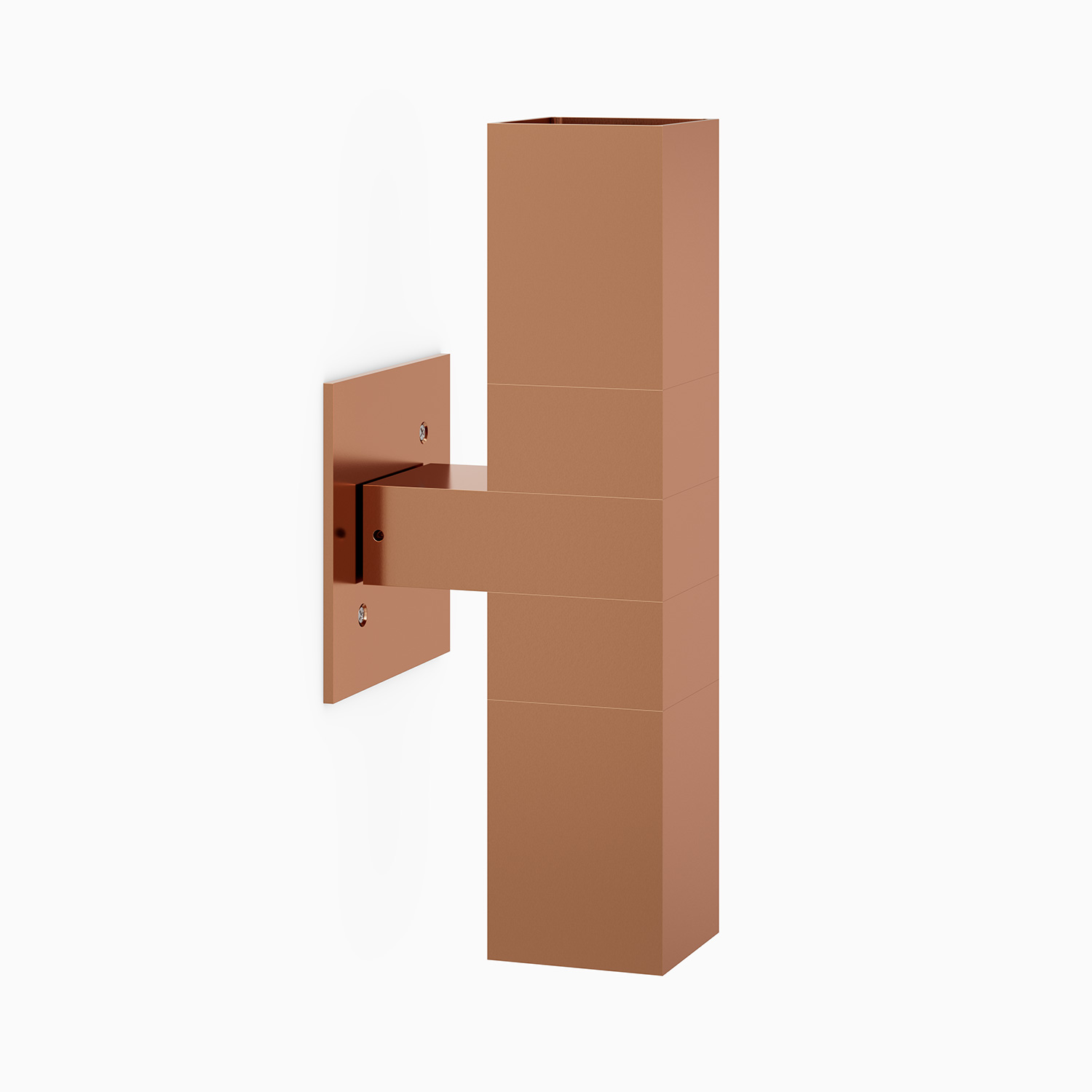

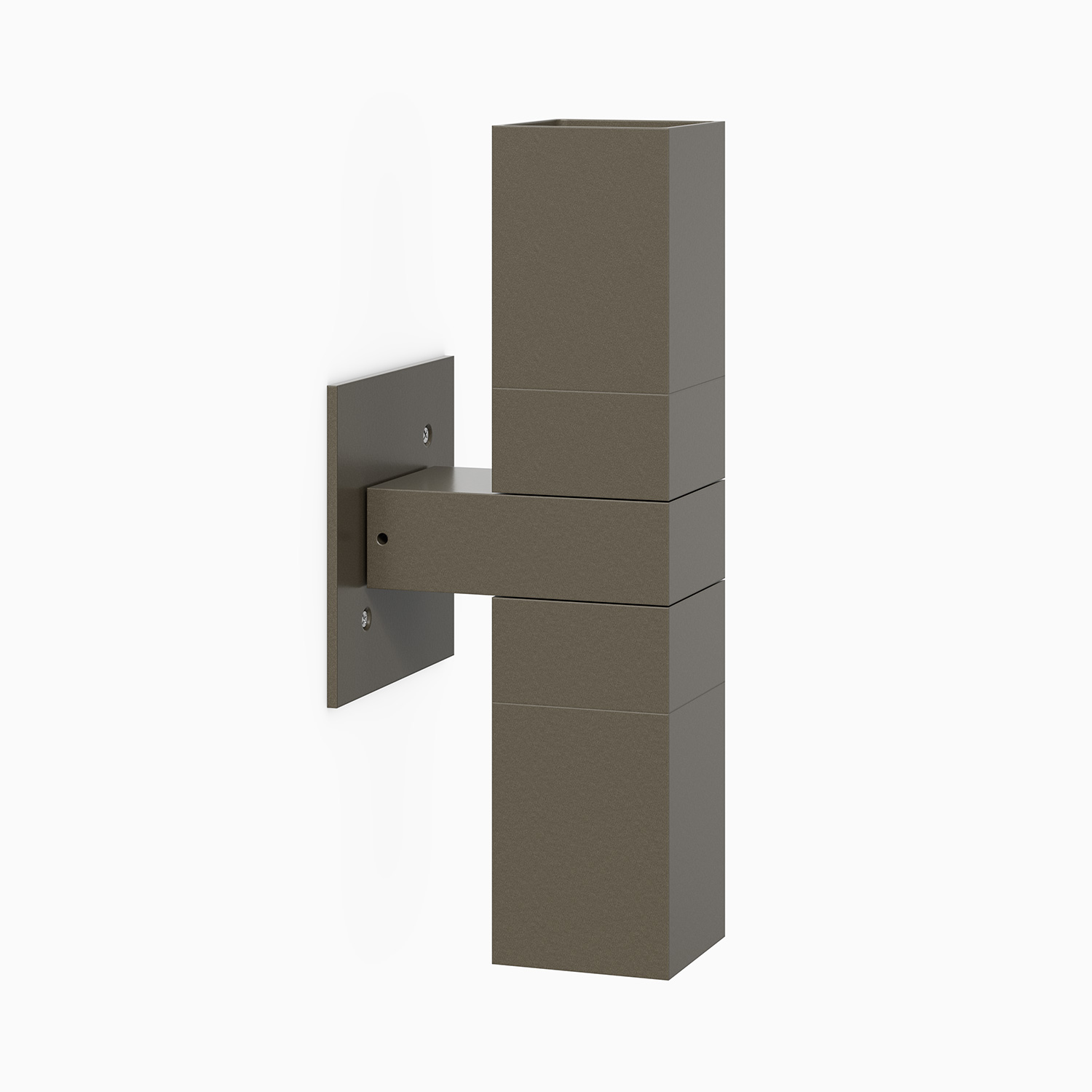

ZX20-WM2-SQ (SOi)
Wall Mount • ZX20-WM2-SQ Series
ZX20-WM2-SQ (SOi)
Wall Mount • ZX20-WM2-SQ Series
FEATURES:
- Up/Down wall sconce with mounting canopy.
- For use with PAR20 Halogen lamp or PAR20 SORAA® LED lamp.
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
- Swivel stem insert allows for precision adjustment during installation.
- Unique weep hole design in hood of the up-light with minimum light leak.
Specifications
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
120V or 230V AC.
Lamp Base/Socket
Standard socket for E26.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
Max. 11W(x2) for SORAA PAR20 lamp.
Optics
Accepts up to 3 accessory pieces (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.
Glare Shield
3 optional glare shields (GSL-SQ long, GSA-SQ angled, GSS-SQ short) for additional glare control. (See page 2 of Spec Sheet for details).
Light Source
PAR20 Halogen lamp(x2) or PAR20 SORAA LED lamp(x2).
Mounting
Utilizes 2x 8-32 UNC machine screws (provided) to attach to a standard octagon recessed back box (provided by others).
Dimming
Phase dimming, with trailing edge dimming preferable.
