ZX30-CAT-SOi
Hanging & Catenary • ZX30-CAT Series
ZX30-CAT-SOi
Hanging & Catenary • ZX30-CAT Series
FEATURES:
- A unique catenary system including fixtures, turnbuckle, suspension cable, power cable for outdoor illumination.
- Integral weatherproof wiring compartment in fixture body.
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
- US patented integral SORAA® heat sink.
Specifications
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
120V or 230V AC.
Optics
Accepts up to 3 accessory pieces (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.
Finish

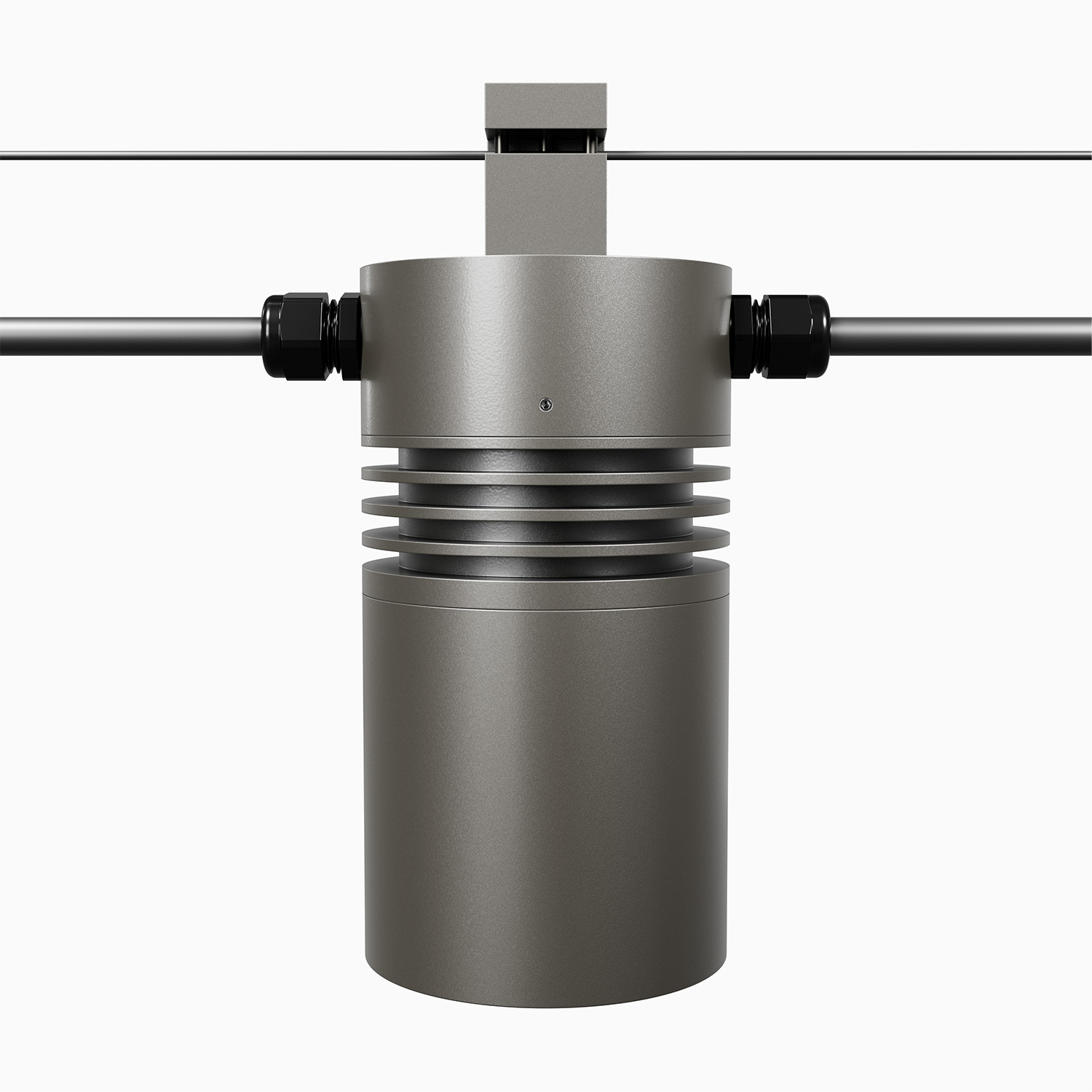

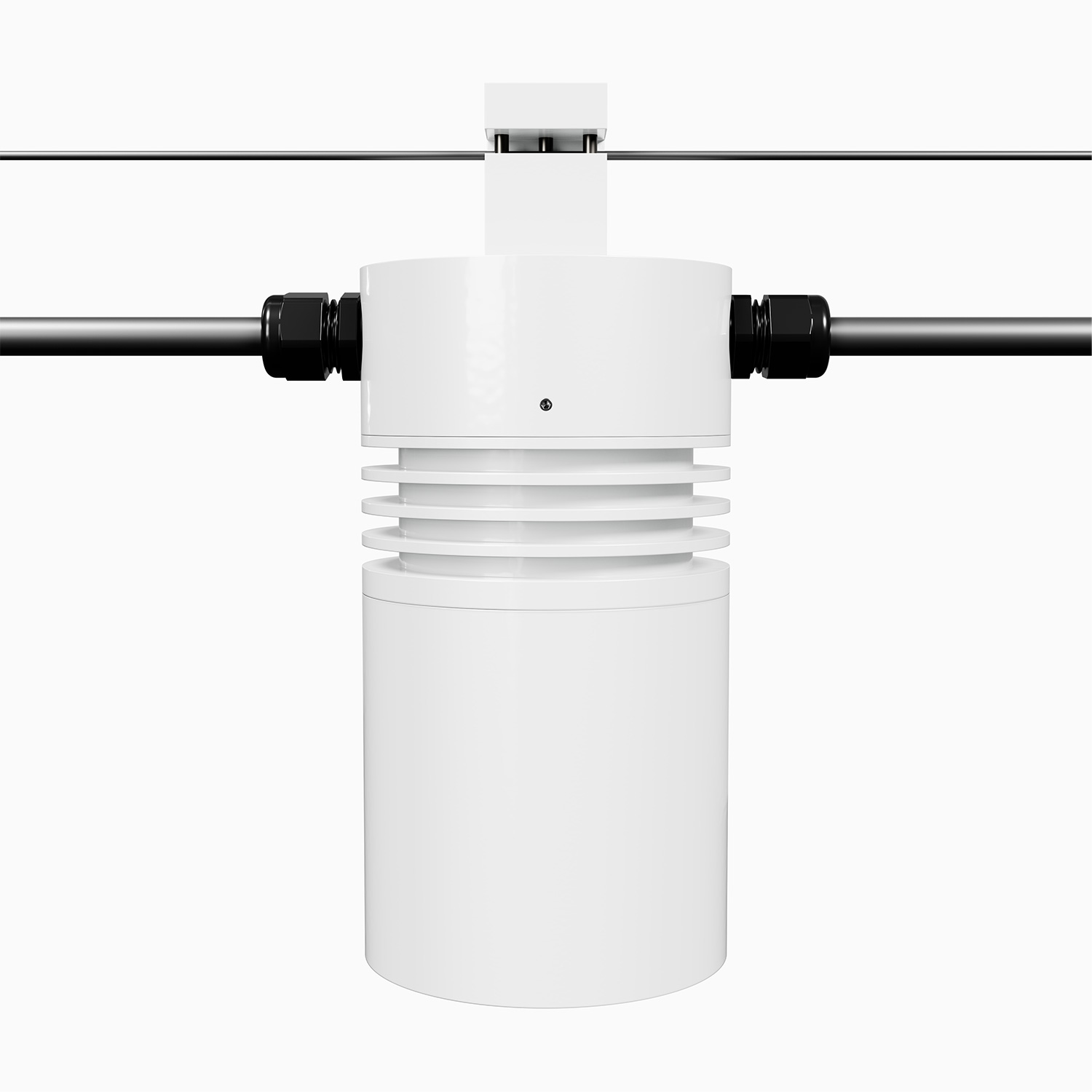

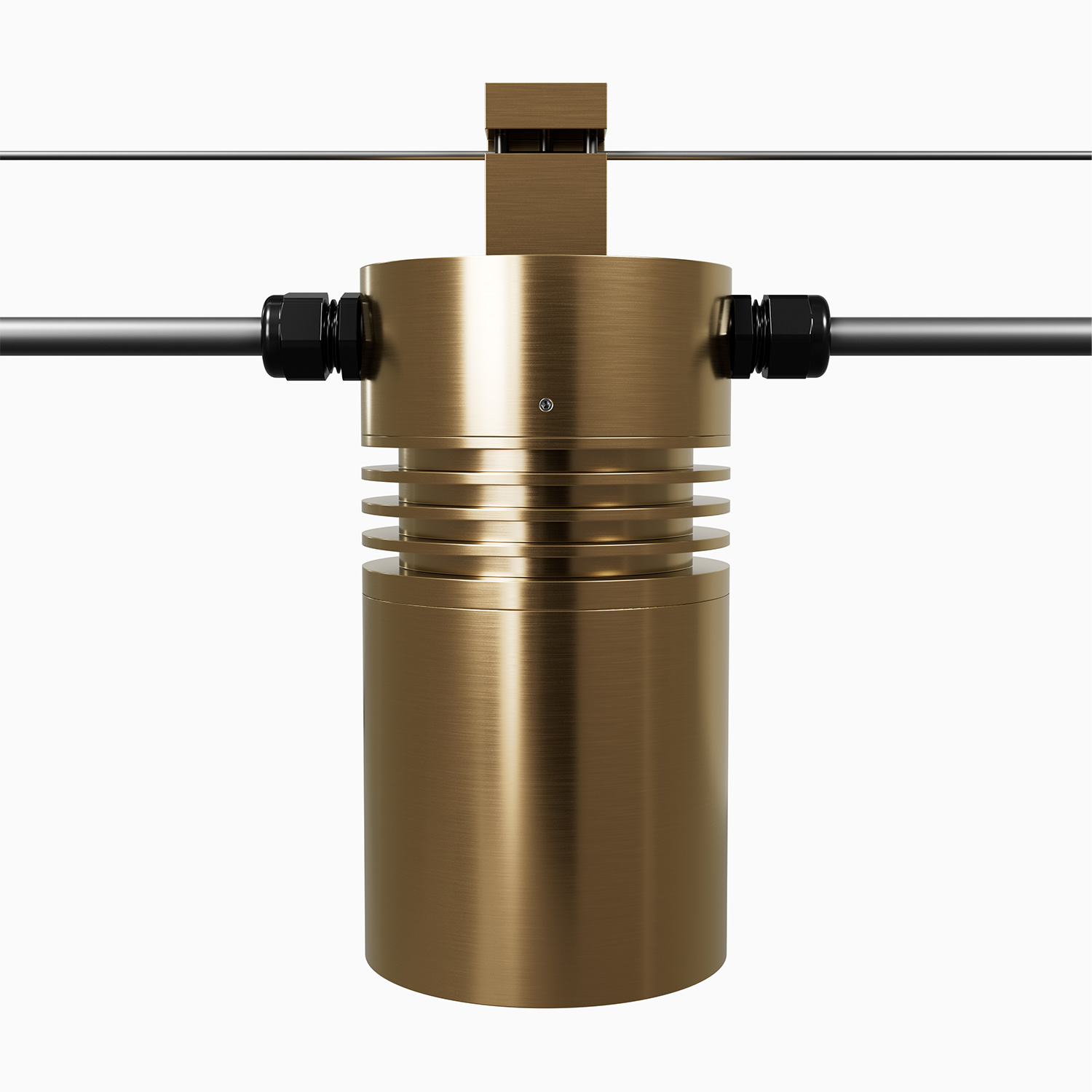

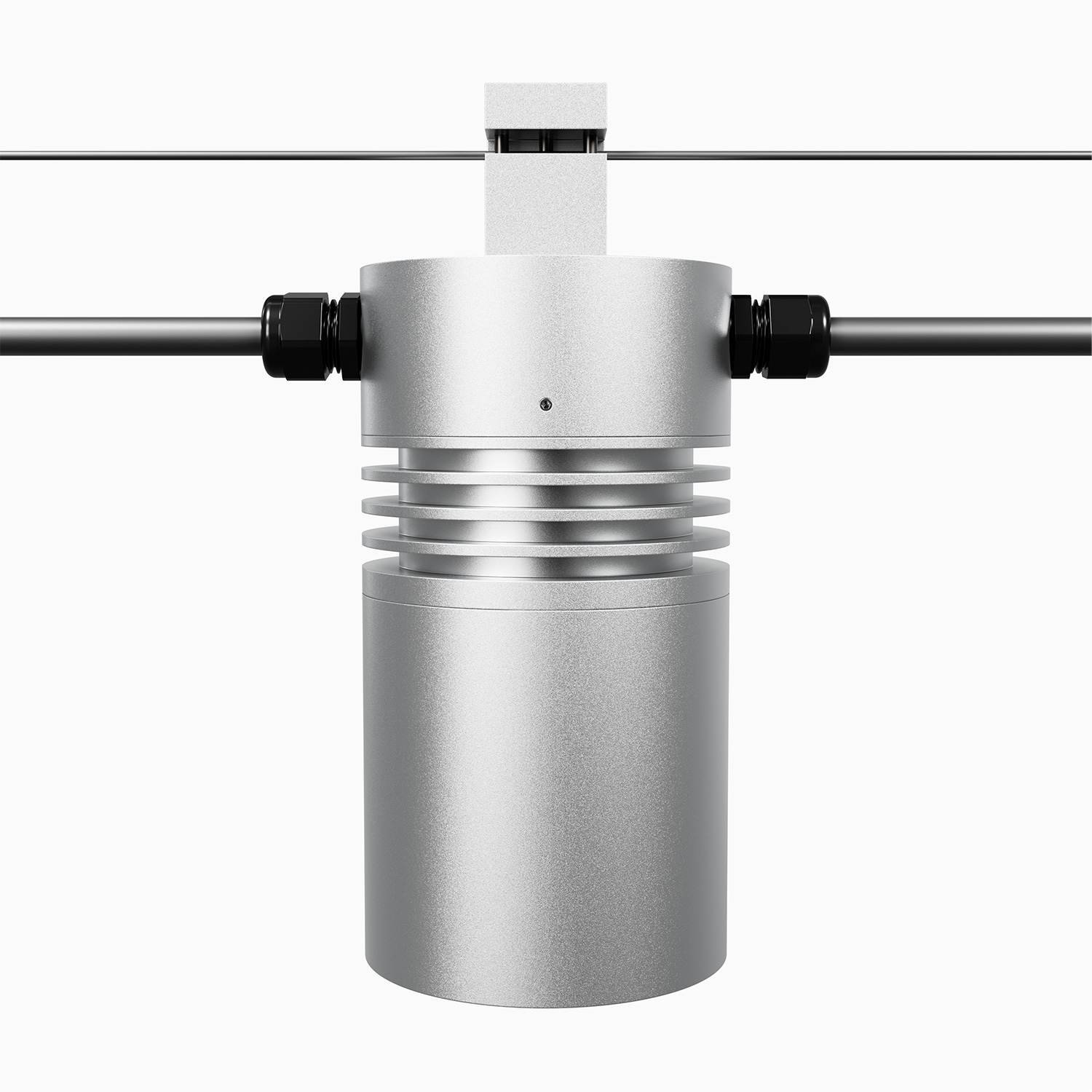

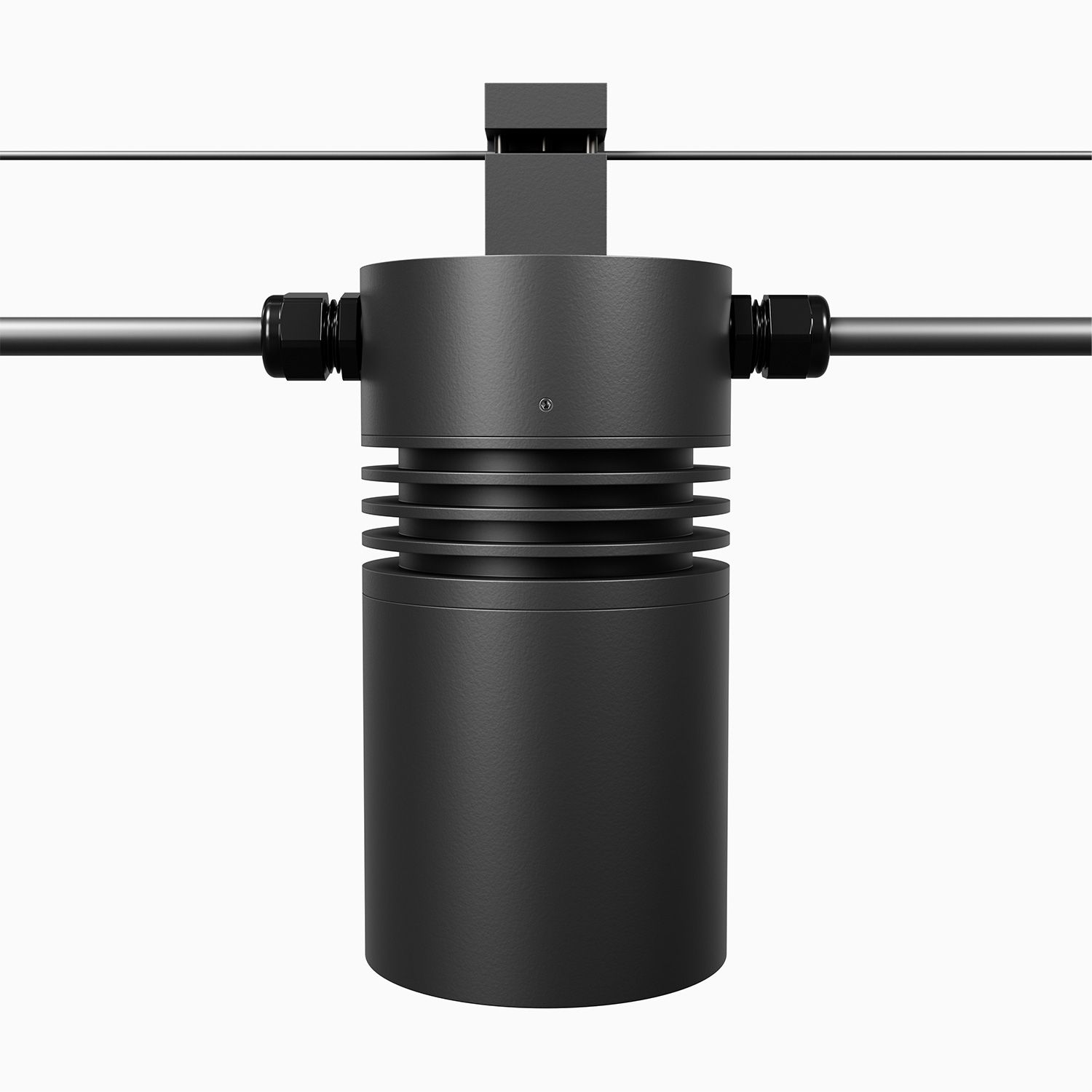

Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Light Engine
PAR30 Halogen lamp or PAR30 SORAA LED lamp.
Mounting
Custom hook mechanism on top of fixture that utilizes set screws to secure fixture(s) on the suspension cable and to lock the position of fixture on the cable.
Glare Shield
3 optional glare shields(GSL-long, GSA-angled, GSS-short) for additional glare control. (See page 2 of Spec Sheet for details).
Dimming
Phase dimming, with trailing edge dimming preferable.
Turn Buckle (Optional)
Allows fine tuning of the tension on the support cable, up to 1.50’’ of adjustment.
Lamp Base/Socket
Standard socket for E26.
Power Cable (Optional)
18/3 SJTW cable, dia 0.31’’ .
Suspension Cable (Optional)
7x7 stainless steel wire rope, maximum diameter is 1/4’’, capacity 1200Ibs.
