Additional information

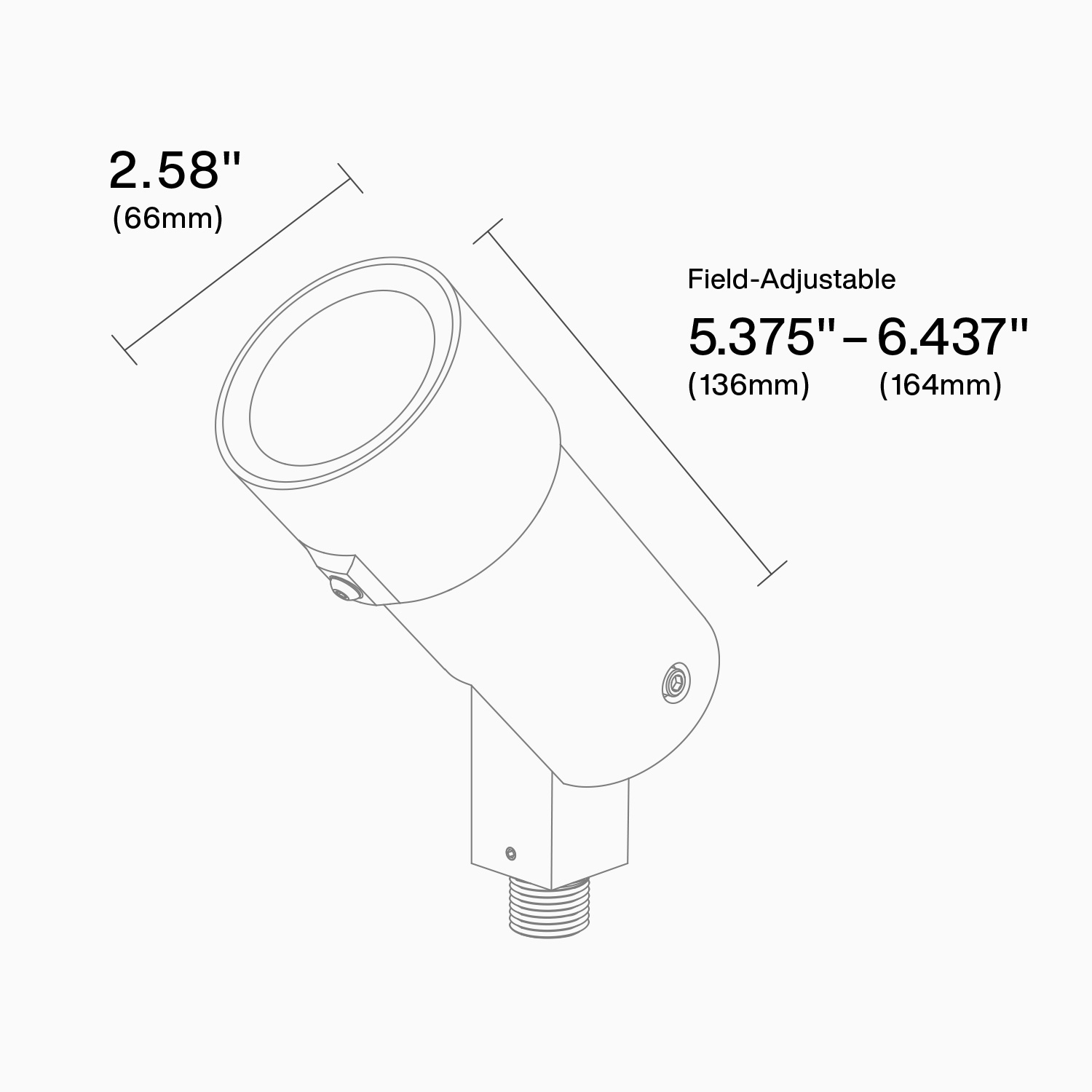

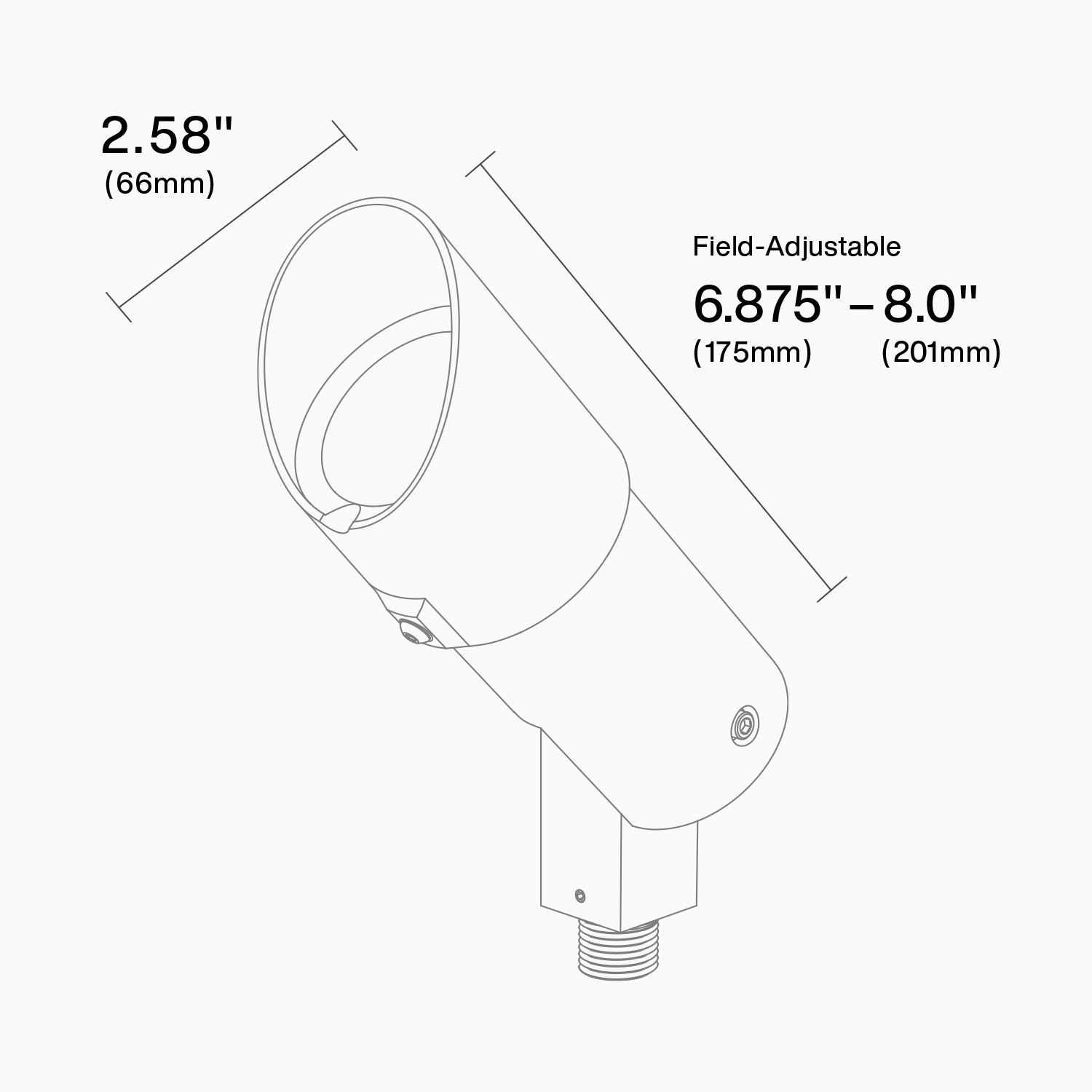

| Dimensions | 2.25 × 6.62 in |
|---|---|
| Light Source | |
| Shape | |
| Lumen Output | |
| Input Voltage | |
| Wattage | |
| ReadyMade |
ZXA16
ACCENT & LANDSCAPE | ZX16 Adapt Series | 2.25"
5 - 10W ( 500 - 950lm ) | 12V | HK LED
5 - 10W ( 500 - 950lm ) | 12V | HK LED
ZXA16
ACCENT & LANDSCAPE | ZX16 Adapt Series | 2.25"
5 - 10W ( 500 - 950lm ) | 12V | HK LED
5 - 10W ( 500 - 950lm ) | 12V | HK LED

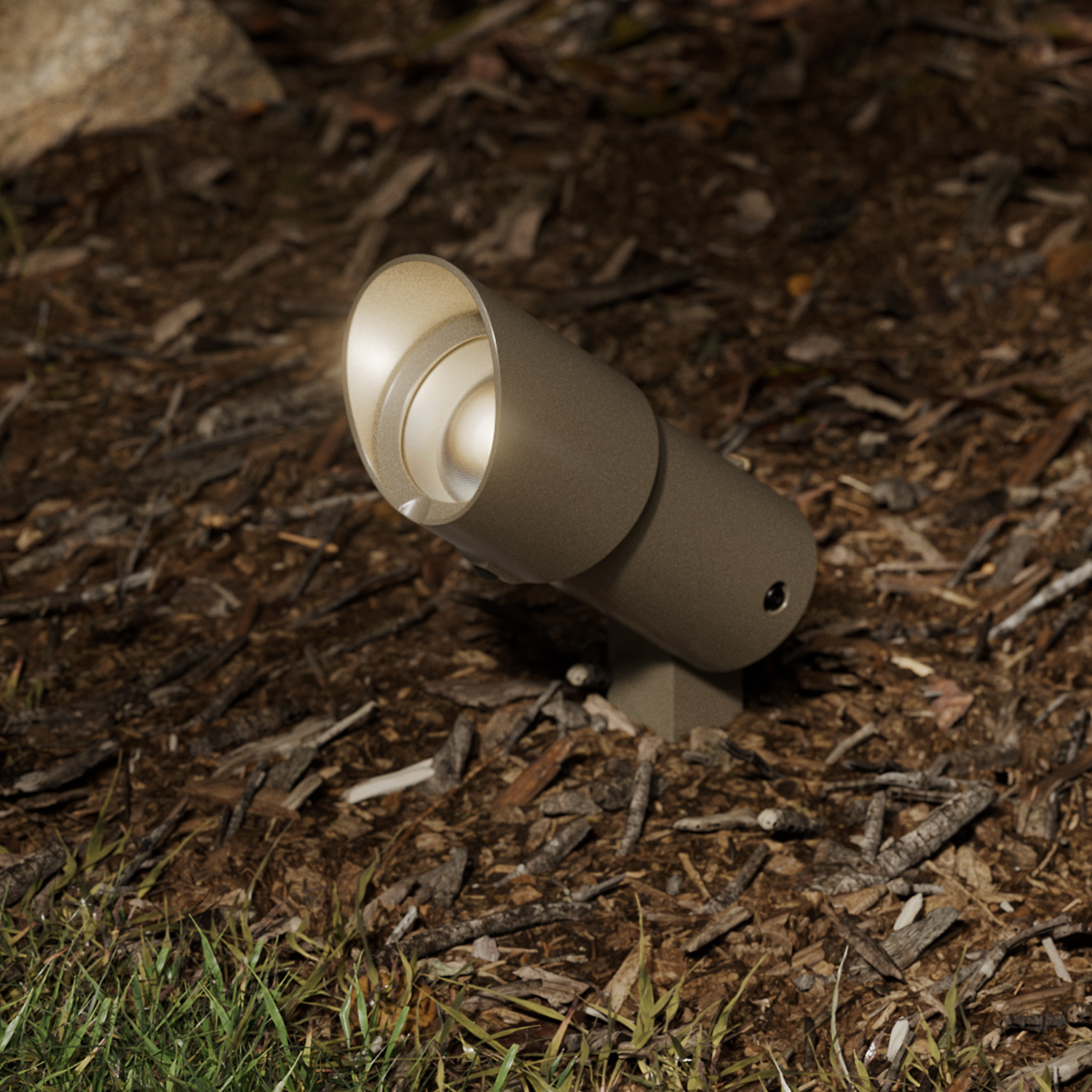

Our newest and most versatile directional low voltage (12V) LED Accent Light, features the Adapt Optic for precise light aiming in architectural outdoor and landscape lighting environments.
FEATURES:
- Adapt Optic enables easy beam angle adjustment from 14º to 70º with a quick hood slide, locking securely in place with a set screw for precise and reliable positioning.
- 5W, 7W, 10W integrated HK LED delivers 500, 775, and 950 lumens. 2700-4000K CCT.
- Wet Location Listed, IP67 Standard.
- Machined and anodized aircraft grade aluminum (6061-T6). Powder coated to create a highly durable, marine and natatorium grade finish. Also available in solid brass or stainless steel.
- 240º vertical and 360º horizontal adjustment via locking swivel stem design.
- Two weeping hood styles available, integrated Angled Glare Shield or Flush Lens. With less than 1% field light, the Adapt Optic provides superior glare control in both hood options.
- Every fixture tested end of line for water tightness and light quality.
- Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Specifications
Materials
Machined from solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304 or 316 stainless steel or 360 brass upon request.
Voltage
12V AC/DC. Requires remote step down transformer.
Optics

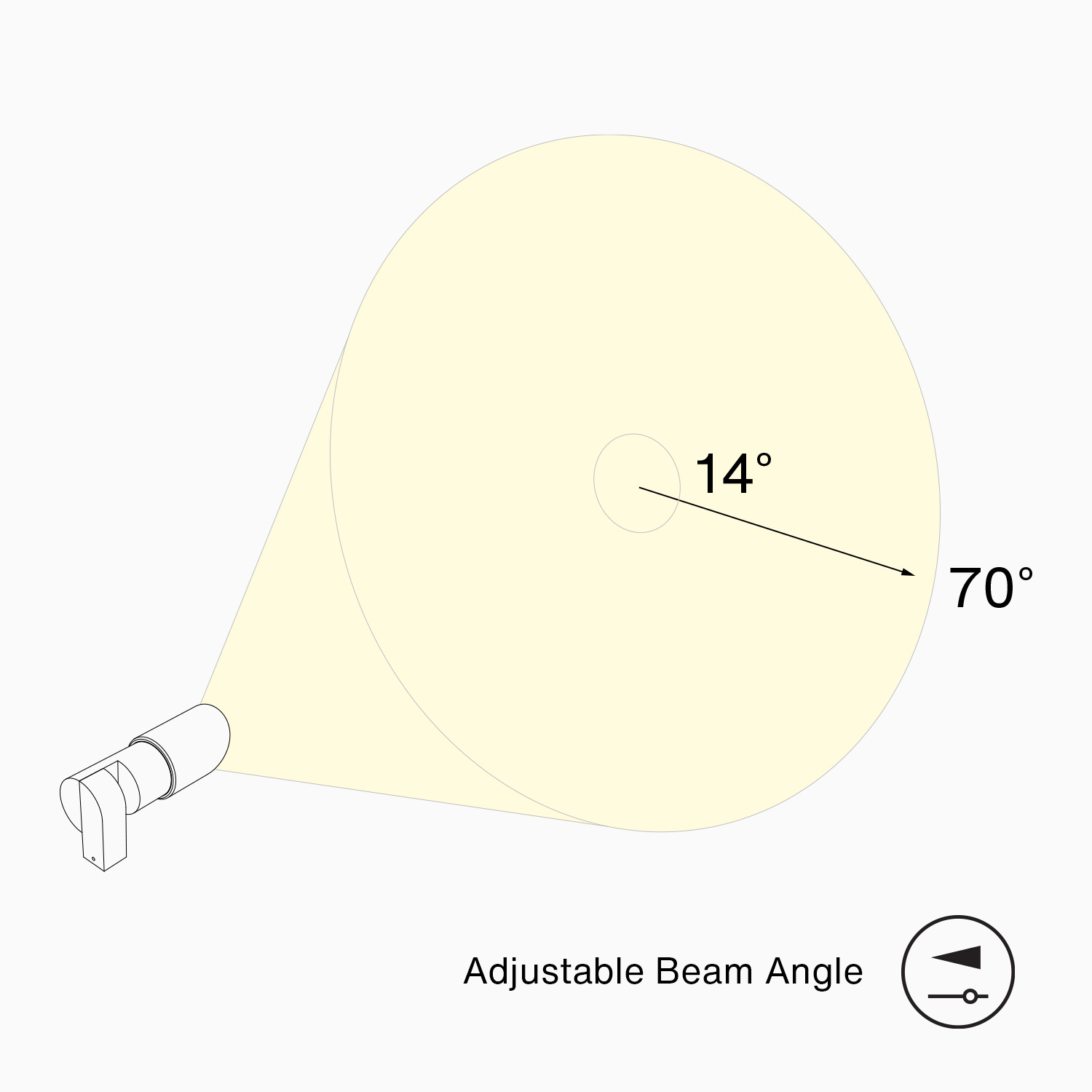

The Adapt Optic allows precise beam angle adjustment from a very narrow 14º spotlight to an extra wide 70º flood, locking securely with the hood screw. It maintains less than 1% field light levels, minimizing glare even with the sleek Flush Lens Hood.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine and natatorium grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
5, 7 or 10W HK LED.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting mounting accessories. (See page 4 of Spec Sheet for details).
Hood Styles

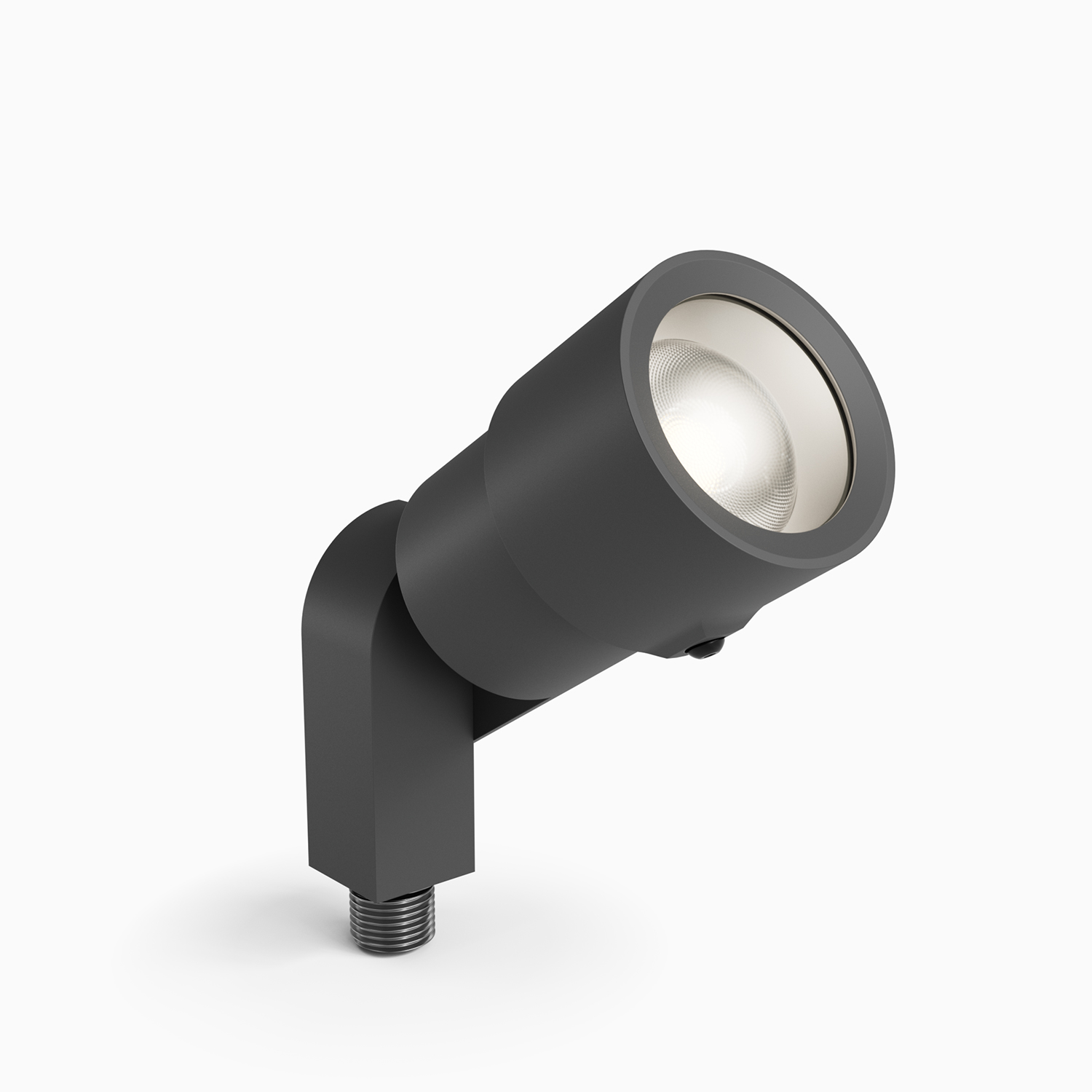

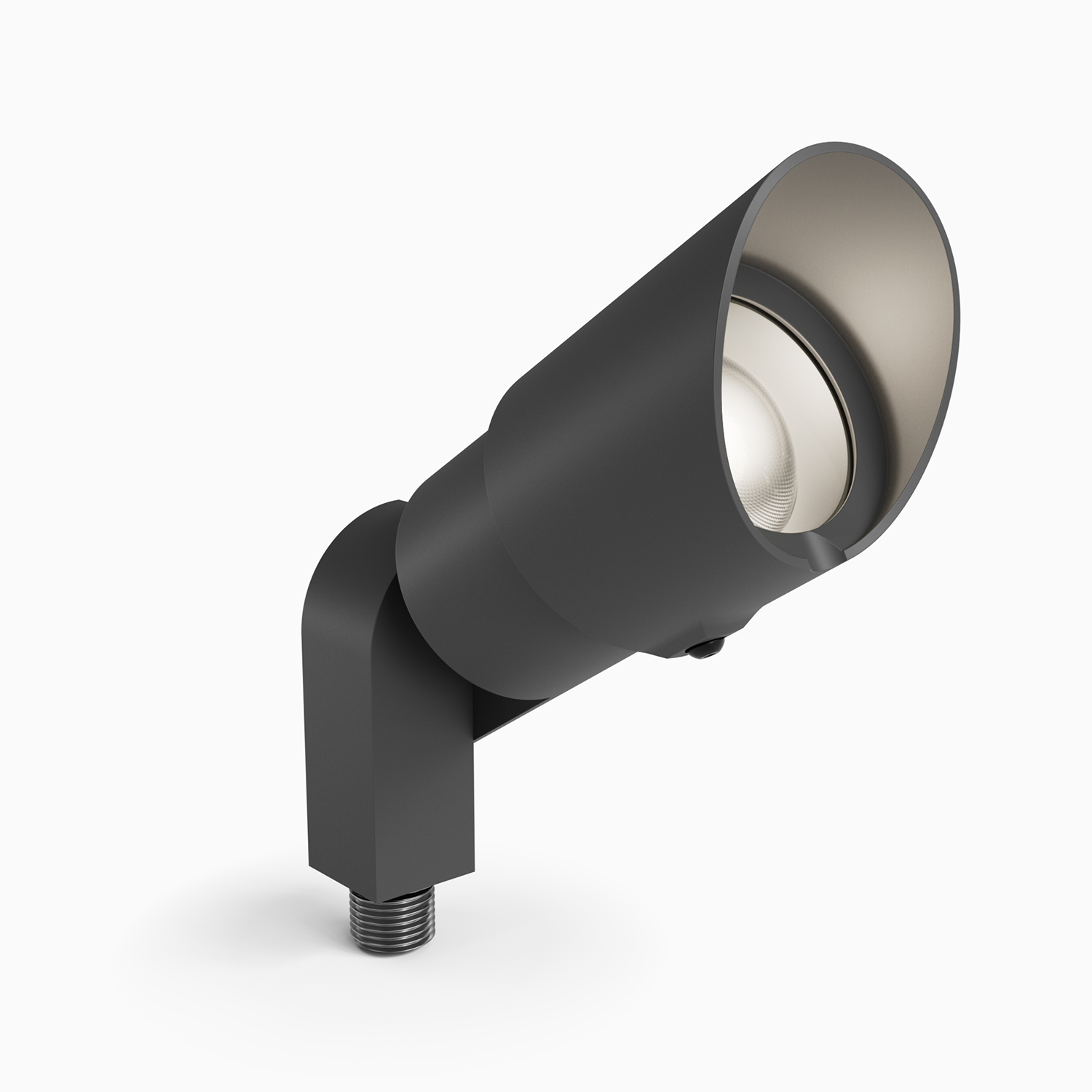

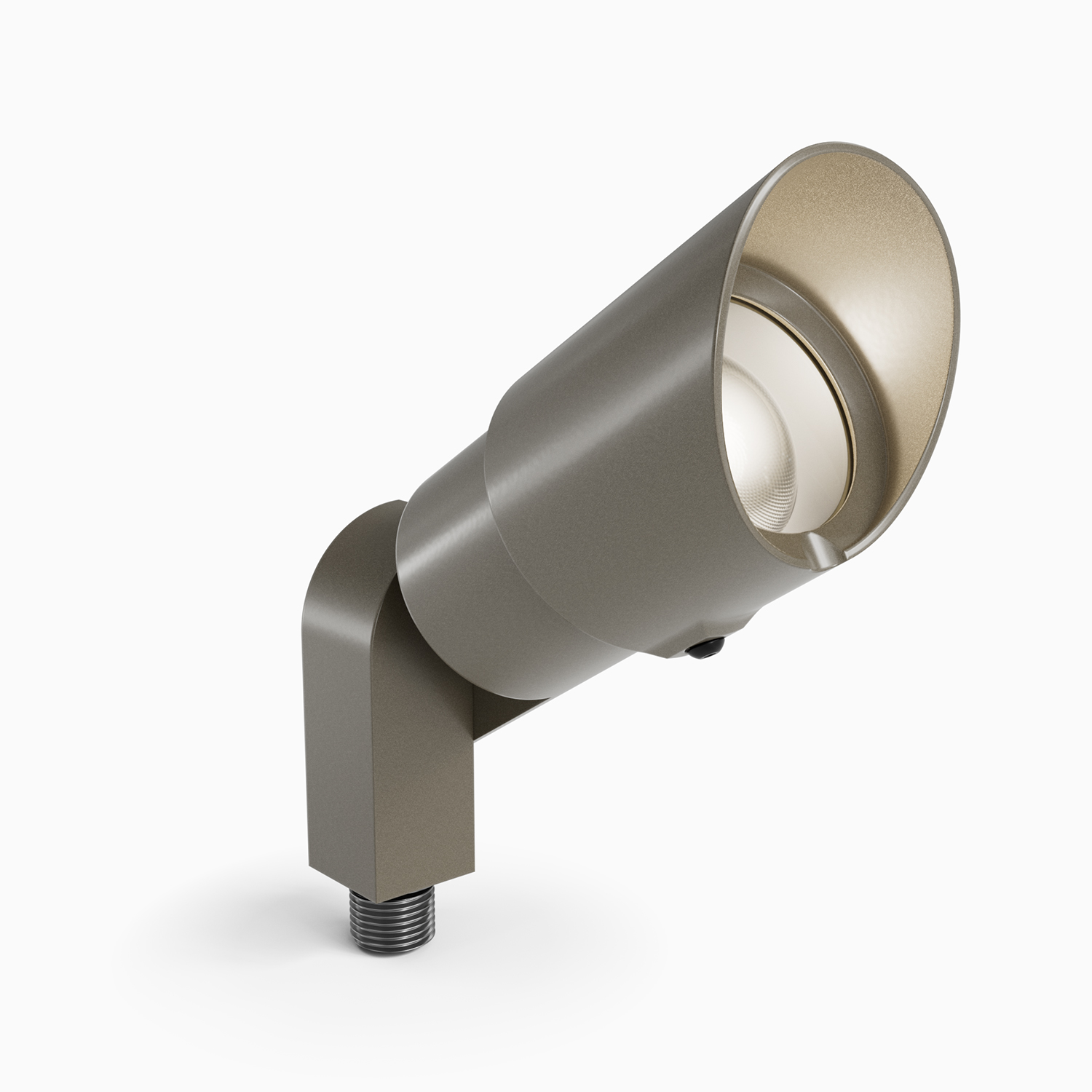

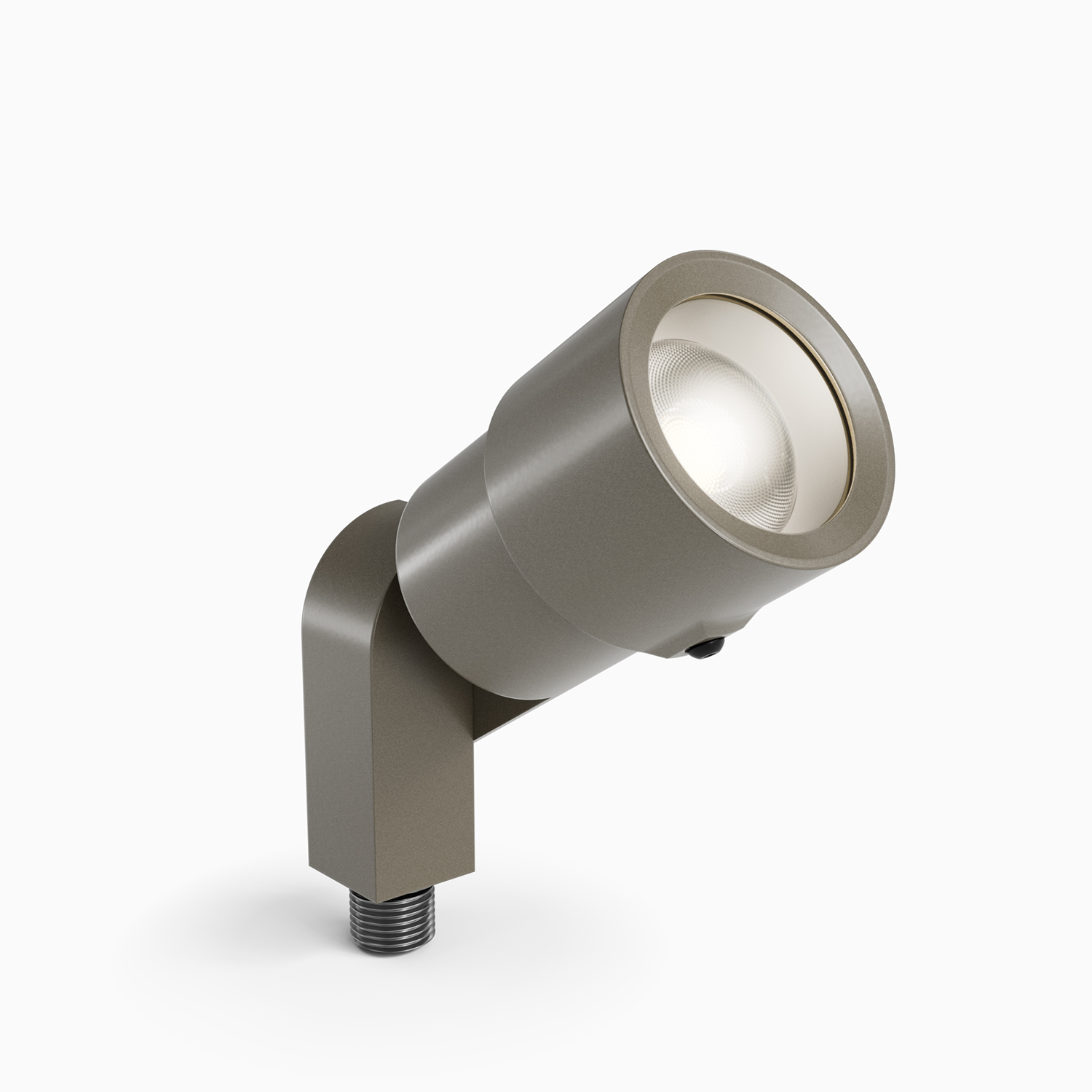

Two weeping hood styles available. The G Style includes an integrated Angled Glare Shield, while the F Style has a Flush Lens, without a glare shield. Both options provide exceptional glare control. (See page 4 of Spec Sheet for details).
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K.
Listings
UL Listed for Wet Location (UL1838), IP67 Standard. RoHS Compliant.
Dimming
MLV or ELV Phase Control dimming.
