ZXG-RH(SOi)
STEP & IN-GRADE | ZXG-RH Series | 4.00" dia.
7.5, 9W ( 390 - 590lm ) | 12V | SORAA LED

ZXG-RH(SOi)

STEP & IN-GRADE | ZXG-RH Series | 4.00" dia.
7.5, 9W ( 390 - 590lm ) | 12V | SORAA LED

FEATURES:

  • Stainless steel in-grade fixture with superior corrosion resistance.
  • ETL outdoor wet location listed. IP67 standard.

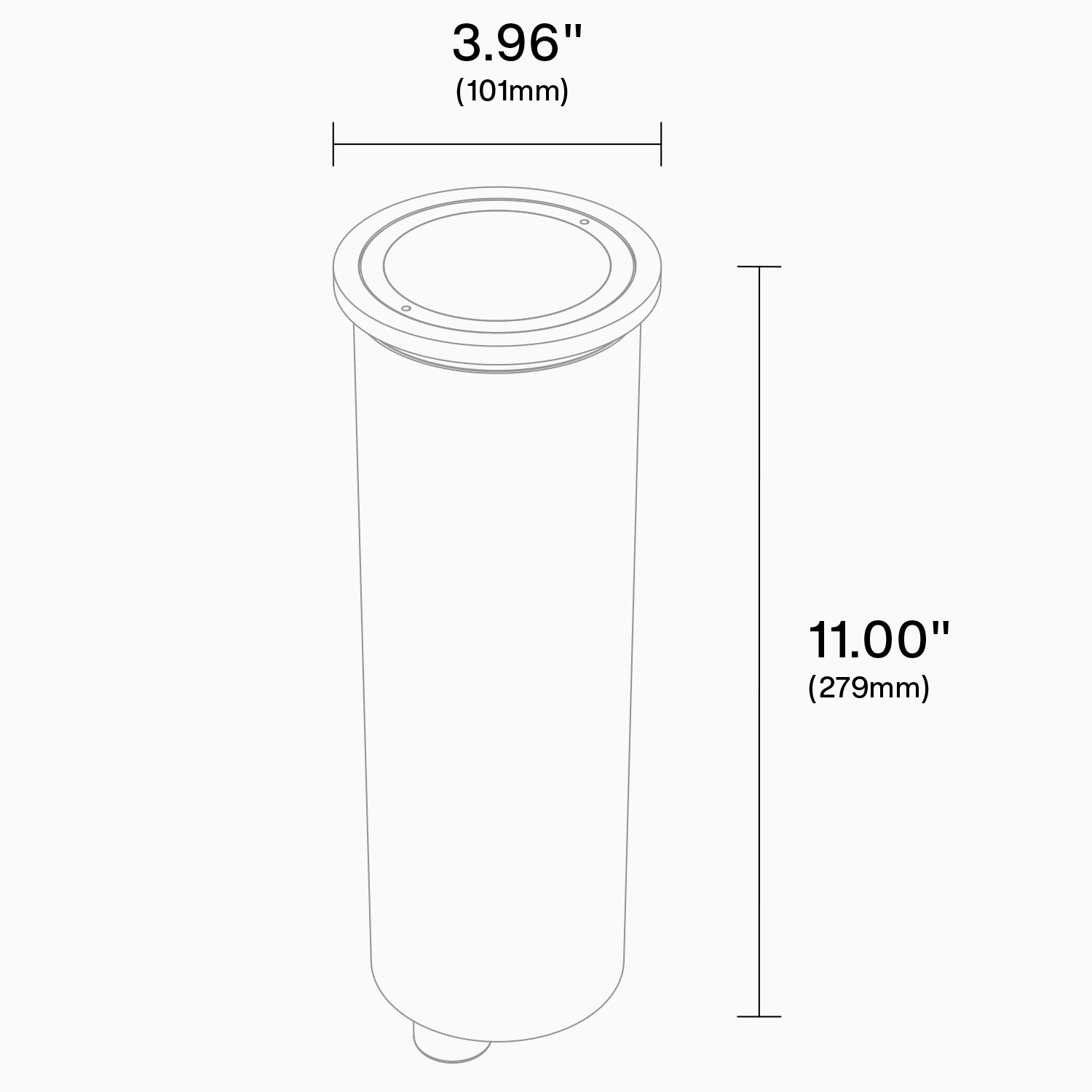

  • Compact size with 4″ diameter profile.
  • Built-in optic accessory holder.
  • US patented integral SORAA heat sink.
Specifications

Materials

Outer housing: Stainless steel. Lamp holder and Aiming Assembly: Machined from billet 6061-T6 corrosion resistant aluminum. Hardware: 304 stainless steel hardware.

Voltage

12V AC/DC. Requires remote step down transformer.

Optics

Standard is with hexcel louver. Accepts up to 3 additional accessory pieces (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.

Finish

Natural Stainless Steel.

Wattage

Max. 9W for SORAA MR16 lamp with Thermobuster. Max. 20W for halogen MR16 without Thermobuster.

Lamp Base/Socket

Standard bi-pin socket for GU5.3/G4/GX5.3/GY6.35/GZ4.

Light Engine

MR16 Halogen lamp or MR16 SORAA LED lamp. Please refer to SORAA MR16 GU5-3 for lamp selection.

Dimming

MLV. Please refer to SORAA website for SORAA MR16 dimmer compatibility.

Additional information

Light Source

,

Shape

Lumen Output

Input Voltage

Wattage

,

Compatible Accessories

LVR

Hexcel Louver

OSL

Overall Spread Lens

LSL

Linear Spread Lens

SOL

Solite Lens

DCF

Dichroic Filter
Transformers
Transformers
Transformers
Transformers
Transformers
Transformers

IGT

Transformers
Transformers
