Additional information

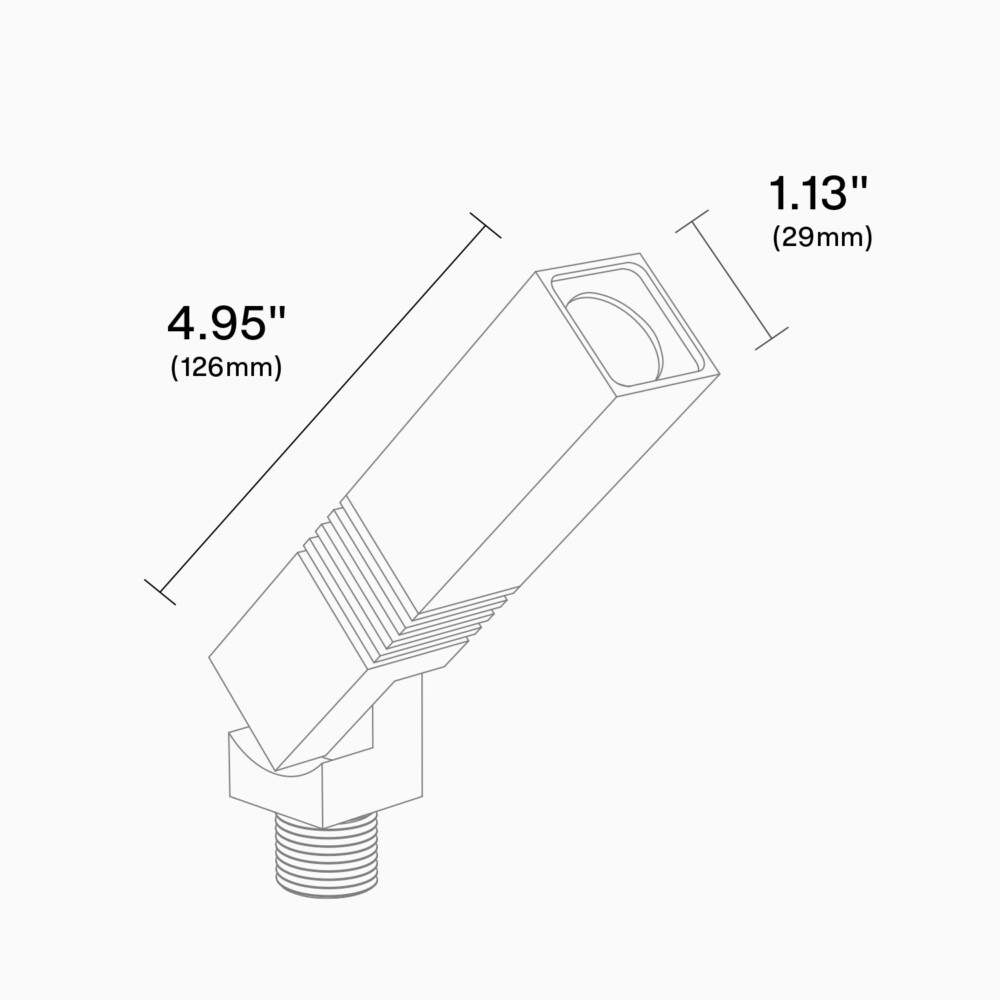

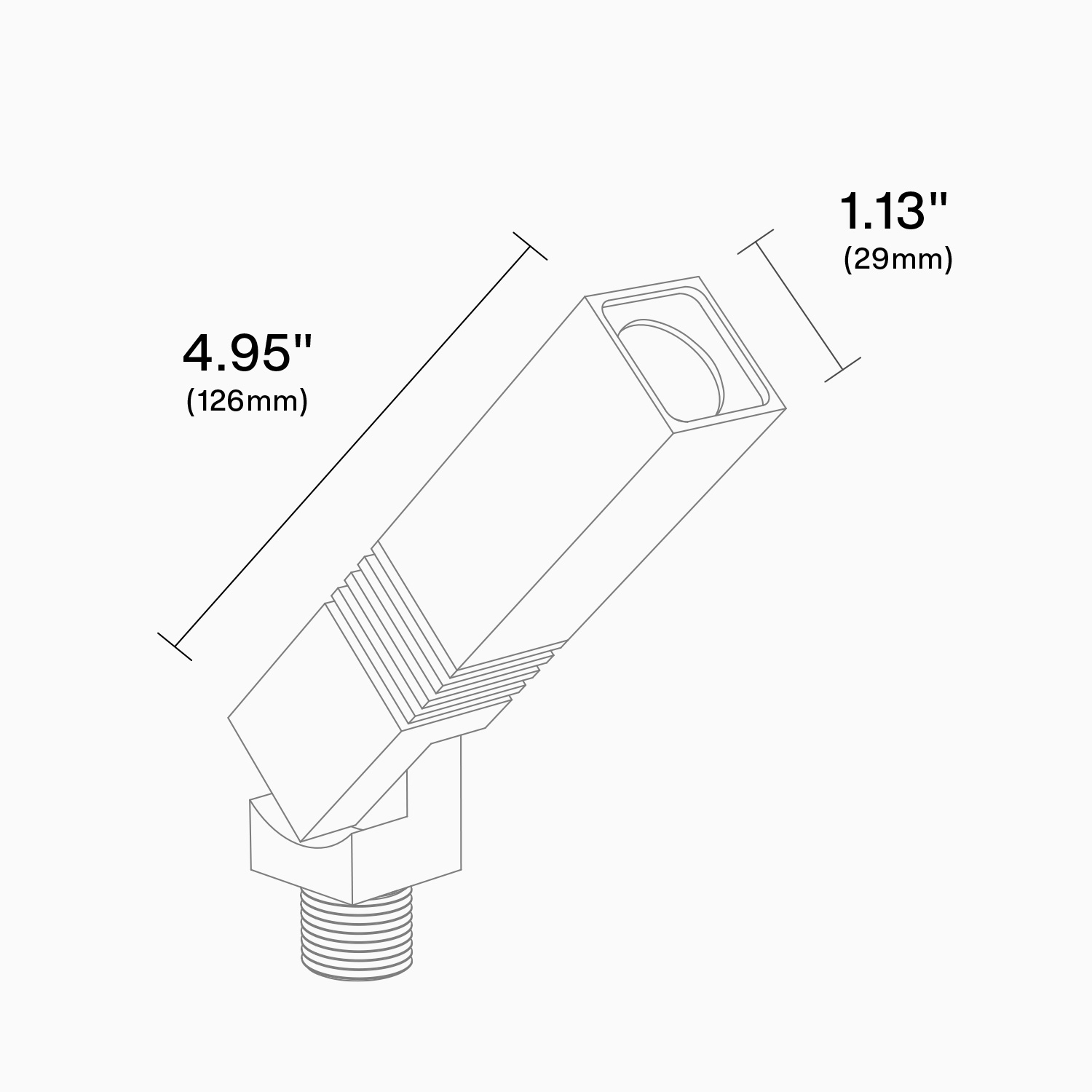

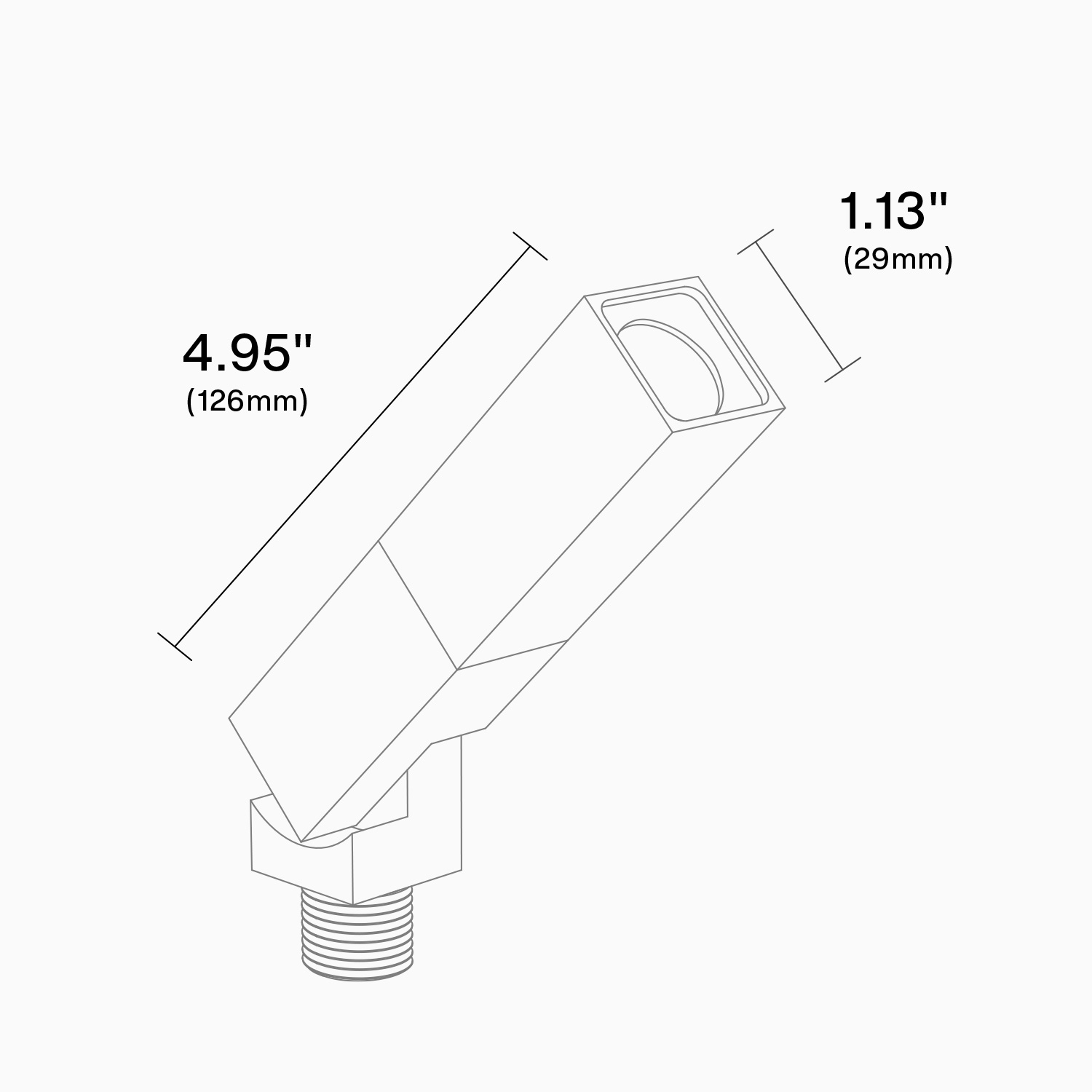

| Dimensions | 1.13 × 4.95 in |
|---|---|
| Light Source | |
| Shape | |
| Lumen Output | |
| Input Voltage | |
| Wattage |

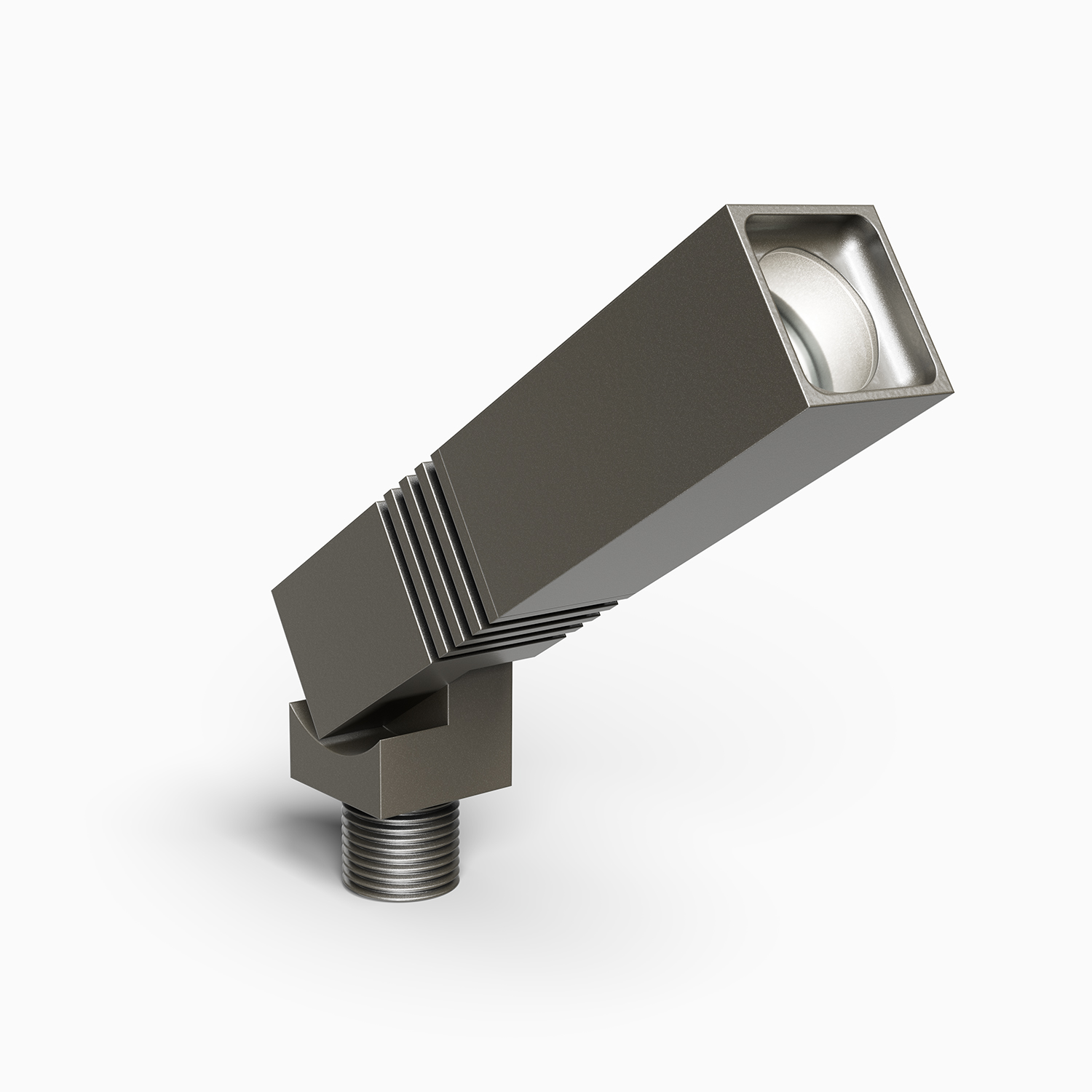

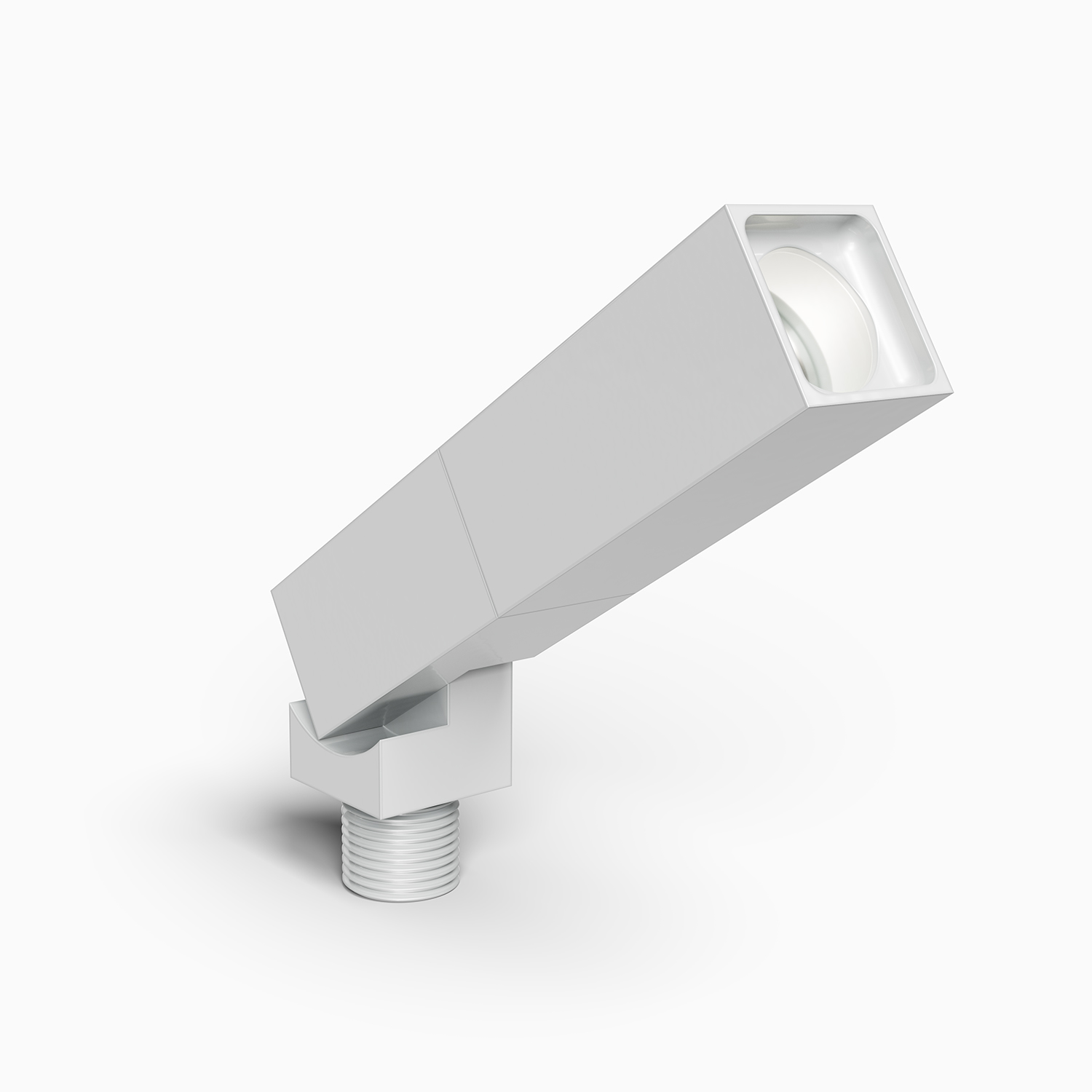

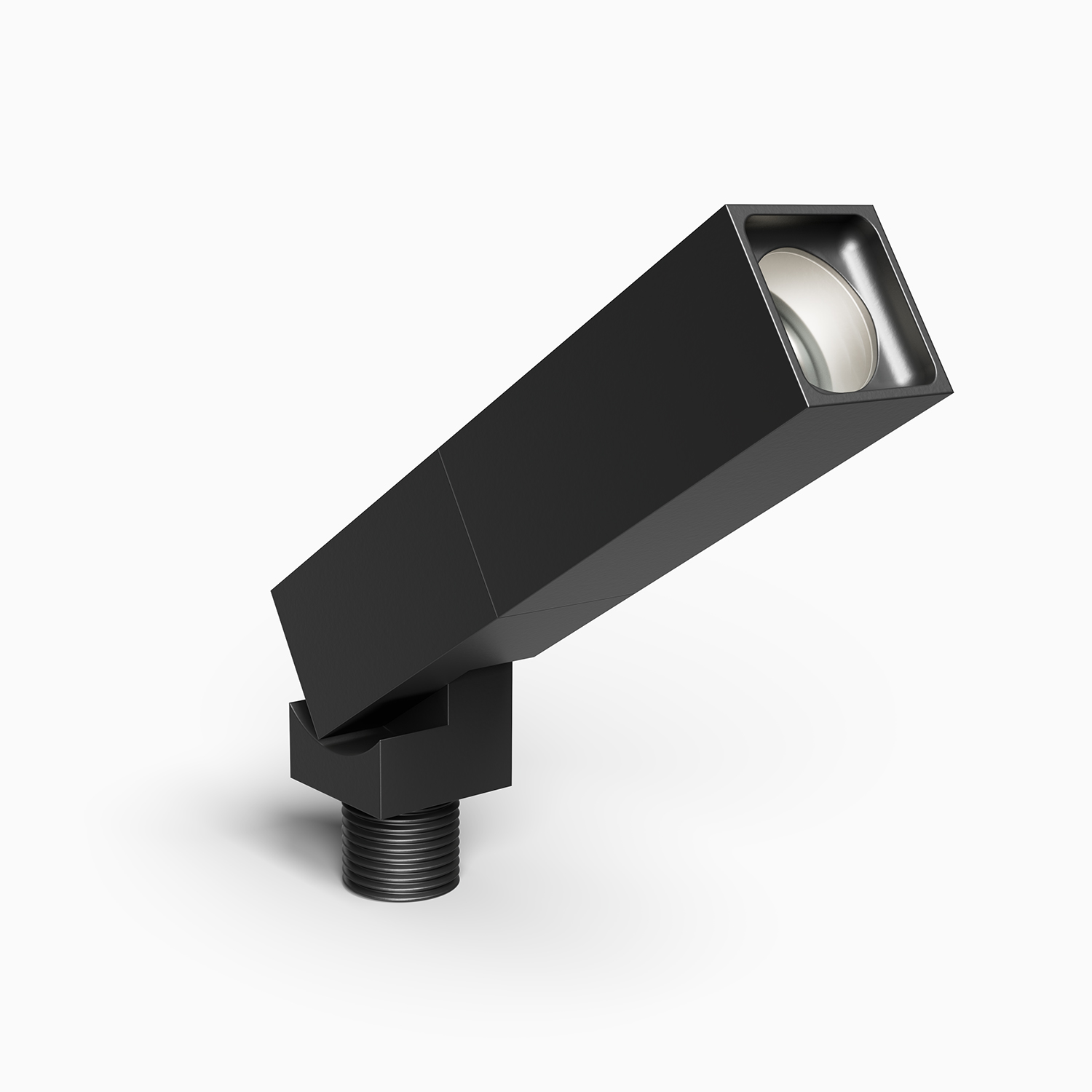

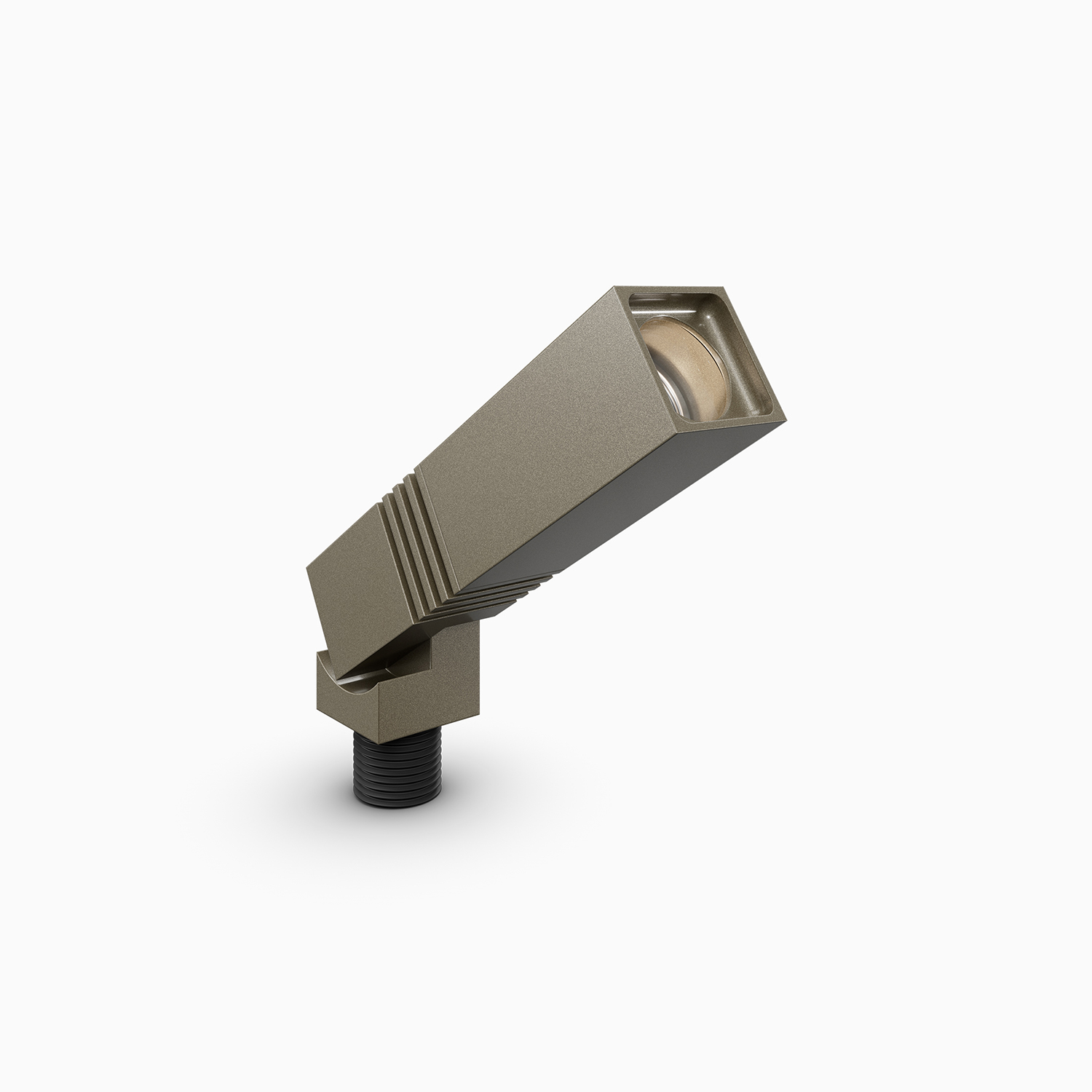

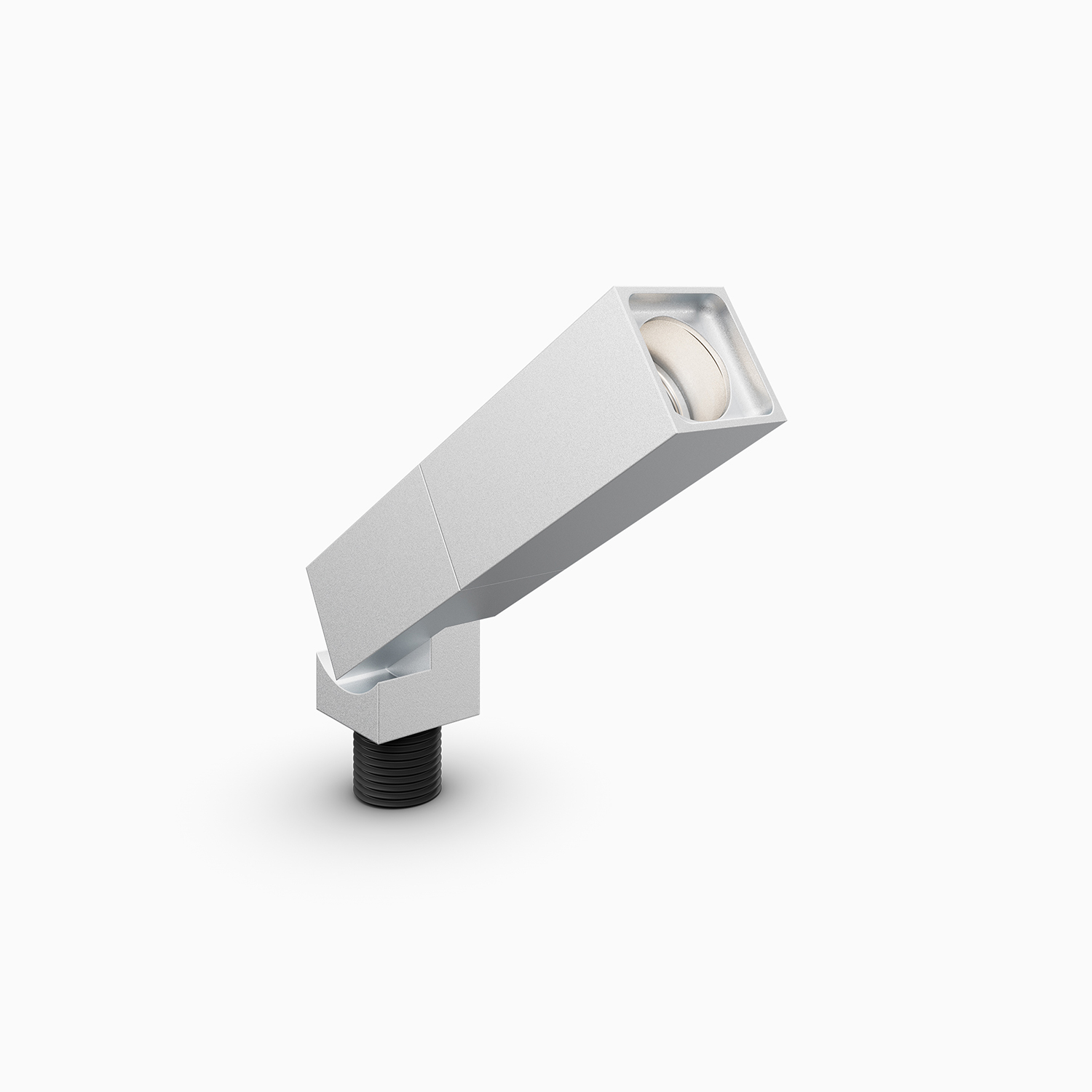

ZXL08 Square
ACCENT & LANDSCAPE | ZX08 Series | 1.13"
3W ( 200lm ) | 12V | HK LED, Amber
3W ( 200lm ) | 12V | HK LED, Amber
ZXL08 Square
ACCENT & LANDSCAPE | ZX08 Series | 1.13"
3W ( 200lm ) | 12V | HK LED, Amber
3W ( 200lm ) | 12V | HK LED, Amber

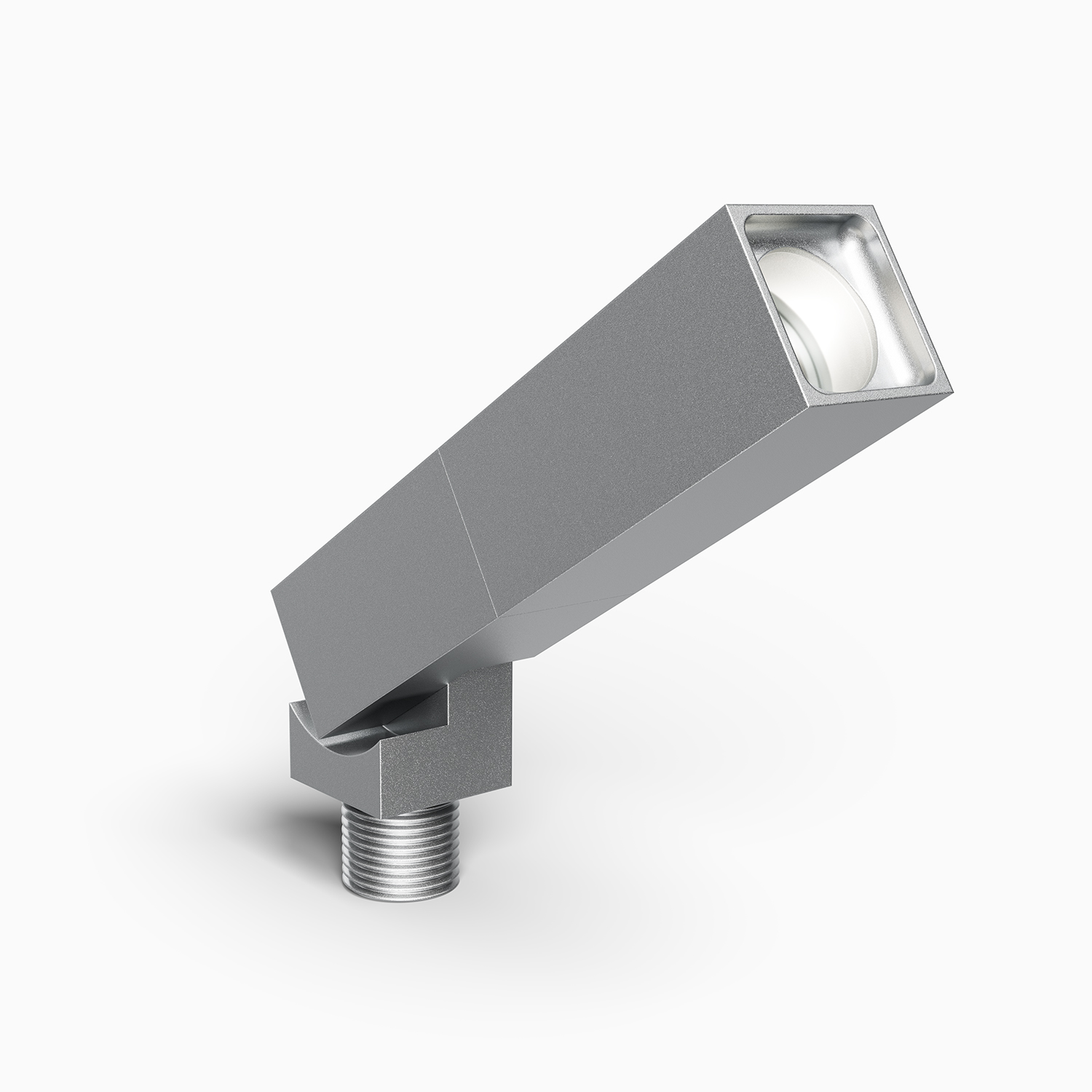

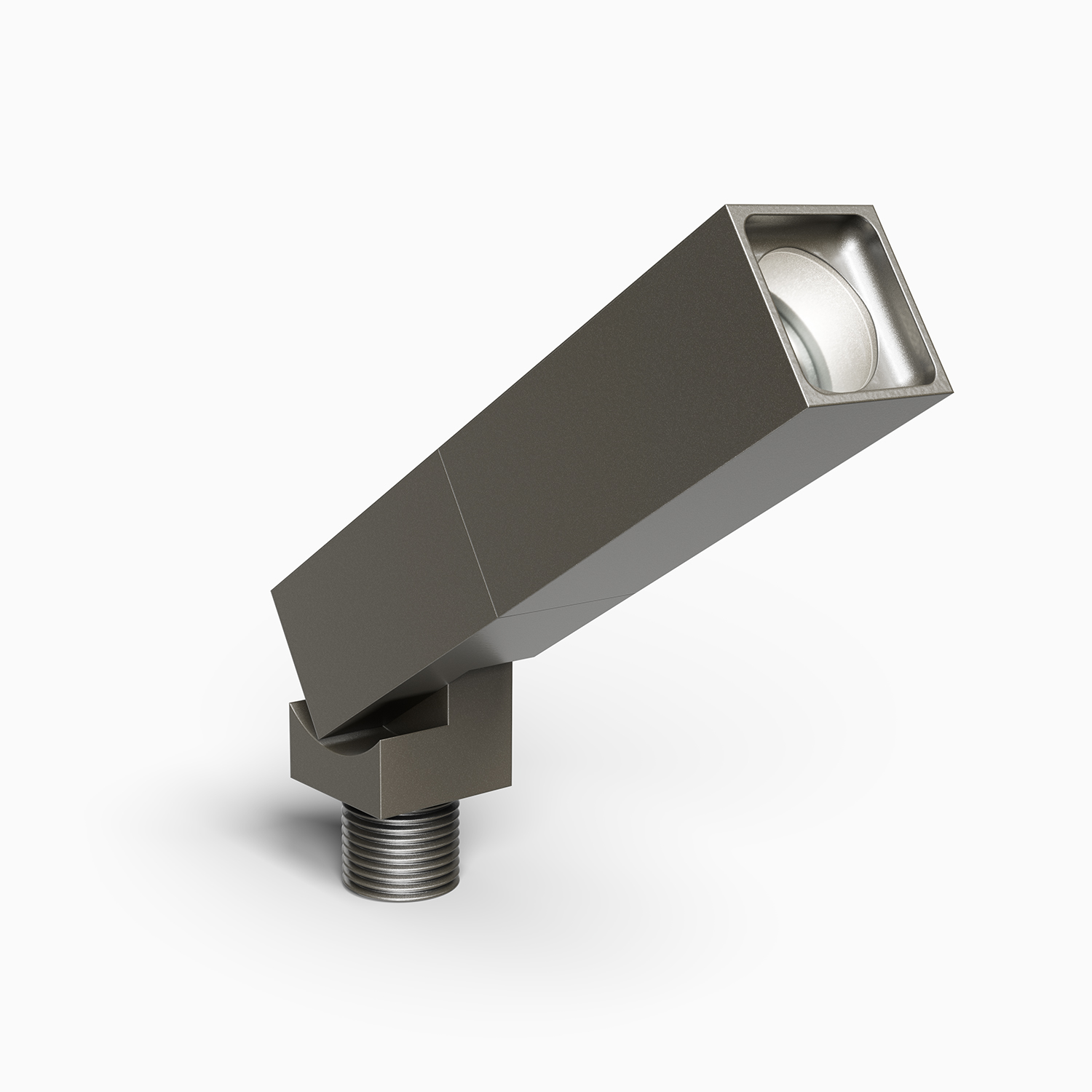

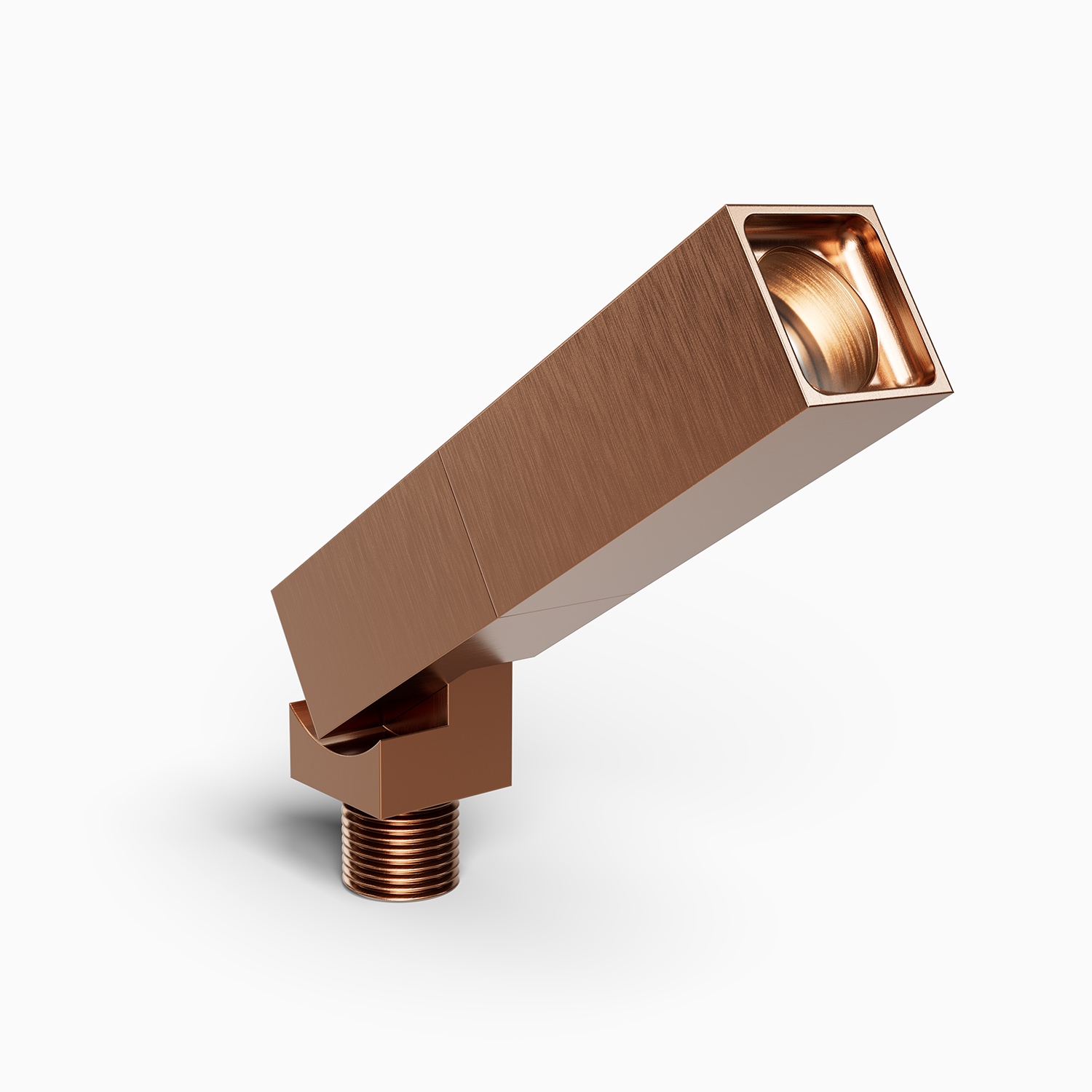

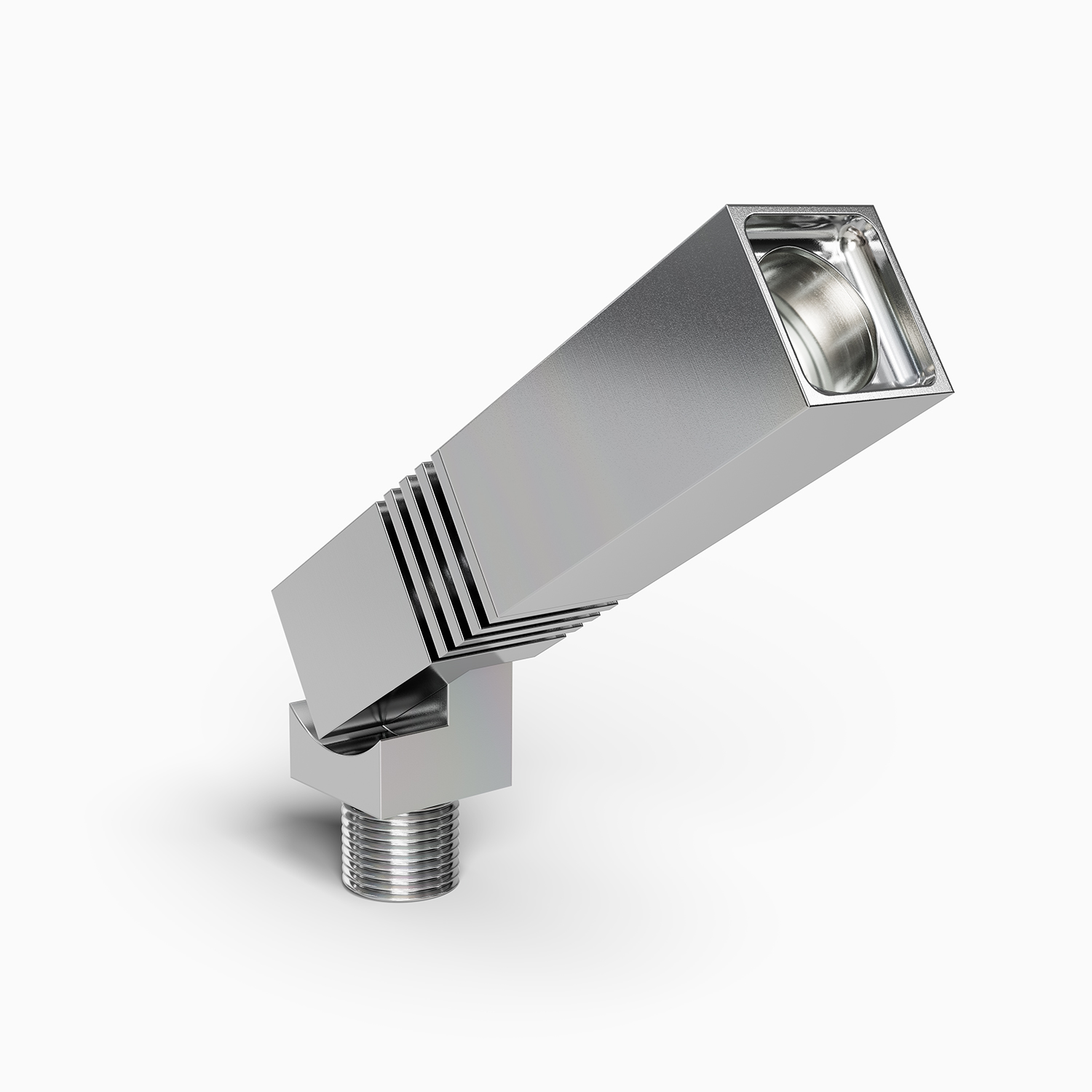

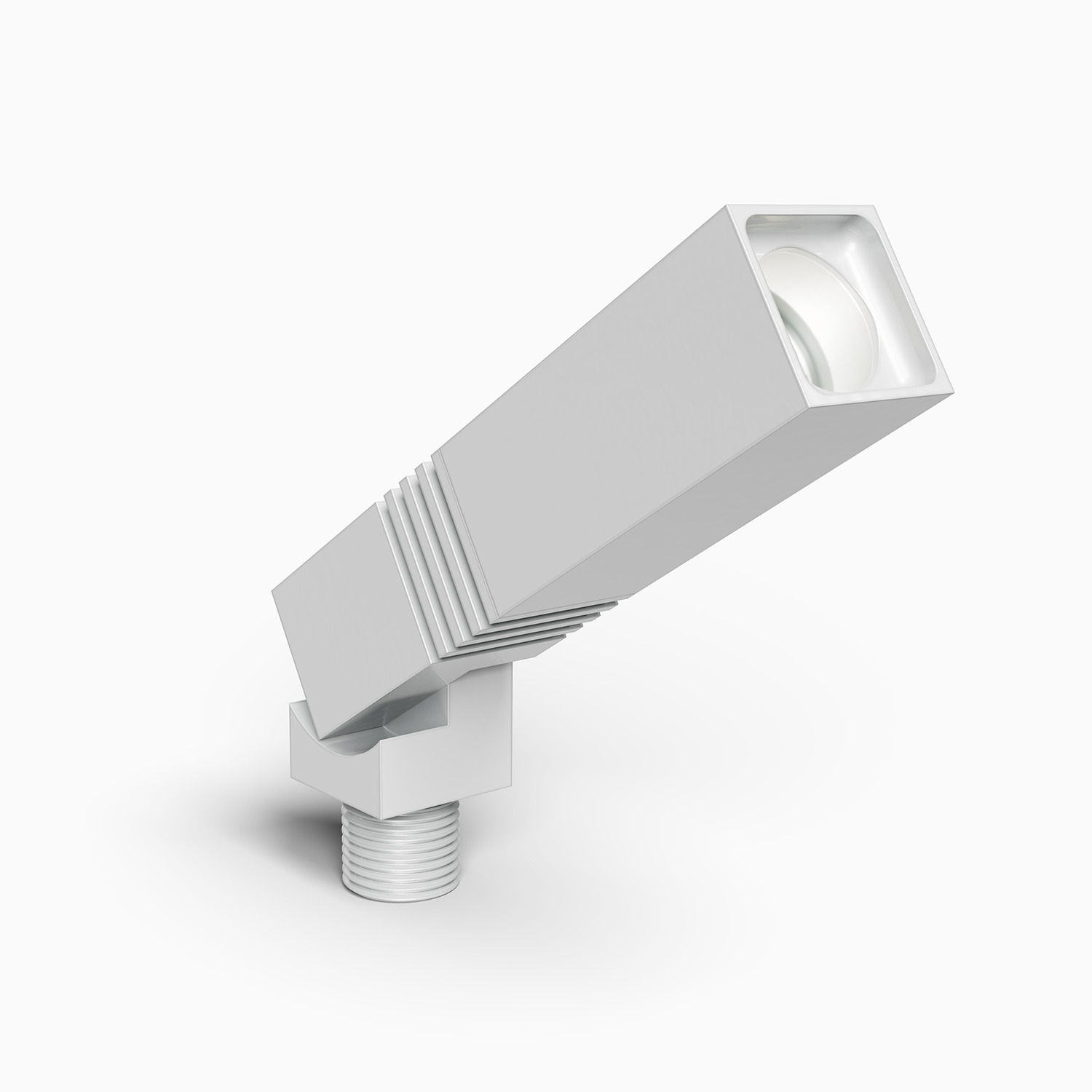

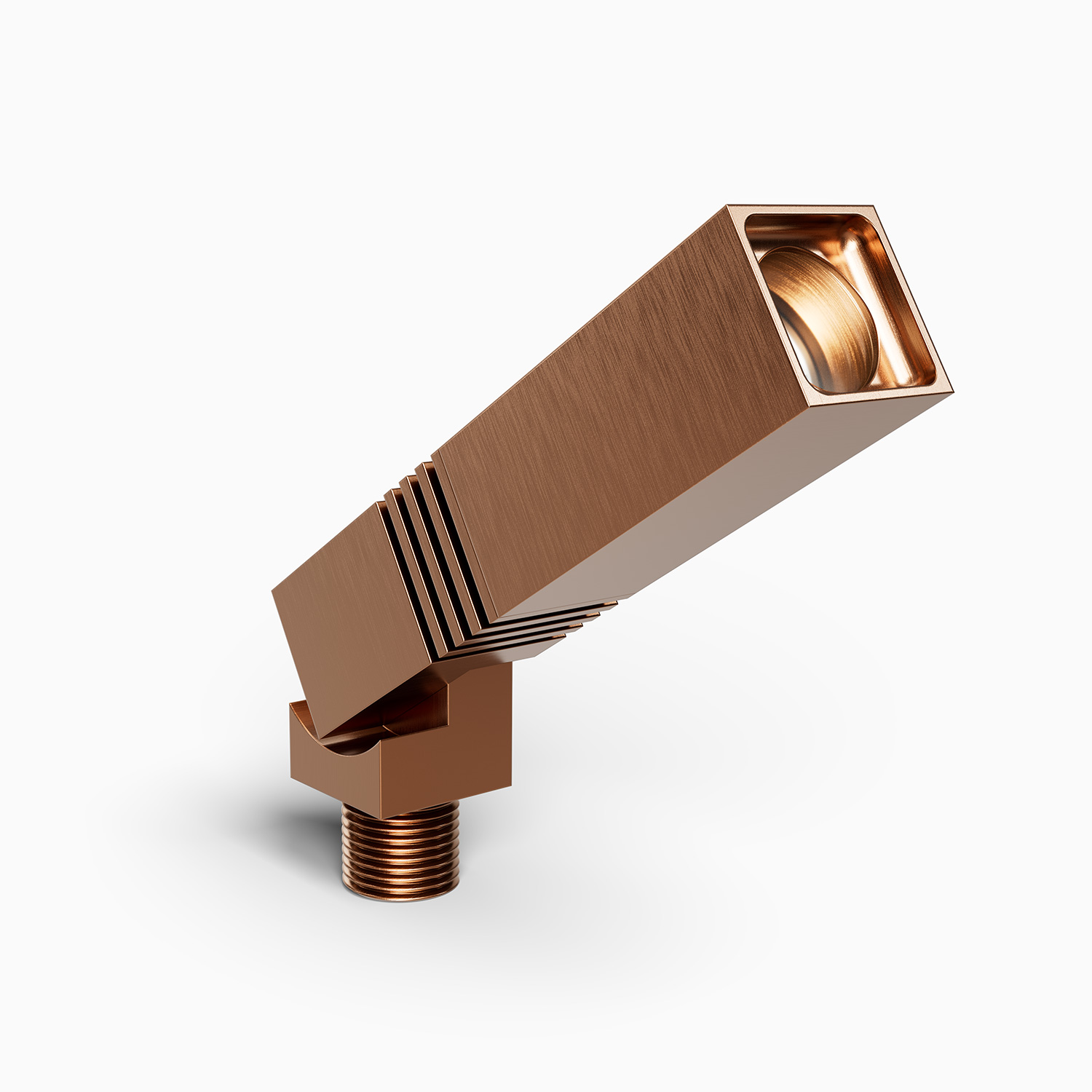

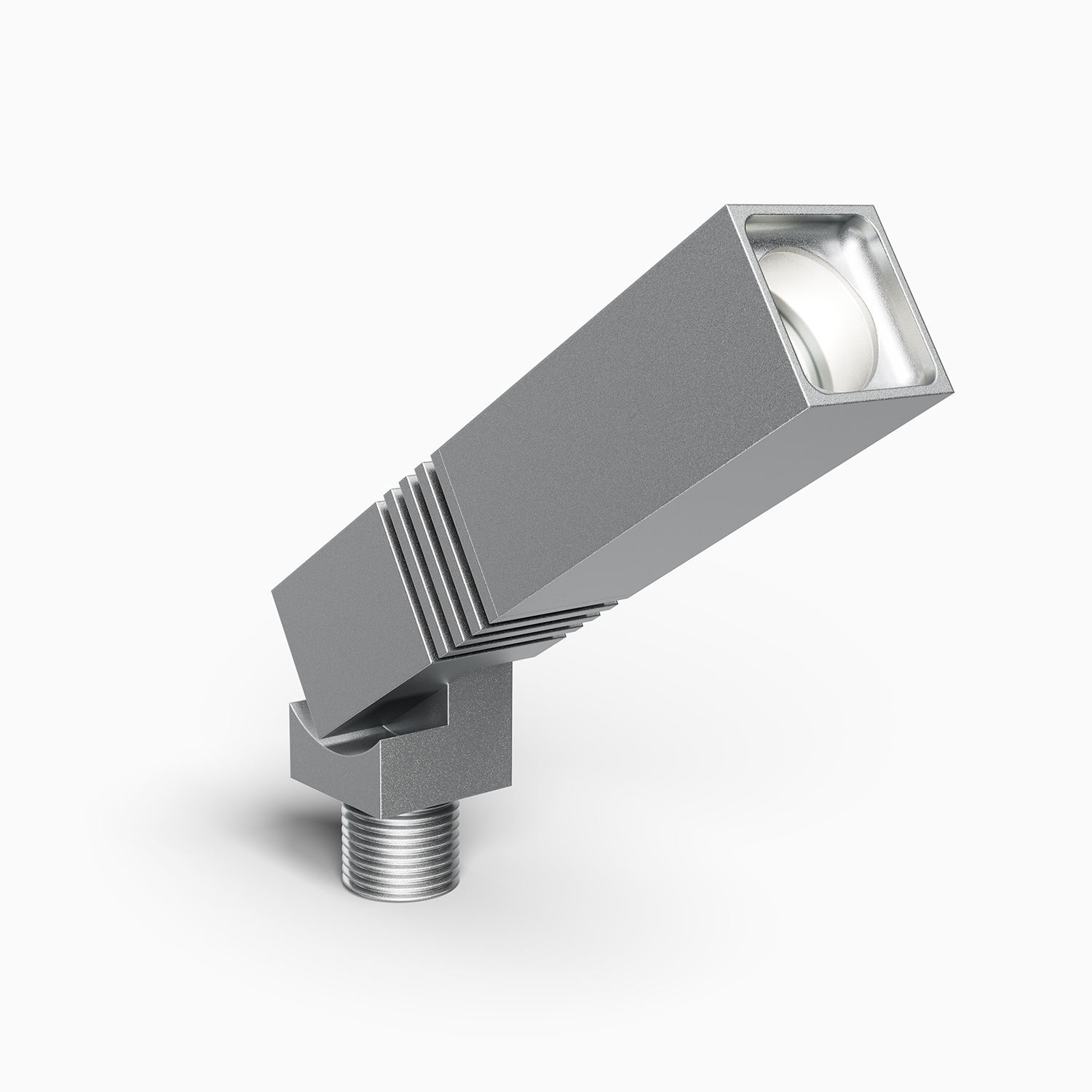

Our smallest square, directional 12V LED modern accent light for smaller plants, tree mounting, and architecture.
(includes former ZXL08-SQ model)
FEATURES:
- 3W integrated HK LED delivering 200 lumens. 2200-4000K CCT, including specialty Amber option.
- Wet Location Listed, IP67 Standard.

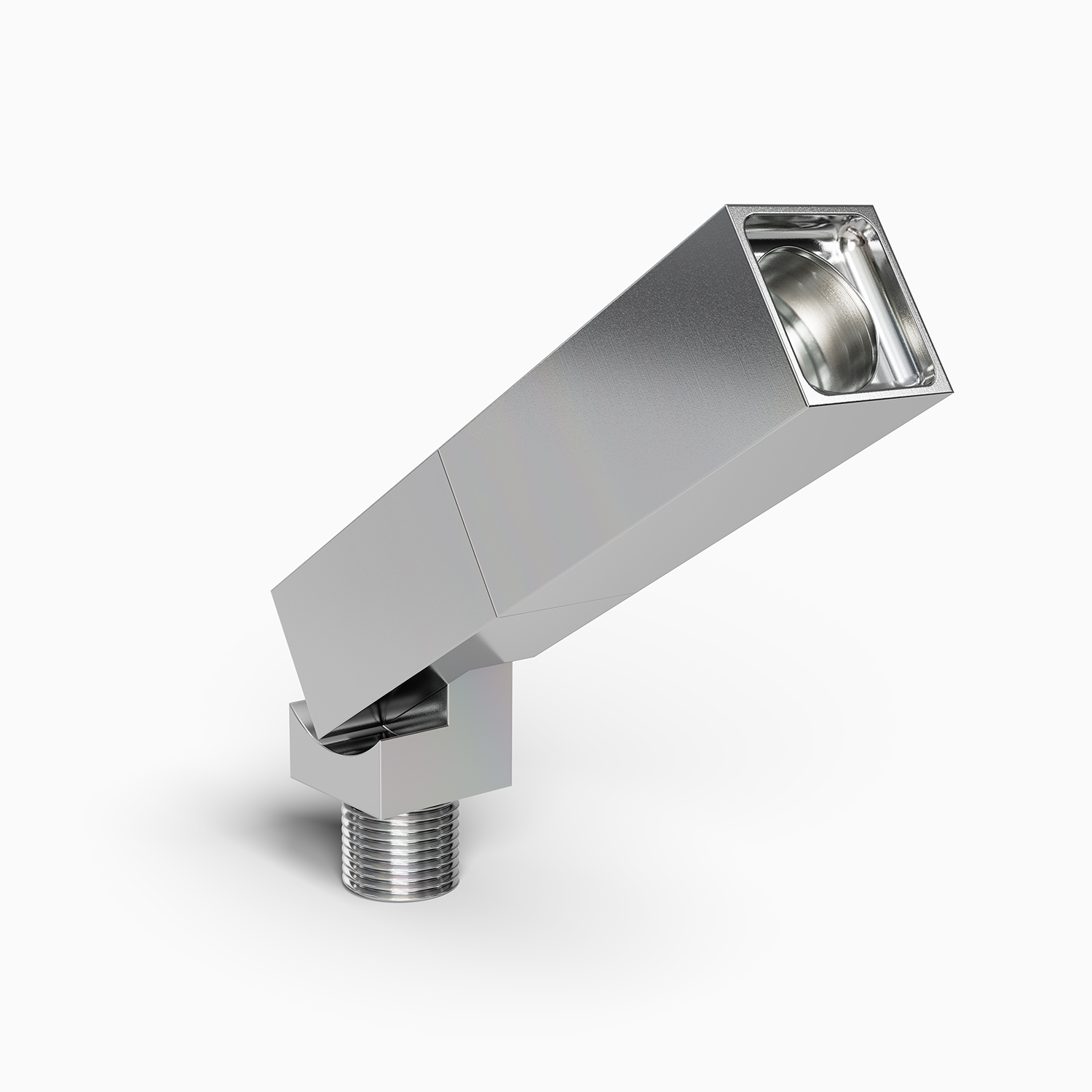

- Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish. Also available in solid brass or stainless steel.
- 180º vertical and 360º horizontal adjustment via locking swivel stem design.
- Modular components, field changeable LED optical beams, and lenses.
- Available with adjustable Angled, Long, and Short Glare Shields and ground, surface, and canopy mounting options.
- Every fixture tested end of line for water tightness and light quality.
- Ships complete with selected accessories installed.
Specifications
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
12V AC/DC. Requires remote step down transformer.
Optics
Narrow (19º), Medium (26º), and Wide (51º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.) Secured place with metal snap ring.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
3W HK LED delivering 200 lumens.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices. (See page 4 of Spec Sheet for details).
Glare Shield
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, and Amber options available. Consult factory for specialty LED specification details.
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K. Specialty 2200K, 2400K, 2500K, and Amber options available. Consult factory for specialty LED specification details.
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Dimming
MLV or ELV Phase Control dimming.
