Additional information

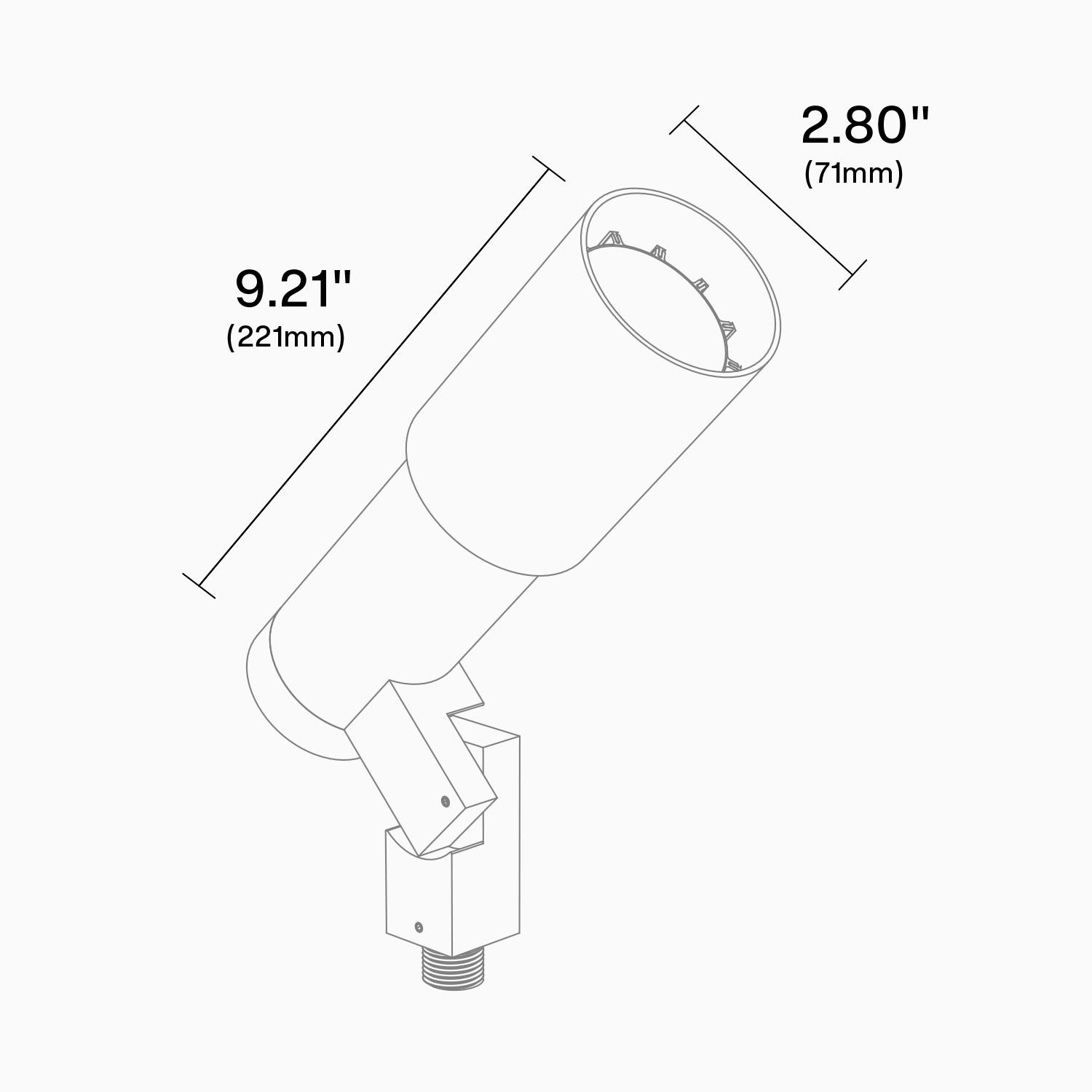

| Dimensions | 2.8 × 9.21 in |
|---|---|
| Light Source | |
| Shape | |
| Lumen Output | |
| Input Voltage | |
| ReadyMade | |
| Wattage |
ZXL16-I FIT
ACCENT & LANDSCAPE | ZX16 Series | 2.8"
20W ( 2000lm ) | 120V - 277V | HK LED
20W ( 2000lm ) | 120V - 277V | HK LED
ZXL16-I FIT
ACCENT & LANDSCAPE | ZX16 Series | 2.8"
20W ( 2000lm ) | 120V - 277V | HK LED
20W ( 2000lm ) | 120V - 277V | HK LED
Powerful and cost-effective, directional 120V - 277V LED modern accent light for commercial and large residential environments.
FEATURES:
- 20W integrated HK LED delivering 2000 lumens 2700-4000K CCT.
- Wet Location Listed, IP67 Standard.
- Machined from solid aircraft grade (6061-T6), corrosion-resistant aluminum, then anodized and powder coated to create a highly durable, marine grade finish.
- 180º vertical and 360º horizontal adjustment via locking swivel stem design.
- Modular components, field changeable LED optical beams, and lenses.
- Available with adjustable Angled, Long, and Short Glare Shields and ground, surface, and canopy mounting options.
- Every fixture tested end of line for water tightness and light quality.
- Readymade eligible configurations ship in 2 to 4 weeks, complete with selected accessories installed.
Specifications
Materials
Solid billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware.
Voltage
120V - 277V AC.
Optics
Narrow (19º), Medium (33º), Wide (46º) beam spread options available. Accepts up to 3 optical accessories (hexcel louver, optical lenses, dichroic color filters, etc.). Secured place with metal snap ring.
Finish
Aluminum materials are first anodized and then powder coated for a robust, marine grade finish. Stainless steel and brass models are provided with brushed surface.
Wattage
20W HK LED delivering 2000 lumens.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices.
Glare Shield
Oversized FIT Style Hood with included Angled or Long Glare Shield.
Light Engine
Innovative HK LED Light module operates like a lamp and can be easily changed in the field. CRI 90 Standard. Available in CRI 80 or CRI 95 upon request. Standard CCT options are 2700K, 3000K, 3500K, 4000K.
Listings
ETL Listed for Wet Location, IP67 Standard. RoHS Compliant.
Dimming / Driver
Onboard, Integrated LED Driver Phase Control @120V 0V-10V @120V - 277V.
Compatible Accessories
