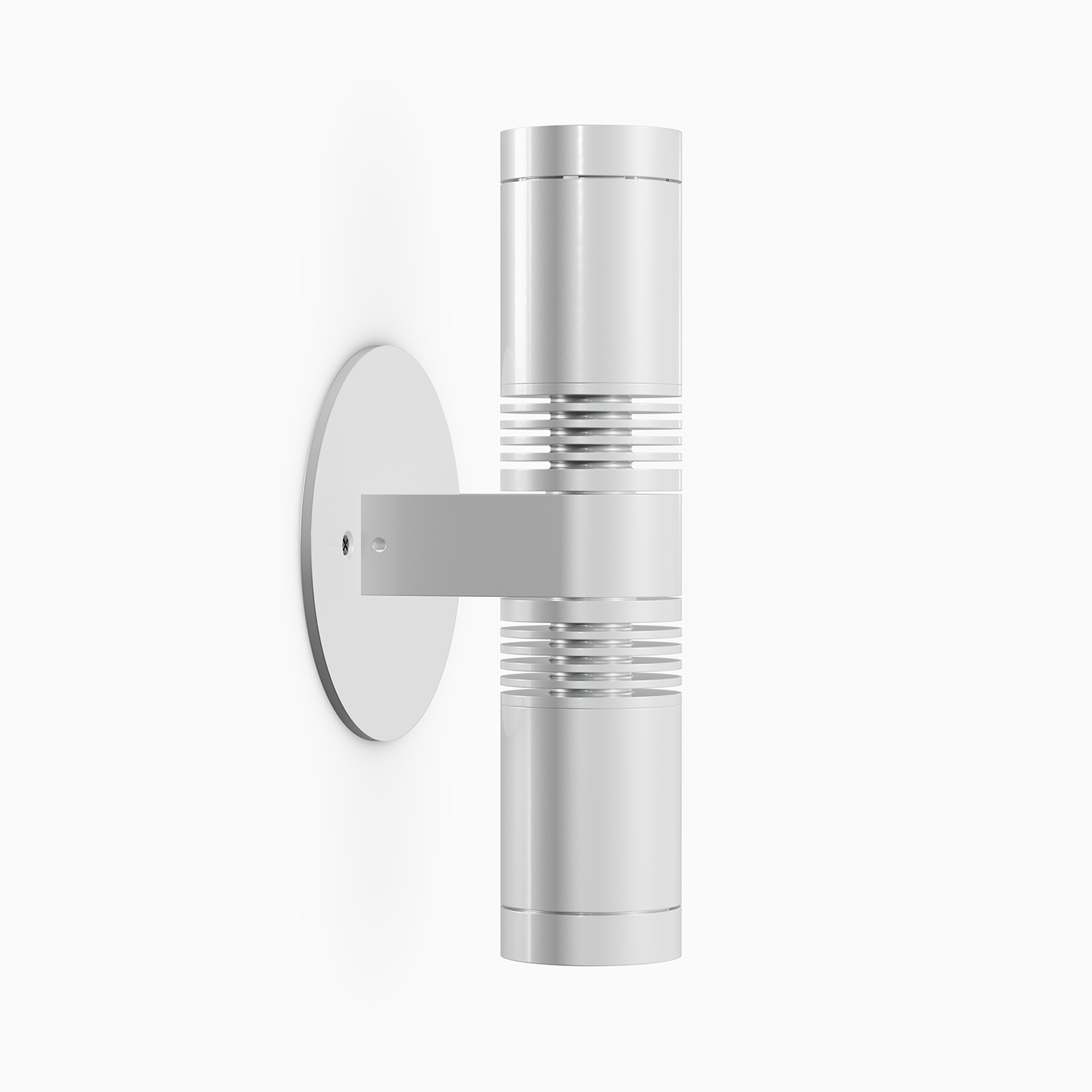

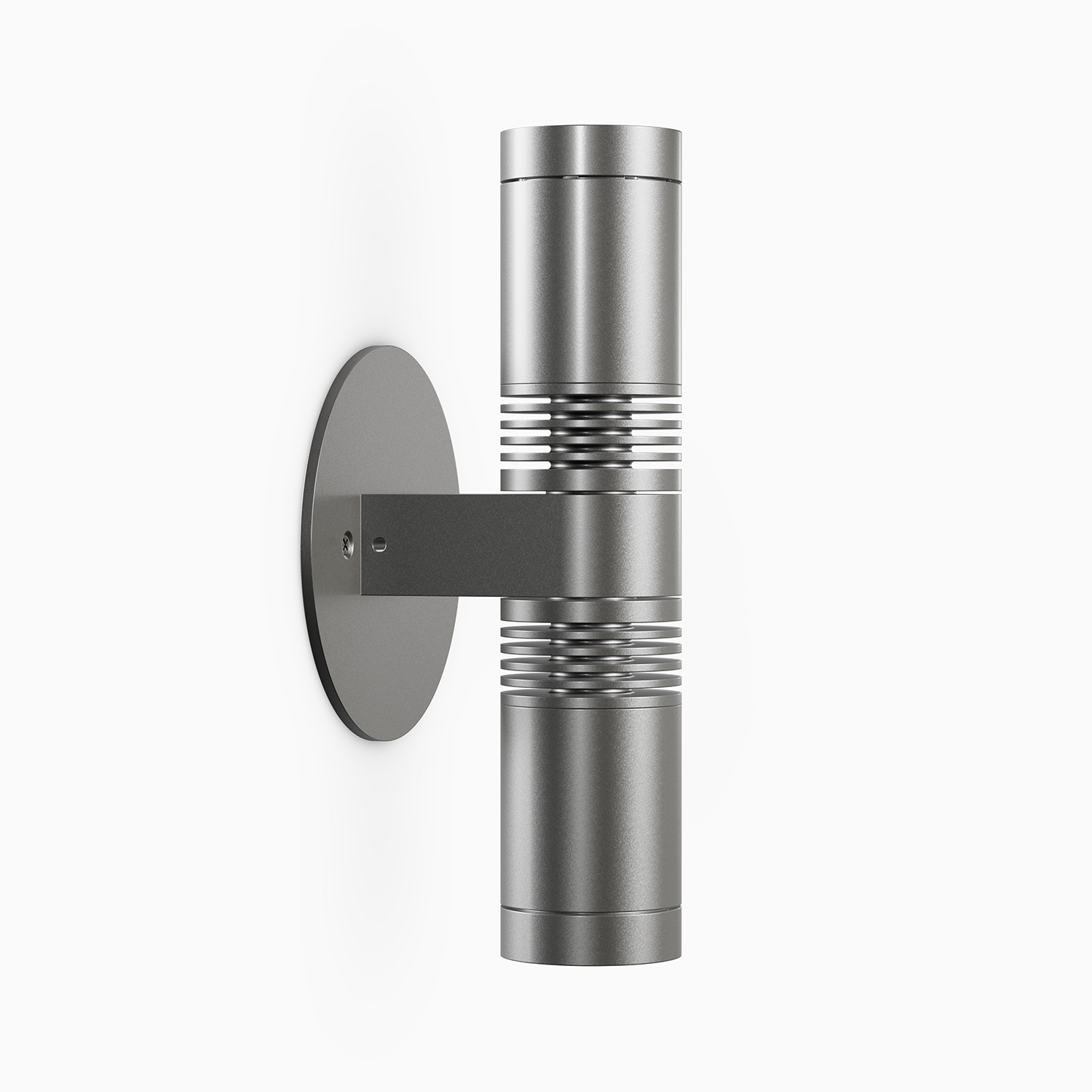

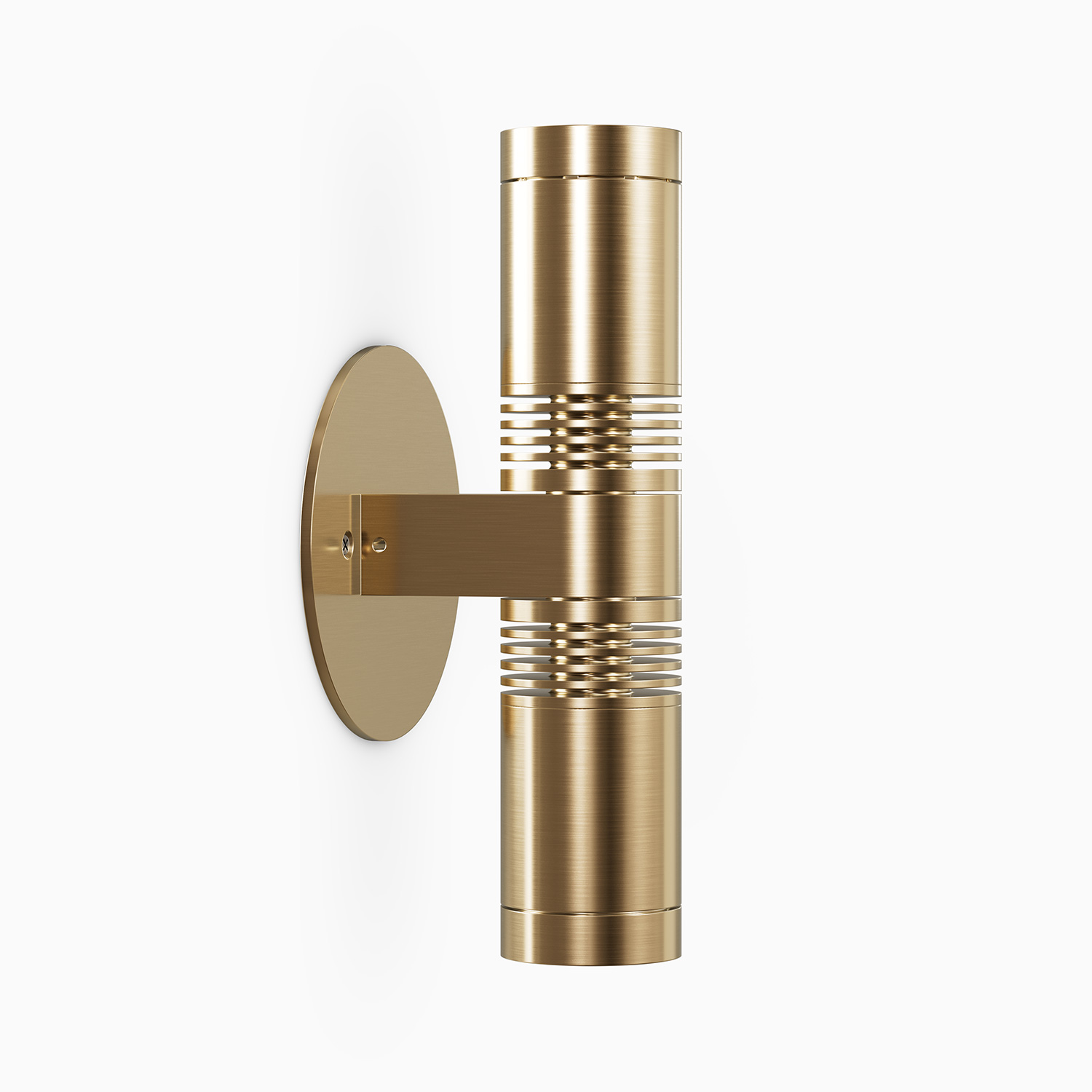

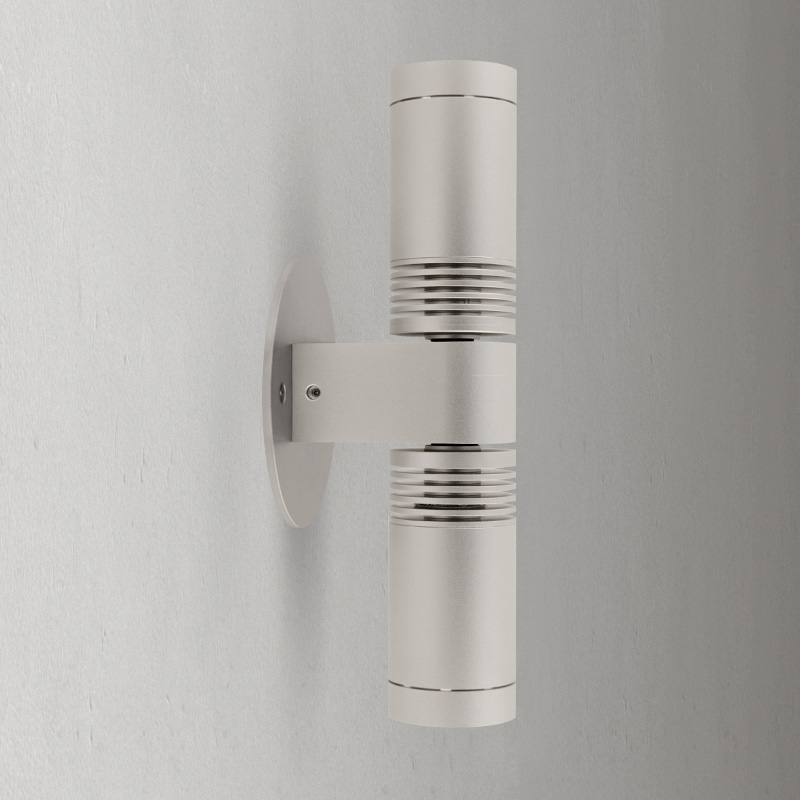

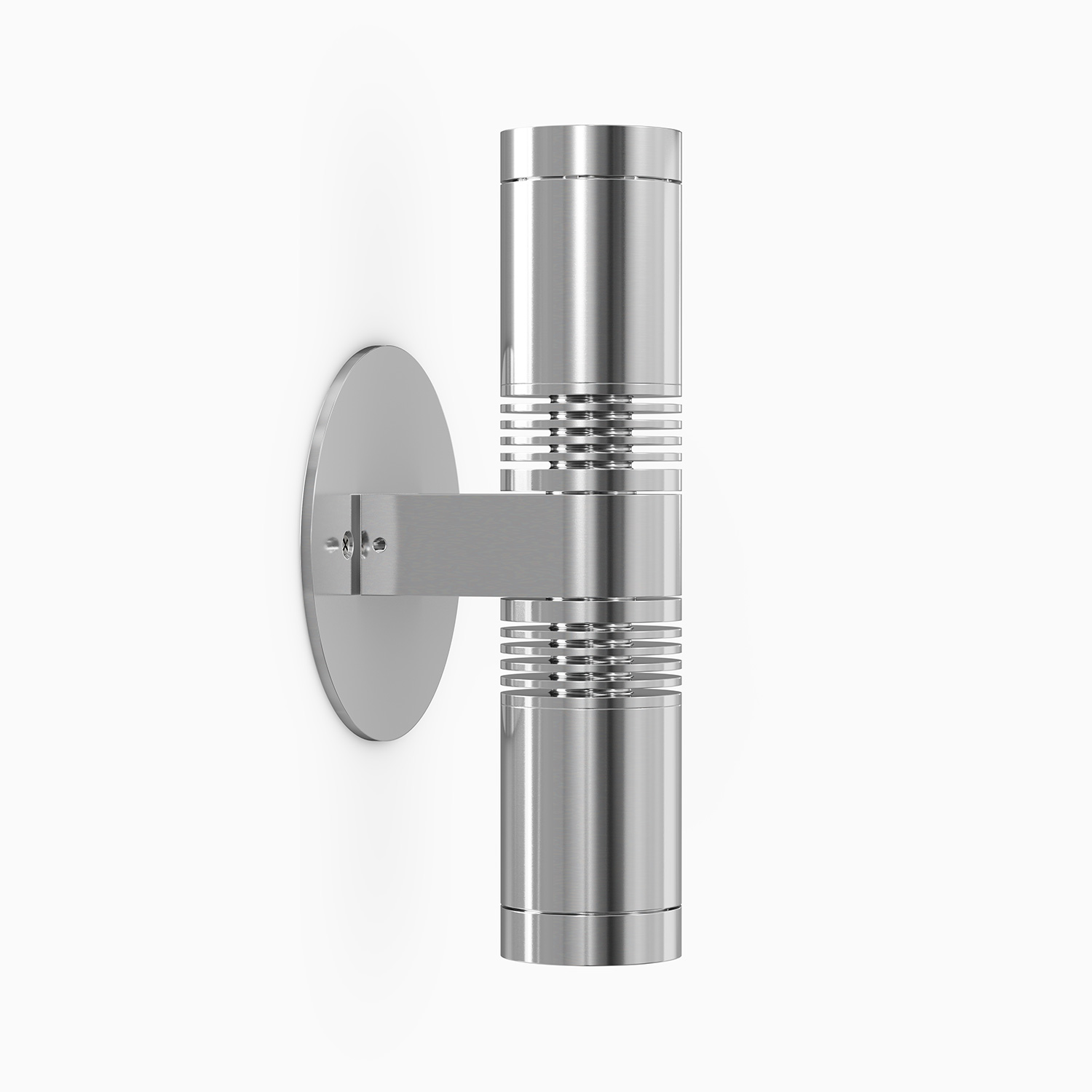

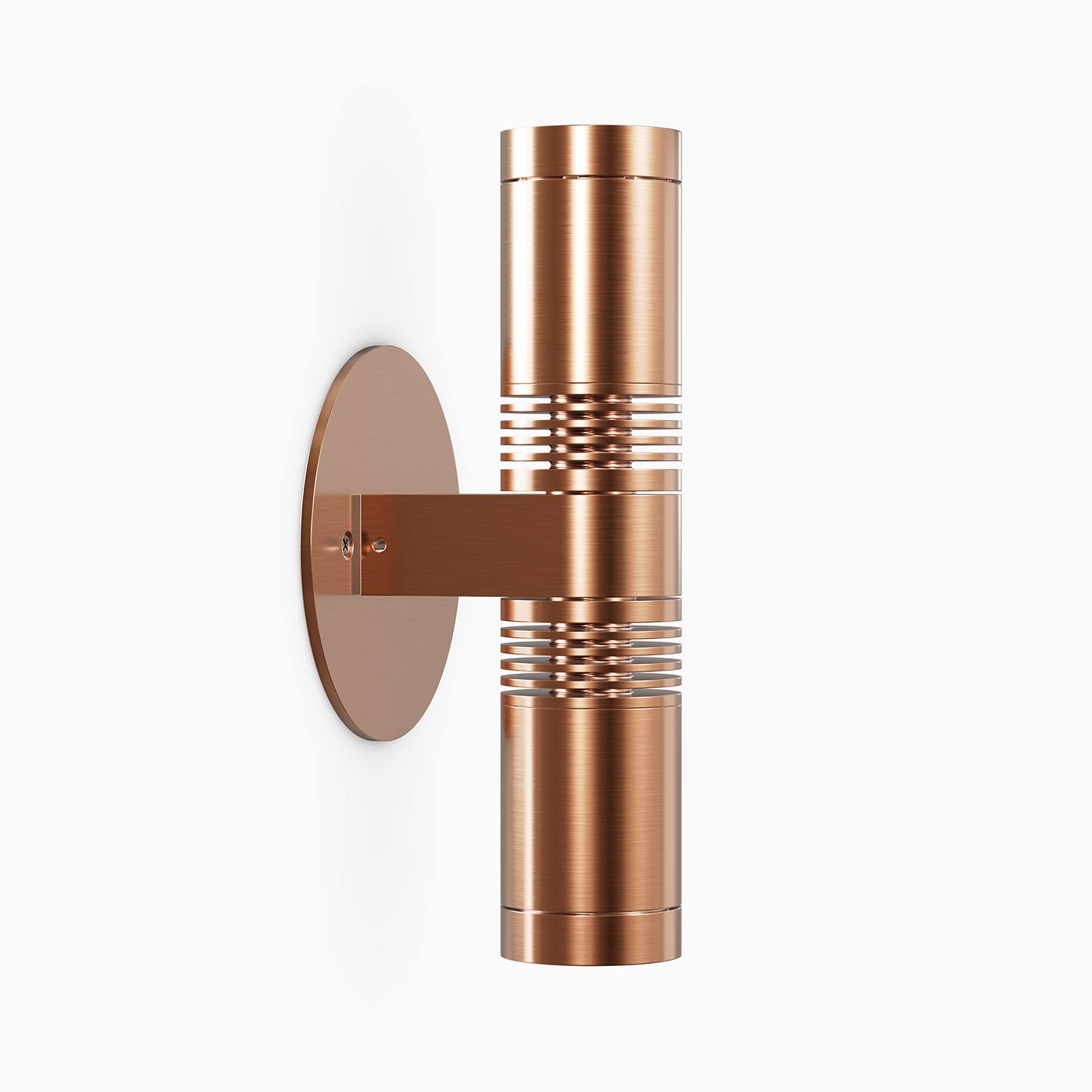

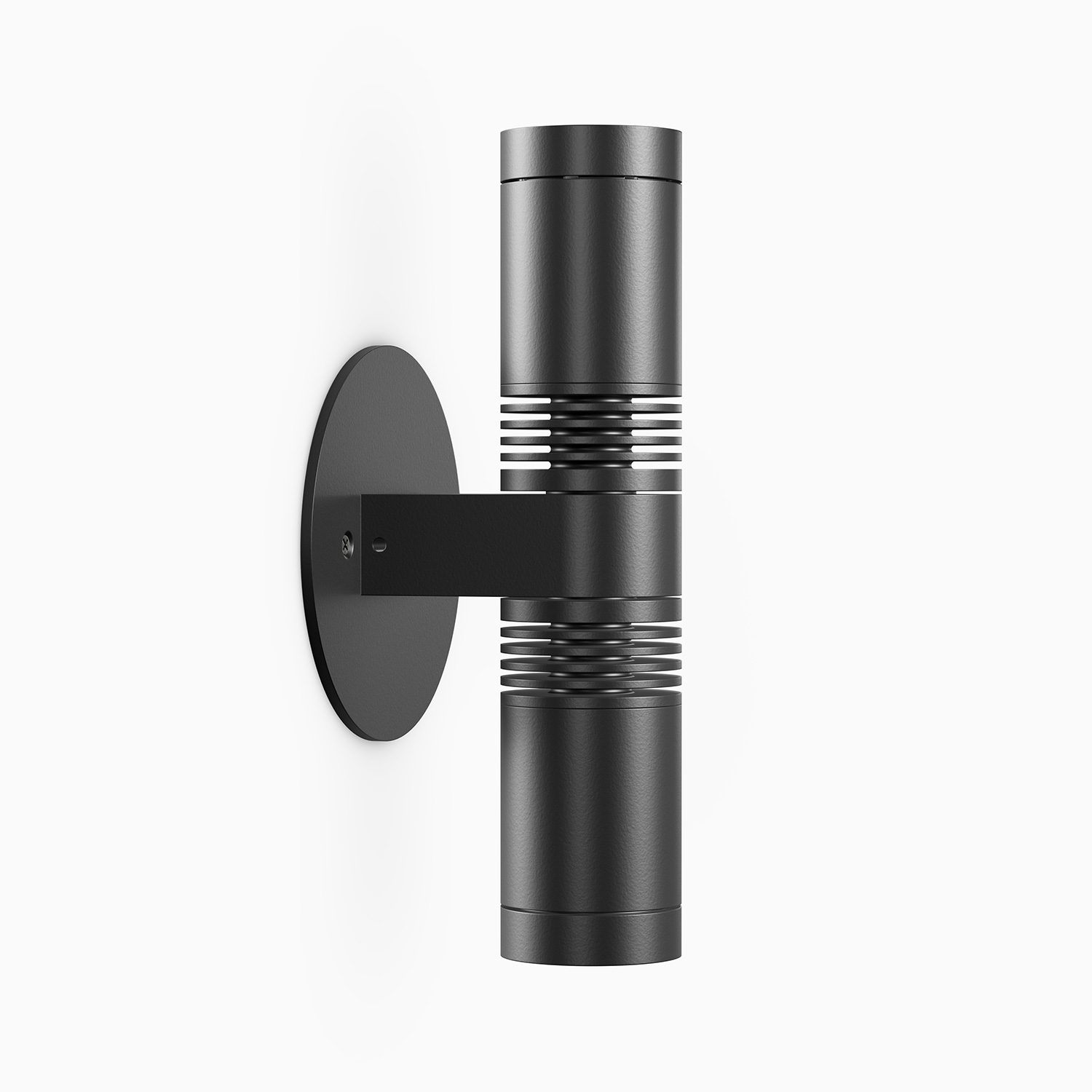

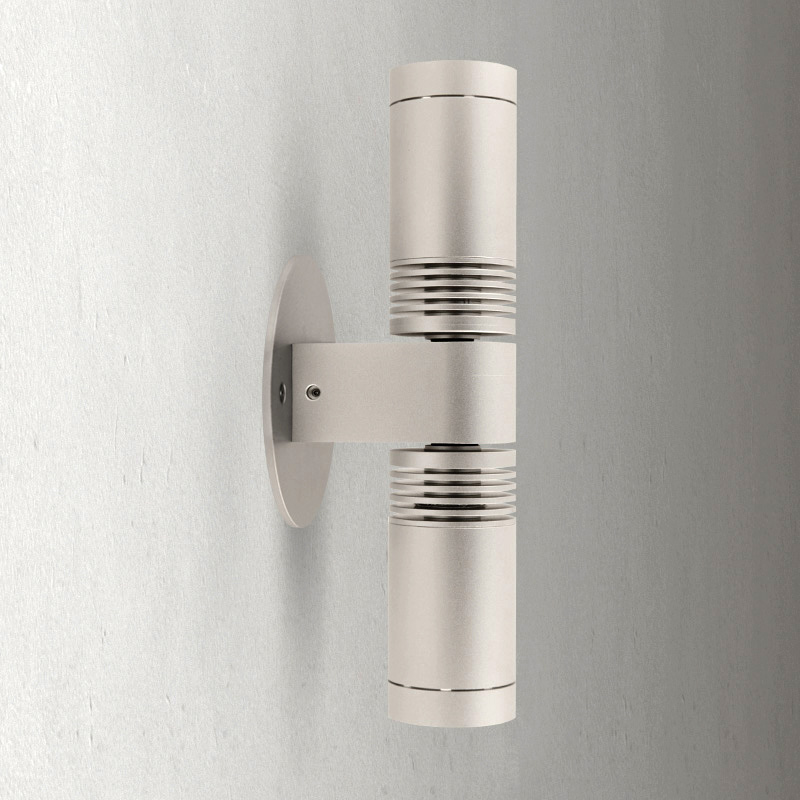

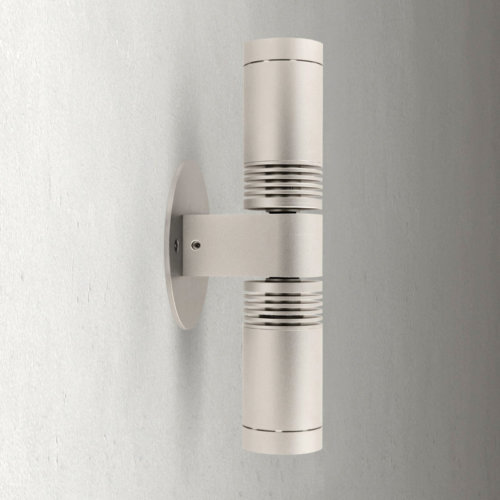

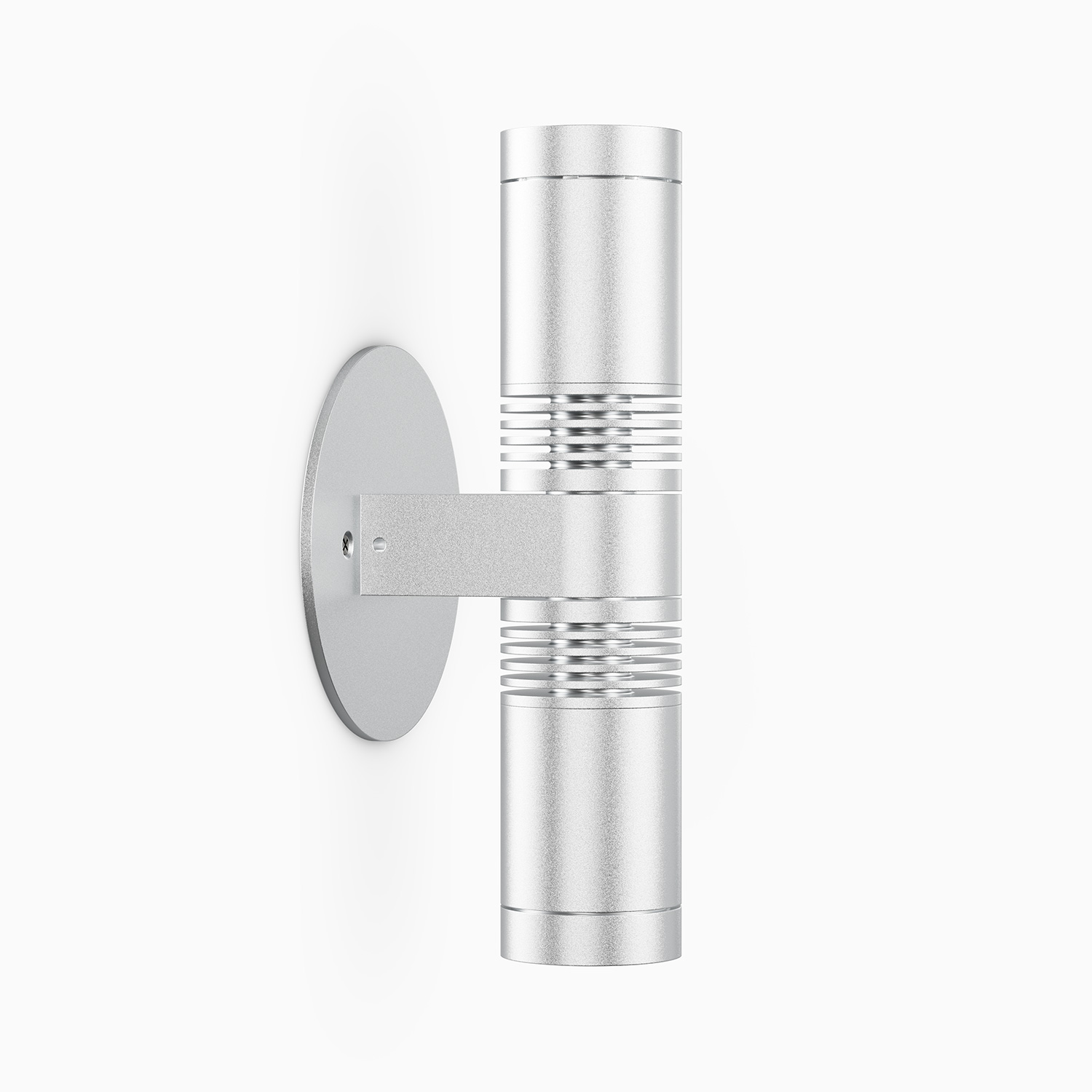

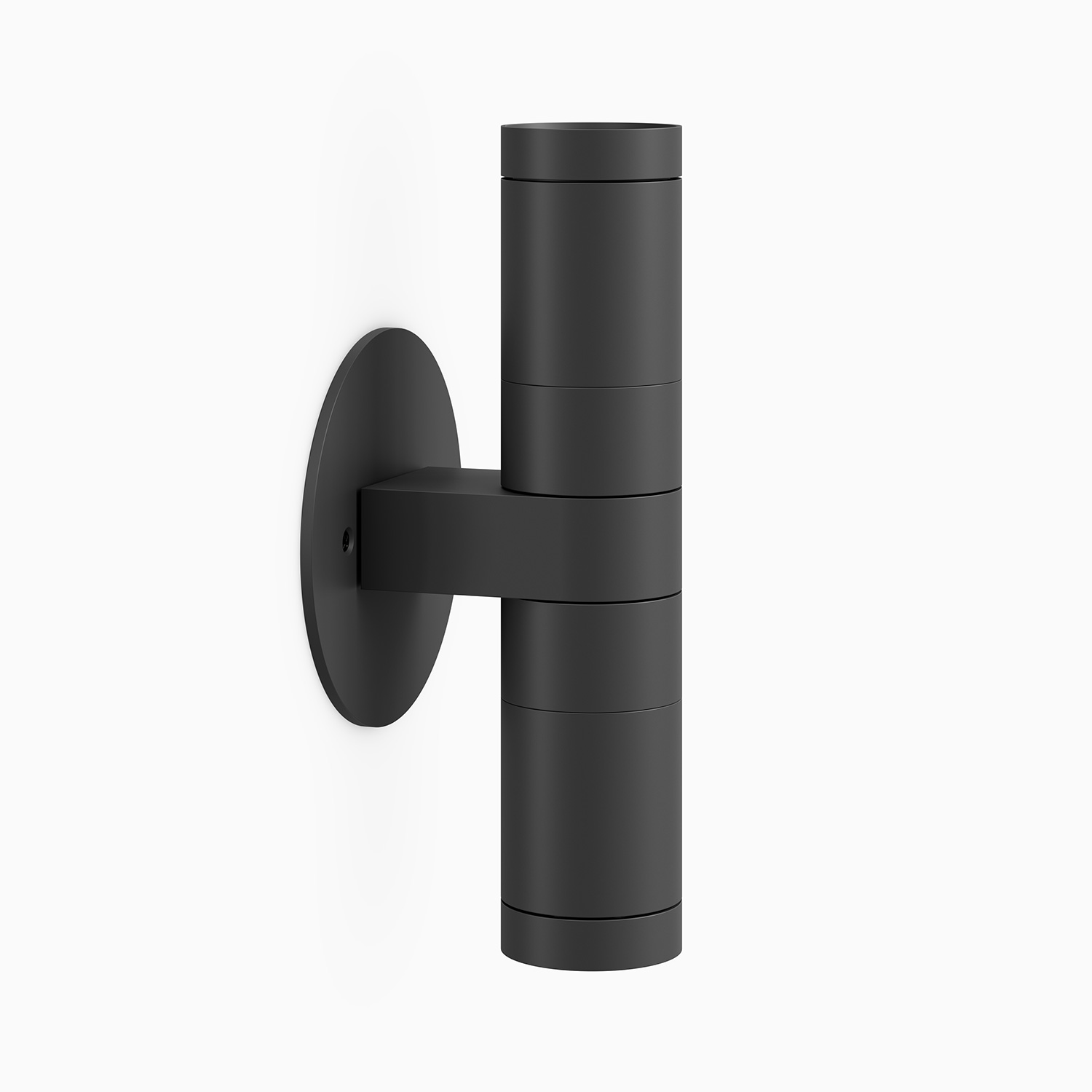

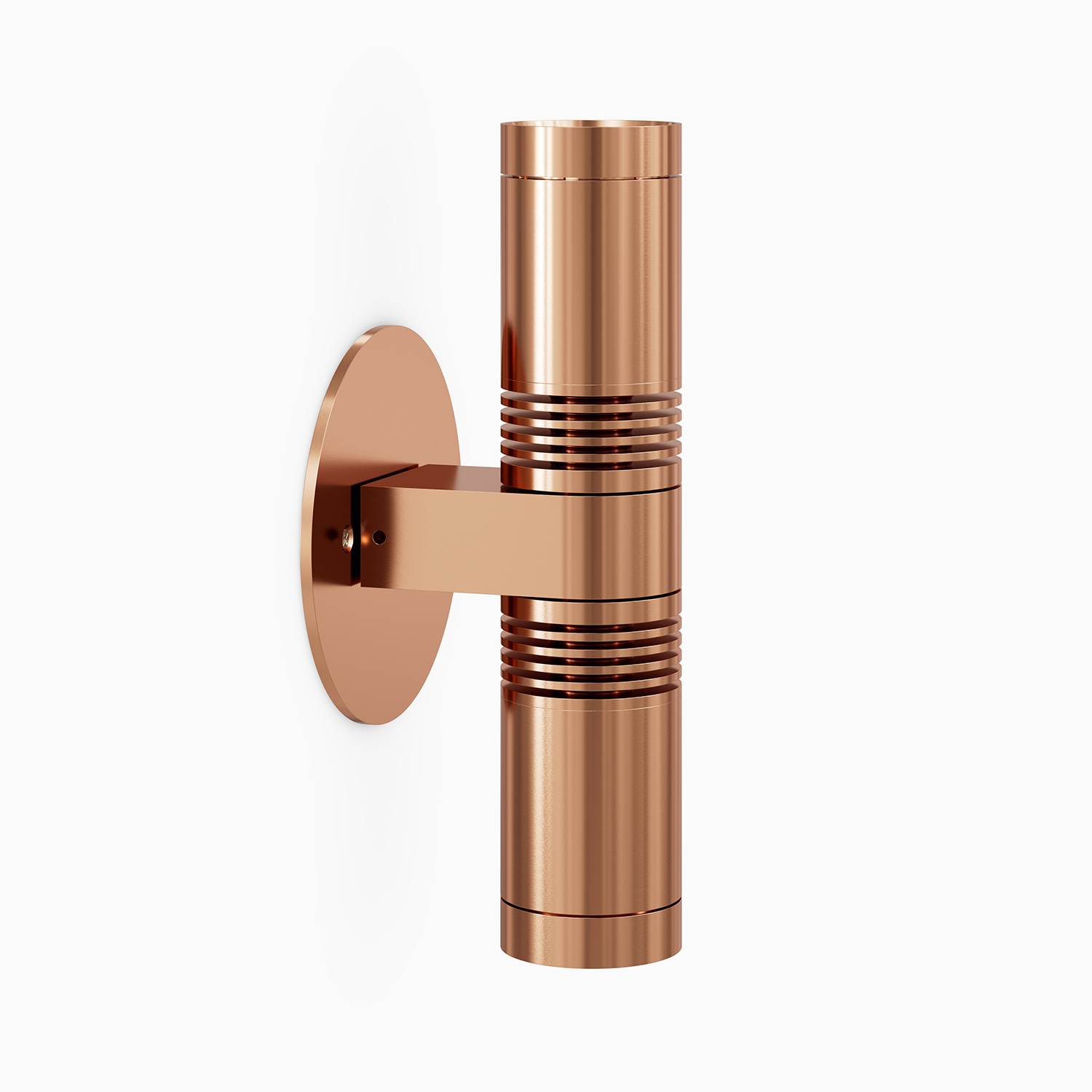

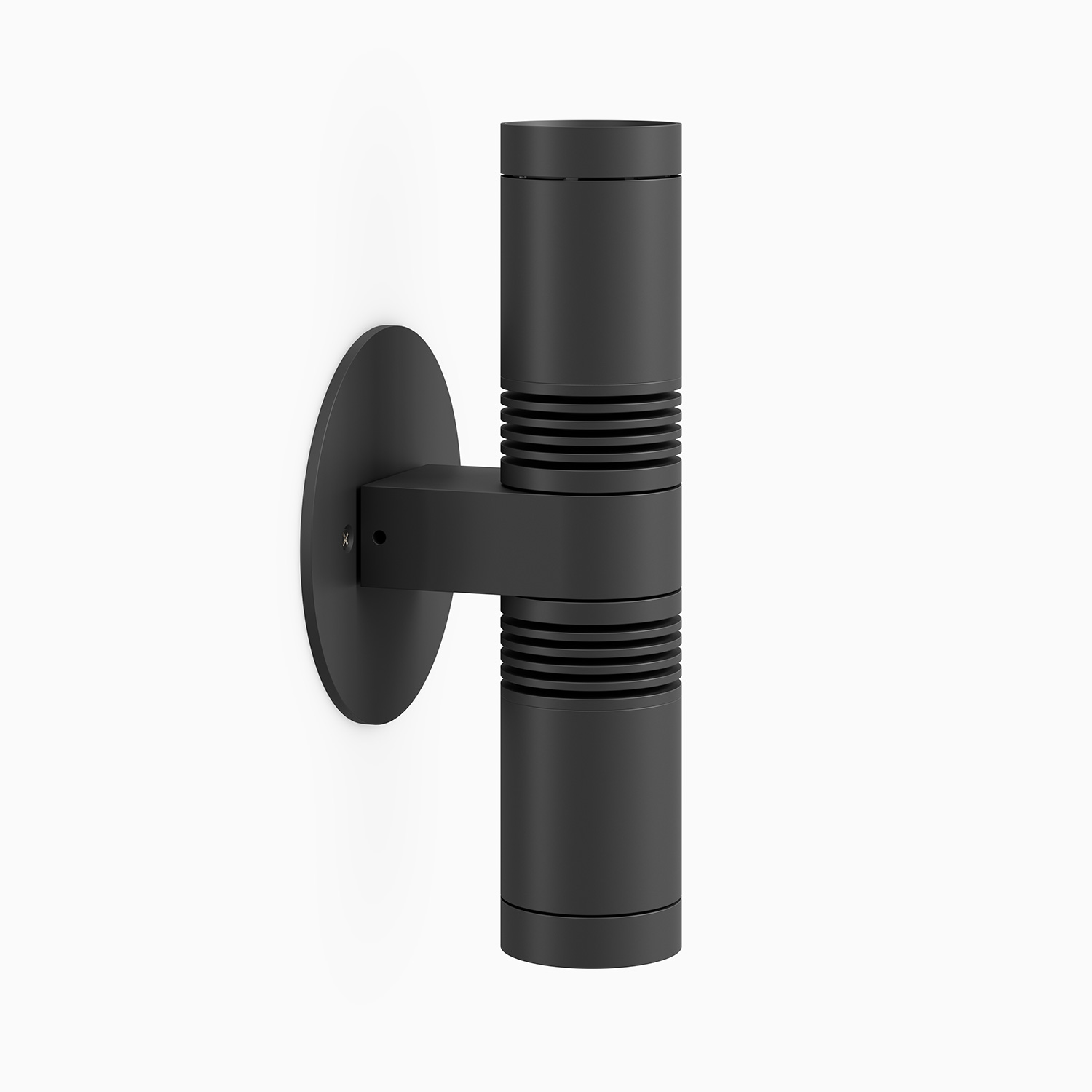

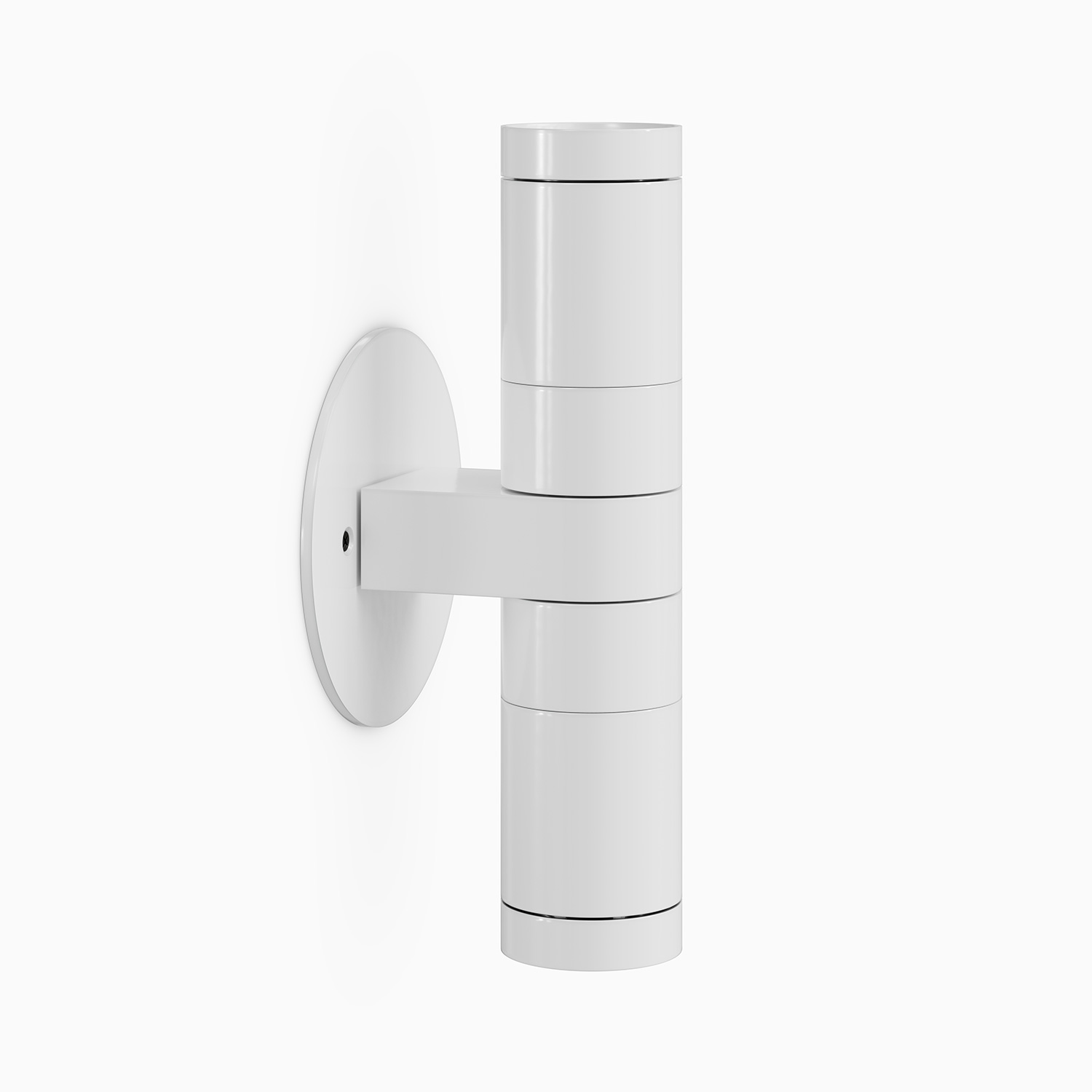

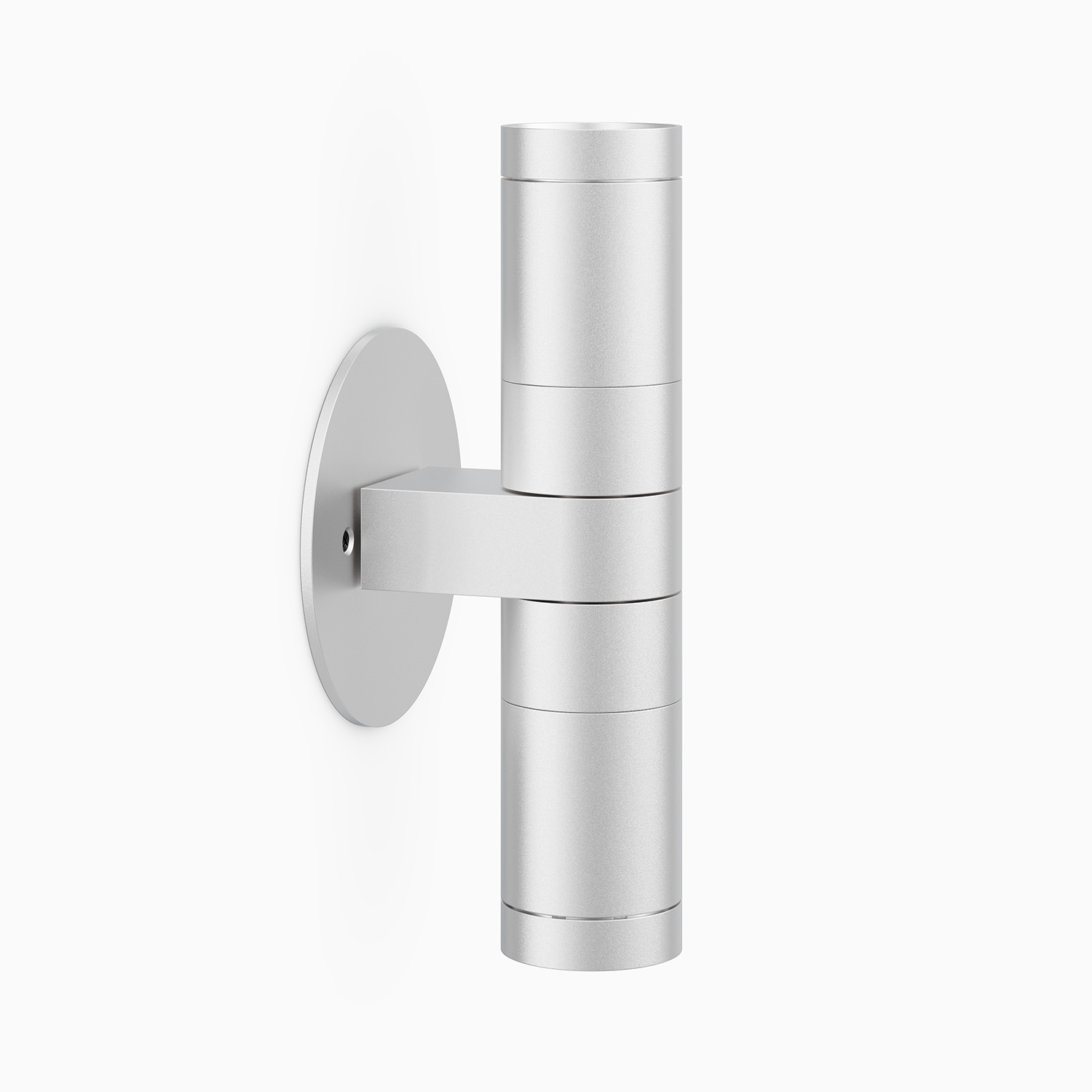

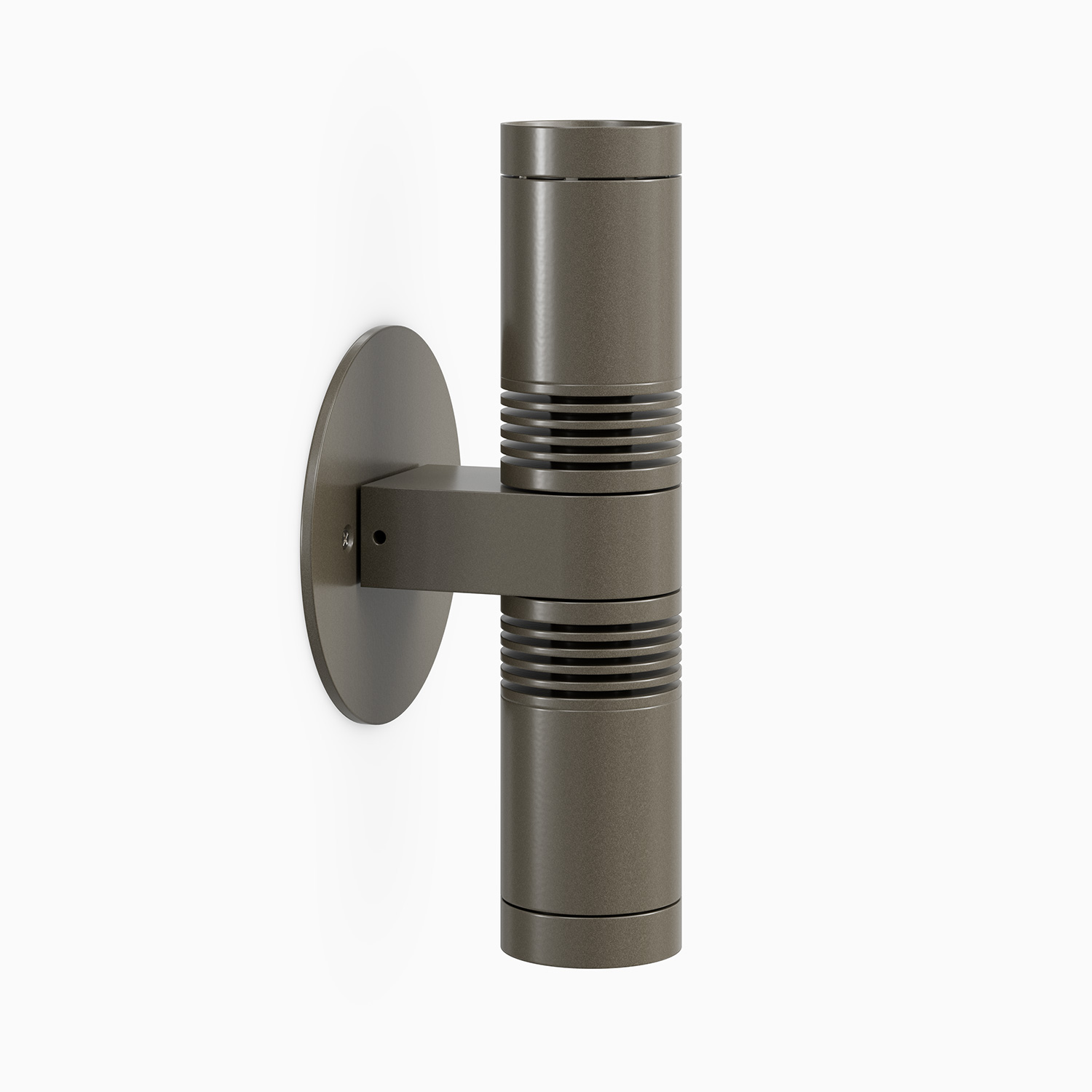

ZXL16-WM2 / ZXL16i-WM2
Wall Mount • ZX16-WM2 Series
ZXL16-WM2 / ZXL16i-WM2
Wall Mount • ZX16-WM2 Series
FEATURES:
- Up/Down wall sconce with mounting canopy.
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
- Swivel stem insert allows for precision adjustment during installation.
- Unique weep hole design in hood of the up-light with minimum light leak.
- Modular components – field changeable LED module & beam spread reflectors.
- 12V or line voltage with integral step-down transformer.
Specifications
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
12V AC or line voltage. 12V model requires remote transformer. Line voltage models come with integral transformer.
Lamp Base/Socket
Innovative cone-shaped lamp base and receptacle socket maximize the surface contact area to dissipate heat more effectively. See ‘‘Resources’’ for details.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
5W x2, 7W x2, 10W x2 HK LED. 10W x2 Amber LED.
Optics
Accepts up to 3 accessories (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.
Hood and Glare Shield
3 available hood options to suit any application. 3 optional glare shields (short, long, angled) to complement each hood choice. (See page 3 of the Spec Sheet for details).
Light Engine
CRI 83. Available in CRI95 upon request. The chromaticity range is within a 3-step McAdam Ellipse. Standard CCT options are 2700K, 3000K, 4000K.
Mounting
Utilizes 2x 8-32 UNC machine screws (provided) to attach to a standard octagon recessed back box (provided by others).
Dimming
12V - MLV or ELV depending on the transformer used. Line voltage - 0V-10V dimming, Phase dimming @120V.
