Additional information
| Dimensions | 2.25 × 7.9 in |
|---|---|
| Light Source | |
| Shape | |
| Lumen Output | |
| Input Voltage | |
| Wattage |

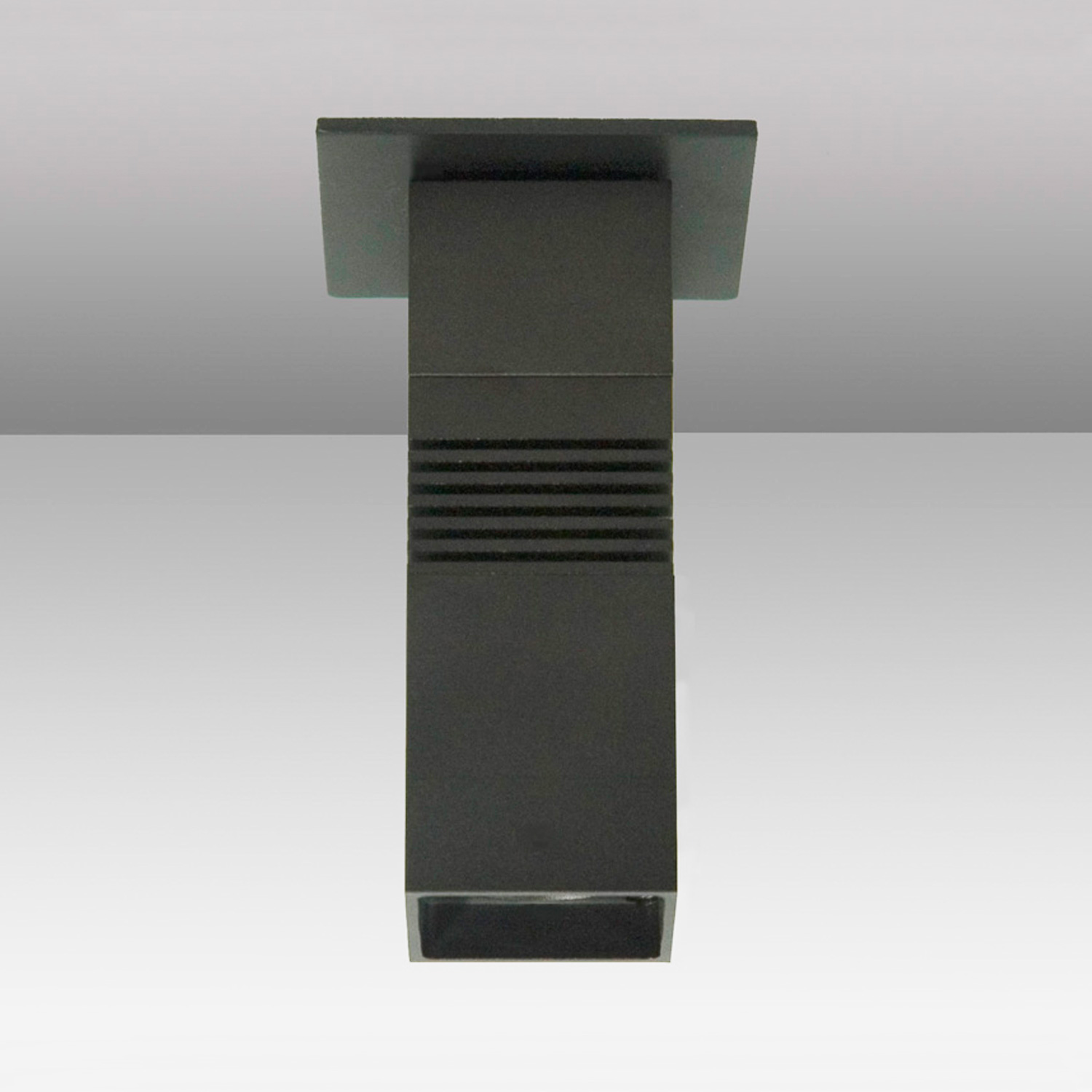

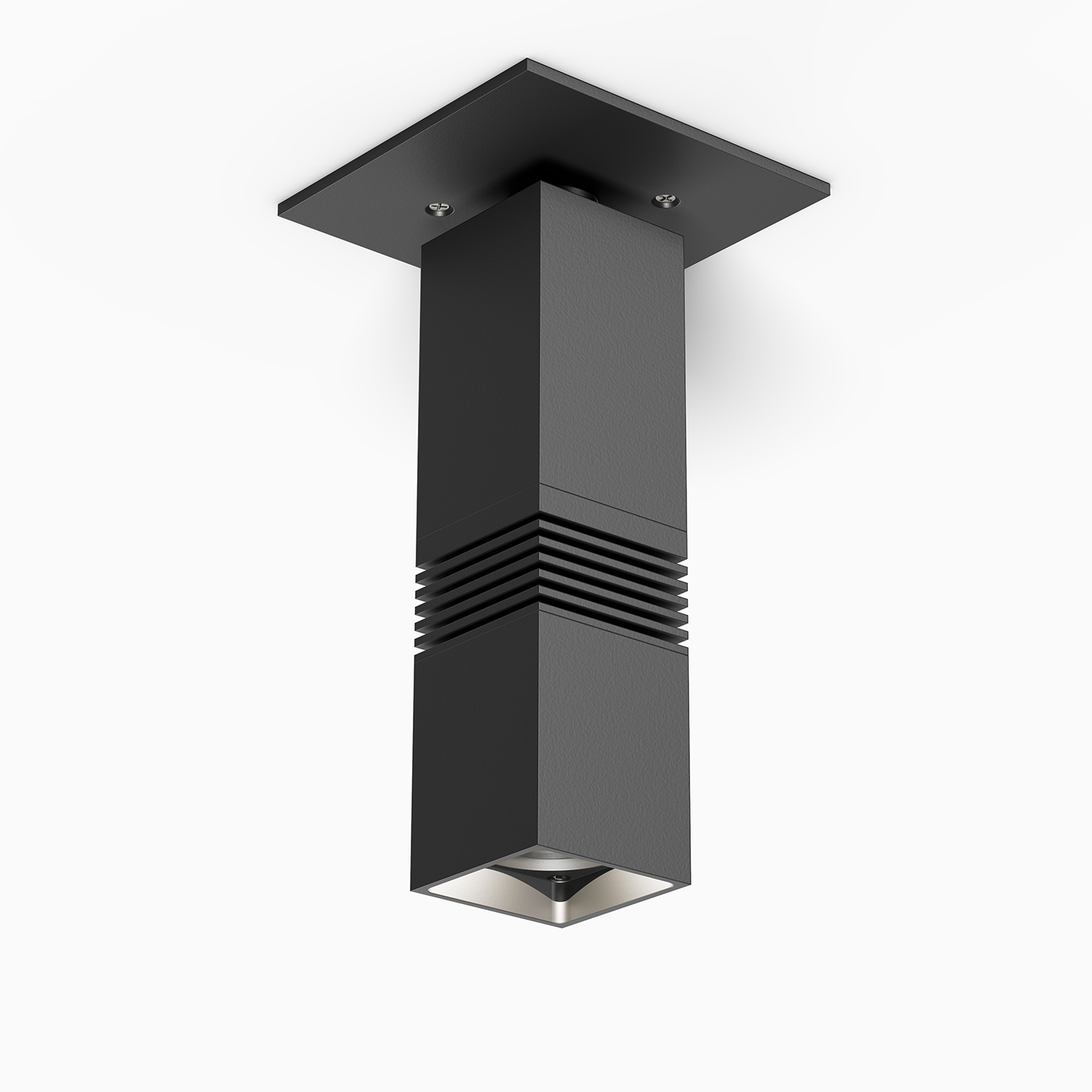

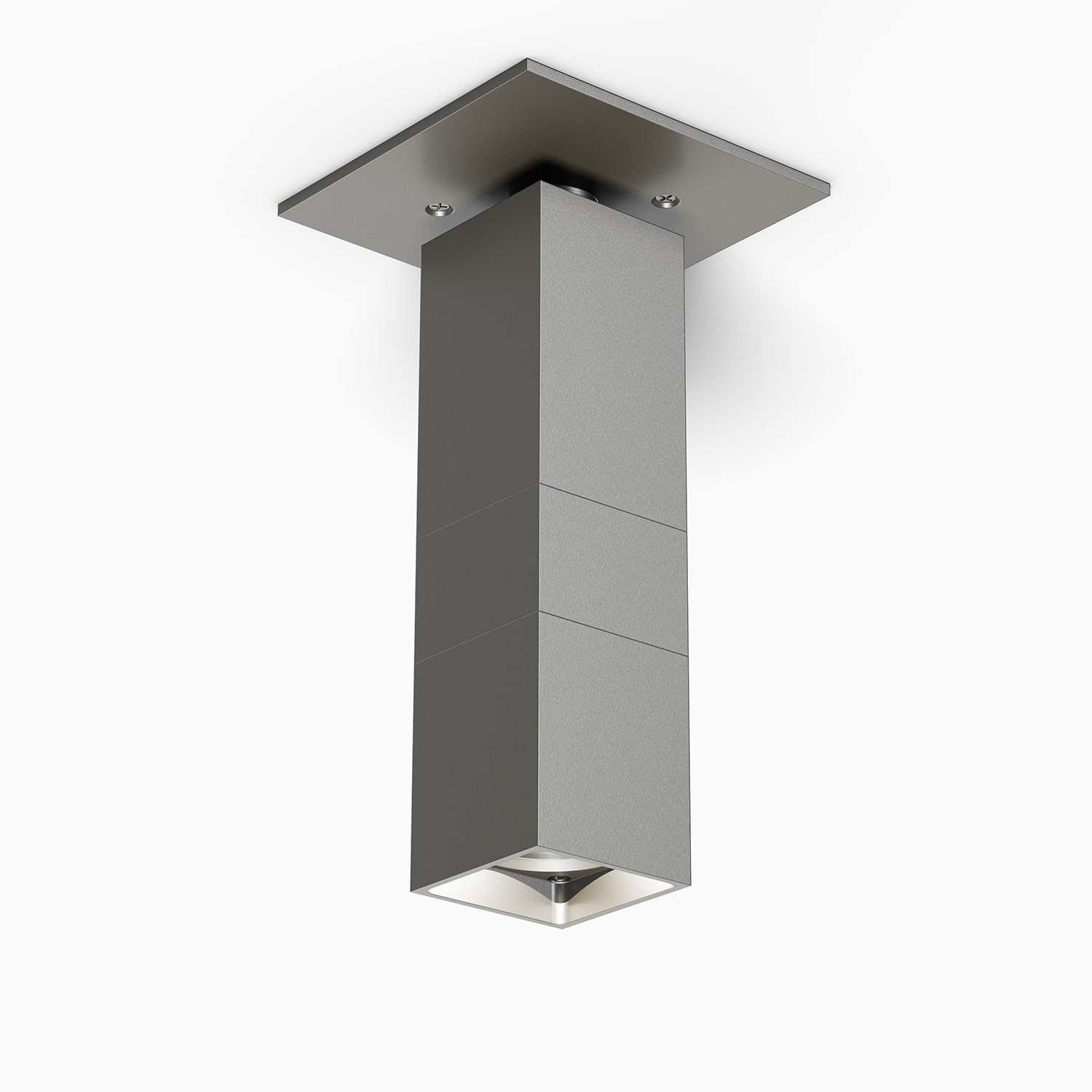

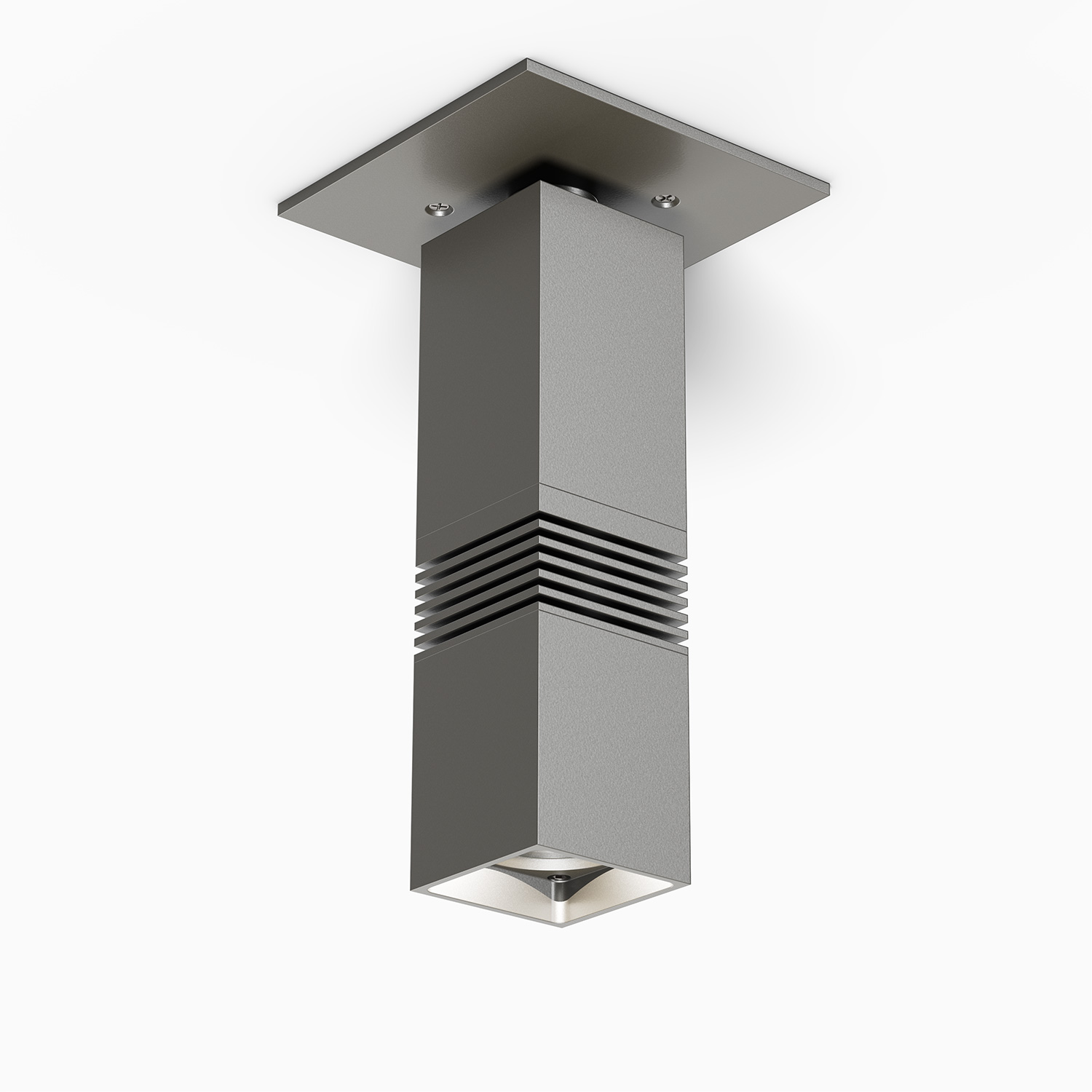

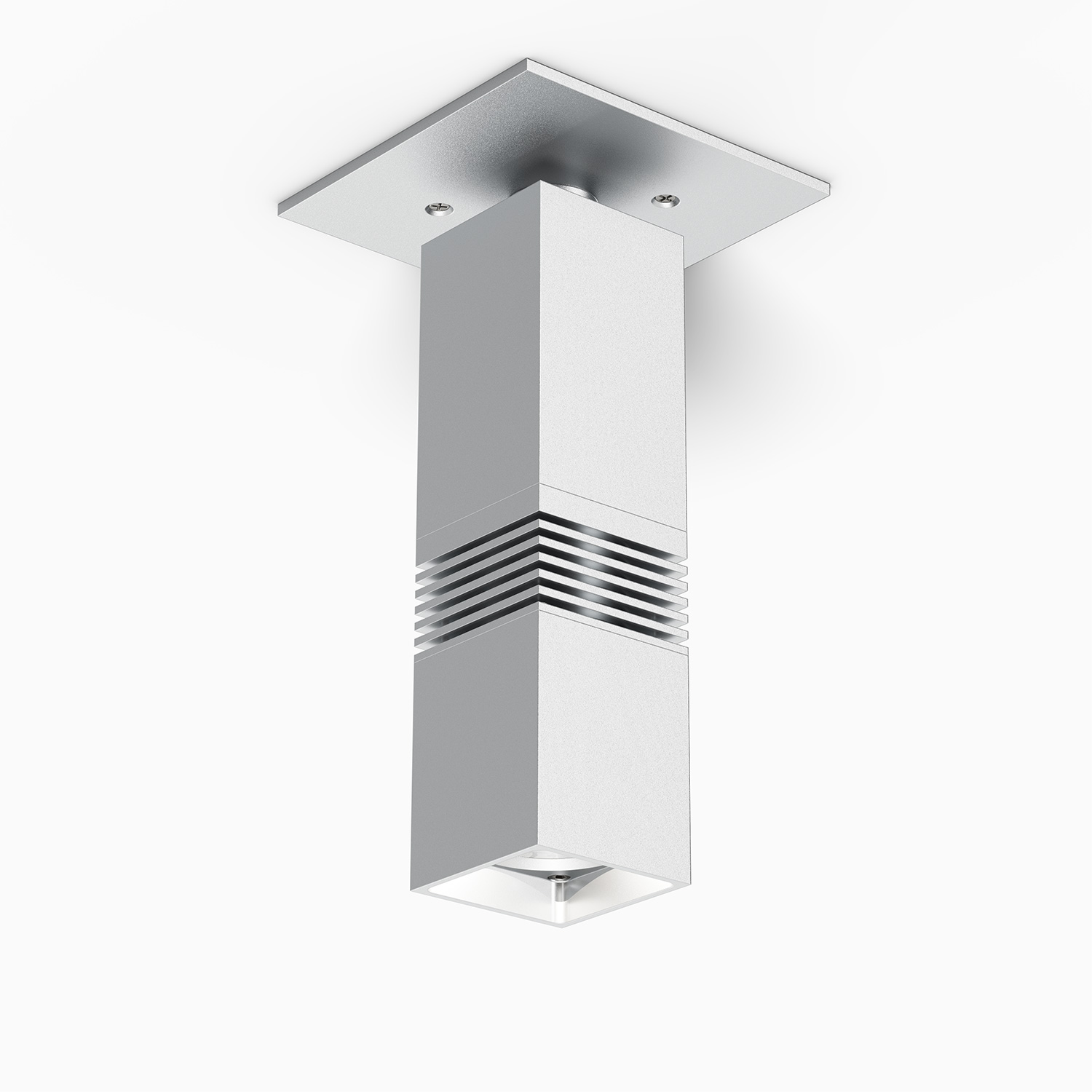

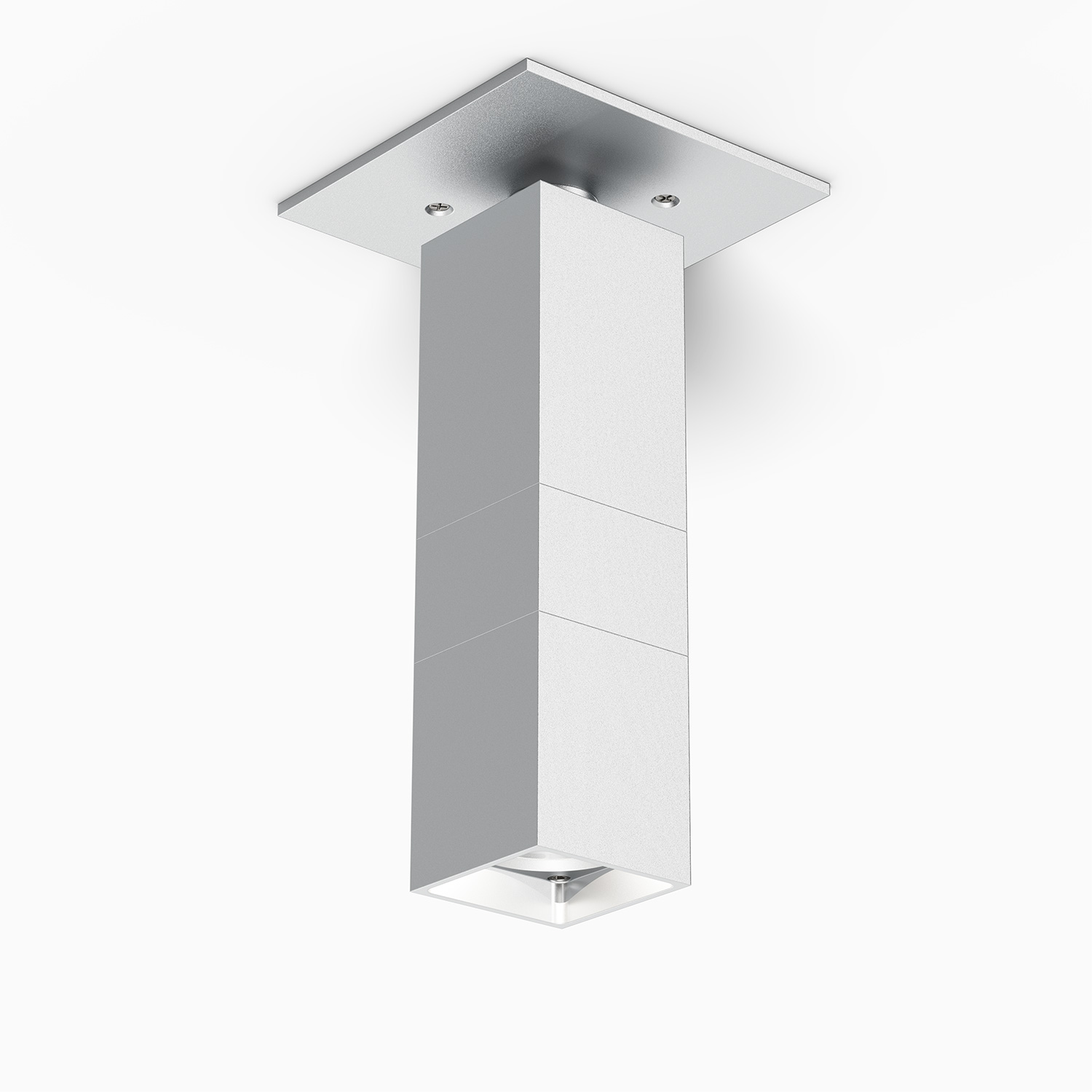

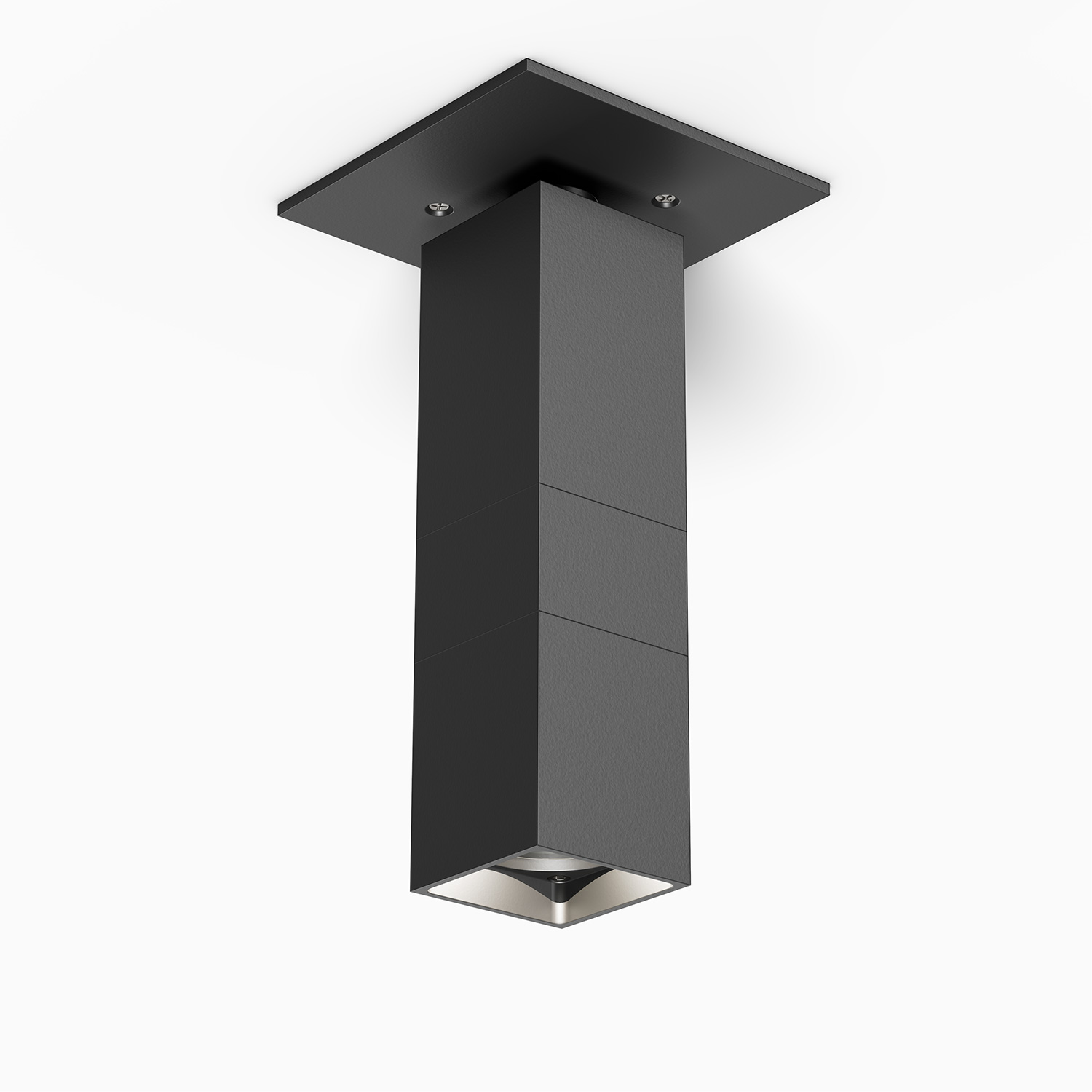

ZXL16i-CM-SQ
CEILING MOUNT | ZX16 Series | 2"
5 - 10W ( 464 - 876lm ) | 120V - 277V | Amber LED, HK LED
5 - 10W ( 464 - 876lm ) | 120V - 277V | Amber LED, HK LED
ZXL16i-CM-SQ
CEILING MOUNT | ZX16 Series | 2"
5 - 10W ( 464 - 876lm ) | 120V - 277V | Amber LED, HK LED
5 - 10W ( 464 - 876lm ) | 120V - 277V | Amber LED, HK LED
5W, 7W or 10W Ceiling mount lighting for architectural and down light application.
FEATURES:
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061- T6 corrosion resistant aluminum.
- Modular components – field changeable LED module & beam spread reflectors.
- Line voltage input with integral step down transformer in fixture housing.
- Available in turtle friendly amber model.
Specifications
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
120V, 230V or 277V AC. with integral step down transformer.
Lamp Base/Socket
Innovative cone-shaped lamp base and receptacle socket maximize the surface contact area to dissipate heat more effectively. See ‘‘Resources’’ for details.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
5, 7 or 10W HK LED. 10W Amber LED.
Optics
Accepts up to 3 accessories (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.
Glare Shield
3 optional glare shields (GSL-long, GSA angled GSS-short) for additional glare control.
Light Engine
CRI 83. Available in CRI95 upon request. The chromaticity range is within a 3-step McAdam Ellipse. Standard CCT options are 2700K, 3000K, 4000K.
Mounting
Utilizes 2x 8-32 UNC machine screws (provided) to attach to a standard octagon recessed back box (provided by others).
Dimming
0V - 10V dimming, phase dimming @120V.
