Additional information

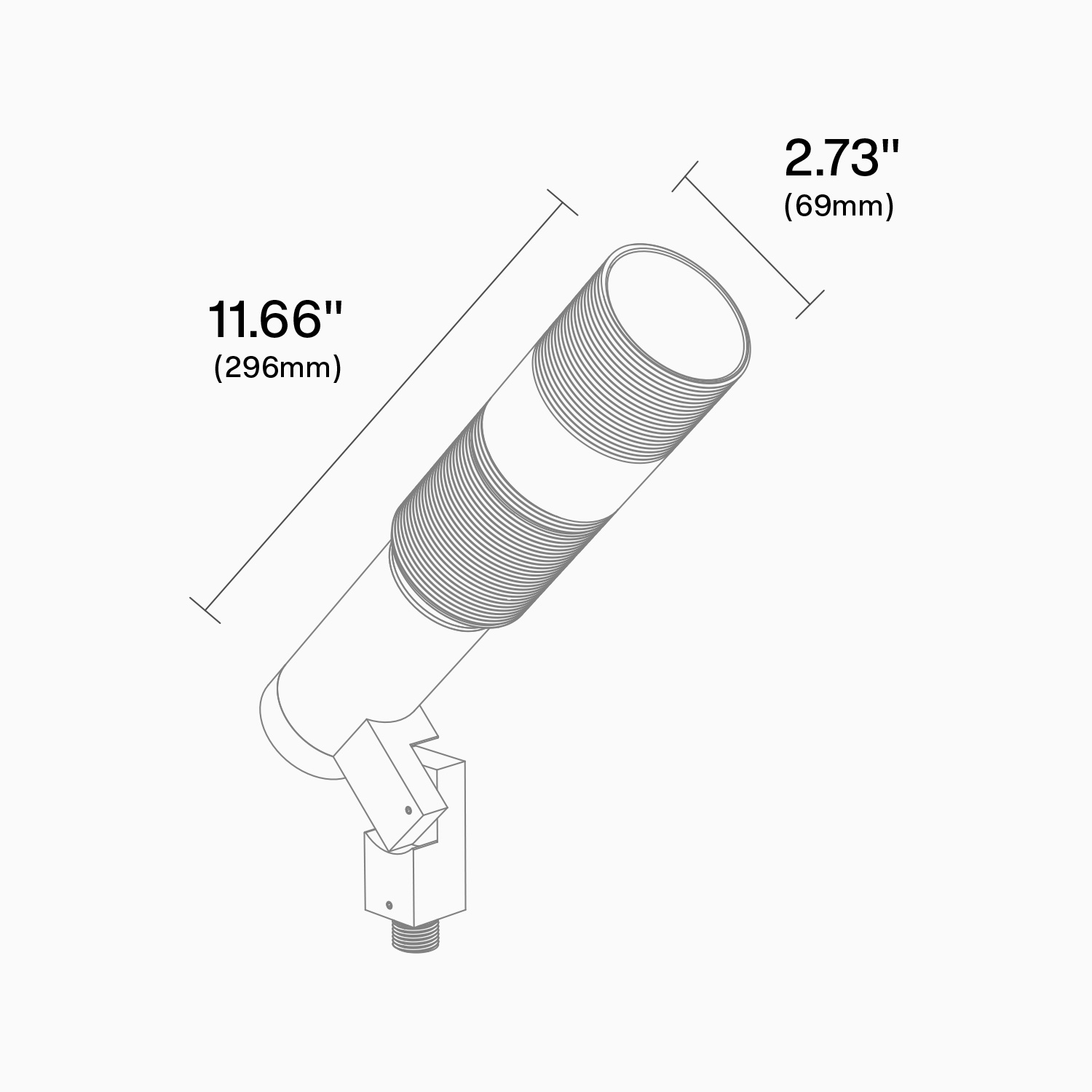

| Dimensions | 2.73 × 11.66 in |
|---|---|
| Light Source | |
| Shape | |
| Input Voltage |
ZXL16i-IP
Image Projector • ZX16-IP Series
ZXL16i-IP
Image Projector • ZX16-IP Series

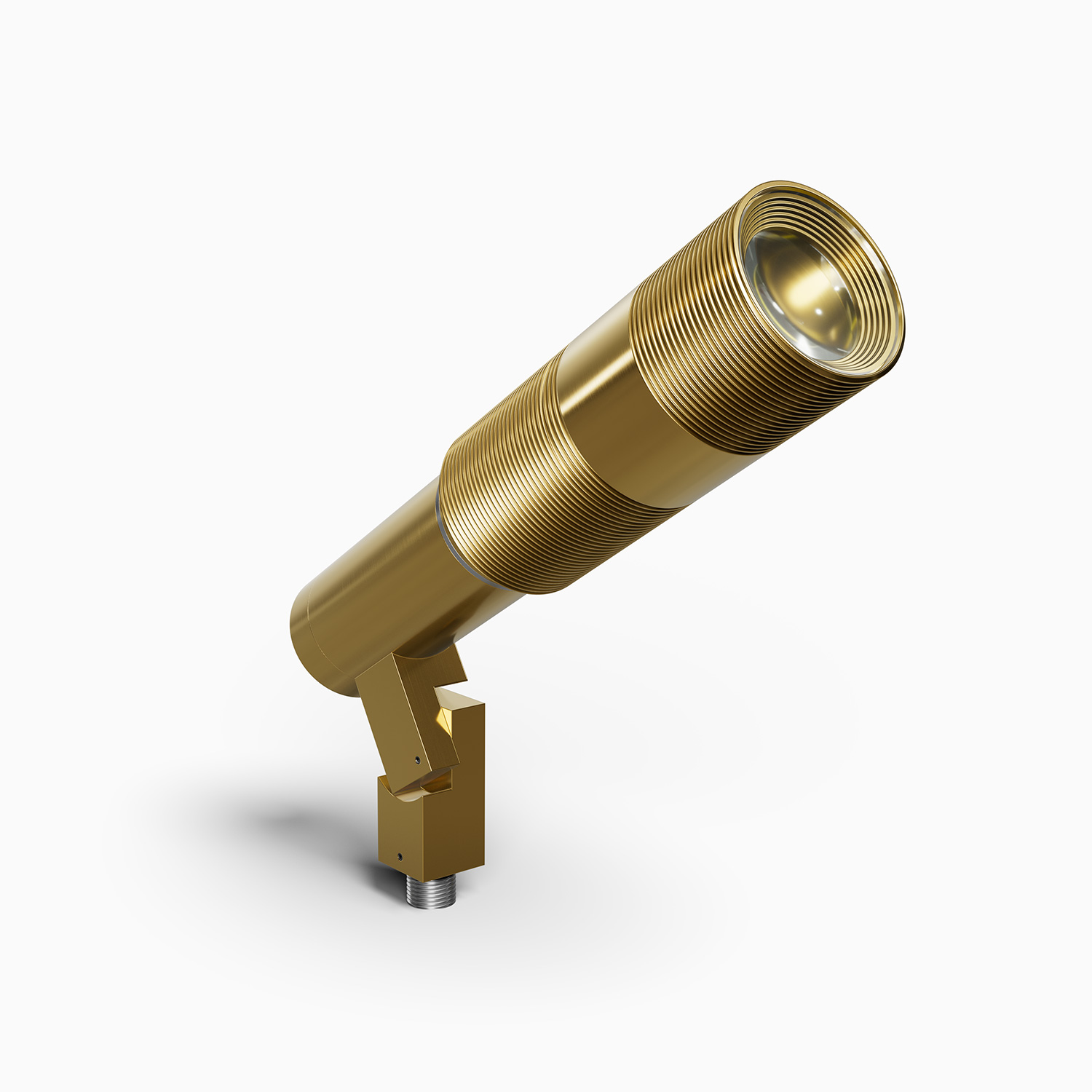

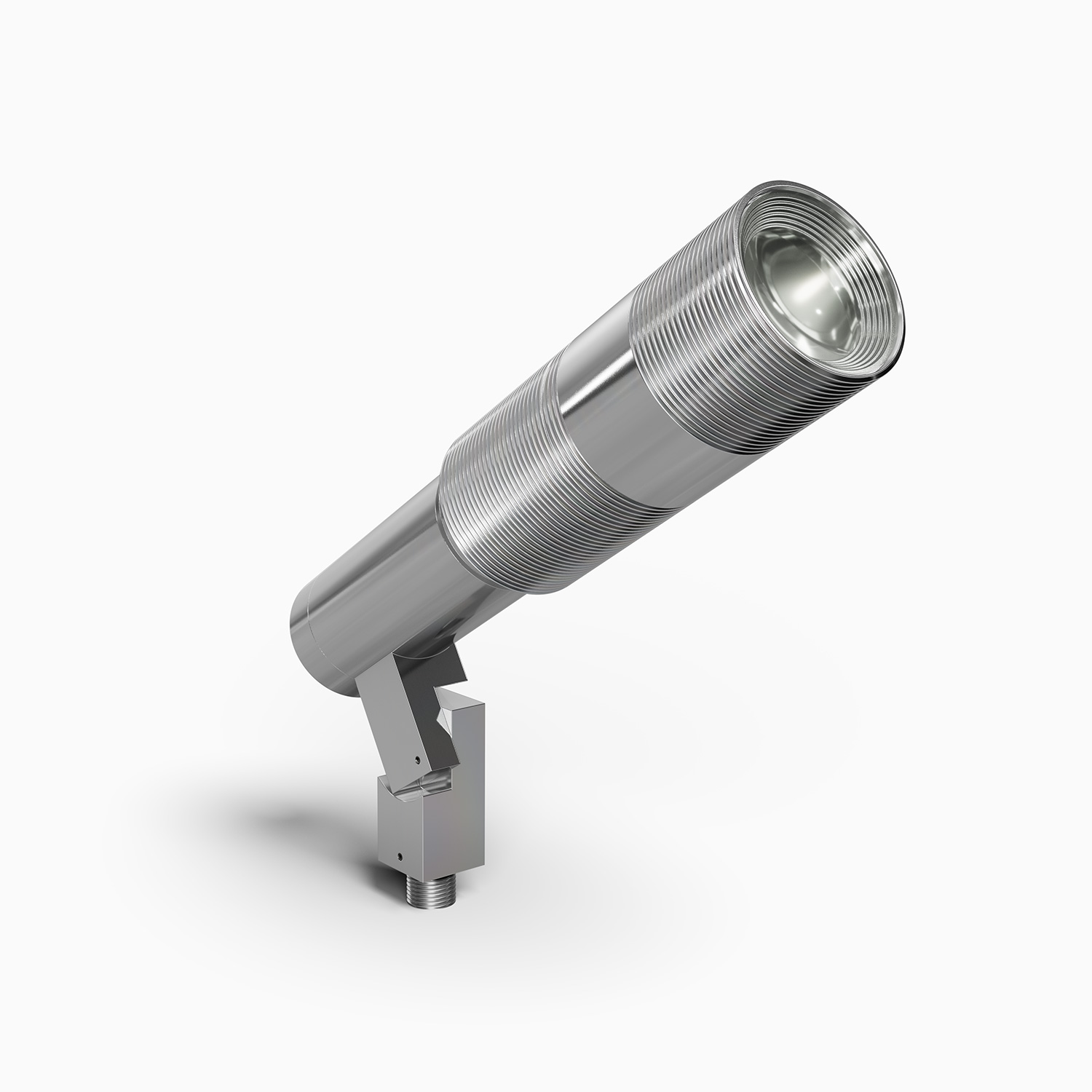

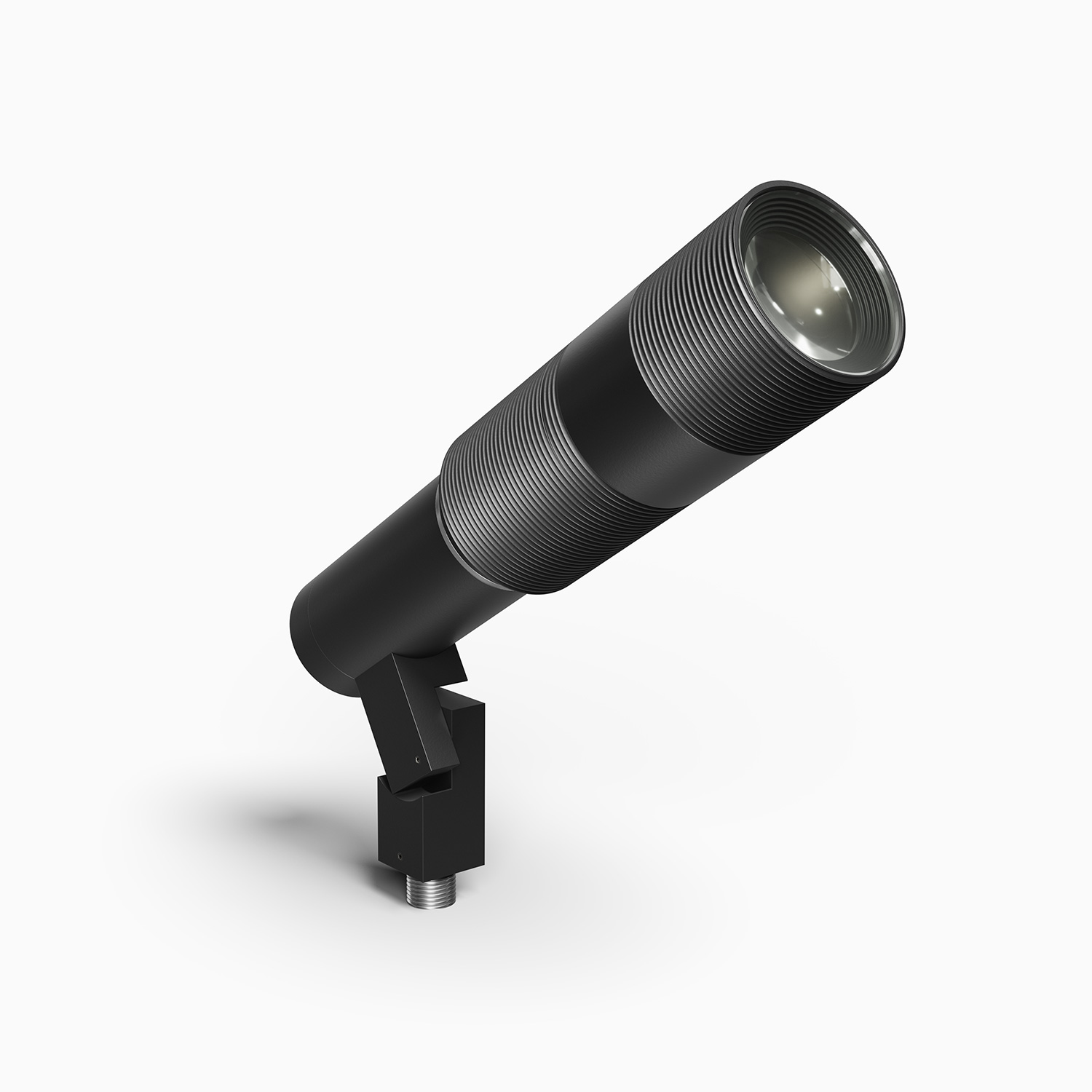

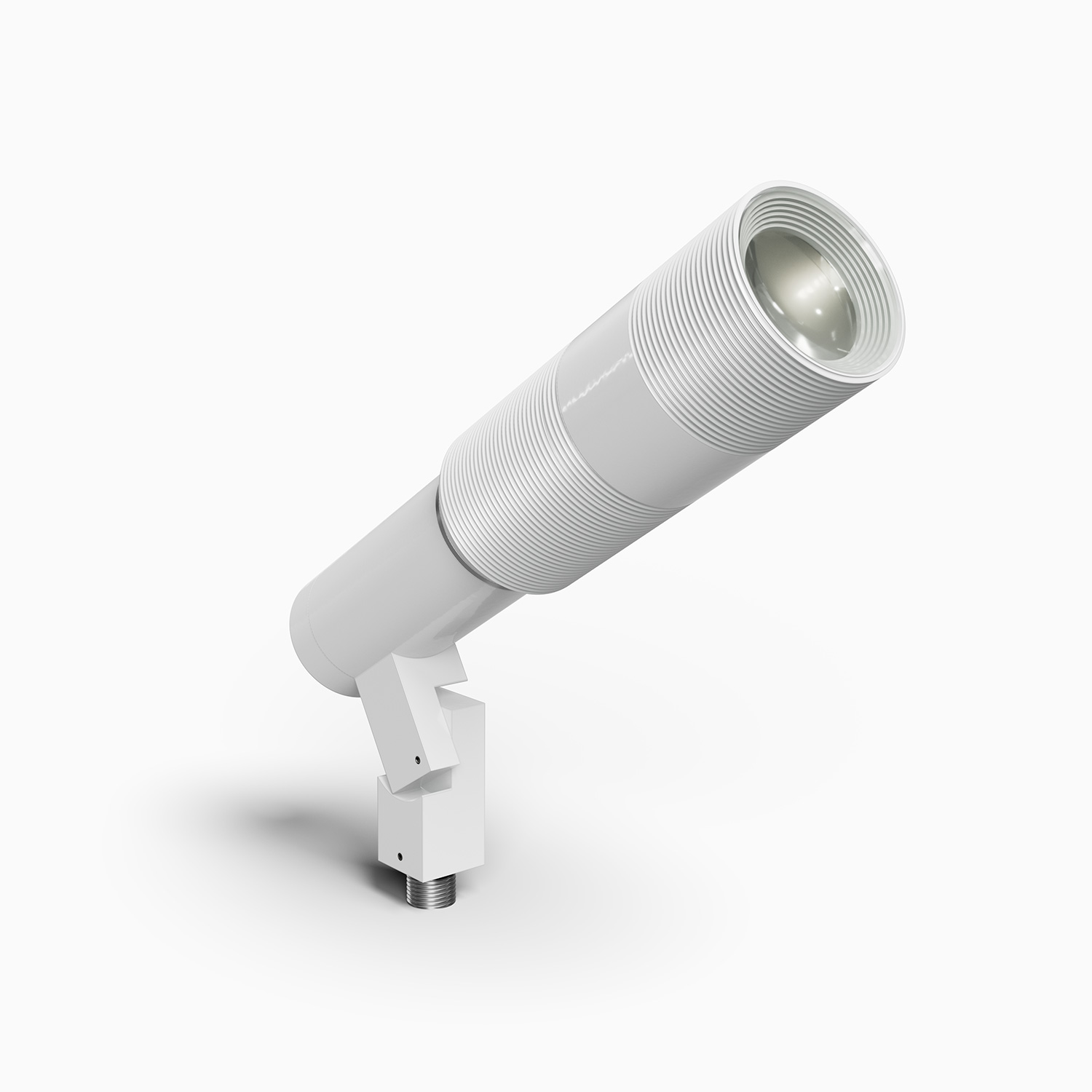

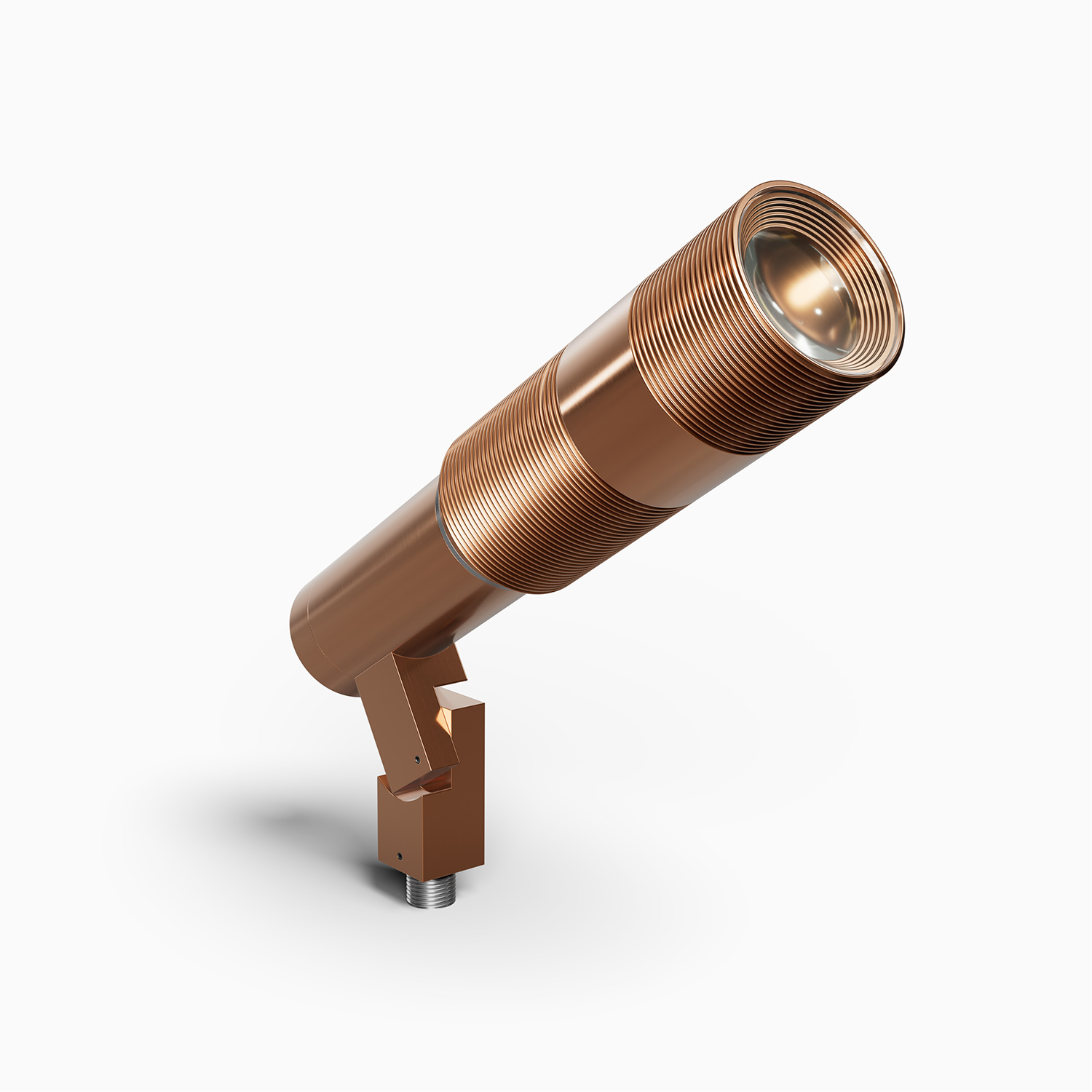

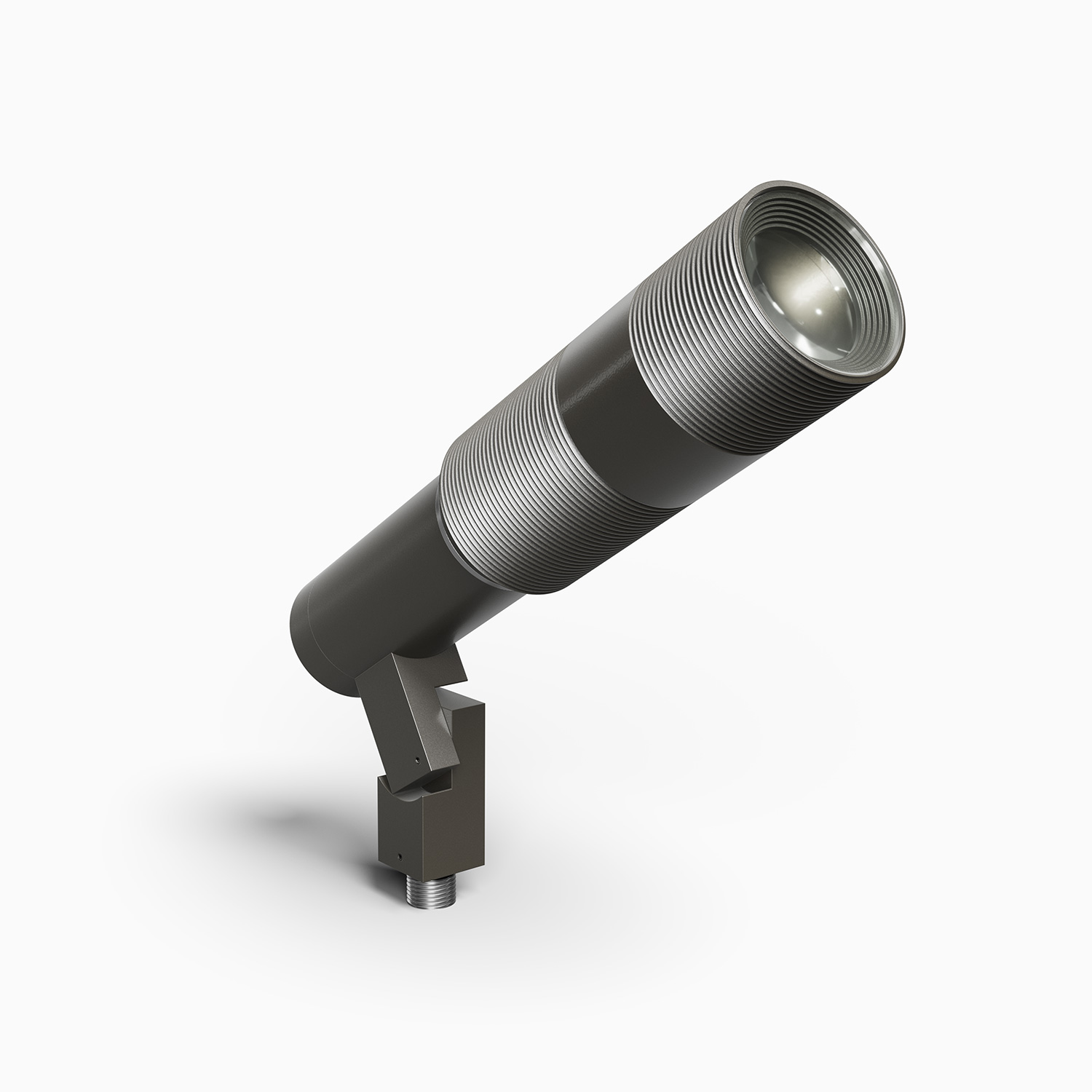

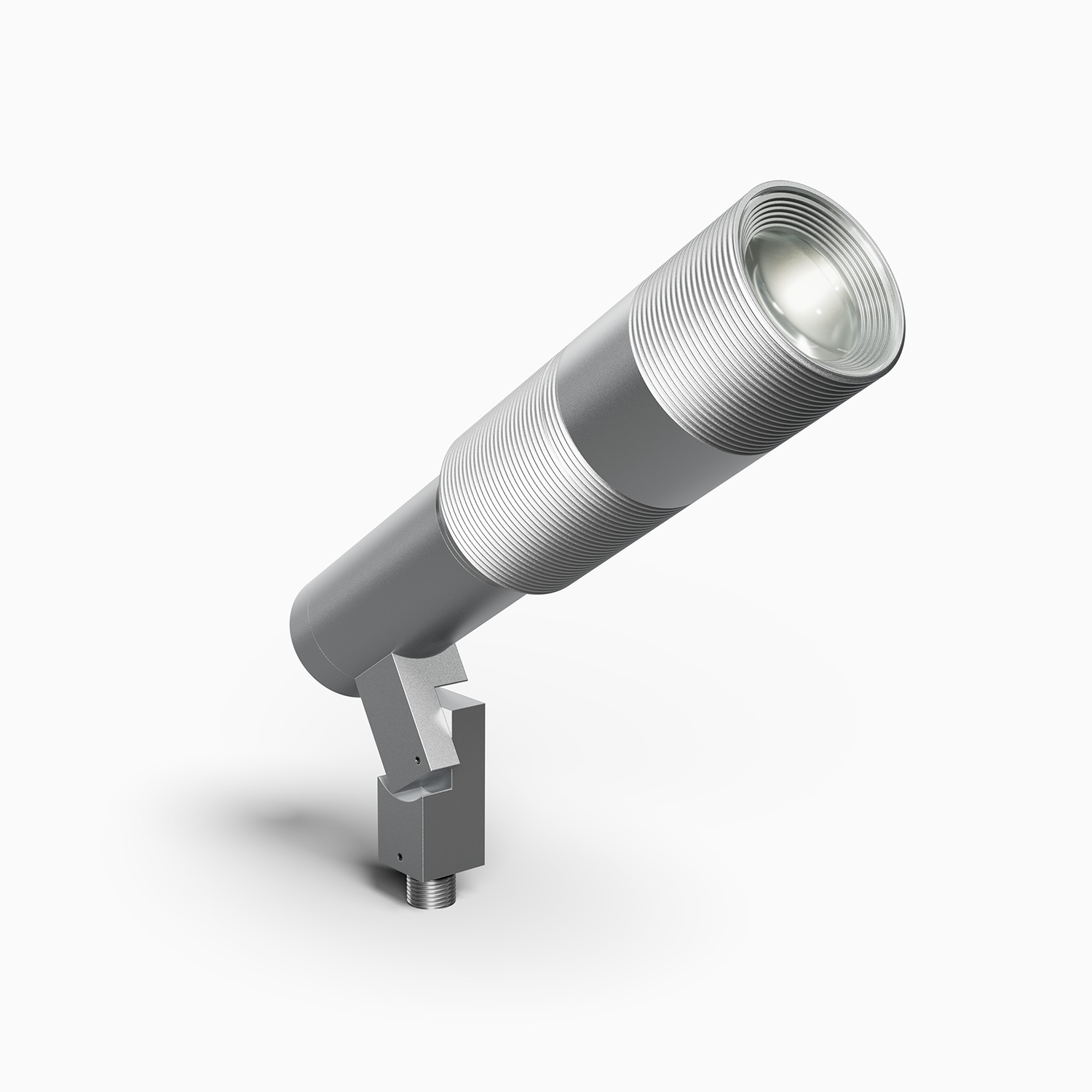

2" LED line voltage image projector
FEATURES:
- Small LED Image projector using GOBO, color filter or colorizer for outdoor or indoor application.
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
- 180° vertical and 360° horizontal adjustment via unique swivel stem design.
- Modular components – field changeable LED module & GOBO accessories.
- Line voltage input with integral step down transformer in fixture housing.
Specifications
Materials
Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
120V, 230V or 277V AC.
Lamp Base/Socket
Innovative cone-shaped lamp base and receptacle socket maximize the surface contact area to dissipate heat more effectively. See ‘‘Resources’’ for details.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed.
Wattage
7W, 10W or 14W HK LED.
Optics
Accepts combinations of accessories ( including colorizer, color filters, steel gobo etc.). Secured in place with metal snap ring.
Glare Shield
3 optional glare shields(GSL-long, GSA-angled, GSS-short) for additional glare control. (See page 3 on Spec Sheet for details).
Light Engine
CRI 83. Available in CRI95 upon request. The chromaticity range is within a 3-step McAdam Ellipse. Standard CCT options are 2700K, 3000K, 4000K.
Mounting
Mounts using 1/2"-14 NPS male fitting compatible with all HK Lighting Group mounting devices.
Dimming
Phase dimming @120V, 0V - 10V dimming @120V - 277V.
GOBO Size
(See data on second page of Spec Sheet).
Compatible Accessories
