Additional information
| Light Source | |
|---|---|
| Shape | |
| Lumen Output | |
| Input Voltage | |
| Wattage |

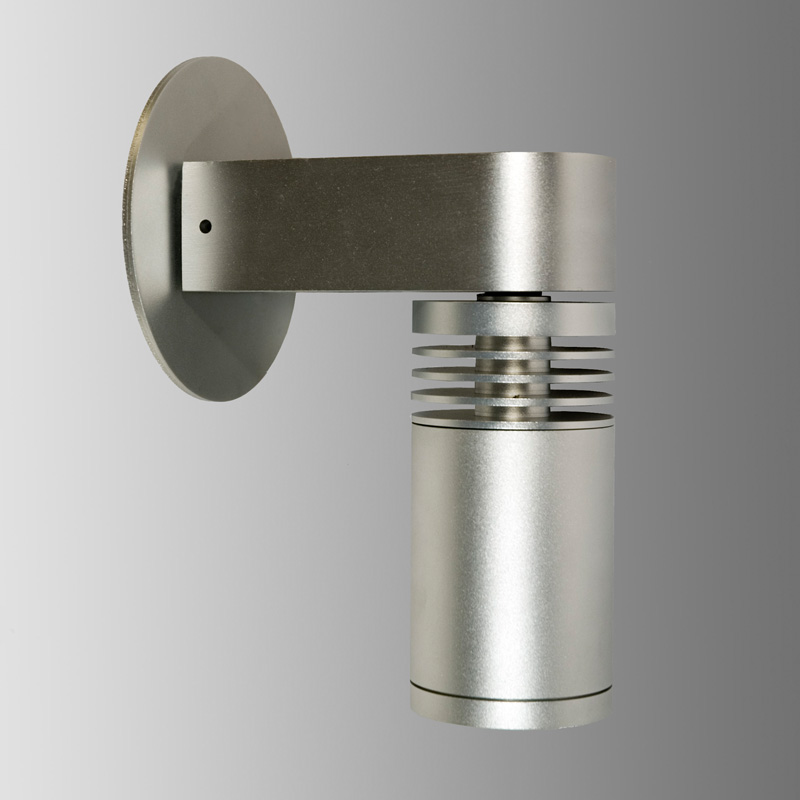

ZXL20i-WM
Wall Mount • ZX20-WM Series
ZXL20i-WM
Wall Mount • ZX20-WM Series
FEATURES:
- Fixed angle LED wall mount up light or down light with mounting canopy.
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
- Swivel stem insert allows for precision adjustment during installation.
- Unique weep hole design in hood allows for either upward or downward facing installation with minimum light leak.
- Modular components – field changeable LED module & beam spread reflectors.
- Available in turtle friendly amber model.
Specifications
Materials

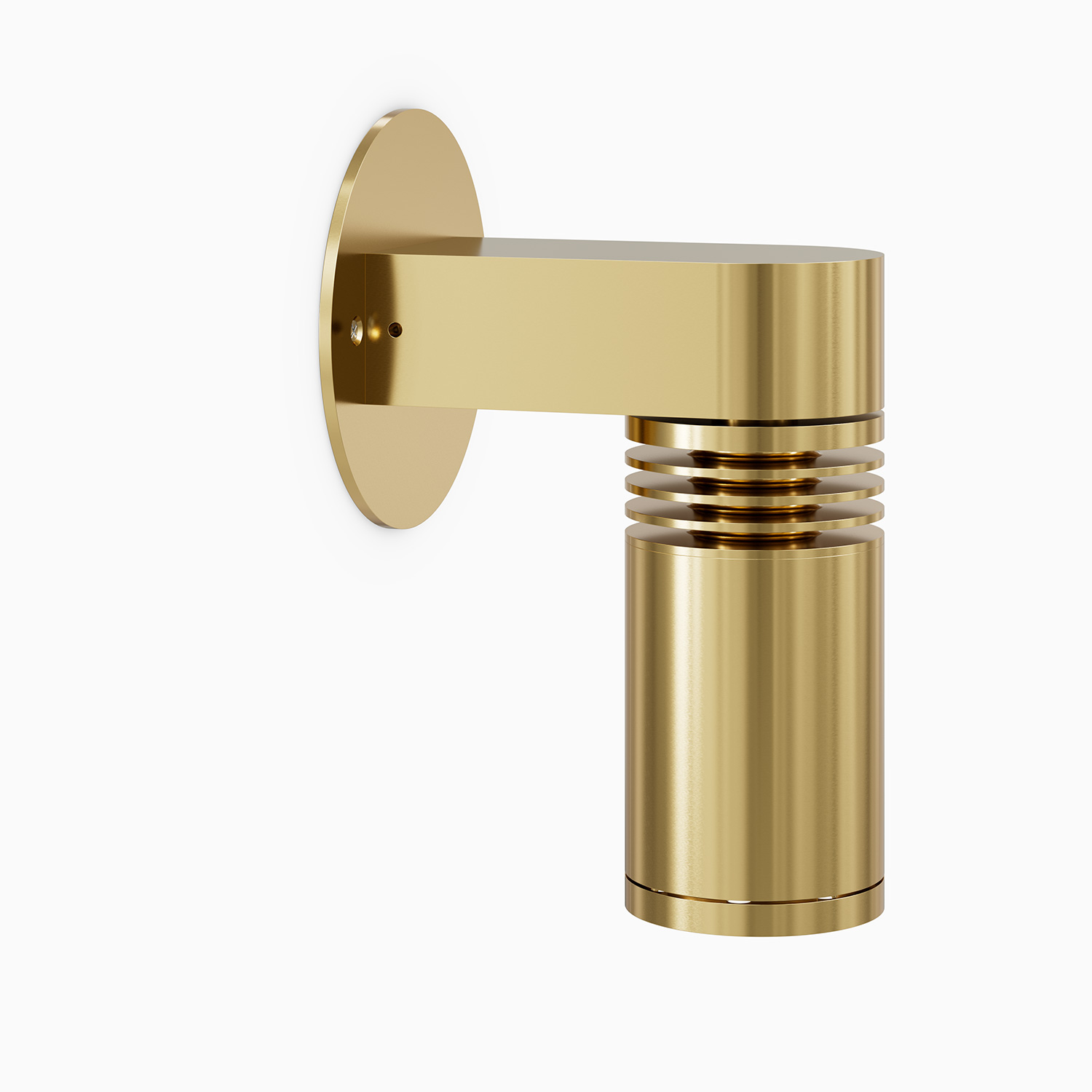

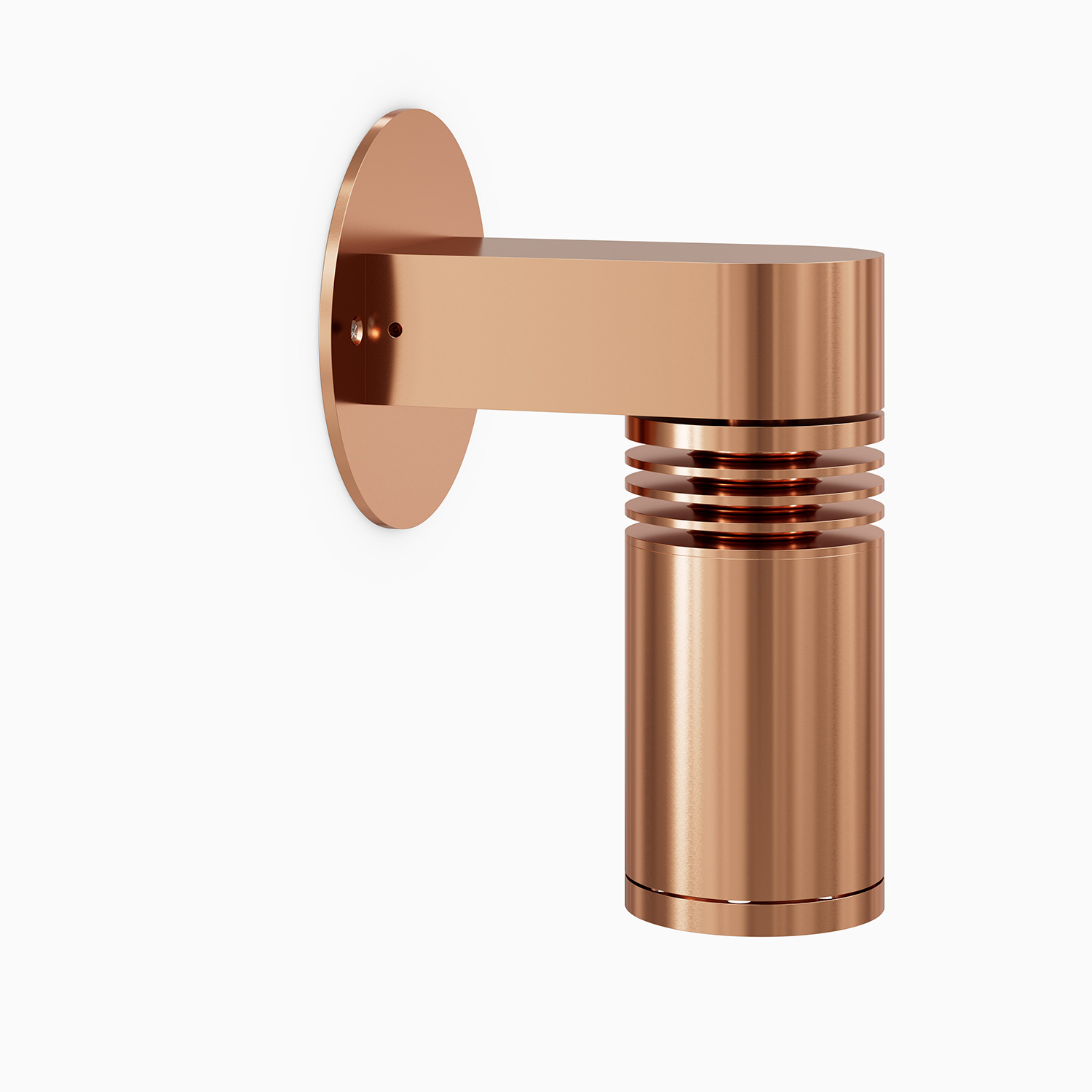

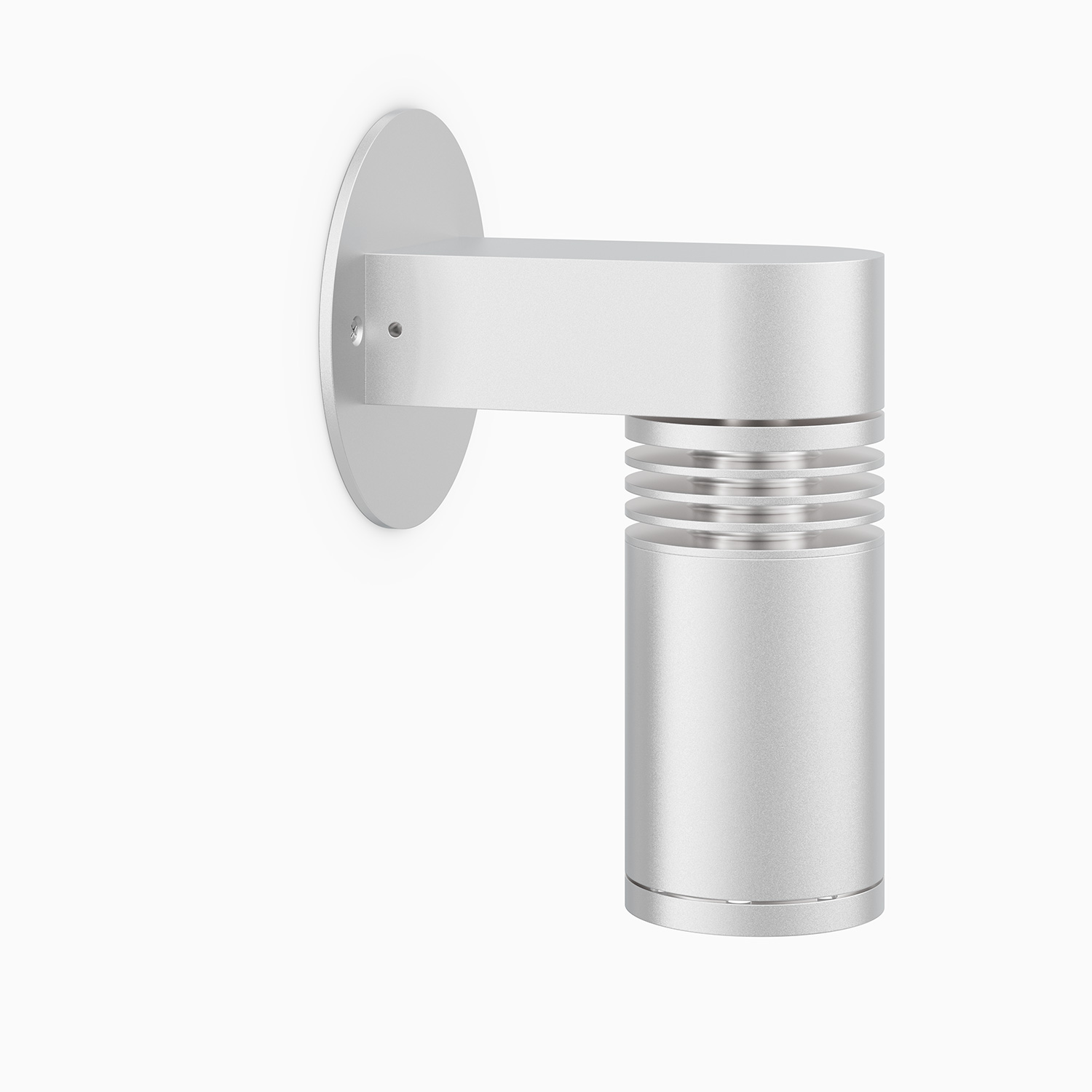

Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
Universal 120V - 277V AC with integral LED driver.
Lamp Base/Socket
Innovative cone-shaped lamp base and receptacle socket maximize the surface contact area to dissipate heat more effectively. See ‘‘Resources’’ for details.

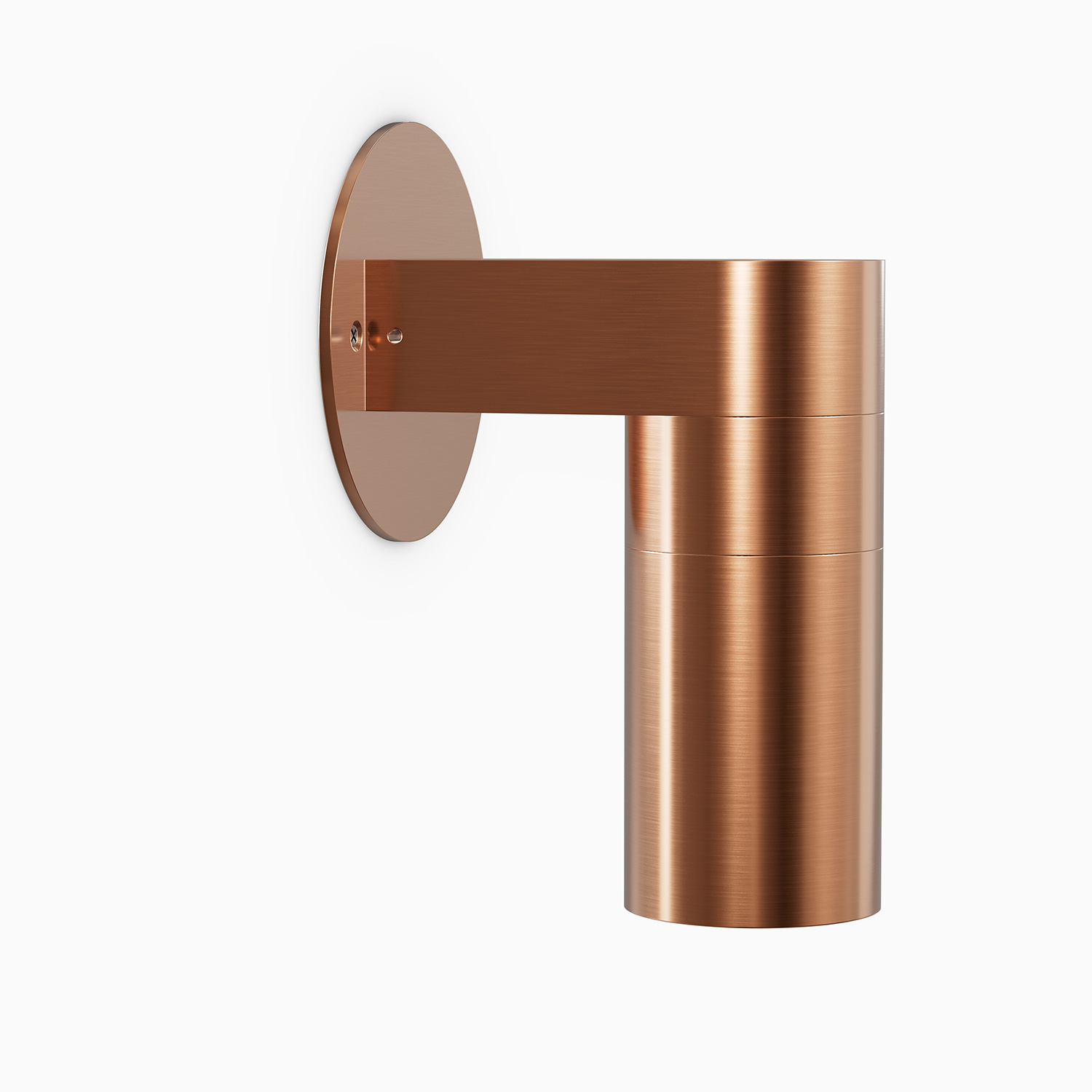

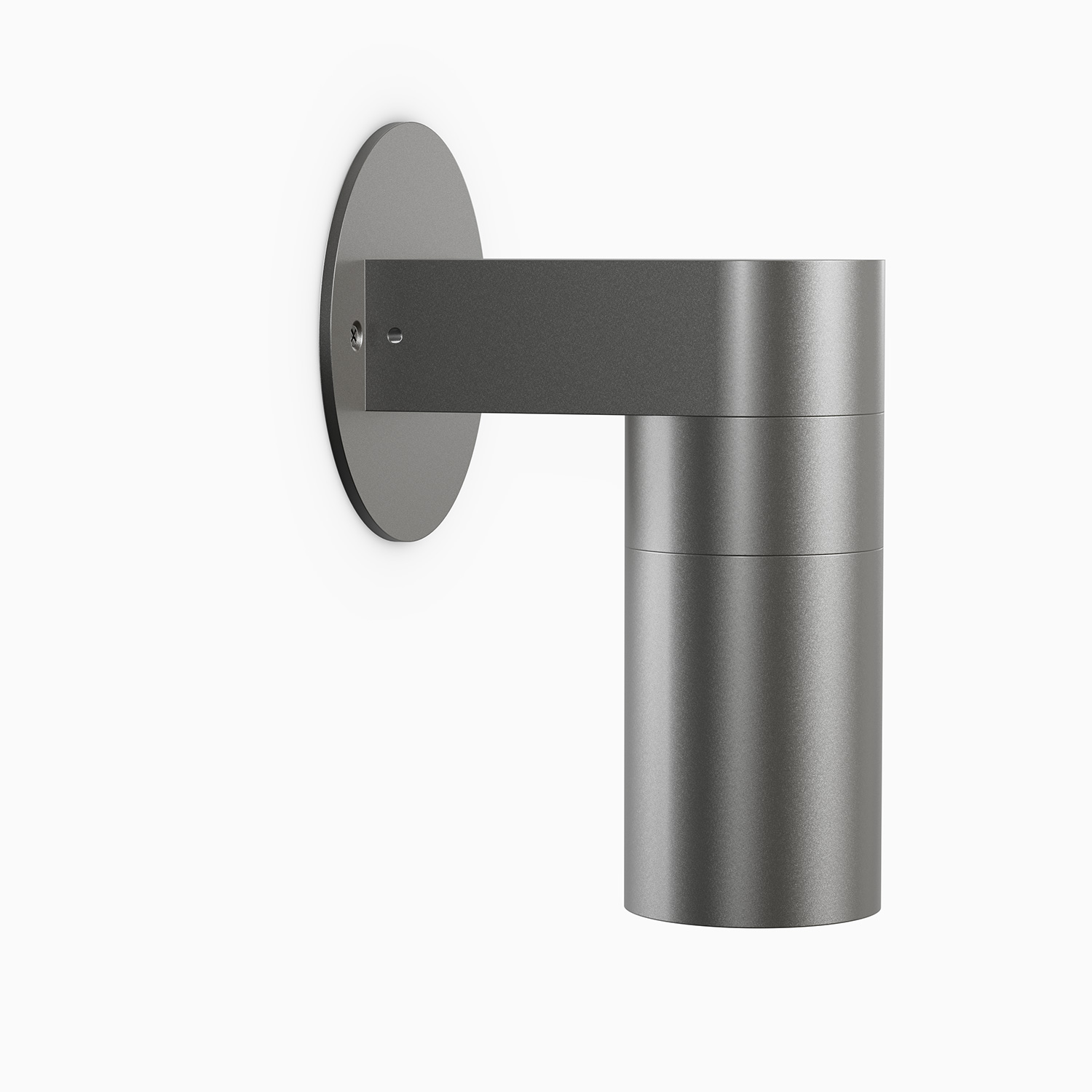

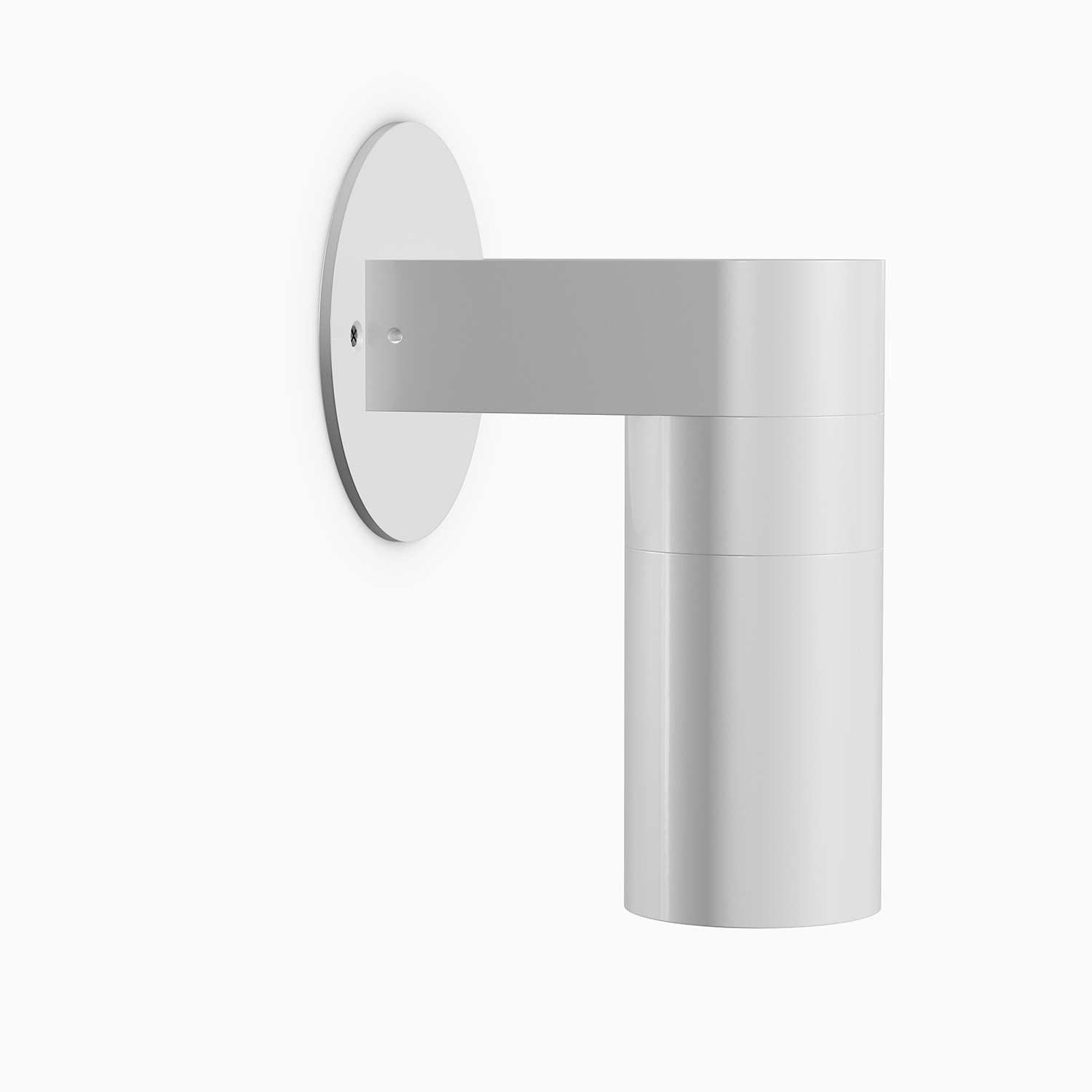

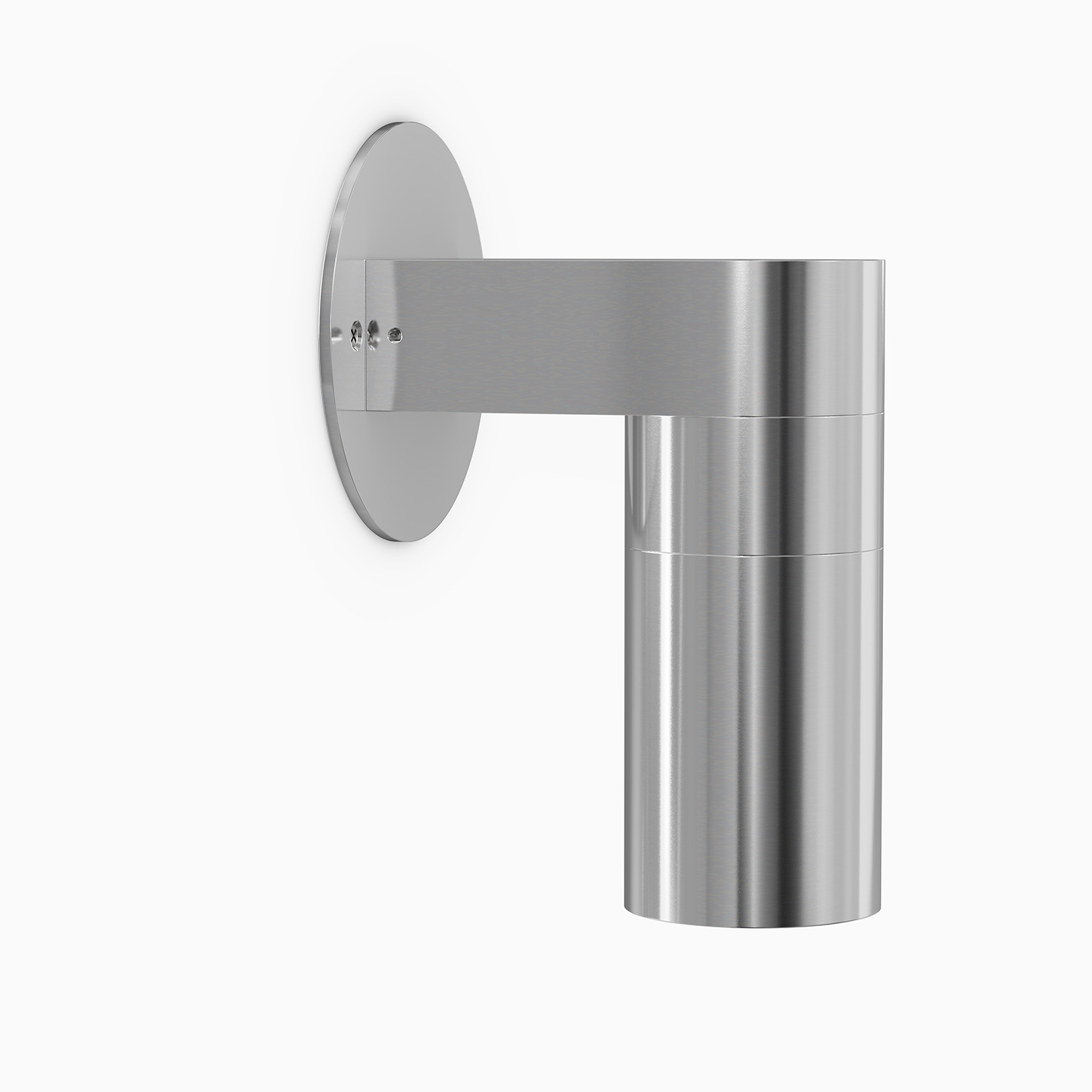

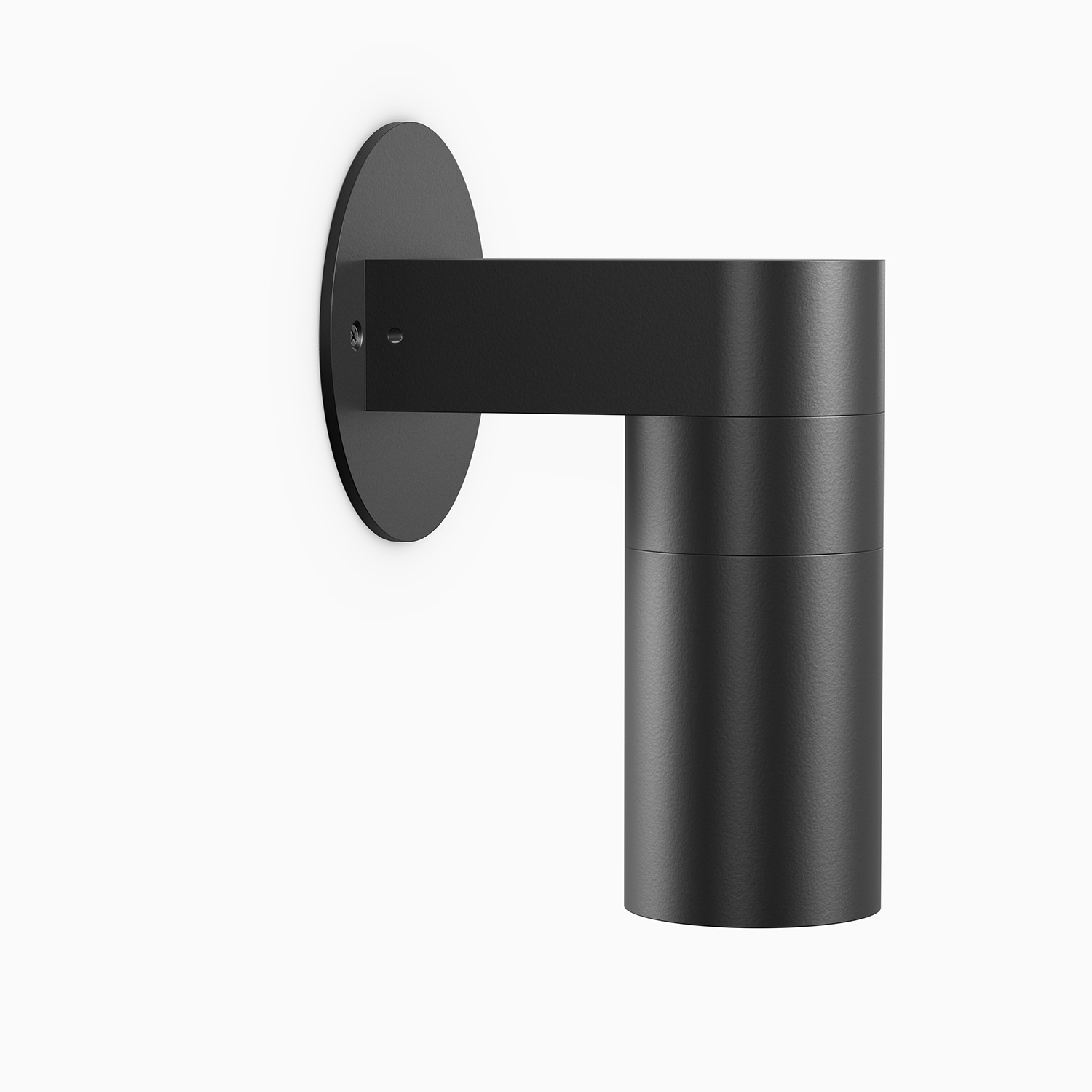

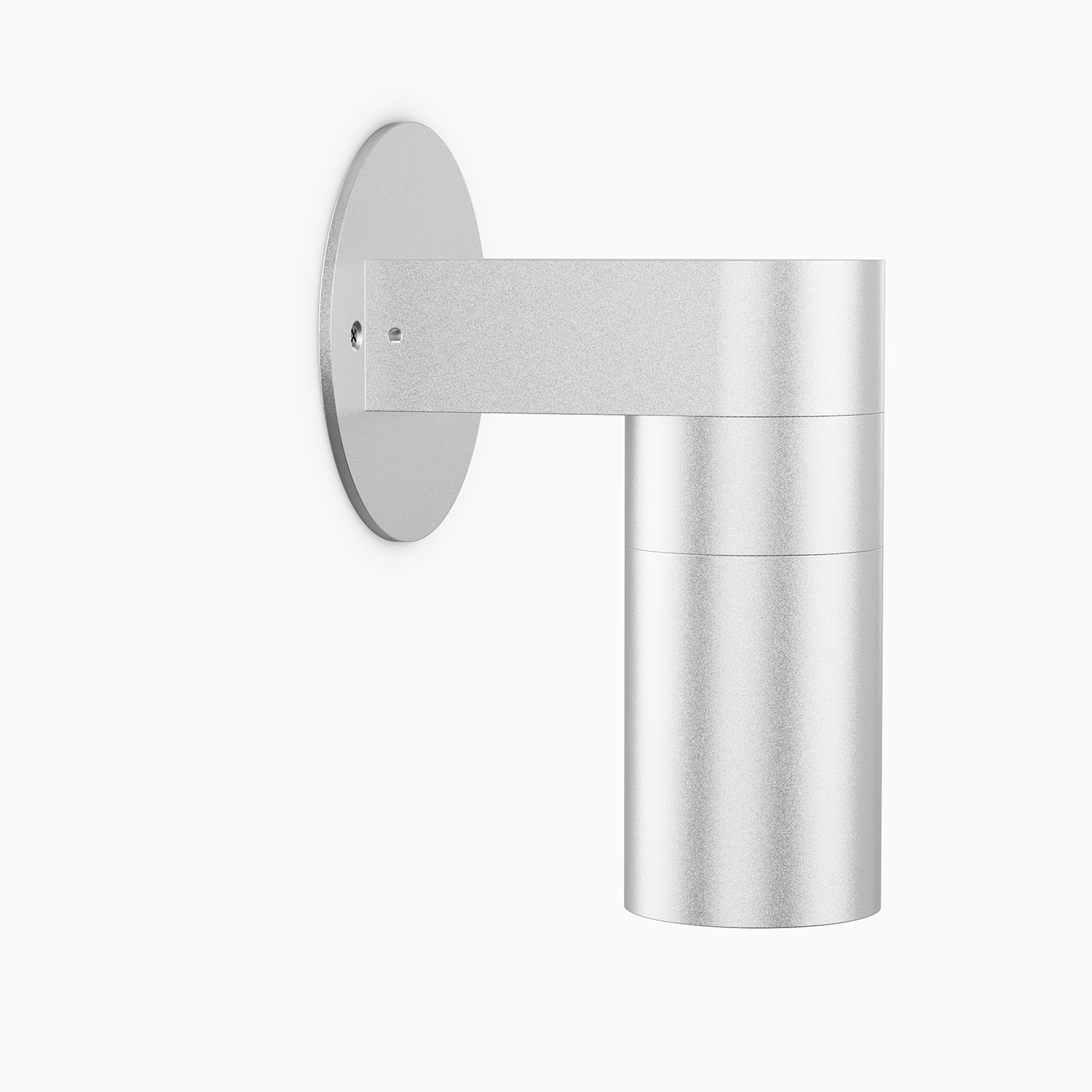

Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
20W, 28W Nichia LED, 16W for Amber LED or 18W Xicato LED
Optics
Accepts up to 3 accessories (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.
Hood and Glare Shield
3 available hood options to suit any application. 3 optional glare shields (short, long, angled) to complement each hood choice. (See page 3 of Spec Sheet for details).
Light Engine
CRI 83. Available in CRI95 upon request. The chromaticity range is within a 3-step McAdam Ellipse. Standard CCT options are 2700K, 3000K, 4000K. RGBW.
Mounting
Utilizes 2x 8-32 UNC machine screws (provided) to attach to a standard octagon recessed back box (provided by others)
Dimming
Standard with 0V - 10V dimming or phase dimming @120V.
Compatible Accessories
