Additional information

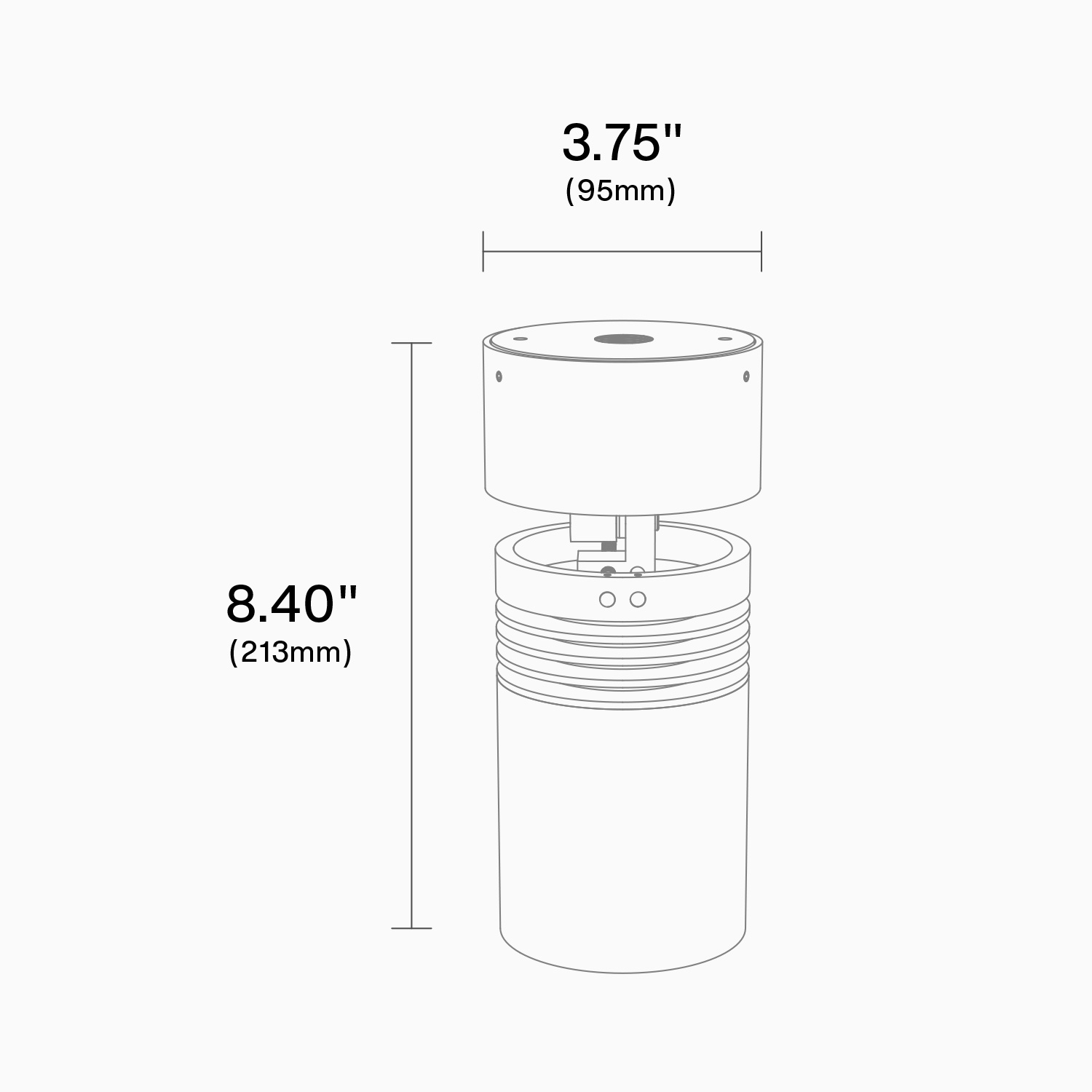

| Dimensions | 3.5 × 8.4 in |
|---|---|
| Light Source | |
| Shape | |
| Lumen Output | |
| Input Voltage | |
| Wattage |
ZXL25i-CM-ADJ
Products • Ceiling Mount
ZXL25i-CM-ADJ
Ceiling Mount

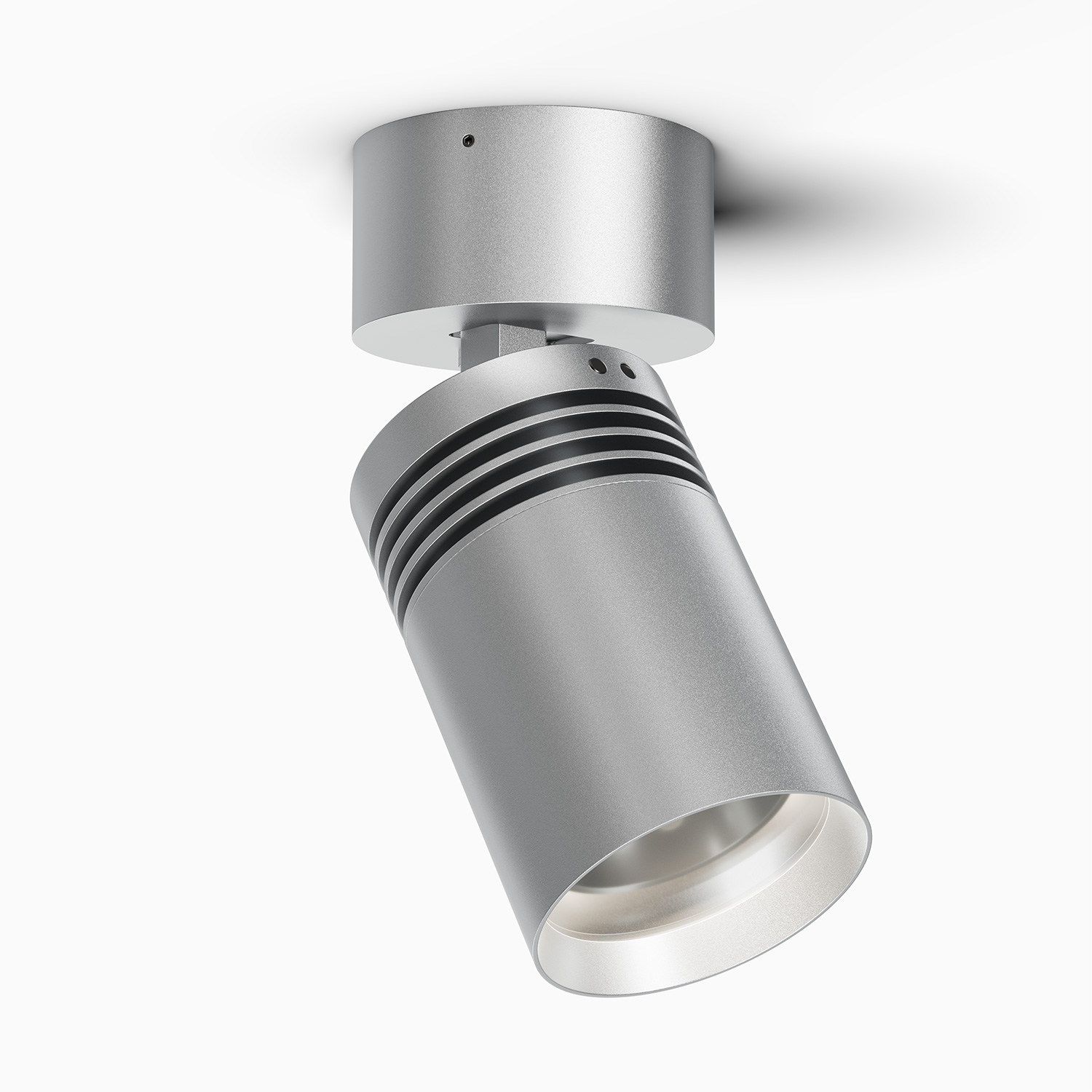

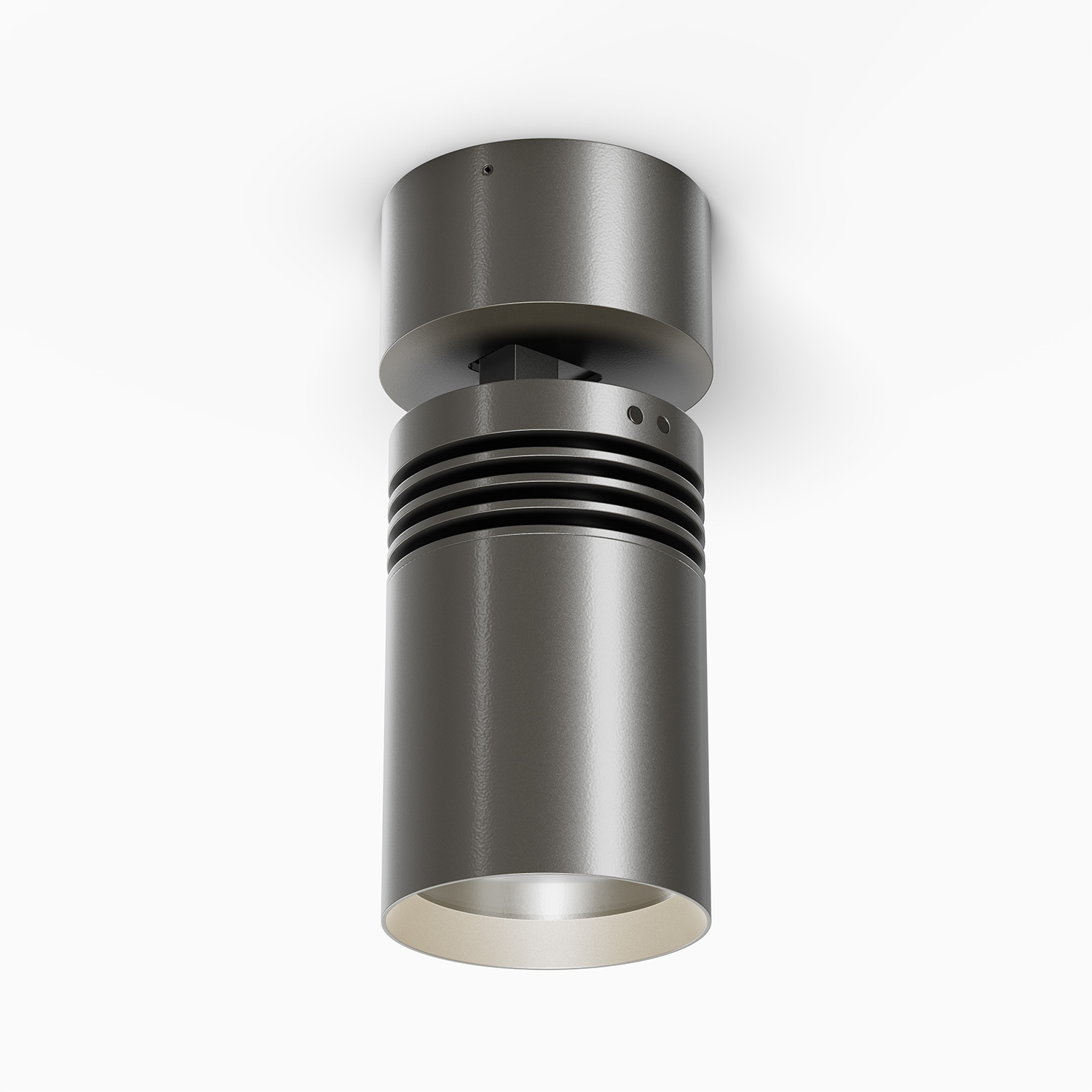

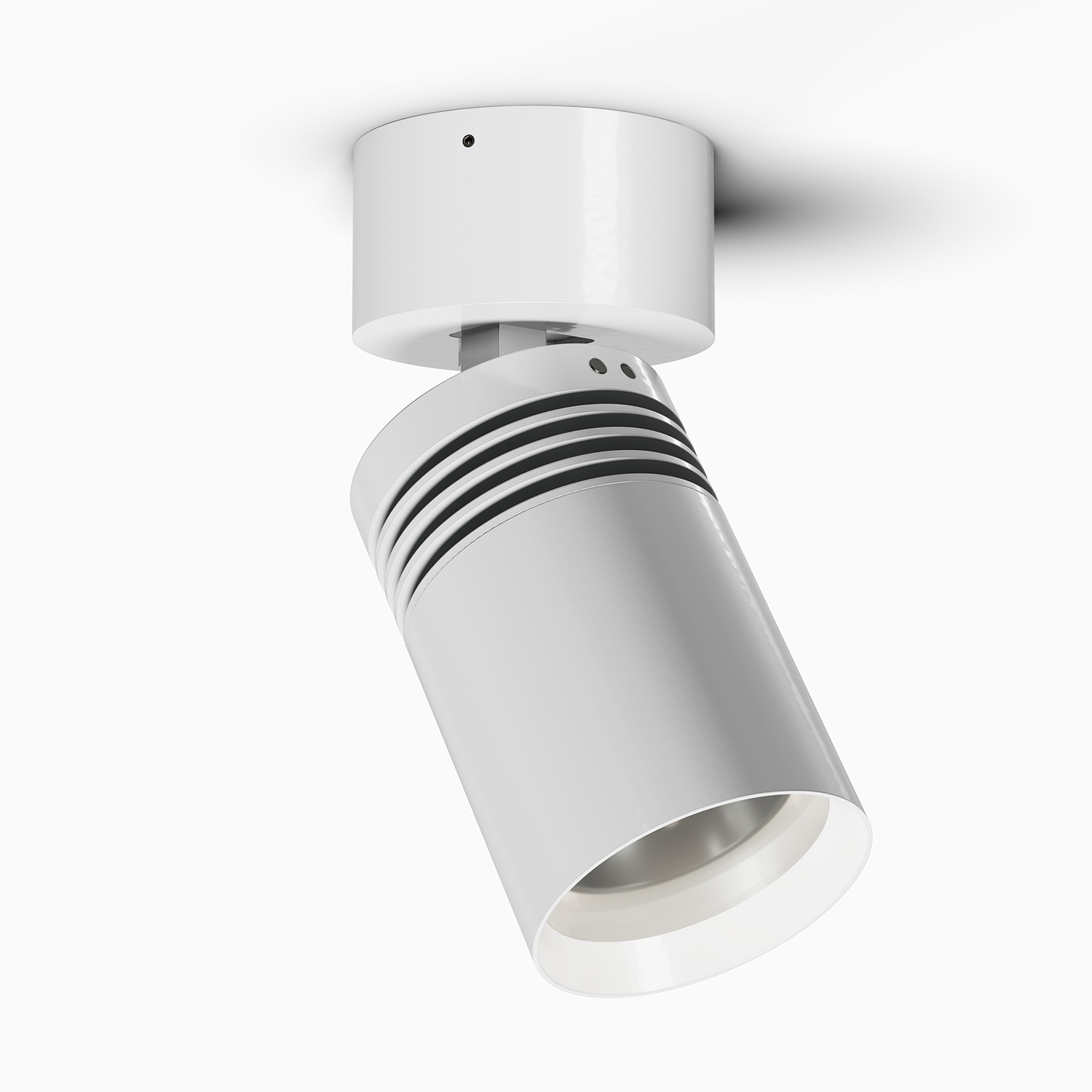

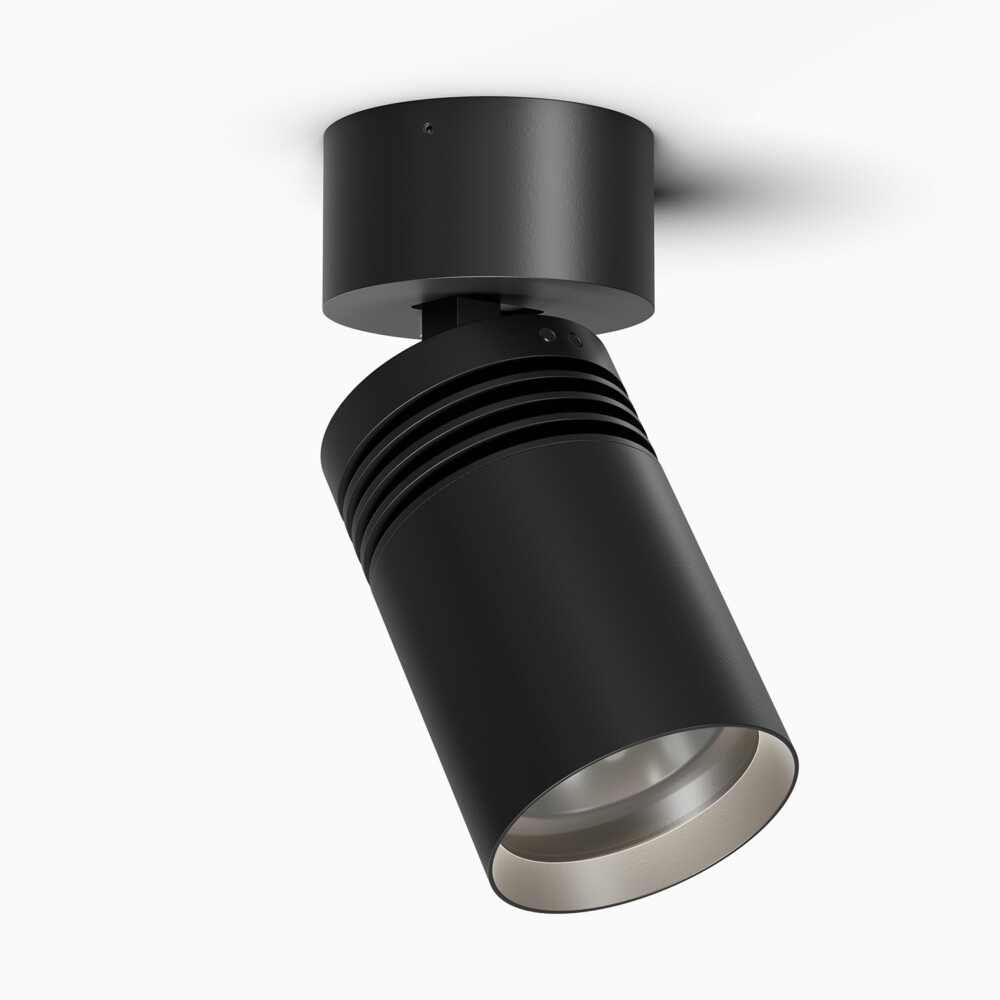

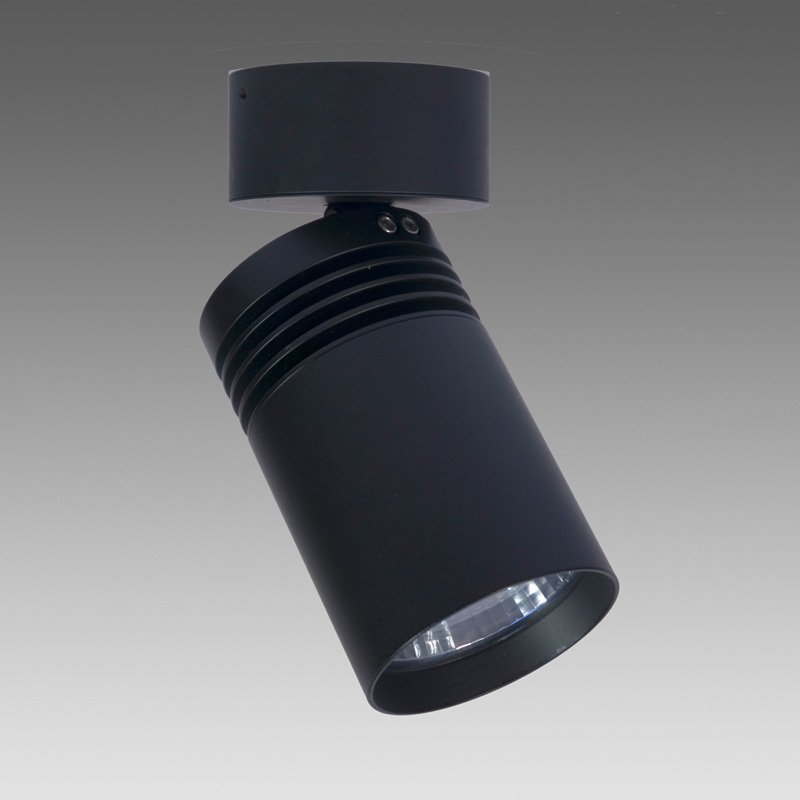

3.5" LED line voltage aimable ceiling mount
FEATURES:
- Up to 28W ceiling mount lighting for architectural down light application.
- Adjustable aiming angle.
- ETL outdoor wet location listed. IP65 standard.
- Machined from solid billet 6061-T6 corrosion resistant aluminum.
- Modular components – field changeable LED module & beam spread reflectors.
- Line voltage input with integral LED driver in fixture housing.
Specifications
Materials

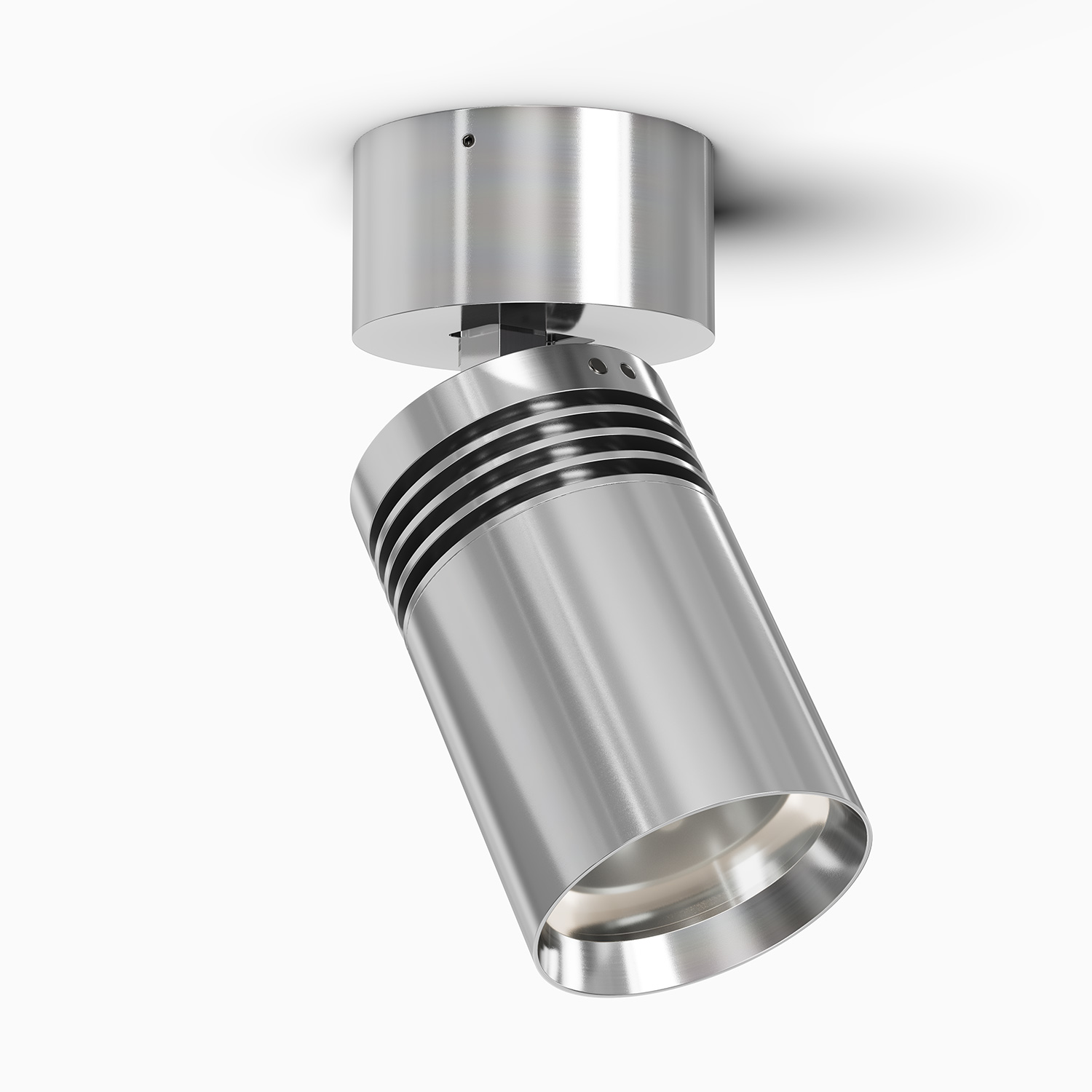

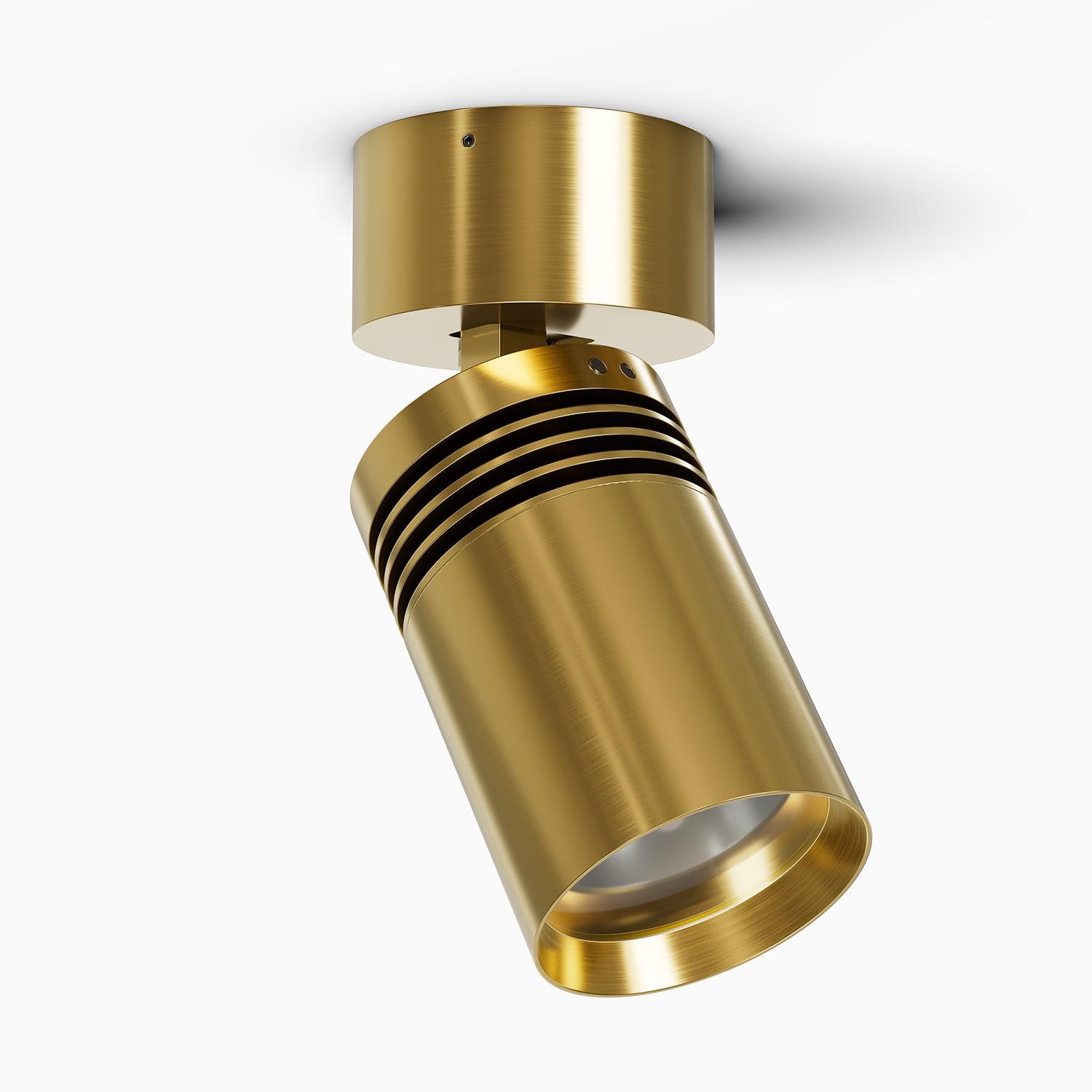

Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.
Voltage
Universal 120V - 277V AC with integral LED driver.
Lamp Base/Socket
Innovative cone-shaped lamp base and receptacle socket maximize the surface contact area to dissipate heat more effectively. See ‘‘Resources’’ for details.
Finish
Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.
Wattage
18W Xicato LED, 21W or 28W Nichia LED, or 17W for AMBER LED.
Optics
Accepts up to 3 accessories (hexcel louver, optical lenses, dichroic color filters, etc.). Secured in place with metal snap ring.
Hood and Glare Shield
3 optional glare shields (short, long, angled) to complement each hood choice.
Light Engine
CRI 83. Available in CRI95 upon request. The chromaticity range is within a 3-step McAdam Ellipse. Standard CCT options are 2700K, 3000K, 4000K, RGBW.
Mounting
Fixture comes with 2 each 8-32 clearance holes. Additional mounting plate can be ordered to install with a recessed ceiling box.
Dimming
Standard with phase dimming @120V or 0V - 10V dimming @120V - 277V. Please consult factory for DALI or DMX control.
