ZXL30i-CAT
Hanging & Catenary • ZX30-CAT Series

ZXL30i-CAT

Hanging & Catenary • ZX30-CAT Series

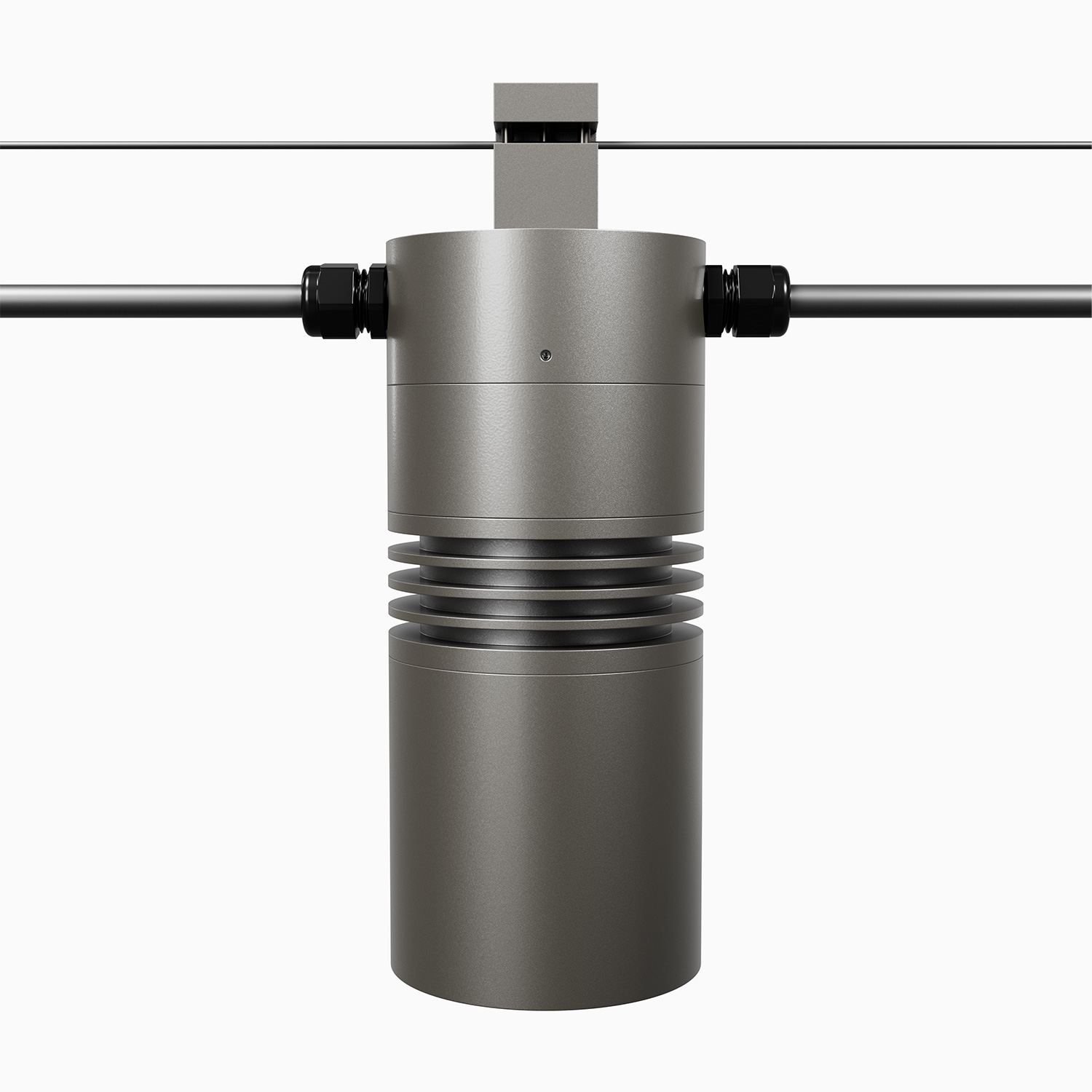

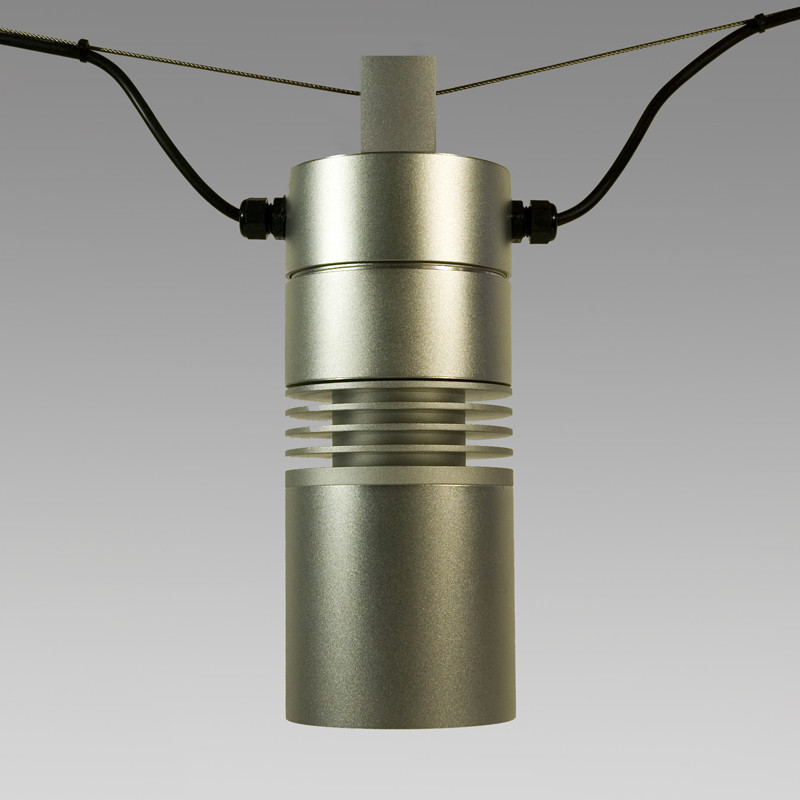

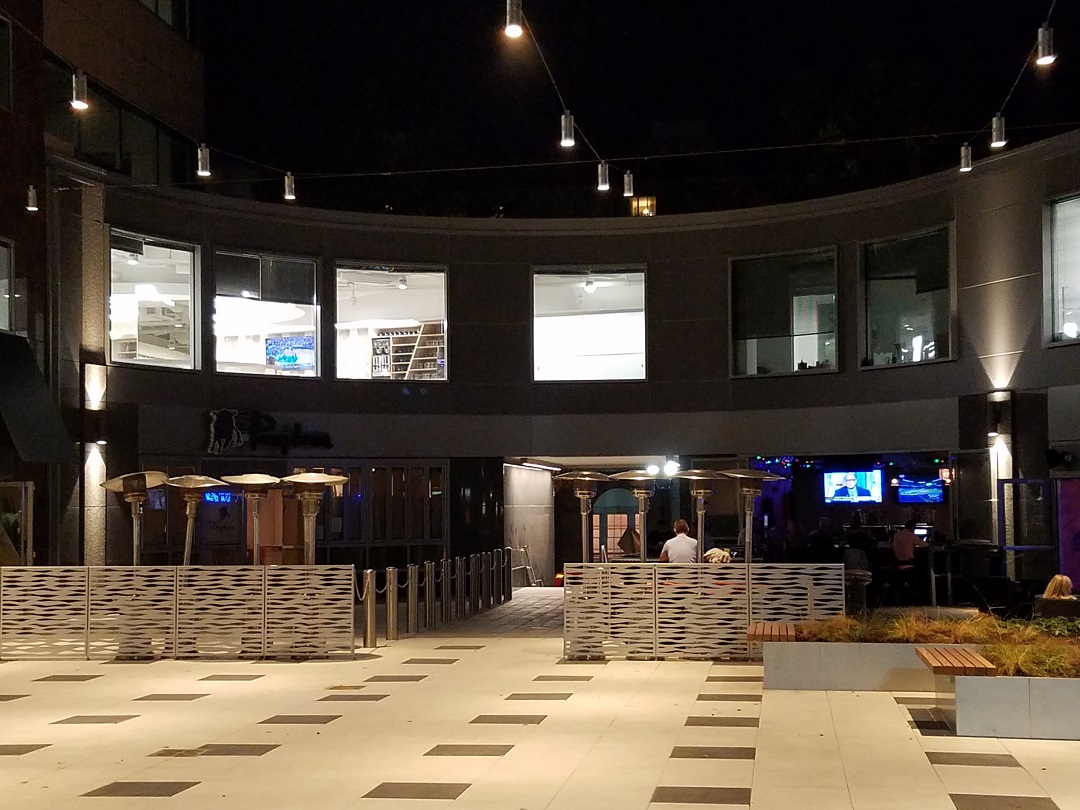

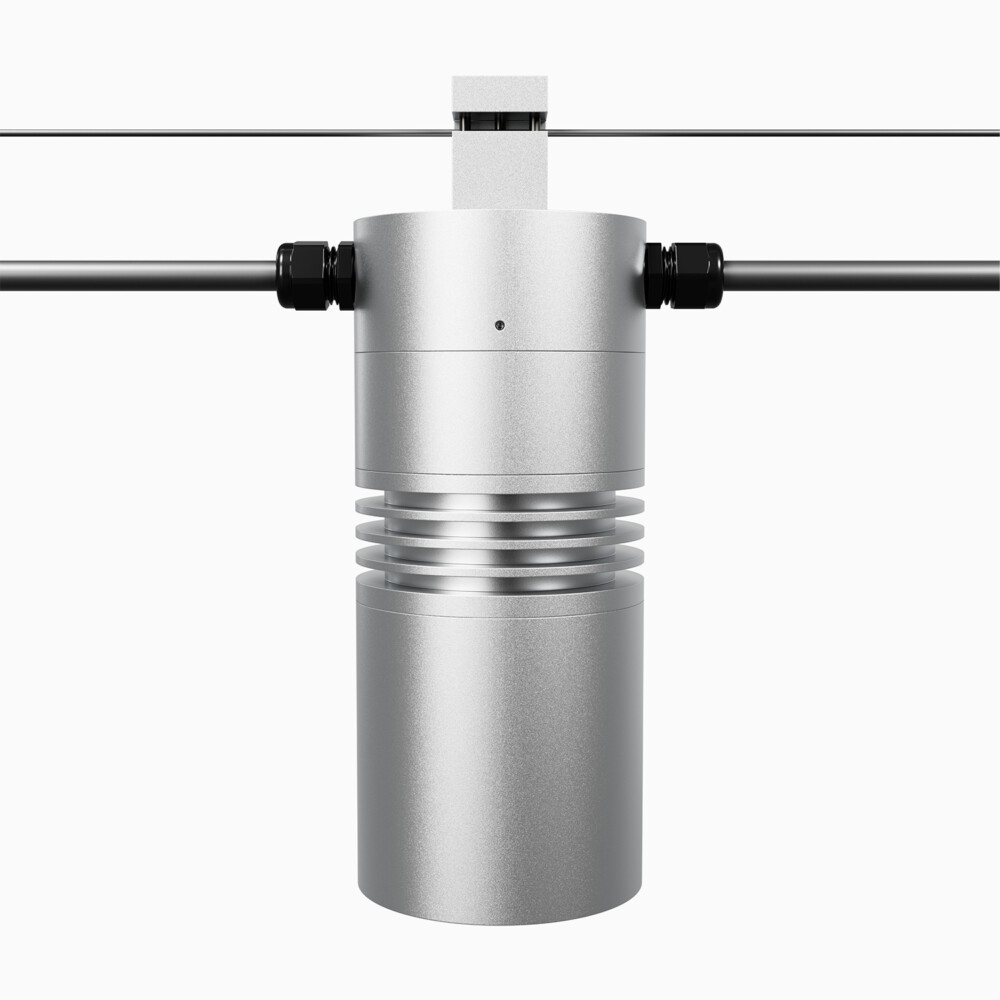

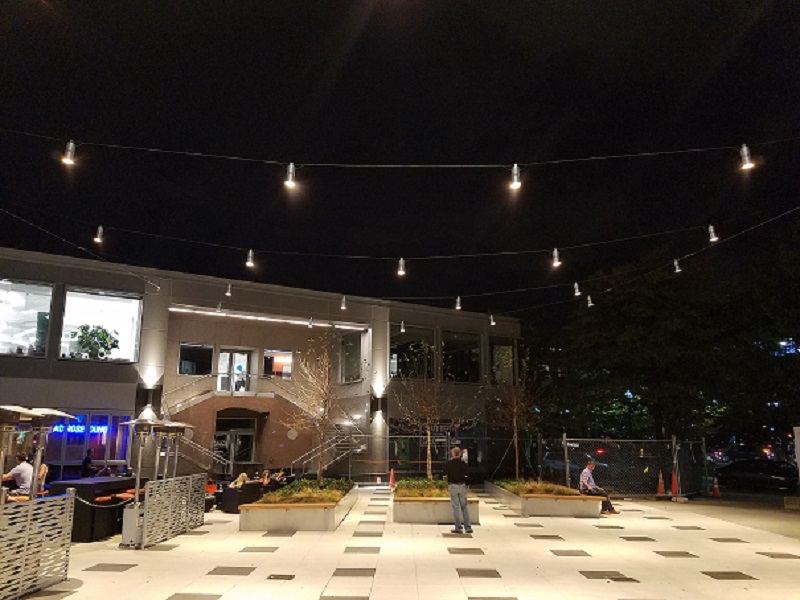

4" LED catenary light

FEATURES:

  • A unique catenary system including fixtures, turnbuckle, suspension cable, power cable for outdoor illumination.
  • Integral weatherproof wiring compartment in fixture body.
  • ETL outdoor wet location listed. IP65 standard.
  • Machined from solid billet 6061-T6 corrosion resistant aluminum.
  • Line voltage input with integral LED driver in fixture housing.
Specifications

Materials

Machined from billet 6061-T6 corrosion resistant aluminum with 304 stainless steel hardware. Available in 304/316 stainless steel or 360 brass upon request.

Voltage

Universal 120V - 277V AC with integral LED driver.

Lamp Base/Socket

Innovative cone-shaped lamp base and receptacle socket maximize the surface contact area to dissipate heat more effectively. See ‘‘Resources’’ for details.

Fixture Weight

6lbs.

Wattage

24W Xicato LED; 28W Nichia LED; 18W AMBER LED.

Mounting

Custom hook mechanism on top of fixture that utilizes set screws to secure fixture(s) on the suspension cable and to lock the position of fixture on the cable.

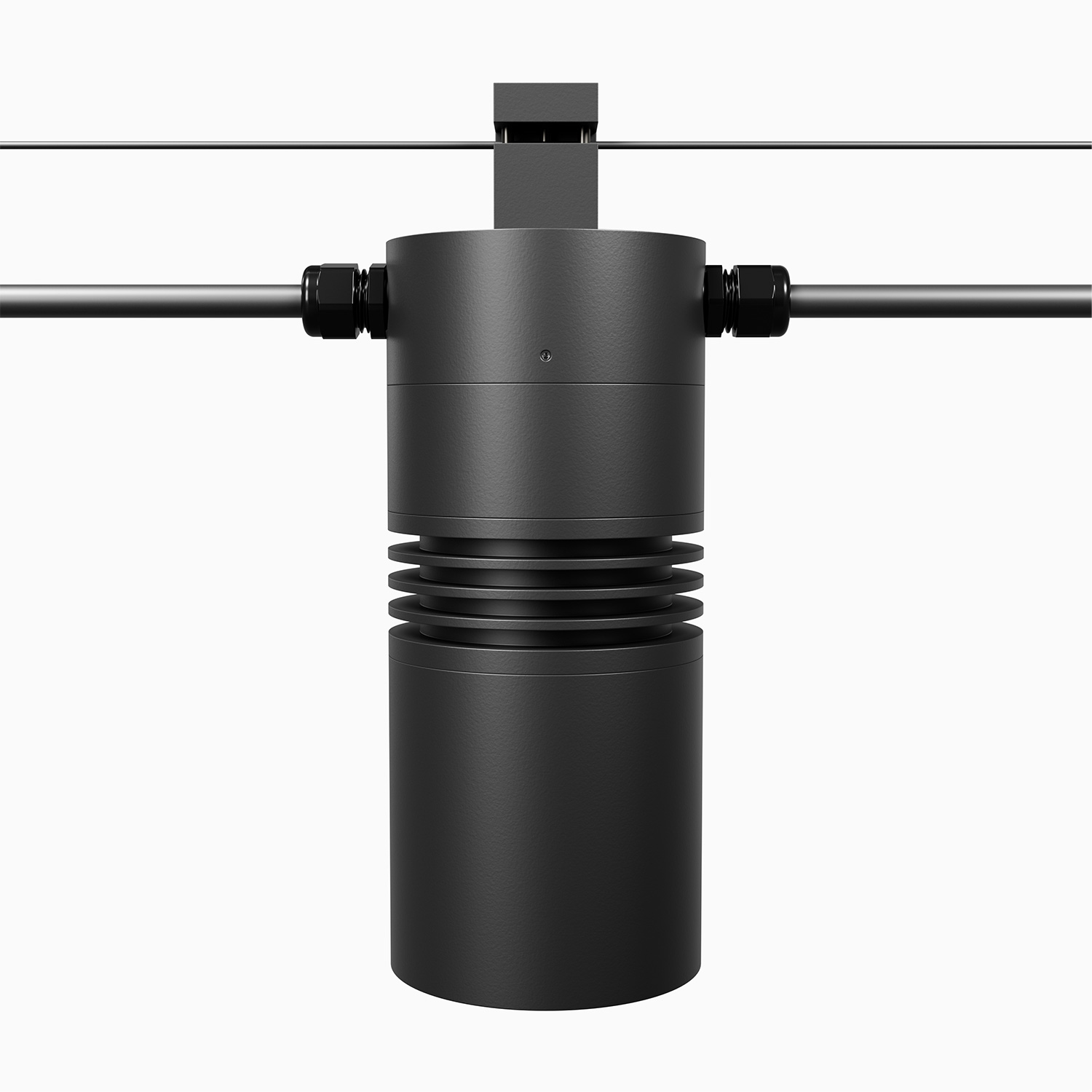

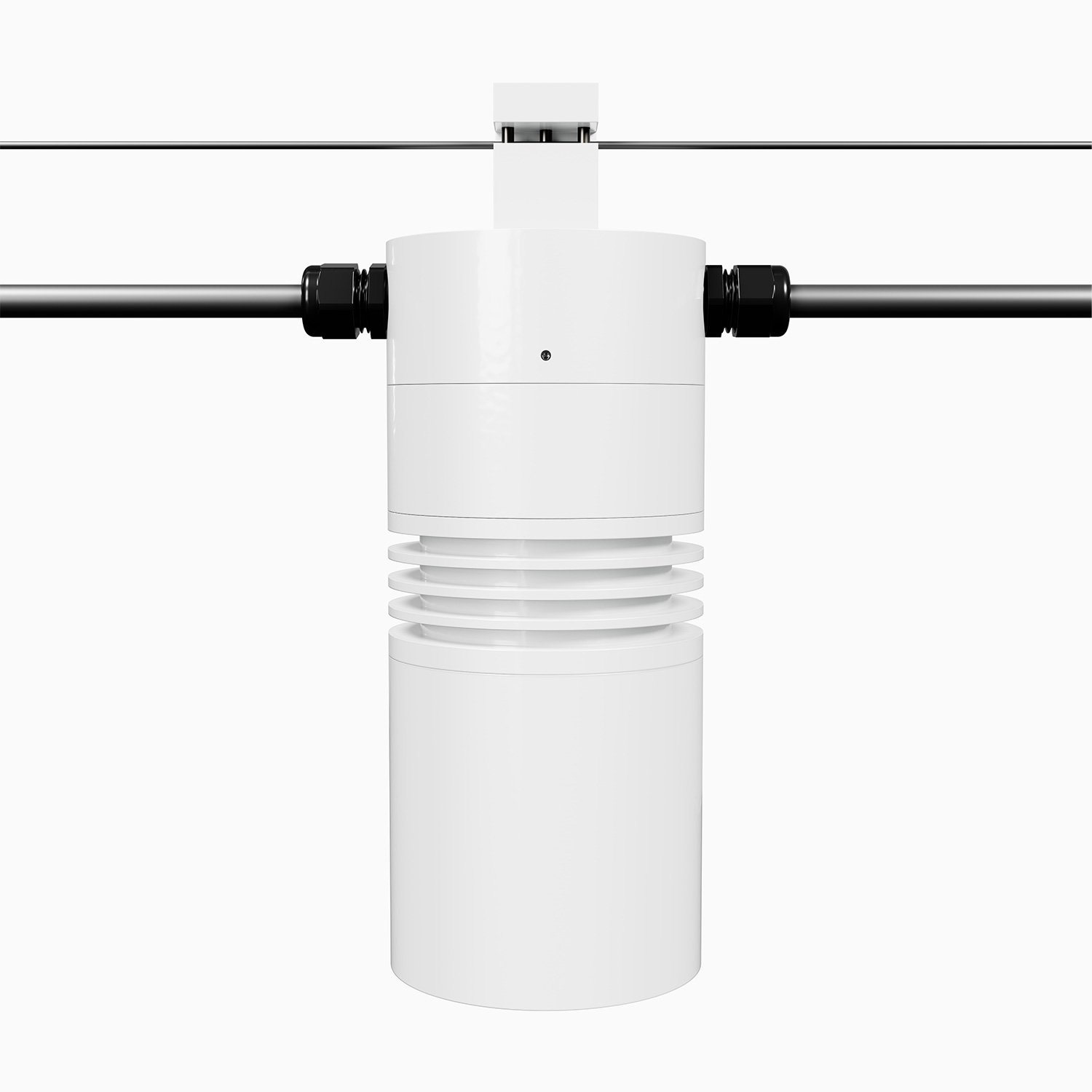

Finish

Polyester powder coat on all aluminum materials with RoHS compliant procedures. Anodized finish is available. Stainless steel and brass models are provided with brushed surface.

Light Engine

CRI 83. Available in CRI95 upon request. The chromaticity range is within a 3-step McAdam Ellipse. Standard CCT options are 2700K, 3000K, 4000K.

Turn Buckle (Optional)

Allows fine tuning of the tension on the support cable, up to 1.50’’ of adjustment.

Glare Shield

3 optional glare shields(GSL-long, GSA-angled GSS-short) for additional glare control. See page 3 of Spec Sheet for details.

Dimming

Standard with phase dimming @120V, 0V - 10V dimming @120V - 277V. Please consult factory for DALI or DMX control.

Power Cable (Optional)

18/3 SJTW cable dia. 0.31” pre-wired.

Suspension Cable (Optional)

7x7 stainless steel wire rope, maximum diameter is 1/4’’, capacity 1200Ibs.

Additional information

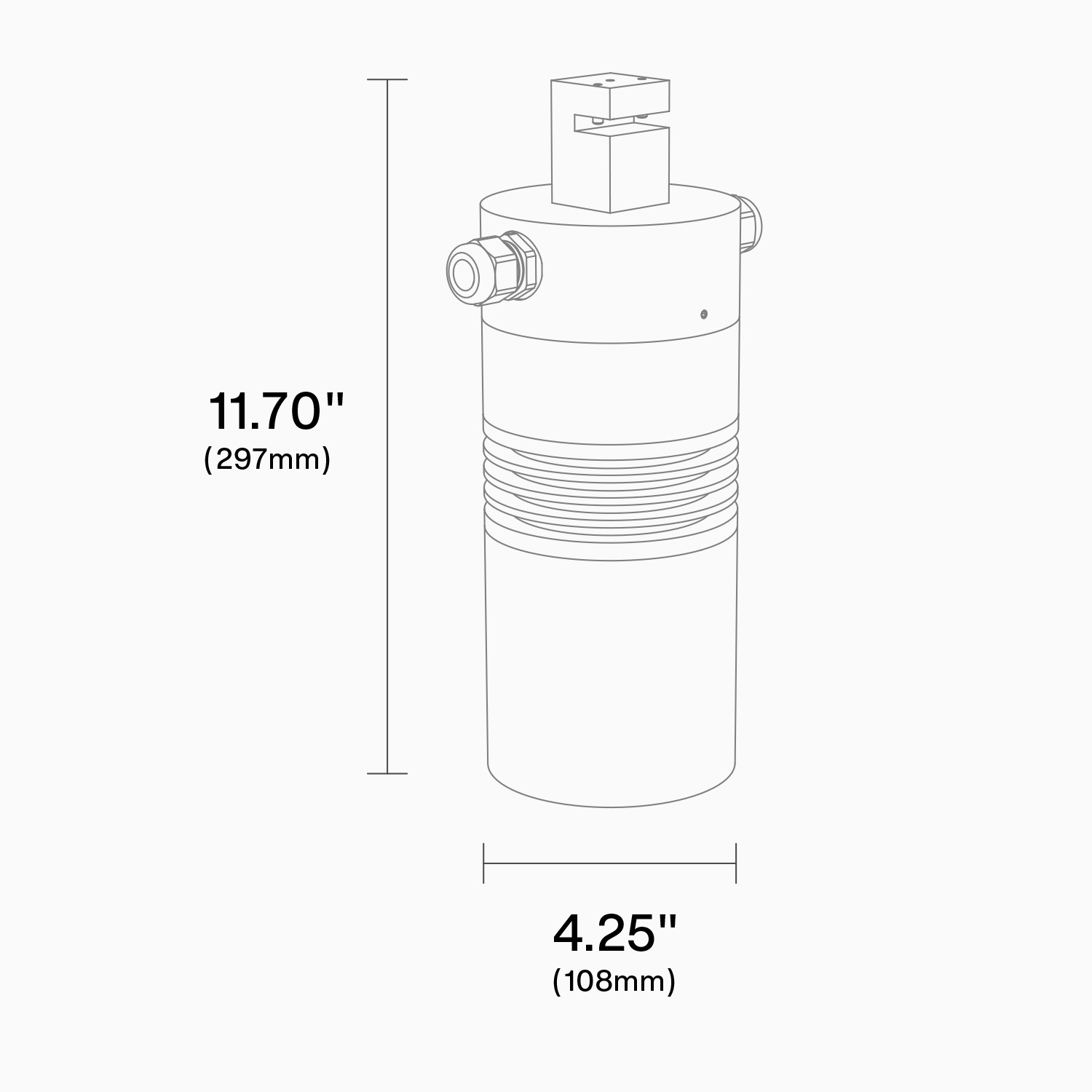

Dimensions 4.25 × 11.7 in
Light Source

,

Shape

Lumen Output

Input Voltage

,

Wattage

Compatible Accessories

GSL

Long

GSA

Angled

GSS

Short

LVR

Hexcel Louver

OSL

Overall Spread Lens

LSL

Linear Spread Lens

SOL

Solite Lens

DCF

Dichroic Filter
